Besa Monorail Kits & Customizable Components

This page has the Monorail Components or Complete Kits on it.
Select from any Besa Monorail Pendants and Monorail Spotlight Elements.

Above: Besa Lighting Monorail shown in Satin Nickel finish with Mica Satin Nickel Quick-Connect Mini Pendant Elements and Monorail Spotlights in Blue glass
Below: Besa Lighting Monorail shown in Satin Nickel finish with Divi 12V Spotlight Elements and Divi Mini Pendant in Dicro glass.

Customize Your Besa Lighting Monorail System

Complete Monorail Kits
LED Kits with everything you need

Two kits are available, with a number of pendant and spotlight options.

Customizable Prepackaged Monorail Kits
Single Circuit Monorail System

Pre-packaged Besa Monorail Kits contain everything you need for most basic installations. Besa Monorail kits have a maximum capacity of 150 watts or 300 watts at 12 volts. The LED kit can support up to 9 elements. Then choose from hundreds of pendant and spotlight options.

A Besa Monorail Kit is perfect if:

  • Your ceiling is only 8 to 10 feet high
  • Your ceiling is level and not sloped
  • You want to add no more than six 50W or eight 35W pendant or spotlight elements
  • Your ceiling box is located where you plan to install the system, so you don't require a remote transformer

Besa Monorail Components
Single Circuit Monorail System

Besa low voltage monorail system can be hand shaped in the field and designed and cut to navigate curves for custom designs. Besa Monorail has a maximum capacity of 600 watts at 12 volts.

Design your rail.

  • Determine what you want to light.
  • Decide where track heads, pendants or both will be placed to direct light where you want it.
  • Design the Monorail run, connecting the lights.

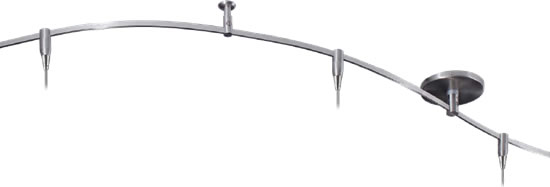

    Monorail can be shaped to follow room architecture or create an organic shape.
    You can sketch out your room on paper. Draw in your lights, then decide how you want to design the track to suspend them.
    You could use string to lay out your design on the floor to determine your length, especially if you have an especially curvy run.

    Rail is available in connectable four or eight foot sections to be bent in the field as needed or used as a straight section. All rail pieces are field-cuttable and bendable.
  • Isolating connectors allow you to switch and dim sections of rail separately.
  • Choose a finish; Satin Nickel or Bronze.

Determine your mounting.

  • Determine how far from the ceiling you would you like your rail to run.
    Besa Monorail can be installed nearly flush to the ceiling or hang up to 60".
  • Rail can be curved horizontally or vertically, to run up and down.
  • Rigid or cable suspensions mount to flat or sloped ceilings using rigid, swivel or adjustable cable standoffs.
  • Use 2 supports per 4 foot section and at least 3 per 8 foot section.
  • The total number of supports depends on the shape of the track layout.
  • The power feed counts as a support.
  • Systems with very unique shapes or many pendants may require additional supports.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from an array of low voltage track heads and pendants.
  • Besa spotlights have a standard stem 1.5" long. For a spotlight with a longer drop, lights can be ordered with a stem length of 6", 12" or 18".
  • Pendants ship with 10' field cuttable cable.
  • Select from any Besa Monorail Pendants and Monorail Spotlight Elements.

Select your transformer.

  • Add up the wattage from the lights you have chosen.
  • Select a visible surface mount transformer or a hidden remote transformer with remote feed canopy.
    • A 60W Low-profile LED surface Monorail Power Supply powers up to (9) 6W LED elements
    • A 150W Electronic Surface Monorail Transformer powers up to (3) 50W or (4) 35W elements
    • A 300W Long Life Magnetic Remote or Surface Monorail Transformer powers up to (6) 50W or (8) 35W elements
    • A 600W Long Life Magnetic Remote Monorail Transformer powers up to (12) 50W or (16) 35W elements

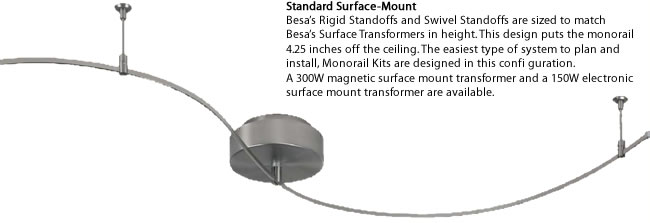

  • Surface mount transformers install directly to a standard junction box.
    Smaller electronic surface mount transformers are well suited for small runs.
    Magnetic surface mount tranformers have a higher wattage capacity.
  • Remote mount magnetic transformers have even larger capacity. They can be installed further away, in an attic or closet.
  • Magnetic transformers minimize any voltage drop potential.
  • Coordinates
    Coordinating Wall Brackets, Wall Sconces, Ceiling Lights and Pendants in a variety of sizes are available.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Besa Lighting Monorail shown in Satin Nickel finish with Divi 12V Spotlight Elements and Divi Mini Pendant in Opal Matte glass.

Pre-Packaged Monorail Kits

Besa 8 Foot Pre-Packaged Monorail Kit

8' low voltage 150W Monorail kit, complete with electronic surface transformer and support hardware. Monorail section is field-bendable without tools.

R12-K08S

  • Compatible with Besa rail-ready spotlights and LED pendants.
  • Transformer canopy installs directly to a 4" octagonal ceiling box.
    All mounting hardware included. Not suitable for sloped ceilings.
  • UL or ETL Listed. Suitable for Dry Locations (interior use only).
  • NOT compatible with LED components, order LED compatible kit below.

Package includes:
1- Eight foot rail section
1- 300W surface-mount magnetic transformer
or
1- 150W surface-mount electronic transformer
3- Rigid Standoffs
2- Rail end caps

  • All mounting hardware included
  • Not suitable for sloped ceiling use
  • Elements ordered separately

8 Ft Kit with 150W Electronic Transformer
R12-K08SA-BR
R12-K08SA-SN

  • 150W electronic transformer supports up to (3) 50W or (4) 35W Besa pendants or spotlights.
  • Besa electronic surface transformers are compatible with low voltage electronic dimmers.

8 Ft Kit with 300W Magnetic Transformer
R12-K08SM-BR
R12-K08SM-SN

  • 300W Magnetic Transformer supports up to (6) 50W or (8) 35W low voltage Halogen elements. Also compatible with Besa LED pendants
  • Besa magnetic surface transformers come standard with an integral debuzzing coil to reduce noise when dimmed.
  • Use only a high-quality low voltage magnetic dimmer.
R12-K08SA-BR Besa 8Ft. Monorail Kit 150W Electronic Transformer Bronze
R12-K08SA-SN Besa 8Ft. Monorail Kit 150W Electronic Transformer Satin Nickel
R12-K08SM-BR Besa 8Ft. Monorail Kit 300W Magnetic Transformer Bronze
R12-K08SM-SN Besa 8Ft. Monorail Kit 300W Magnetic Transformer Satin Nickel

Besa 8 Foot Pre-Packaged LED Monorail Kit

8' low voltage 60W LED Monorail kit, complete with LED surface transformer and support hardware. Monorail section is field-bendable without tools.

R12-K08LE

  • Compatible with Besa rail-ready LED spotlights and LED pendants.
  • Transformer canopy installs directly to a 4" octagonal ceiling box.
    All mounting hardware included. Not suitable for sloped ceilings.
  • UL or ETL Listed. Suitable for Dry Locations (interior use only).

Package includes:
1- Eight foot rail section
1- 60W LED-only surface-mount power supply, 120V or 277V (Supports up to 9x 6W elements)
3- Rigid Standoffs
2- Rail end caps

  • All mounting hardware included
  • Not suitable for sloped ceiling use
  • Elements ordered separately
R12-K08LE-BR Besa LED 8' Rail Kit Bronze
R12-K08LE-SN Besa LED 8' Rail Kit Satin Nickel
R12-K08LE-BR-277 Besa LED 8' Rail Kit Bronze, 277V
R12-K08LE-SN-277 Besa LED 8' Rail Kit Satin Nickel, 277V

Besa Lighting Complete LED Monorail Kits

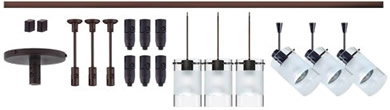

Besa Lighting R12-K08LE-6524 Complete Monorail Kit with LED Scope Spotlights & Pendants

8 Foot 60w LED Scope Spotlight Kit

  • All mounting hardware included
  • Not suitable for sloped ceiling use
  • Non-dimmable
R12 K08LE 6524   Besa LED 8' Rail Kit Scope Spotlights & Pendants¬†
R12 K08LE 6524 277 Besa LED 8' Rail Kit Scope Spotlights & Pendants 277V

Includes:
1- Eight foot rail section
1- 60W LED-only surface-mount power supply, 120V or 277V (Supports up to 9x 6W elements)
3- Rigid Standoffs
2- Rail end caps
6- Rail adapters
6- Tipster spotlights
6- 6W LED MR16 lamps

Scope is a compact cylinder of handcrafted glass. This handcrafted glass uses a process where every glass is consistently produced using an extrusion, keeping variations to a minimum.

Lamping: 6W LED 12V MR16, non-dimmable (included)
Dimensions: 2.375" wide x 4" H
Finishes: Bronze or Satin Nickel

Clear/Frost

Clear/Frost

6524EC Clear/Frost
Clear/Frost glass is a transparent borosilicate glass, with a frosting carefully applied to conceal the light source.



Amethyst/Frost

6524EA Transparent Amethyst / Frost
Transparent/Amethyst is colored transparent blown glass. It gives a light purple glow. Frost glass is colored transparent borosilicate glass with frosting carefully applied to conceal the light source.

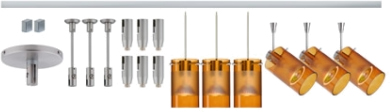

Armagnac/Frost

6524EG Transparent Armagnac / Frost
Transparent/Olive is colored transparent blown glass that gives an amber glow. Frost glass is colored transparent borosilicate glass with frosting carefully applied to conceal the light source.

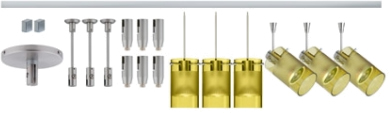

Olive/Frost

6524EL Transparent Olive / Frost
Transparent/Olive is colored transparent blown glass that gives a warm green glow. Frost glass is colored transparent borosilicate glass with frosting carefully applied to conceal the light source.

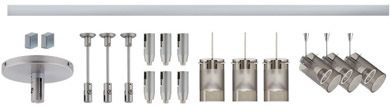

Smoke/Frost

6524ES Smoke/Frost
Smoke is slightly grey transparent blown glass. Frost glass transparent borosilicate glass with frosting carefully applied to conceal the light source.

Either as a complement to 12V mini pendants or employed by themselves,
Besa spotlights are an excellent combination of form & function.

Rail

Besa Monorail Rail Sections

Low profile brass rail is hand-bendable and field-cuttable for a variety of configurations

  • Hand-bendable and Field-cuttable brass rail sections keep their shape yet allow a variety of configurations
  • Low Profile Rail 4 Ft and 8 Ft rail sections are less than half inch tall
  • Bronze and Satin Nickel finishes available
R12-RAIL4-BR Besa 4Ft. Rail Section Bronze
R12-RAIL4-SN Besa 4Ft. Rail Section Satin Nickel
R12-RAIL8-BR Besa 8Ft. Rail Section Bronze
R12-RAIL8-SN Besa 8Ft. Rail Section Satin Nickel


End Cap

Finishes off the end of the rail
R12-NDCAP-BR
R12-NDCAP-SN

R12-NDCAP-BR Besa End Cap Bronze
R12-NDCAP-SN Besa End Cap Satin Nickel

Connectors

Live Rail Connector

Physically & electrically connects two rail sections on same transformer

R12-ICONN-BR Besa Live Rail Connector Bronze
R12-ICONN-SN Besa Live Rail Connector Satin Nickel

Isolating Rail Connector

Physically connects two rail sections, on separate transformers

R12-DCONN-BR Besa Isolating Rail Connector Bronze
R12-DCONN-SN Besa Isolating Rail Connector Satin Nickel

Live L Rail Connector

Physically & electrically connects two rail sections on same transformer at a 90 degree angle

R12-LCONN-BR Besa Live "L" Rail Connector Bronze
R12-LCONN-SN Besa Live "L" Rail Connector Satin Nickel

Mounting

Besa Standoffs make the system easy

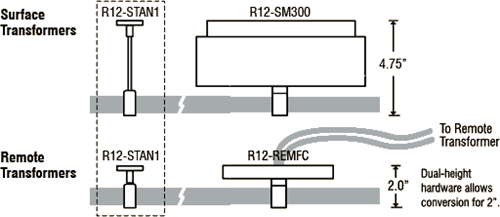

Besa's Rigid Standoff, supplied with dual-height hardware, has been designed to work with ALL Besa power supply options. No need to worry about which parts go with which transformers.

Rigid Standoff

For use with all power supplies.
Includes dual height hardware, for either 2" or 4.75."

R12-STAN1-BR Besa Rigid Standoff Bronze
R12-STAN1-SN Besa Rigid Standoff Satin Nickel

* 2" x Height for use with Remote Feed Canopy



Swivel Standoff

For use on sloped ceilings with all power supplies. Post is field-cuttable for height adjustment.

R12-STAN2-BR Besa Swivel Standoff Bronze
R12-STAN2-SN Besa Swivel Standoff Satin Nickel


Extension Posts

Field-cuttable posts for longer suspensions on Besa standoffs (Rigid or Swivel)

  • For longer suspensions
  • Field-cuttable
  • Works with Besa rigid or swivel standoff
R12-EXT06-BR Besa 6In. Extension Post Bronze
R12-EXT06-SN Besa 6In. Extension Post Satin Nickel
R12-EXT12-BR Besa 12In. Extension Post Bronze
R12-EXT12-SN Besa 12In. Extension Post Satin Nickel
R12-EXT18-BR Besa 18In. Extension Post Bronze
R12-EXT18-SN Besa 18In. Extension Post Satin Nickel

Adjustable Cable

For longer drops, includes 5' of cable.
Recommended for use with minimal curves.
Rail connection includes an Adjustable cable retainer, for ease of use.

R12-CBL60-BR Besa 5Ft. Adjustable Cable Support Bronze
R12-CBL60-SN Besa 5Ft. Adjustable Cable Support Satin Nickel

Besa Lighting Divi Spotlights in Satin Nickel finish on Adjustable Cable Supported Monorail

Surface Mounted & Remote Transformers

Surface Transformers*

Electronic, 150W AC Monorail Transformer
Supports up to 3x 50W spotlights or pendants.
120V input.
Not recommended for LED items
5.5" wide x 3.25" H,
Overall Height with rail connector 4.75"

* Surface Transformers and Remote Feed Canopy include 2' of Flexible Feed Cable (clear, 10 AWG)
