Kichler LED Landscape Lighting

LED fixtures consume approximately 75% less electricity than an incandescent of similar lumens (brightness)

Versatile LED Solutions

Kichler® LED accent lighting helps showcase landscape features with true, clear, warm, white light without intruding on the scene.

  • Pure, Warm White Light
  • Long Life (40, 000 Hours)
  • Optically Engineered to Optimize Light Output
  • Cool Operation
  • Low Energy Consumption
  • Cost Advantages Over the Life of the System
  • EquiTable Light Output Compared to Incandescent
  • Unequalled Range of Product Fixtures
  • Minimal Need for Accessories
  • Compact Sizing
  • Submersible Options

With the addition of eight new models for 2008, Kichler® LED Accent Lights are now available in three wattages, 3-W, 6-W and 9-W and three beam spreads, 10°, 35° and 60°. Unequaled in the industry, this range of wattage and beam spreads allows for customized light planning and selection and reduces the need for cowls.

A selection of mounting options and colored lenses makes these low-profile accent lights totally versatile. Available in long-lasting die-cast aluminum or solid brass housings, this new LED Series features a threaded mounting stem and locking nut and includes an integral driver for ease of Installation.

Use these LED accent fixtures for up or down lighting, to accent detail, staked or flange-mounted for deck and rail lighting.

Kichler Low Voltage LED

Reshaping the way you think about Accent Lighting - LED lighting.

The 8 new LED accent fixtures available in 3 different wattages and 3 varying beam spreads provide choices unequaled in the landscape lighting industry for perfecting the ultimate long lasting professional Installation. LED accent lighting, deck, patio and step lights allow for complete energy efficient installations without compromising the quality of the light output or color temperature. Kichler's light emitting diodes (LED's) use 75% less energy resulting in lower operating costs and a reduction of light pollution in the environment. LEDs also virtually eliminate voltage drop issues. Professional grade housing teams with 40, 000 (approximately 20 years) hours of life before replacement is needed. Kichler LED Landscape Lighting also provides dramatically reduced operating costs, ultimate precision in lighting design and reduced costs in transformers required for the Installation. The new LED will make the neighbors green with envy and the planet green with pride, reshaping the way you think about Accent Lighting.

Kichler LED Light Temperature

The color of light is referred to as its temperature and is measured in Kelvin(K). Most incandescent light ranges between 2600 and 3100 K. At approximately 2800 K, Kichler's LED accent lighting is true, clear, white light. U.S. Patent Pending.

15711SS

Kichler LED Light Emitting Diode Landscape 12-Volt LED 2-in-1 LED Accent 15711SS

15711SS Stainless Steel
15711SS27 Stainless Steel
15711SS42 Stainless Steel

Designed for underwater use in ponds, fountains, and other water features. Can also be used out of water – ideal for wood decks and overhangs.

The Design Pro LED Advantage:

  • More light output than a 10W MR16
  • 40,000 hour life**
  • Filled and sealed with two types of premium encapsulate to ensure fixture is completely watertight*
  • Rugged stainless steel housing – no corrosion or finish deterioration due to UV
  • Tested safe for aquatic wildlife including plants and fish
  • Small footprint – fixture can be tucked into very tight spaces
  • Integrated driver – no remote driver required
  • Competitive price point
  • ETL tested to conform to UL 1838 & CSA C22.2 #250.7
  • 15 Year Warranty on complete fixture including housing, LEDs, drivers and electronic components

Housing: Stainless steel housing with integrated cowl

Light Source: Integrated LEDs and Driver
38.4 lumens per watt as measured at fixture
High CRI (mid 80s) and tight color consistency
3000K color temp (+220/-175)

Power Usage at 12V AC Input
VA Total: 4.9
Watts Total: 3.4

Wiring: 25ft of usable #18-2, SPT-2-W leads

Dimensions: 1.85" x 1.275" x 1.9"

Optional Mounting Accessories available.

15711SS with 15778 BK Underwater Light Accessory

See more choices on a desktop computer or by turning your screen horizontal.

15777 SS Mounting Bracket Accessory

15777SS Stainless Steel

Stainless steel easy mount bracket for use above ground on any surface – ideal for wood and masonry when used on decks, patios or overhangs.

Finish Stainless Steel
Width 1.5" x Height 1.437" x Length 2.5"
UL CSA Listed
Material: Stainless Steel



No remote driver required to operate these LED fixtures

Textured Architectural Bronze finish Die Cast Aluminum

Kichler LED Accent Lights

A full Collection of accent lights engineered to provide the spread of light needed with the amount of lumen output desired.

Constructed in either long lasting die cast aluminum or solid brass housings, this latest LED Series features threaded mounting stems and locking nuts to allow for simple Installation.

Kichler also added integral drivers to each fixture, so there is less equipment to buy or bury.

Housing: Die-cast aluminum or die cast brass with clear tempered glass lens and polycarbonate mounting stem and locknut. Die cast aluminum with hard coat anodized and durable powdercoat finish.

Hexagonal housing — 2" hex by 1- 1/4" deep. Individual accent light fixtures have 25 feet of #18-2 direct burial lead wires. Multi-packs have 25 feet of #18-2 direct burial lead wire and 12 feet of #18-2 direct burial wire between each fixture.

Orbital stem for directional control, with brass tightening screw.

Finish: Textured Architectural Bronze, Textured Black or Bronzed Brass
Wiring: 24' of usable #18-2, SPT-1-W leads. Cable connector supplied with fixture.
Light Source: Illumination provided by integrated LED chips.
Body Material: Aluminum or Brass

Optional Mounting Accessories
15601 - Surface Mounting Flange
15607 - Tree/Surface Mounting Bracket

Separate driver is NOT required with this Series.
Wire to typical low-voltage transformer.

15731, 15732, 15741, 15742, 15743, 15751, 15752, 15753 LED Light Emitting Diode Accent Lights are available in Textured Architectural Bronze or Textured Black finish on Aluminum Body and Bronzed Brass on Brass Body

5 year limited warranty.

Textured Black finish Die Cast Aluminum

Ordering Guide

4.5 Watt 10° Spread

15731AZT Textured Architectural Bronze
15731BBR Bronzed Brass
15731BKT Textured Black

15731 AZT - Textured Architectural Bronze, Aluminum
15731 BBR - Bronzed Brass, Brass
15731 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

4.5 Watt 35° Spread

15732AZT Textured Architectural Bronze
15732BBR Bronzed Brass
15732BKT Textured Black

15732 AZT - Textured Architectural Bronze, Aluminum
15732 BBR - Bronzed Brass, Brass
15732 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

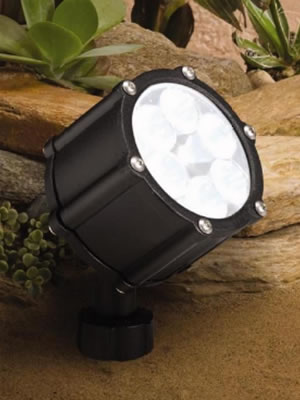

8.5 Watt 10° Spread

15741AZT Textured Architectural Bronze
15741BBR Bronzed Brass
15741BKT Textured Black

15741 AZT - Textured Architectural Bronze, Aluminum
15741 BBR - Bronzed Brass, Brass
15741 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

8.5 Watt 35° Spread

15742AZT Textured Architectural Bronze
15742BBR Bronzed Brass
15742BKT Textured Black

15742 AZT - Textured Architectural Bronze, Aluminum
15742 BBR - Bronzed Brass, Brass
15742 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

8.5 Watt 60° Spread

15743AZT Textured Architectural Bronze
15743BBR Bronzed Brass
15743BKT Textured Black

15743 AZT - Textured Architectural Bronze, Aluminum
15743 BBR - Bronzed Brass, Brass
15743 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

12.4 Watt 10° Spread

15751AZT Textured Architectural Bronze
15751BBR Bronzed Brass
15751BKT Textured Black

15751 AZT - Textured Architectural Bronze, Aluminum
15751 BBR - Bronzed Brass, Brass
15751 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

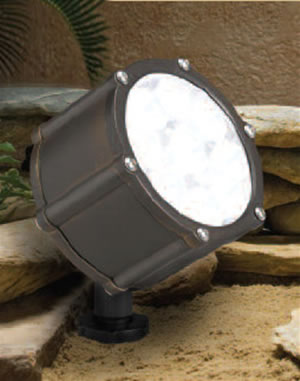

12.4 Watt 35° Spread

15752AZT Textured Architectural Bronze
15752BBR Bronzed Brass
15752BKT Textured Black

15752 AZT - Textured Architectural Bronze, Aluminum
15752 BBR - Bronzed Brass, Brass
15752 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

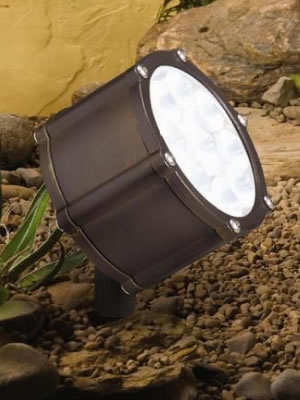

12.4 Watt 60° Spread

15753AZT Textured Architectural Bronze
15753BBR Bronzed Brass
15753BKT Textured Black

15753 AZT - Textured Architectural Bronze, Aluminum
15753 BBR - Bronzed Brass, Brass
15753 BKT - Textured Black, Aluminum

See more choices on a desktop computer or by turning your screen horizontal.

Bronzed Brass finish Solid Brass

No remote driver required to operate these LED fixtures

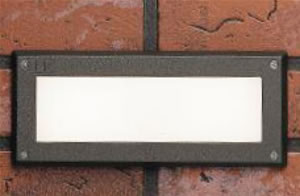

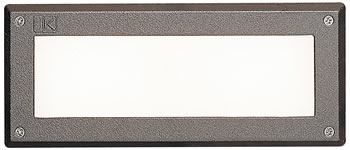

Kichler Deck LED 2W Glass Lens Brick Landscape Light 15774AZT

Kichler Deck LED 2W Glass Lens Brick Landscape Light 15774AZT

15774AZT LED Textured Architectural Bronze

Designed to be integrated into a brick wall during construction. LED version is also usable in vertical risers. Casts a low, even spread of energy efficient LED light.

No remote driver required to operate these LED fixtures

Finish: Textured Architectural Bronze
Height 4" x Length 3.76" x Width 9.5"

Housing: Die cast aluminum with a fully sealed heat-resistant glass lens
Wiring: Wire connection must be made inside junction box.
Light Source: Illumination provided by integrated 3.2-Watt LED chips
Voltage: 12
Diffuser Description: Tempered Soda Lime Glass, Frosted on one side
Body Material: Aluminum

UL CSA Listed

No remote driver required to operate these LED fixtures

Kichler 1-Watt LED Deck Light 15763TZT

Kichler 15763TZT 1-Watt LED Deck Light

15763TZT Textured Tannery Bronze
15763TZT27 Textured Tannery Bronze

LED Decorative Hammered Roof Accent Light Traditional designed pierced shade and scalloped edge combines with the energy efficient benefit of LED technology.

No remote driver required to operate these LED fixtures

Finish: Textured Tannery Bronze, Hand Painted
Height 3" x Length 1.86" x Width 3.5"

Housing: Pierced brass shade with stainless steel mounting bracket
Wiring: 72" of usable #18-2, SPT-1-W leads. Cable connector supplied with fixture.
Extra Lead 71"
Light Source: Illumination provided by integrated 1.9-Watt LED chips
Voltage: 12
Body Material: Brass

UL CSA Listed



See more choices on a desktop computer or by turning your screen horizontal.
