WAC InvisiLED Wiring and Mounting Accessories

WAC InvisiLED Mounting and Wiring Accessories

Indoor Controller, Indoor Electrical Accessories, Cables and Connectors
Compatible with WAC InvisiLED Pro, Pro2, Pro3, LITE and Classic

InvisiLED Indoor Controller

WAC Touch On/Off & Occupancy Motion Sensor
Control Kit for any Low Voltage System
12 Volt or 24 Volt Capacitive Touch Switch and Occupancy Sensor

CT-6A-R2 Touch On/Off and Motion Detector Occupancy Sensor Controller

  • Input: 12/24 VAC/DC
  • Touch switch turns the luminaire on/off manually while the TOUCH Only touch switch, inactivate motion sensor. SENSOR Only motion sensor, inactivate touch switch.
  • Motion sensor turns it off when the space is vacant.
    Maximum time delay is 20 minutes.
    Minimum is 10 seconds.
  • Built-in adjustable timer on motion sensor allows automatic shut off after the sensor covered area is vacated.
  • Motion sensor supplied with 18ft wire.
    Touch panel supplied with 8ft wire. May be cut to desired length. Lengthening of wire is not recommended as will decrease sensitivity.
  • Two different mounting options (screw or double sided tape mounting) for all undercabinet application included. Choose appropriate mounting option for rough, smooth and curved surfaces
  • Designed for indoor undercabinet application. Recommended ambient temperature is 14° to 122° F (-10° to 50°C)
  • Can be mounted on ceiling or wall in all orientations

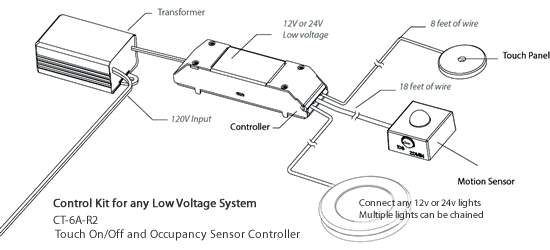

CT-6A-R2 Touch On/Off and Occupancy Sensor Controller
Control Kit for any Low Voltage System
12 Volt or 24 Volt Capacitive Touch Switch and Occupancy Sensor

Three Custom Settings of Lighting Control

Touch and Sensor: Touch panel turns the luminaire on/off manually while the motion sensor turns it o when the space is vacant
Touch: Touch panel turns the luminaire on/off manually
Sensor: Motion sensor turns the luminaire on/off autonomously

  • Touch Panel: Touch to switch on/off
  • 12V or 24V Low Voltage
  • Motion Sensor Detects within 16 foot range
    Integral light off timer can be set between 10 seconds and 20 minutes to shut off after last detection of motion
  • Includes a Touch Panel, an Occupancy Sensor, and a Controller
    AC/DC input at 12V (60W Max) or 24V (96W Max)
    Connect on secondary side of driver/transformer

InvisiLED Indoor Electrical Accessories

In Wall Rated Extension Cable

Extends distance between a hard wired power supply or a wiring box to a tape section.

LED-TC-WEXT-144 Black 12 ft
LED-TC-WEXT-144-WT White 12 ft
LED-TC-WEXT-240 Black 20 ft
LED-TC-WEXT-240-WT White 20 ft
  • Input: 24 VAC/DC
  • Extends distance between a hard wired power supply or a wiring box to a tape section.

In Wall Rated Joiner Cable

Connects tape sections. 2 female ends.
1 male to male connector included

LED-TC-WIC-144 Black 12 ft
LED-TC-WIC-144-WT White 12 ft
LED-TC-WIC-240 Black 20 ft
LED-TC-WIC-240-WT White 20 ft
  • Input: 24 VAC/DC
  • Connects tape sections. 2 female ends
  • 1 male to male connector included

Lead Wire

Alternative lengths for plug-in power supplies

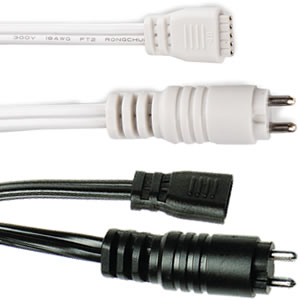

LED-TC-P-2 Black 2 ft
LED-TC-P-2-WT White 2 ft
LED-TC-P-12 Black 12 ft
LED-TC-P-12-WT White 12 ft
  • Input: 24 VAC/DC
  • Alternative lengths for plug-in power supplies
  • Can be mounted on ceiling or wall in all orientations

Extension Cable

Extends distance between a hard wired power supply
or a wiring box to a tape section

LED-TC-EXT-144 Black 12 ft
LED-TC-EXT-144-WT White  12 ft


Low Voltage Wiring Box With Feed

Neatly houses connections for up to two wires with 12" female feed

LED-TC-B-2 Black
LED-TC-B-2-WT White

1 1/2" long x 3/4" wide x 7/8" high



Low Voltage Wiring Box

Neatly houses connections for up to two wires

LED-T-B

1 1/2" long x 3/4" wide x 7/8" high



Wiring Box with Switch

Use when spanning a large gap in a system layout without leaving exposed wiring. Optional switch included

TB-S

6 1/4" long x 1 5/8" wide x 1 1/4" high



Joiner Cable

Connects tape sections

LED-TC-IC2 Black 2 in
LED-TC-IC2-WT White 2 in
LED-TC-IC6 Black 6 in
LED-TC-IC6-WT White 6in
LED-TC-IC12 Black 12 in
LED-TC-IC12-WT White 12 in
LED-TC-IC36 Black 36 in
LED-TC-IC36-WT White 36 in
LED-TC-IC72 Black 72 in
LED-TC-IC72-WT White 72 in
  • Input: 24 VAC/DC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations

Male to Male Connector

LED-TC-MM
Male to Male 5-pin Connector for InvisiLED 24V Tape Light (Pack of 50)

Black 50 Qty



3-Way "Y" Connector

Connects tape sections

LED-TC-Y Black
LED-TC-Y-WT White
  • Input: 24 VAC/DC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations


4-Way "X" Connector

Connects tape sections

LED-TC-X Black
LED-TC-X-WT White
  • Input: 24 VAC/DC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations


"L" Connector

Connects tape sections

LED-TC-L Black
LED-TC-L-WT White
  • Input: 24 VAC/DC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations


End Cap

1 cut and 1 male end cap

LED-TC-EC Black
LED-TC-EC-WT White
  • Input: 24 VAC/DC
  • 1 cut and 1 male end cap
  • Can be mounted on ceiling or wall in all orientations

Indoor Mounting Accessories

InvisiLED Clip

LED-T-CL 10 pcs 10 Screws

For surfaces that are difficult to adhere



InvisiLED Curve Clip

LED-T-CL1
10 Clips, 10 Screws

Secures on one edge

  • Runs over an indoor tape to secure the angled tape
  • Includes 10 pieces, 10 screws
  • Can be mounted on ceiling or wall in all orientations

Rated for Damp Locations



InvisiLED Aluminum Retrofit Channel

LED-T-RC
3 feet

Can be bent to create  fixed curves or used as a glare shield

  • Can be bent to create fixed curves
  • Can be mounted on ceiling or wall in all orientations

Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette



InvisiLED Clear Channel

LED-TO24-CH5 5 feet

  • Rigid, non-flexible channel for mounting to a straight, solid surface
  • Dimension: 60" length, 5/8" width, 1/4" height
  • Can be mounted on ceiling or wall in all orientations

Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette

Indoor Aluminum Channels

InvisiLED Aluminum Channel

LED-T-CH
Aluminum Channel
5 feet

  • Includes a diffuser, two end caps, and five screws
  • Can be mounted on ceiling or wall in all orientations

LED-T-CH-EC
Additional End Caps
2 pcs

Diffuses light from InvisiLED tape
Includes a diffuser, two end caps, and  five screws
Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette

Compatible with all Damp Rated InvisLED Tape Systems



InvisiLED Deep Aluminum Channel
InvisiLED 5ft Field Cuttable Aluminum Surface Mounted Deep Channel

LED-T-CH1
Deep Aluminum Channel
5 feet

  • Includes a diffuser, two end caps, and five screws
  • Can be mounted on ceiling or wall in all orientations

LED-T-CH1-EC
Additional End Cap
2 pcs

Eliminates visible hot spots
Includes a diffuser, two end caps, and five screws
Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette

Compatible with all Damp Rated InvisLED Tape Systems



InvisiLED 45° Angled Aluminum Channel
InvisiLED 5ft Field Cuttable Aluminum Surface Mounted Angled Channel

LED-T-CH2
45° Angled Aluminum Channel
5 feet

  • Includes a diffuser, two end caps, and five screws
  • Can be mounted on ceiling or wall in all orientations

LED-T-CH2-EC
Additional End Caps
2 pcs

Includes a diffuser, two end caps, and five screws
Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette

Compatible with all Damp Rated InvisLED Tape Systems



InvisiLED Adjustable Aluminum Channel Clip

LED-T-CL2-PT

Includes 2 pieces, 4 screws.
Use to mount Aluminum Channel, Deep Aluminum Channel, 45° Angled Aluminum Channel

  • Used to mount any aluminum channel
  • Adjusts 50° from center either way
  • Includes 2 pieces, 4 screws
  • Can be mounted on ceiling or wall in all orientations

Rated for Damp Locations



InvisiLED Fixed Aluminum Channel Clip

LED-T-CL3-PT

Includes 2 pieces, 4 screws.
Use to mount Aluminum Channel, Deep Aluminum Channel, 45° Angled Aluminum Channel

  • Used to mount any aluminum channel
  • Includes 2 pieces, 4 screws
  • Can be mounted on ceiling or wall in all orientations

Rated for Damp Locations

Recessed Channel
May be mounted in ceiling or wall in any orientation

WAC Lighting Linear Recessed Channels

Specialty recessed LED technology offers creative options for lighting spaces architecturally, decoratively, and to increase functionality of the space. WAC Lighting offers specialty recessed LED lighting products for accent lighting, general lighting, and customization for various architectural applications.

Use Tape Light to create unique recessed lighting.


See more choices on a desktop computer or by turning your screen horizontal.
