Holtkotter (Holtkoetter) "Pharmacy" Lamps

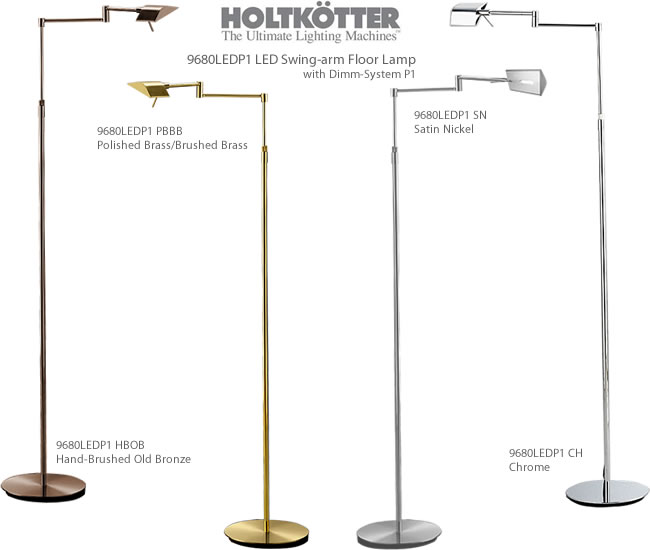

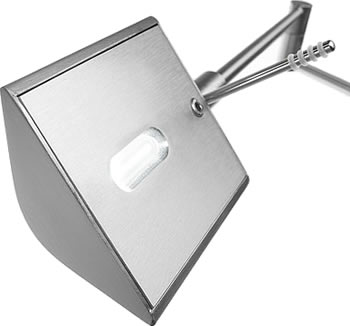

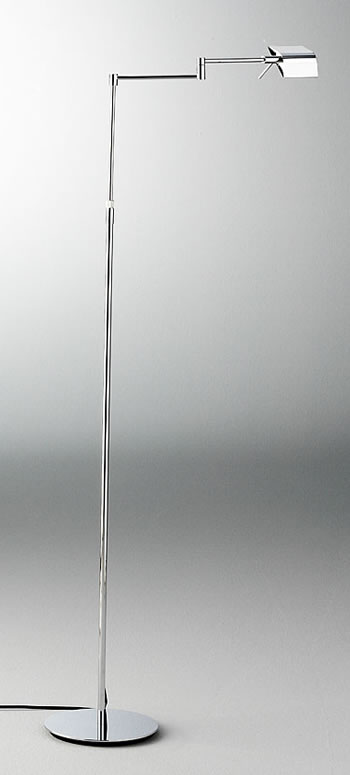

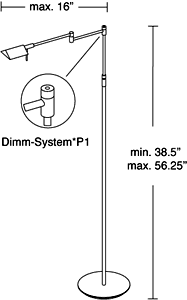

Holtkotter (Holtkoetter) 680LEDP1 LED Chairside Reading Lamp - LED swing-arm floor lamp with Dimm-System P1

Holtkotter's 680LEDP1 LED swing-arm Chairside Reading Lamp with Dimm-System P1 incorporates the leading edge dimming technology from Holtkötter International, Inc. The "Dimm-System Punkt 1", Dimming System Point 1 *P1 is specifically designed to provide specialized features for ease and convenience of use.

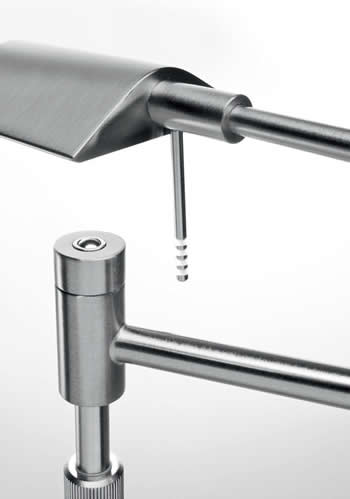

Features of Dimm-System *P1

Point Dimming: the dimming control is reduced to a single point on the arm of the lamp

Soft On: a single "click" will turn the lamp on -- the lamp gradually brightens to full brightness

Soft/Delayed Off: a single "click" will turn the lamp off -- the lamp dims to 60% brightness, remaining at that level to allow you to exit the room; then the lamp gradually turns itself off

Dimming Cycle: press and hold the dimmer down -- the lamp will cycle through all the dimming levels -- release the dimmer when the lamp reaches the light level of your choice

Technical Specifications

• Light Engine: Holtkötter Bridge Board LED 11-1 with 1x Citizen LED
• Optic / Reflector: Holtkötter Aluminum Reflector
  63 x 76 mm with 60° Optics
• Light Output: 440 Lumens equivalent to 40 W Halogen
• Light Color: 2900 Kelvin
• Control/LED Driver/Dimmer: Holtkötter Dimm-System*P1 LED with full-range dimming of <0.1% - 100%
• Maximum Current/Voltage: 500mA & 7V
• System Power Consumption: 3.5 Watts

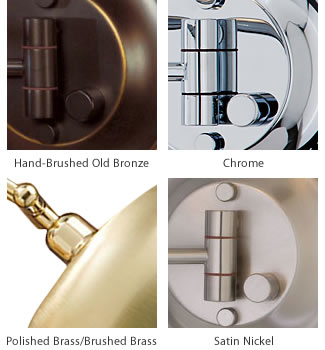

Finish Options:
Hand-Brushed Old Bronze
Polished Brass/Brushed Brass
Chrome
Satin Nickel

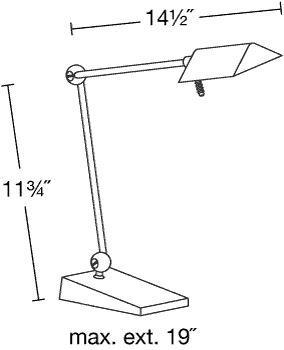

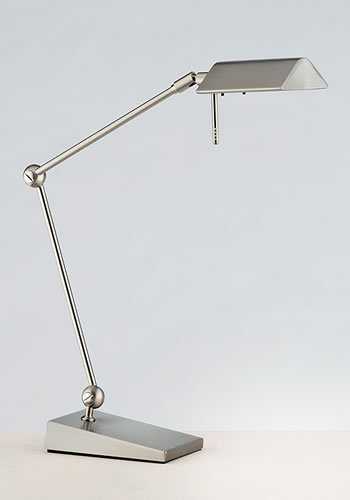

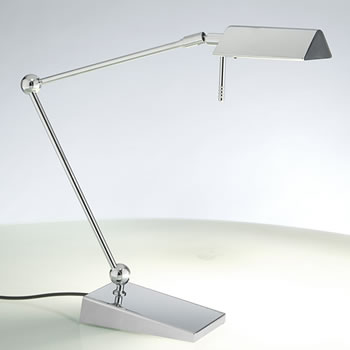

Holtkotter 9603LED Color-Blend LED Table or Desk Lamp

• 9603LED HBOB Hand-Brushed Old Bronze
• 9603LED CH Chrome
• 9603LED SN Satin Nickel

Two-Tone LED swing-arm table lamp provides the user with a range of color temperatures to choose from, blending the color temperatures from 3000K (warm white for normal tasks) to 5000K (cool white for high-detail tasks).

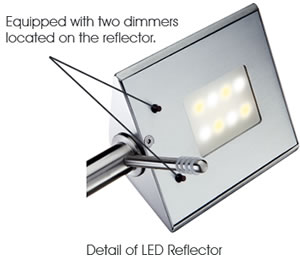

Separate dimmers control each color temperature. The LEDs at 3000K have a maximum output of 424 Lumens and the LEDs at 5000K have a maximum output of 536 Lumens, with a combined maximum output of 960 Lumens.

Technical Specifications

• LED: 8x LED
• System Power Consumption
  8 Watts
• Light Output: 424 / 536 Lumens equivalent to 60 W Halogen
• Light Color: 3000 / 5000 Kelvin - CRI 80+
• Control/LED Driver/Dimmer: Holtkötter Dimm-System LED with dual full-range dimming of <0.1% - 100%

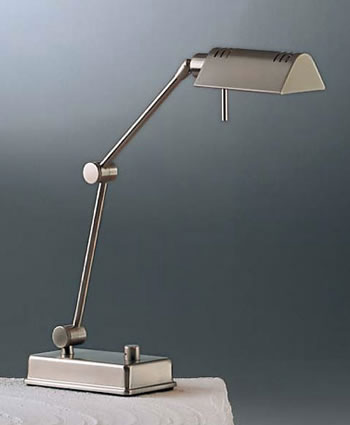

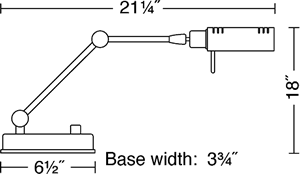

Holtkotter (Holtkoetter) 8346 Halogen Piano Lamp

8346 HBOB Hand-Brushed Old Bronze
8346 AB Antique Brass
8346 SN Satin Nickel

Holtkoetter's adjustable table lamp is suitable as a piano light and for many other lighting situations. Equipped with a full-range turn-knob dimmer and lit with a 100 watt halogen bulb by Osram.

100 watt Halogen Line Voltage
9250*100-DC/CL
B15d100 W
1500 lm 2900 K2000 h

Holtkotter "Pharmacy" Lamps >

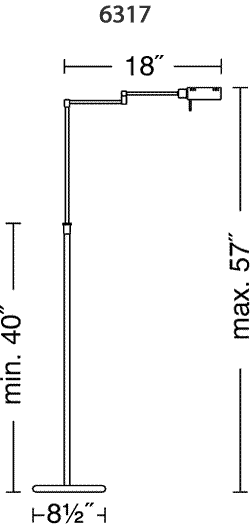

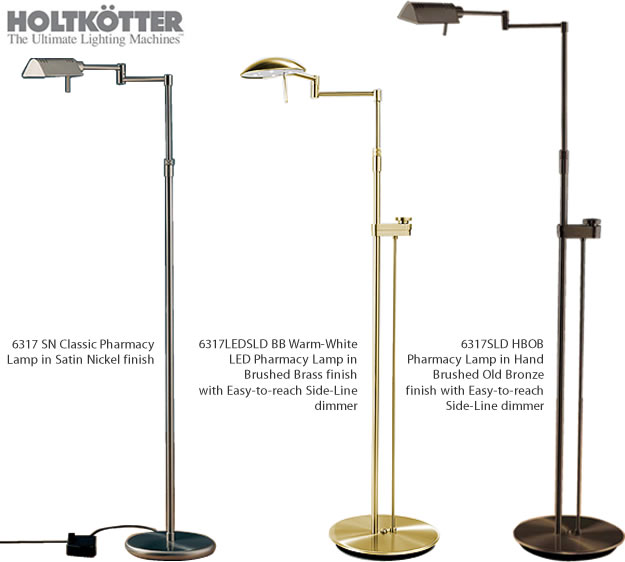

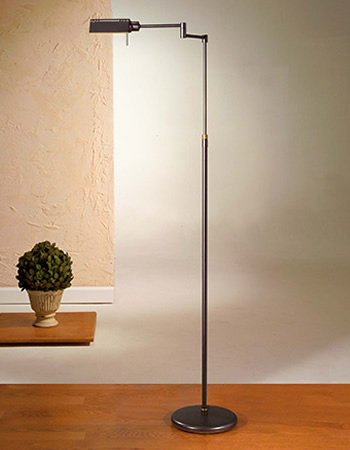

Holtkotter (Holtkoetter) 6317, 6317SLD, 6317LEDSLD "Das Original" Swing Arm Floor Lamp

6317
Base: 8.5" x Height 40" to 57"
Extension 18"

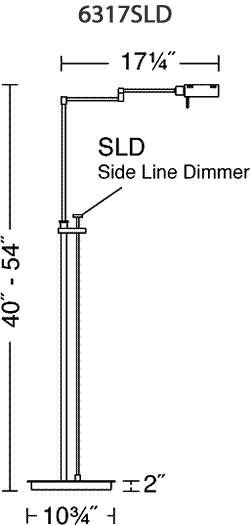

6317 SLD
With side-line dimmer
Base: 10.75" x Height 40" to 5Extension 4" 17.25"

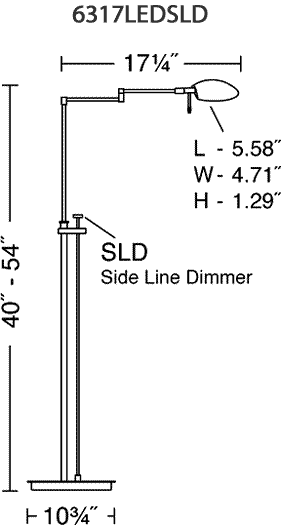

6317 LED SLD
LED with side-line dimmer
Base: 10.75" x Height 40" to 5Extension 4" 17.25"

The 6317 Original Halogen Pharmacy Lamp is Holtkotter's most popular reading lamp (for over 10 years!) It can be adjusted vertically from 40" to 57" and has an arm Extension of 6" to 18". It comes equipped with a foot dimmer and 100 watt halogen bulb by Osram.

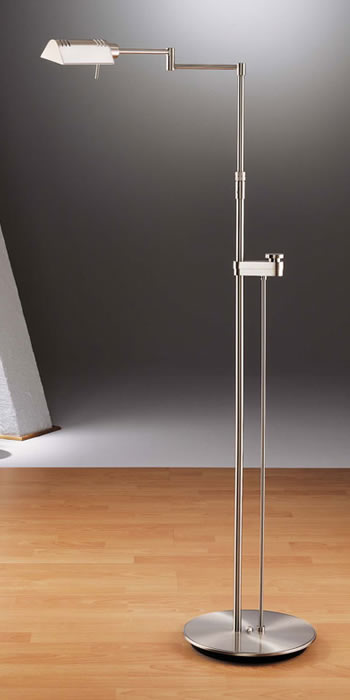

The 6317 SLD features a side-line dimmer encased in a precision-milled housing, a stand-straight feature, a quick connect feature and an integrated porcelain socket design. It is fully adjustable from 40-54" high, with a maximum horizontal Extension of 17 inches.

Holtkotter's 6317 LED SLD Floor Lamp with Side-Line Dimmer has all of the advantages of the side-line dimmer combined with advanced LED technology. This LED Chairside Reading lamp provides 1300 Lumens while consuming a maximum of 13 Watts. Fully adjustable from 40-54" high, with a maximum horizontal Extension of 17" , so you can place the warm-white LED light directly where needed. A precision-milled housing encases the easy-to-reach Side-Line dimmer.

• Hand Brushed Old Bronze
• Antique Brass (not available in LED)
• Brushed Brass (not available without Side-Line dimmer)
• Satin Nickel

Halogen Line Voltage: 9250*100-DC/CL
B15d100 W1500 lm2900 K2000 h

LED

• Light Engine: Holtkötter PC Board LED 11-8 with 8x CREE XP-G LEDs
• Optic / Reflector: Holtkötter Aluminum Reflector ⌀ 134x100 with 60° x 5mm Optics
• Light Output: 1300 Lumens equivalent to 80W Halogen
• Light Color: 2900 Kelv"CRI 90
• Control/LED Driver/Dimmer: Holtkötter Dimm-System LED with full-range dimming of <0.1% - 100%
• Maximum Current/Voltage: 1000mA & 13V
• System Power Consumption: 2 . . .13 Watts

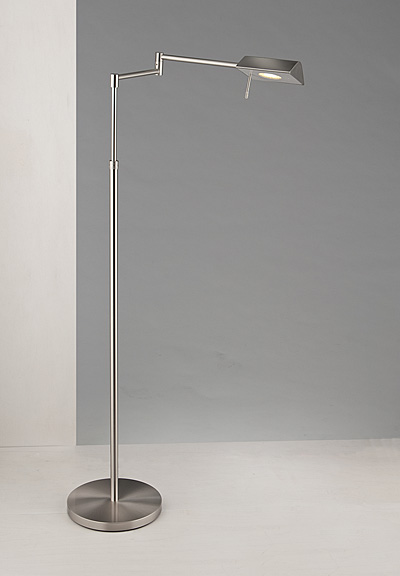

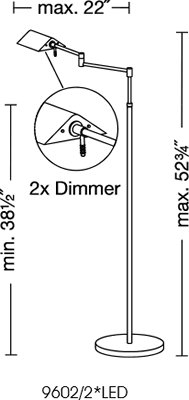

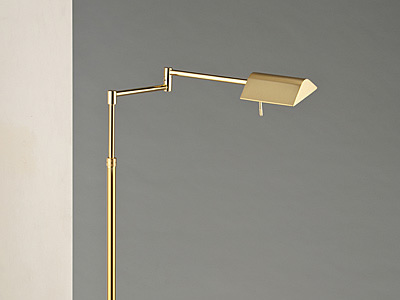

Holtkotter 9602LED Two-Tone LED Swing Arm Floor Lamp

Two-Tone LED swing-arm floor lamp provides the user with a range of color temperatures to choose from, blending the color temperatures from 3000K (warm white for normal tasks) to 6000K (cool white for high-detail tasks).

Separate dimmers control each color temperature. The LEDs at 3000K have a maximum output of 525 Lumens and the LEDs at 6000K have a maximum output of 595 Lumens, with a combined maximum output of 1120 Lumens.

Technical Specifications

• Light Engine: Holtkötter PC Board LED 13-2 with Two-Tone LED Technology
• Optic / Reflector: Holtkötter Aluminum Reflector with precise Color Blend Optics
• Light Output: 525 / 595 Lumens (Σ 1120) equivalent to 80 W Halogen
• Light Color: 3000 / 6000 Kelvin
• Control/LED Driver/Dimmer: Holtkötter Dimm-System LED with dual full-range dimming of <0.1% - 100%
• Maximum Current/Voltage: 1000mA & 14V
• System Power Consumption: 2 . . .14 Watts

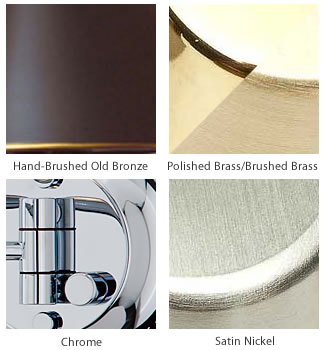

Finish: Polished Brass, Hand Brushed Old Bronze or Satin Nickel

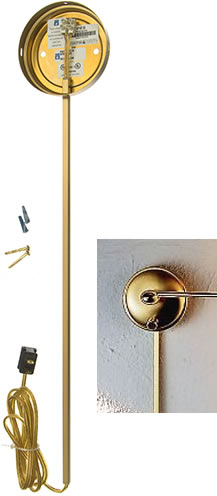

Holtkotter's 9426 Pin Up Kit

For Wall Sconces 522/1, 523/1, or 8160/1

Holtkötter Leuchten manufactures pin-up kits for our halogen swing-arm wall sconces. The pin-up kits vary slightly from wall sconce to wall sconce, due to backplate configurations.

Standard Cord Length is 7' with a cord cover of 19".

The latest configuration includes an architectural reveal that provides easier Installation: and more beautiful final results.

Finish: Antique Brass, Black, Hand-Brushed Old Bronze, Polished Brass, Polished Nickel or Satin Nickel
