Path Lighting
Landscape Path Lights Bollards

Dabmar Pagoda Path Lights

12 Volt

Dabmar LV102S 2-Tier Pagoda Path Lights

12 Volt
Cast Aluminum

JC Halogen or JC-G4 LED

Overall 10.5" high x 6" wide

6" Riser included
Ground Spike included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass
Maximum 50 Watts
Installation Type: Ground Spike Included for Installation, 6" Riser Included
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Bronze, Green, Dabmar Verde Green
Types of Transformer: Low Voltage Transformer Required for Installation (Item Sold Separately)

1/2" NPT

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV102 3-Tier Pagoda Path Lights

12 Volt
Cast Aluminum

JC Halogen or JC-G4 LED

Overall 13.33" high x 5.85" wide

6" Riser included
Ground Spike included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass
Maximum 50 Watts
Installation Type: Ground Spike Included for Installation
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Bronze, Green, Dabmar Verde Green
Types of Transformer: Low Voltage Transformer Required for Installation (Item Sold Separately)

1/2" NPT

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV-LED5000 3-Tier Pagoda Path Lights

12 Volt
Plastic

Black only

JC-G4 LED

Overall 7.38" high x 6.25" wide

Riser and Ground Spike not included

Lens: Frosted, Acrylic Lens
Maximum 2.5W Maximum
Installation Type: In-Ground (Ground Spike Not Included Sold Separately), Riser Available (Sold Separately)

1/2" Threaded Base Opening

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV103 3-Tier Pagoda Path Lights

12 Volt
Cast Aluminum

JC Halogen or JC-G4 LED

Overall 14" high x 10" wide

6" Riser included
Ground Spike included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass
Maximum 50 Watts
Installation Type: Ground Spike Included for Installation, 6" Riser Included
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Green, Dabmar Verde Green
Types of Transformer: Low Voltage Transformer Required for Installation (Item Sold Separately)

1/2" NPT

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV-LED5100 4-Tier Pagoda Path Lights

12 Volt
Plastic

Green only

JC LED 2-Pin G5 Base, 4.0 watt max

Overall 9.06" high x 6.25" wide

Riser and Ground Spike included

Lens: Frosted, Acrylic Lens
Maximum 2.5W Maximum
Installation Type: Ground spike and Stem included

1/2" Threaded Base Opening

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV106A Flair Top Pagoda Path Lights

12 Volt
Cast Aluminum

JC Halogen or JC-G4 LED

Overall 16.8" high x 10" wide

6" Riser included
Ground Spike included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass
Maximum 50 Watts
Installation Type: Ground Spike Included for Installation, 6" Riser Included
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Green, Dabmar Verde Green
Types of Transformer: Low Voltage Transformer Required for Installation (Item Sold Separately)

1/2" NPT

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

Dabmar LV107A Round Top Pagoda Path Lights

12 Volt
Cast Aluminum

JC Halogen or JC-G4 LED

Overall 14.25" high x 5.75" wide

6" Riser included
Ground Spike included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass
Maximum 50 Watts
Installation Type: Ground Spike Included for Installation, 6" Riser Included
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Green, Dabmar Verde Green
Types of Transformer: Low Voltage Transformer Required for Installation (Item Sold Separately)

1/2" NPT

Pre-wired with UL Listed Direct Burial Wire/Cable

ETL Approved Wet Location

Dabmar Transformers >

120 Volt

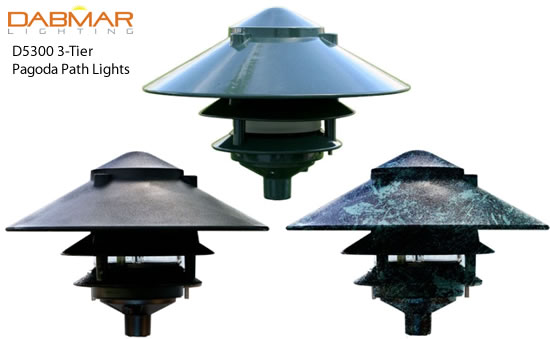

Dabmar D5000, D5300 3-Tier Pagoda Path Lights

120 Volts
Cast Aluminum

A-Type Bulb Incandescent or S13-GU24 Fluorescent

D5000
Overall 7" high x 6" wide

D5300
Overall 7" high x 10" wide

Stem or Ground Spike not included

Material: Cast Aluminum
Lens: Clear, Heat Resistant, Tempered Glass Lens
Maximum 25 Watts Maximum
Installation Type: Post or Riser Mount - Posts or Risers and Ground Spikes required for Installation (Items Sold Separately)
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Bronze, Green, Dabmar Verde Green

1/2" NPT or 3" Base (Not available in Bronze)
Riser Not Included

ETL Approved

Dabmar FG5100 4-Tier Fiberglass Pagoda Path Lights

120 Volts
Fiberglass

Incandescent: A-Type Bulb
Fluorescent: S13-GU24, S26-GU24
LED: A-19 Filament LED, G24- LED

Overall 8.5" high x 6.5" wide

Stem or Ground Spike not included

Material: Fiberglass
Lens: Frosted, Heat Resistant Glass Lens
Maximum 40 Watts Maximum
Installation Type: Post or Riser Mount
ETL Approval: ETL Approval Pending
Finishes: Black, Bronze, Green

1/2" NPT
Riser Not Included

ETL Approved

Dabmar D5100, D5400 5-Tier Pagoda Path Lights

120 Volts
Cast Aluminum

Incandescent: A-Type Bulb
Fluorescent: PL7, S13-GU24, S26-GU24
LED: Tubular G24 2P

D5100
Overall 9" high x 6" wide

D5400
Overall 9" high x 10" wide

Stem or Ground Spike not included

1/2" NPT or 3" Base (Not available in Bronze)
Riser Not Included

ETL Approved

Dabmar D8000, D8050, D8051, D8052 Flair Top Pagoda Path Lights

120 Volts
Cast Aluminum

Incandescent: A-Type Bulb
Fluorescent: PL7, S13-GU24, S26-GU24
LED: A19 Filament LED, 2-PIN G24 SMD LED

Overall 11" high x 10" wide

Stem or Ground Spike not included

Material: Cast Aluminum
Lens: Frosted, Heat Resistant, Tempered Glass Lens
Maximum 40 Watts Maximum
Installation Type: Post or Riser Mount
ETL Approval: ETL Approved for Wet Location
Finishes: Black, Green, Dabmar Verde Green,

1/2" NPT
Riser Not Included

ETL Approved
