Dabmar Transformers

Dabmar LVT25 Low Voltage Magnetic Transformer

20 Watts Maximum Output
Wall Mount
NO Photo Cell
NO Timer

Ideal for low power consumption LEDs

8.75" high x 4.13" wide x 2.87" D

25 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: 1 x 25

Case Material: Black or White Plastic

ETL UL Listed Indoor or Outdoor Use
Transformer Compatible only for LV-LED55/M (Brick Light) Applications

Dabmar LVT100-A Low Voltage Magnetic Transformer

80 Watts Maximum Output
Wall Mount

5.43" high x 3.63" wide x 2.81" D

LVT100-A
100 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: One Tap (1 x 100W)

Case Material: Plastic, Black

ETL UL Listed Indoor or Outdoor Use

Dabmar LVT105-A Low Voltage Electronic Transformer

84 Watts Maximum Output
Wall Mount
50% Wattage required to reach Transformer's full power potential

3.62" high x 1.98" wide x 1.11" D

LVT105-A
105 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: One Tap (1 x 105W)

Case Material: Plastic, Black

ETL UL Listed Indoor or Outdoor Use

Dabmar LVT150 Low Voltage Magnetic Transformer

120 Watts Maximum Output
Wall Mount
Manual Photo Cell with Timer

6.38" high x 3.75" wide x 3.61" D

150 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: 1 x 150

Case Material: Black Powder Coated Cast Aluminum

ETL UL Listed Indoor
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

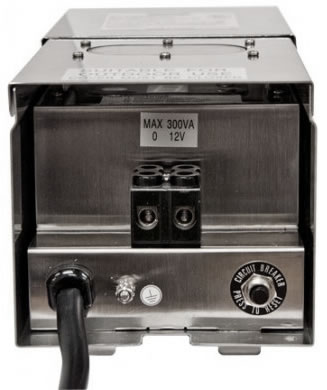

Dabmar LVT300-SUB-SS Low Voltage Magnetic Submersible Transformer

240 Watts Maximum Output
Wall Mount
Digital Photo Cell and Timer (-PH-LVT)

15.56" high x 5" wide x 4.69" D

300 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: 1  x 300

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Under Water Use
Rated for Submersible Fixture Use
Magnetic Transformer recommended for 12V LED Lighting Applications

Dabmar LVT300-A-SS Low Voltage Magnetic Transformer

240 Watts Maximum Output
Wall Mount
NO Photo Cell
NO Timer

9.13" high x 5" wide x 4.56" D

300 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: One Tap (1 x 300W)

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

Dabmar LVT300-SS Low Voltage Magnetic Transformer

240 Watts Maximum Output
Wall Mount
Digital Photo Cell and Timer (-PH-LVT)

9.13" high x 5" wide x 4.56" D

300 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: One Tap (1 x 300W)

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

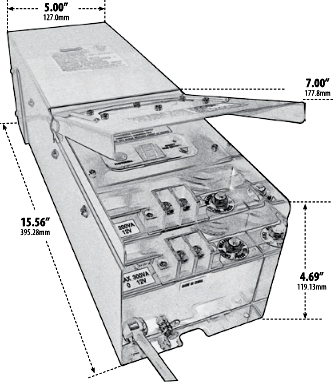

Dabmar LVT500-SS Low Voltage Magnetic Transformer

400 Watts Maximum Output
Wall Mount
Digital Photo Cell and Timer (-PH-LVT)

15.56" high x 5" wide x 4.69" D

500 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: 1 x 200/1 x 300

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

Dabmar LVT700-A-SS Low Voltage Magnetic Transformer

560 Watts Maximum Output
Wall Mount
NO Photo Cell
NO Timer

9.88" x 5.5" wide x 12.44" high

700 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: Three Taps (2 x 200w + 1 x 300W)

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

Dabmar LVT700-SS Low Voltage Magnetic Transformer

560 Watts Maximum Output
Wall Mount
Digital Photo Cell and Timer (-PH-LVT)

9.88" x 5.5" wide x 12.44" high

700 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: 1 x 300/2 x 200

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications

Dabmar LVT900-SS Low Voltage Magnetic Transformer

720 Watts Maximum Output
Wall Mount
Digital Photo Cell and Timer (-PH-LVT)

9.88" x 5.5" wide x 12.44" high

900 watts
12 Volts out
120 Volts in
Maximum Load 80%
Wiring: 6ft Power Cord Included
Terminals: Three Taps 3 x 300

Case Material: Polished Stainless Steel

ETL UL Listed
Suitable for Outdoor Use Only
Magnetic Transformer recommended for 12V LED Lighting Applications
