Modern and Transitional Mirrors

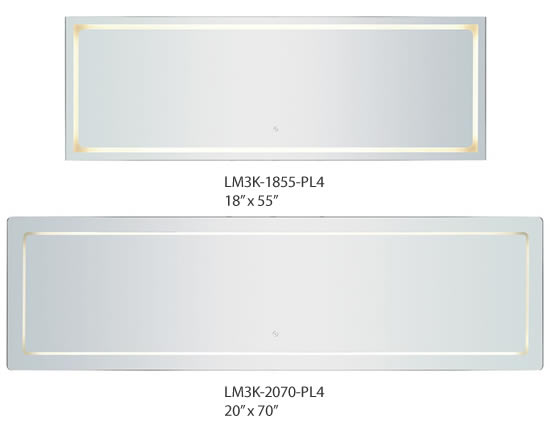

ELK Group International LED Lighted Mirrors

Vertical or Horizontal Mount

LM3K-1855-PL4
18" x 55"

LM3K-2070-PL4
20" x 70"

LM3K-2264-PL4
22" x 64"

LM3K-2670-PL4
26" x 70"

5mm Silver, copper-free mirror
LED back lit
3000K (warm white)

Touch sensor dimmer 0-100%
Defogger

ELK Group International LED Lighted Mirrors

LM3K-2028-PL3
20" wide x 28" high

LM3K-2430-PL3
24" wide x 30" high

LM3K-3640-PL3
36" wide x 40" high

Brushed aluminum frame

5mm Silver, copper-free mirror
LED back lit
3000K (warm white)

Touch sensor dimmer 0-100%
Defogger

Kichler LED Backlit Bluetooth Mirror with Soundbar from the élan Collection

84000
Integrated LED Modules
Kelvin Color Temperature 3000K
91.4" wide x 66.04" high (or 66.04" wide x 91.4" high)
Backplate 34.75"
Extension 6.5"

Mirror With 3" Frosted Strips on 2 Sides

Mount Vertical Or Horizontal
Reinforced Outlet Box Required

ADA Compliant
Damp Location Rated

Kichler LED Backlit Mirrors from the élan Collection

83992
4 x Integrated LED Modules
Kelvin Color Temperature 3000K
27" wide x 42" high (or 42" wide x 27" high)
Backplate 34.9" x 47"
Extension 2.99"

84003
4 x Integrated LED Modules
Kelvin Color Temperature 3000K
54" wide x 42" high (or 42" wide x 54" high)
Backplate 34.6" x 19.6"
Extension 2.99"

83997
4 x Integrated LED Modules
Kelvin Color Temperature 3000K
99.1" wide x 68.58" high (or 68.58" wide x 99.1" high)
Backplate 38"
Extension 2.3"

Mirror With 3" Frosted Edge on 4 Sides Glass

Mount Vertical Or Horizontal
Reinforced Outlet Box Required

ADA Compliant
Damp Location Rated

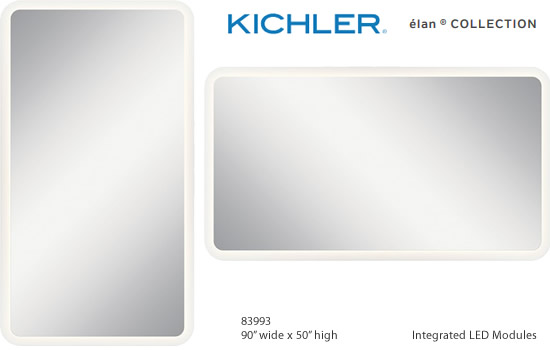

Kichler LED Backlit Mirror from the élan Collection

83993
Integrated LED Modules
Kelvin Color Temperature 3000K
90" wide x 50" high (or 50" wide x 90" high)
Backplate 19.75"
Extension 1.7"

Mirror With 3" Frosted Edge on 4 Sides Glass

Mount Vertical Or Horizontal
Reinforced Outlet Box Required

ADA Compliant
Damp Location Rated

Kichler LED Backlit Mirror from the élan Collection

83998
Integrated LED Modules
Kelvin Color Temperature 3000K
99" wide x 63.5" high (or 63.5" wide x 99" high)
Backplate 3.75"
Extension 2.7"

Mirror With 1" Frosted Edge on 4 Sides Glass

Mount Vertical Or Horizontal
Reinforced Outlet Box Required

ADA Compliant
Damp Location Rated

ELK Group International Maison LED Mirrors

Rectangular LED Lighted Mirrors

1179-001 Maison
12 watts integrated LED
1300Lm, 6000K (Daylight White)
20" x 24"

1179-002 Maison Large
21 watts integrated LED
2200Lm, 6000K (Daylight White)
32" x 40"

1179-004 Montpellier
16 watts integrated LED
1700Lm, 6000K (Daylight White)
24" x 32"

1179-008 Skorpios
18 watts integrated LED
24" x 32"

1179-003 Studio
8 watts integrated LED
1100Lm, 6000K (Daylight White)
20" x 28"

1179-005 Runway
9 watts integrated LED
1300Lm, 6000K (Daylight White)
24" x 32"

Square LED Lighted Mirrors

1179-007 Blabla
12 watts integrated LED
36" x 36"

Oval LED Lighted Mirrors

1179-006 Oval
11 watts integrated LED
1400Lm, 6000K (Daylight White)
24" x 32"

1179-009 Skorpios Oval
15 watts integrated LED
24" x 32"

Brilliantly illuminated mirrors have become more integral and dynamic than ever. ELK Group's stunning Maison series Oval, Dual Plane, Quadrilateral, Perforated and Squircular Surface Mounted Integrated LED Mirrors are unique, cutting edge LED variations, each with its own fantastic geometric contribution.

Lighted Crystal Mirror 95637S from the Eclipse Collection
James R. Moder

95637S00 Silver, Swarovski® ELEMENTS® Crystal
95637S11 Silver, SPECTRA® Crystal
95637S22 Silver, IMPERIAL™ Crystal

10
22" wide (56cm) x Body 30" high (76cm)

Finish Available: Silver (S)
Crystal Qualties Available:
Swarovski® ELEMENTS® Crystal (-00)
SPECTRA® Crystal (-11)
IMPERIAL™ Crystal (-22)

Tech Lighting TL Reflection Mirror 700VNRFL with
Imbedded Side Lights

700VNRFL-CF
CF Compact Fluorescent 120V

700VNRFL-LED830
LED 80 CRI 3000K 120V

700VNRFL-LED830-277
LED 80 CRI 3000K 277V

Rectangular mirror with imbedded sidelights provides task lighting. Incandescent version includes two 24 watt mini bi-pin base T5HO lamps and electronic ballast. LED version includes two 20 watt, 1100 lumen, 3000K LED module. ADA compliant.

Size: 23.8" Long, 31.5" high, 2" Extension

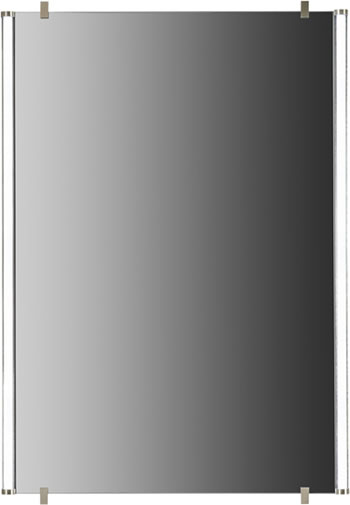

Tech Lighting 700BCGIAMRR Gia Mirror Kit

Single Mirror 300lms/ft
700BCGIAMRR3S

Single Mirror 600lms/ft
700BCGIAMRR6S

Double Mirror 300lms/ft
700BCGIAMRR3D

Double Mirror 600lms/ft
700BCGIAMRR6D

Triple Mirror 300lms/ft
700BCGIAMRR3T

Triple Mirror 600lms/ft
700BCGIAMRR6T

A sleek plate of glass floats in front of a special co-extruded remote phosphor LED channel hugs a high-quality mirror in 3 configurations. The LED channel provides an amazingly slim profile less than 1 inch deep with flawless, even illumination and great color reproduction. Comes complete with 3.9watt/ft of LEDs to create 300lms/ft or 7.8 watt/ft of LEDs to create 600lms/ft available in 4 CCT options and 2 CRI options.

Available Finishes: Chrome or Satin Nickel
Color: Clear or Smoke

LED824 LED 80 CRI 2400K
LED835 LED 80 CRI 3500K
LED840 LED 80 CRI 4000K
LED930 LED 90 CRI 3000K

Tech Lighting Tigris 700BCTIGRR Round or 700BCTIGO Oval Lighted Mirror

Halogen: Oval or Round, Recessed or Flush Mount

CF: Oval or Round, Recessed or Flush Mount
CF277: Oval or Round, Recessed or Flush Mount
LED930: Oval or Round, Recessed or Flush Mount
LED930-277: Oval or Round, Recessed or Flush Mount

Round or oval mirror surrounded by a cove of diffused white light. Available in recessed or surface mounted. Plated pressure formed frame. Provides shadow-free task and ambient light. Halogen includes transformer and 12 volt, 20 watt halogen bi-pin lamps; compact Fluorescent includes 9 watt 2G7 base twin tube lamps and electronic ballast. Halogen version dimmable with a standard incandescent dimmer. Recessed version requires modifications to existing wall construction. ADA compliant.

Round: Halogen: 9 x 12 volt, 20 watt halogen bi-pin lamps
Compact Fluorescent: 6 x 9 watt 2G7 base twin tube lamps
LED version includes nine 4.44 watt, 862 delivered lumens, 3000K LED modules.

Oval: Halogen: 8 x 12 volt, 20 watt halogen bi-pin lamps
Compact Fluorescent: 6 x 9 watt 2G7 base twin tube lamps
LED version includes nine 4.4 watt, 862 delivered lumens, 3000K LED modules.

Available Finishes: Chrome or Satin Nickel

Recessed version requires modifications to existing wall construction. For wall mount use only, may be mounted vertically or horizontally.

Access 70085LED, 70086LED Lighted Anti-Fog Mirrors

70085LEDD-MIR Spa Round LED Anti-Fog Mirror, Electronic Dimmable On/Off Switch

70086LEDD-MIR Spa Square LED Anti-Fog Mirror, Electronic Dimmable On/Off Switch
W 28.5" 28.5" high
Overall 28.5" high
Extension 2.5"
1 x 25w 2500Lm Kelvin 2800 SSL 85CRI LED - 120v

C ETL US Damp Location
20w Anti-Fog Heating Coil and Dimmable Electronic Switch.
