Modern Bath Lighting

Craftmade Modina Modern Bath Collection

38061-CH Chrome
38061-ESP Espresso
1 x 60 watt T9 Medium base, included
6.75" wide x 11.25" high
Extension 5.25"

38062-CH Chrome
38062-ESP Espresso
2 x 60 watt T9 Medium base, included
8" wide x 11.25" high
Extension 4"

38063-CH Chrome
38063-ESP Espresso
3 x 60 watt T9 Medium base, included
16" wide x 11.25" high
Extension 5.25"

Top to Outlet 6.75"
Backplate 6.75" x 6.75"

Clear Cylinder Glass Shades

From its delicate contours and smooth flowing lines to the simple geometric shape of its glass shades Modina by Craftmade redefines elegance for the modern age.

Craftmade Anillo, Berkeley, Que, Mira & Pinnacle Modern Lighting >

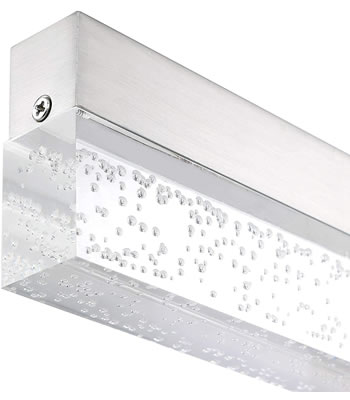

Motini Modern Linear Crystal LED Baths

13W, 3500K
12" wide x 4.5" high x 1.75" extension

24W, 3500K
24" wide x 4.5" high x 1.75" extension

36W, 3500K
36" wide x 4.5" high x 1.75" extension

Finish: Brushed Nickel
Bubble Crystal is heavy acrylic

ETL listed

Vaxcel Gatsby Vanity Lighting

W0079
1 x 50 watt G9 Bi-pin, included
8" wide x 10" high
Extension 5"

W0080
2 x 50 watt G9 Bi-pin, included
19.25" wide x 5" high
Extension 5"

W0081
3 x 50 watt G9 Bi-pin, included
29" wide x 5" high
Extension 5"

W0082
4 x 50 watt G9 Bi-pin, included
39" wide x 5" high
Extension 5"

Finish: Polished Nickel
Glass: Etched White Glass
Material: Steel

Halogen bulbs create warm and evenly diffused illumination

Inspired by the art deco era, the Gatsby collection brings a sleek and sophisticated feel to the bathroom. Installed as an up light, the halogen bulbs create warm and evenly diffused illumination throughout your space.

C ETL Damp Rating

Westinghouse Cava Bath Lighting

6307600 Chrome, Bubble Glass
6372400 Matte Black, Bubble Glass
8 watts 3000K Integrated LED, equivalent to 40 watt incandescent bulb
4.96" wide x 7.75" high
Extension 5.69"

6307700 Chrome, Bubble Glass
15 watts 3000K Integrated LED, equivalent to two 40 watt incandescent bulbs
9.46" wide x 7.75" high
Extension 5.69"

6311900 Chrome, Bubble Glass
6372500 Matte Black, Bubble Glass
22 watts 3000K Integrated LED, equivalent to three 40 watt incandescent bulbs
15.16" wide x 7.75" high
Extension 5.69"

Finish: Chrome or Matte Black with Solid Bubble Glass

Dimmable

Westinghouse Cava I & II Collections >

The Westinghouse Cava Collection has solid bubble glass cyinders that glow with LED light almost like thick fiber optic diffusers. It is available in Chrome, Matt Black and Brushed Nickel. Coordinating mini pendants are also available in Champagne Brass or Gun Metal.

The Cava II Collection has thick panels of bubble glass that optically distribute LED light. The collection includes bath lighting in Brushed Nickel or Matte Black with Solid Bubble Glass and a Brushed Nickel finish wall light with Solid Bubble Glass that can be used inside or outside.

ETL, CETL Approved Indoor Location
Five-year limited fixture warranty

Westinghouse Cava Bath Lighting

6372000 Brushed Nickel, Bubble Glass
9 watts Integrated LED, equivalent to 40 watt incandescent bulb
5.12" wide x 12.95" high
Extension 5.51"

6372100 Brushed Nickel, Bubble Glass
22 watts Integrated LED, equivalent to three 40 watt incandescent bulbs
21.65" wide x 12.95" high
Extension 5.51"

Finish: Brushed Nickel with Solid Bubble Glass

Dimmable

Westinghouse Cava I & II Collections >

The Westinghouse Cava Collection has solid bubble glass cyinders that glow with LED light almost like thick fiber optic diffusers. It is available in Chrome, Matt Black and Brushed Nickel. Coordinating mini pendants are also available in Champagne Brass or Gun Metal.

The Cava II Collection has thick panels of bubble glass that optically distribute LED light. The collection includes bath lighting in Brushed Nickel or Matte Black with Solid Bubble Glass and a Brushed Nickel finish wall light with Solid Bubble Glass that can be used inside or outside.

ETL, CETL Approved Indoor Location
Five-year limited fixture warranty

Access 62311, 62312 Titanium Wall & Vanity

62311-BS/FST Brushed Silver
Titanium Wall & Vanity
1 x 100 watt Halogen 120v J78 (T-3 Base)
12" wide x 2.75" high
Extension 4"

62312-BS/FST Brushed Silver
Titanium Wall & Vanity
2 x 100 watt Halogen 120v J78 (T-3 Base)
2.75" high x Length 23.6"
Extension 4"

Finish: Brushed Silver
Glass: Frost
Lamps included

ADA
CETL Damp Location

Hinkley 5650, 5652, 5654, 5656 Lighting Latitude Bath Collection

1-Light 5" wide x 8" high
Backplate 5" wide x 8" high

5650BN Brushed Nickel
5650CM Chrome
5650OZ Oil Rubbed Bronze
1 x 60 watt G-9, included
C-US Damp Rated

5650BN-LED Brushed Nickel
5650CM-LED Chrome
5650OZ-LED Oil Rubbed Bronze
1-6.60w LESG-60, included
LED Info: Lumens: 600
2700K 90 CRI
LED 7w
Incandescent Equivalency: 60w

2-Light
18" wide x 5.8" high
Backplate 17" wide x 4.8" high
Extension 4", TTO: 3.3"

5652BN Brushed Nickel
5652CM Chrome
5652OZ Oil Rubbed Bronze
2 x 60 watt G-9, included
C-US Damp Rated

5652BN-LED Brushed Nickel
5652CM-LED Chrome
5652OZ-LED Oil Rubbed Bronze
2-6.60w LESG-60, included
LED Info: Lumens: 600
2700K 90 CRI
LED 7w
Incandescent Equivalency: 60w

4-Light
26" wide x 5.8" high
Backplate 25" wide x 4.8" high
Extension 4", TTO: 3.3"

5654BN Brushed Nickel
5654CM Chrome
5654OZ Oil Rubbed Bronze
4 x 60 watt G-9, included
C-US Damp Rated

5654BN-LED Brushed Nickel
5654CM-LED Chrome
5654OZ-LED Oil Rubbed Bronze
4-6.60w LESG-60, included
LED Info: Lumens: 600
2700K 90 CRI
LED 7w
Incandescent Equivalency: 60w

6-Light
37.5" wide x 5.8" high
Backplate 36.3" wide x 4.8" high
Extension 4", TTO 3.3"

5656BN Brushed Nickel
5656CM Chrome
5656OZ Oil Rubbed Bronze
6 x 60 watt G-9, included

Glass: Clear Material: Steel Beveled Inside-Etched

Hinkley Lighting's Latitude Bath Collection is contemporary and sleek, finding its true beauty in the minimalist design. The slim glass panel features rectangular etching while the subtle, split fork frames add understated architectural style. Choose Brushed Nickel or Chrome finish.

Quoizel DW8701C, DW8602C, DW8603C, DW8604C Modern Chrome & Glass Downtown Collection Bath Lighting

DW8701BN Brushed Nickel
DW8701C Polished Chrome
1 x 100 watt Medium base
6" wide x 11.5" high
Extension 8"

DW8602BNLED Brushed Nickel
DW8602CLED Polished Chrome
2 x 4.5W Frosted G9 LED
15" wide x 7.5" high
Extension 7"

DW8603BNLED Brushed Nickel
DW8603CLED Polished Chrome
3 x 4.5W Frosted G9 LED
24.5" wide x 7.5" high
Extension 7"

DW8604BNLED Brushed Nickel
DW8604CLED Polished Chrome
4 x 4.5W Frosted G9 LED
33.5" wide x 7.5" high
Extension 7"

LED: Color Rendering Index (CRI) 80
Color Temperature (CCT) 2700K

Finish: Polished Chrome or Brushed Nickel

Quoizel Downtown Collection >

Cool sleek sophistication is written all over this design. Gleaming glass ball accents complement the opal etched glass drum shade and brushed nickel shiny polished chrome finish bringing a soft modern sensibility to your home.

Possini Euro Design MD44005-6B Lilypad Wall or Ceiling Light

19.25" x 12.25" wide x 8.25" high
Canopy 5.5" wide x 3.25" high

6 x 20 watt G4 bi-pin halogen bulbs
350 lumens each
Dimmable with a low voltage dimmer

Finish: Chrome

Diffusers: Opal etched glass

Possini Euro Design MD44005-12B Large Lilypad Wall or Ceiling Light

12 x 20 watt G4 bi-pin halogen bulbs
350 lumens each
Dimmable with a low voltage dimmer

30" x 16" wide x 6.25" high
Canopy 6.25" wide x 3.25" high

Finish: Chrome

Diffusers: Opal etched glass

Access 23925, 23926, 23927, 23928, 23929 Bubbles Solid Crystal Wall Vanity

23925-CH/CLR Chrome
1 x 48 watt G-9 Halogen 2900k 800Lm included
5" wide x 4.25" high
Extension 4.5"

23926-CH/CLR Chrome
2 x 48w Type G9 candelabra Halogen Base G9 2900k 1600Lm Bulb Type G9 candelabra Halogen included
12" wide x 4.25" high
Extension 4.5"

23927-CH/CLR Chrome
3 x 48w Type G9 candelabra Halogen Base G9 2900k 2400Lm Bulb Type G9 Hgn
19" wide x 4.25" high
Extension 4.5"

23928-CH/CLR Chrome
4 x 48w Type G9 candelabra Halogen Base G9 2900k 3200Lm Bulb Type G9 Hgn
26" wide x 4.25" high
Extension 4.5"

23929-CH/CLR Chrome
5 x 48w Type G9 candelabra Halogen Base G9 2900k 4000Lm Bulb Type G9 Hgn
33" wide x 4.25" high
Extension 4.5"

Finish: Chrome
Glass: Crystal Clear Bubble Glass, Opal Glass Downlight
Lamps included

CETL Damp Location

Access 52081, 52082, 52083, 52084, 52085 Aeria Bath Lighting with Metal Mesh in Clear Glass

1-Light

Halogen 52081-CH/CLR Chrome, Clear Glass
1 x 40 watt Type G9 candelabra Halogen Base G9 2900k 2400Lm Bulb Type G9

LED 52081LED-CH/CLR Chrome, Clear Glass
1 x 4.5 watt LED G9 LED 450Lm Kelvin 3000
4.6" wide x Length 4.75"
Extension 5.5"

Access Aeria Series >

Access 62252, 62253 Styx ADA Wall and Vanity

62252-CH/OPL Chrome, Opal Glass
Styx Wall & Vanity
L 23.25" H 1.6"
Overall 1.6" high
Extension 4" ADA
2 x 75w
2100Lm Kelvin 2900

Finish: Chrome
Glass: Opal
Lamps included

ADA
CETL Dry Location Rated

Access Aero & Styx Series >

Access 62215-BS/FST Nitrous ADA Wall and Vanity

62215-BS/FST Brushed Steel
1 x 100 watt Halogen 120v J78 (T-3 Base)
Lamps included

C62215BSFSTEH3126Q Brushed Steel
1 x 26w Type Quad Base G24q-3 2700k 1710Lm Bulb Type Quad

Nitrous Wall and Vanity

Finish: Brushed Silver
Glass: Frost

12" high x Length 12"
Extension 3.5"
ADA
CETL Damp Location
Available in Fluorescent

Access 62216-BS/FST Nitrous ADA Wall and Vanity

62216-BS/FST Brushed Silver, Frost

Nitrous Wall and Vanity

Finish: Brushed Silver
Glass: Frost
1 x 100 watt Halogen 120v J78 (T-3 Base)
Lamps included

14" high x Length 7.25"
Extension 3.5"
ADA
CETL Damp Location
Available in Fluorescent

Kichler Structures Vanity Collection

6963NI
1 x 100 watt max T-3 or T-4 mini-can base
9" wide x 7.5" high
Height From Center of Wall Opening 2.5"
Extension 10.5"
Backplate 5" Square

6162NI, 6162CH
2 x 100 watt max T-3 or T-4 mini-can base
21" wide x 7.5" high
Height From Center of Wall Opening 2.5"
Extension 10.5"
Backplate 5" Round

6463NI, 6463CH
3 x 100 watt max T-3 or T-4 mini-can base
30" wide x 8.75" high
Height From Center of Wall Opening 2.5"
Extension 10.5"
Backplate 5" Round

6464NI, 6464CH
4 x 100 watt max T-3 or T-4 mini-can base
40" wide x 8.5" high
Height From Center of Wall Opening 2.25"
Extension 10.5"
Backplate 18" x 4.5"

T-3 or T-4 mini-can base
Tungsten halogen lamp included
Can also use T-3 or T-4 mini-can LED
Dimmable

Finish: Brushed Nickel or Chrome with White Satin Etched Glass Diffusers or Olde Bronze with Light Umber Glass Diffusers

The Structures Collection proves that one style can take on numerous forms. Structures lighting employs universal shape to create modern, aesthetically pleasing lighting capable of unmatched versatility, forming a unique and eclectic style all its own. Brushed Nickel or Chrome with White Satin Etched Glass Diffusers has a timeless, clean feel capable of matching any decor. Olde Bronze with Light Umber Glass Diffusers brings an antique touch to the fixture.

UL Damp Location

Kichler Structures Collection >

Kichler 41056NI Mirror from the Structures Collection

24" wide x 30" high
Extension 0.75"

Finish: Brushed Nickel

This timeless Structures™ mirror features a Brushed Nickel finish to create a unique statement for your home.

Kichler Structures Collection >
