Linear Bath Lighting

Kichler Impello Linear Vanity Light Bars
ADA Compliant
Title 24 Compliant

Mounts Horizontal or Vertical

45801CHLED Chrome
20 watt LED
900Lm, 90CRI, 3000K
18.25" wide x 5.5" high
Extension 2"
Backplate 17.5" wide x 4.75" high
Height from center of wall 2.75"

45838CHLED Chrome
45838OZLED Olde Bronze
25 watt LED
1200Lm, 90CRI, 3000K
24.25" wide x 5.5" high
Extension 2"
Backplate 23.5" wide x 4.75" high
Height from center of wall 2.75"

45839CHLED Chrome
45839OZLED Olde Bronze
30 watt LED
1200Lm, 90CRI, 3000K
30.25" wide x 5.5" high
Extension 3.5"
Backplate 29.5" wide x 4.75" high
Height from center of wall 2.75"

Chrome finish
Clear Satin Etched Glass
Integrated LED

UL Interior Damp Locations

Possini Euro Design Jada Bath Lighting
ADA Compliant

Possini Euro Design Jada Bath Lighting on Amazon

Mount Horizontal or Vertical

12 watts Built-in Dimmable LED
780LM, 2700K
18.25" wide x 4" high
Extension 4"
Backplate 18.5" wide x 4" high
Glass 16.5" wide x 4" high

18 watts Built-in Dimmable LED
930LM, 2700K
26.25" wide x 4" high
Extension 4"
Backplate 26.25" wide x 5.25" high
Glass 24.5" wide x 4" high

26 watts Built-in Dimmable LED
1408LM, 2700K
33.75" wide x 4.5" high
Extension 4"
Backplate33" wide x 4.5" high
Glass 32" wide x 4" high

Finish: High Shine Chrome
Glass: White

Dimmable

UL and CUL listed

Possini Euro Design Exeter Bath Lighting

Possini Euro Design Exeter Bath Lighting on Amazon

Mount Horizontal or Vertical

Bronze
Brushed Nickel
2 x 7 watt Built-in Dimmable LED
1,120LM, 3000K, 80 CRI
17" wide x 4.5" high
Extension 3.5"
Backplate 6" wide x 4.5" high

Bronze
Brushed Nickel
2 x 11 watt Built-in Dimmable LED
1600LM, 3000K, 80 CRI
24" wide x 4.75" high
Extension 3.5"
Backplate 6" wide x 4.75" high

Bronze
Brushed Nickel
2 x 15 watt Built-in Dimmable LED
2400LM, 3000K, 80 CRI
36" wide x 4.5" high
Extension 2.5"
Backplate 6.25" wide x 4.75" high

Finish: Bronze or Brushed Nickel
Glass: White Silk-screened
Material: Steel

UL and CUL listed

Craftmade 38002 Modina Modern Linear or Vertical Bath Bar

Craftmade Modina Modern Linear or Vertical Bath Bars on Amazon

38002-CH Chrome
38002-ESP Espresso

2 x 60 watt T9 Medium base, included

6.75" x 19.5"
Extension 4"
Backplate 6.75" x 6.75"

Clear Cylinder Glass Shades

From its delicate contours and smooth flowing lines to the simple geometric shape of its glass shades Modina by Craftmade redefines elegance for the modern age.

Possini Euro Design Midtown Bath Lighting

Possini Euro Design Midtown Bath Sconces on Amazon
Possini Euro Design Midtown Bath Lighting on Amazon

Single
Mount Up or Down
T9724-143 Burnished Brass
T9724-BRZ Bronze
T9724-CH Chrome
T9724-SN Satin Nickel
1 x 60 watt T10 medium base
4.5" wide x 15" high
Extension 3.5"
Backplate 4.5" wide x 6.5" high
Requires 3.5" clearance to change bulbs

Double Light
Mount Horizontal or Vertical
T9731-143 Burnished Brass
T9731-BRZ Bronze
T9731-CH Chrome
LED T9731-21R57 Chrome
T9731-SN Satin Nickel
2 x 60 watt T10 medium base
2 x 4.5 watt Dimmable LED 440LM 2700K
23.5" wide x 4.5" high
Extension 3.5"
Backplate 7.5" wide x 4.5" high
Requires 3" clearance to change bulbs

Finish: Burnished Brass or SN Satin Nickel
Glass: White
Material: Steel

Dimmable

UL and CUL listed

Designer's Fountain Pivot Bath Lighting

Designers Fountain 12.63" Pivot Bath Lighting on Amazon
Designers Fountain 30.25" Pivot Bath Lighting on Amazon

Mount Horizontally or Vertically

88801-SP
1 x 60 watt Candelabra
12.63" wide
Backplate 8.38" wide
Vertical Mount Height Center of J-Box 9.88"

88802-SP
2 x 60 watt Candelabra
24" wide
Backplate 20.13" wide

88803-SP
3 x 60 watt Candelabra
30.25" wide
Backplate 26" wide

5" high (mounted horizontally)
Extension 4"
Backplate 4.88" high (mounted horizontally)
Horizontal Mount Height Center of J-Box 2.63"

Finish: SP Satin Platinum
Glass: Clear Lattice

1 Year Warranty
UL/CUL Damp Location

Quoizel PCWR8506C, PCWR8524C, PCWR8532C, PCWR1615C Winter Bath Lighting

Dimmable Integrated LED

PCWR8506C
Lumens: 964
6" wide x 12" H
Backplate 6" high x 4.75" W
HCWO: 8.7"

PCWR8524C
Lumens: 2045
24" wide x 5" H
Backplate 4.75" high x 6.75" W
HCWO: 2.5"

PCWR8532C
Lumens: 3013
32" wide x 5" H
Backplate 4.75" high x 6.75" W
HCWO: 2.5"

Extension 3.75"
Wire: 6"

Winter Flush Mount PCWR1615C
Lumens: 2643
14.5" wide x 3.25" high x 14.5" Extension Canopy 11.75"

Finish: Polished Chrome
Shade: Heavy Clear Textured Glass
Material: Steel and Glass

Inspired by delicate sheets of ice, the Winter collection is intense and dramatic. The integrated LED technology runs across the full length of the fixture, showcasing the unique crackling effect of the glass. Keeping with the contemporary style, the backplate and side brackets are finished in a glossy polished chrome.

Damp Location

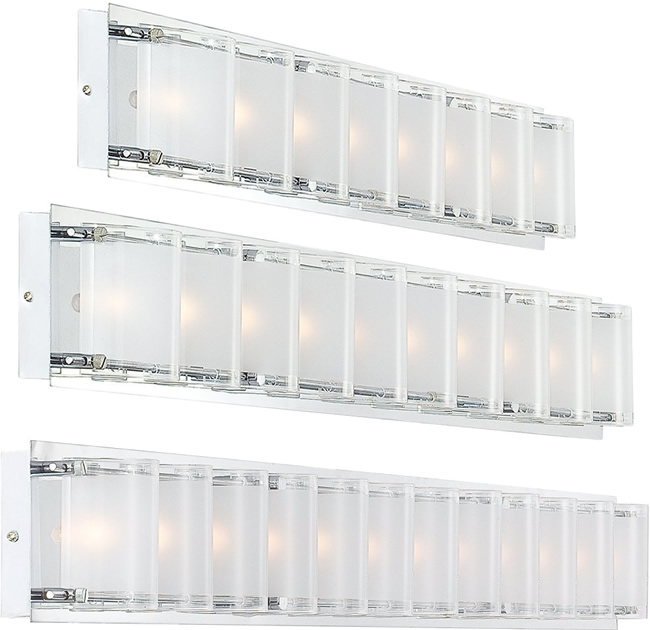

Possini Euro Design Glass Bands Bath Bars

8-Light W0602-8
30.5" wide x 4.75" high
8 x 40 watt G9 candelabra Halogen

10-Light W0602-10
37.5" wide x 4.75" high
10 x 40 watt G9 candelabra Halogen

12-Light W0602-12
45" wide x 4.75" high
12 x 40 watt G9 candelabra Halogen

Finish: Chrome
Glass:  Frosted

Extension 3.5"

Ships with 40 watt G9 candelabra Halogen bulbs
Rated at 500 lumens each
Dimmable

Contemporary bathroom light with a bold, geometric look.
The dimmable design features a sculpted diffuser of frosted glass set against the gleaming chrome finish of the base. Halogen bulbs offer clean, white light perfect for your updated bath design.

Horizontal installation only.
Requires 5" clearance for relamping or glass replacement.

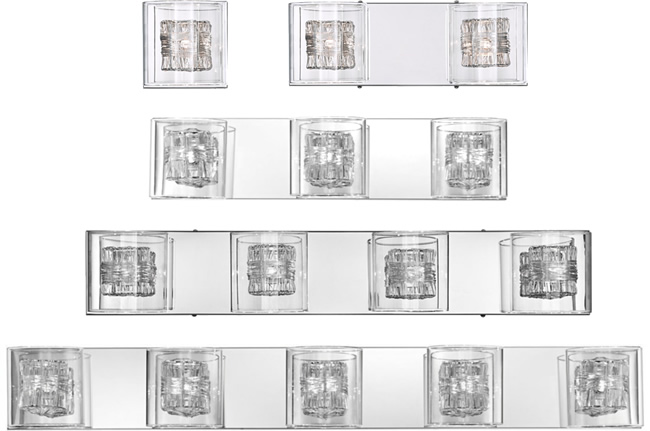

Possini Euro Design Wrapped Wire Bath Bars

1-Light W0110-01S
5" wide x 5.25" high
1 x 60 watt G9 candelabra Halogen

2-Light W0110-02
14.5" wide x 5" high
2 x 60 watt G9 candelabra Halogen

3-Light W0110-03
22" wide x 5" high
3 x 60 watt G9 candelabra Halogen

4-Light W0110-04
30.75" wide x 5" high
4 x 60 watt G9 candelabra Halogen

5-Light W0110-05
39" wide x 5" high
5 x 60 watt G9 candelabra Halogen

Finish: Polished chrome

Glass:  Clear Borosilicate
Glass shade is 4.75" high x 4.75" wide
Anodized aluminum wrapped wire inside is 3" high x 3" wide

Extension 6"

Ships with 60 watt G9 candelabra Halogen bulbs
T4 shape; G-9
Light output rated at 600 lumens
2900K color temperature

The bathroom light features five wire-wrapped cylinders surrounded by clear borosilicate glass cylindrical shades. Each aluminum wire cylinder is wrapped by hand and is mounted to a polished chrome finish backplate for extra shine.

Can be installed either horizontally or vertically.

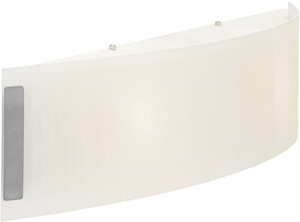

Access 62231, 62233, 62234 Neon Wall and Vanity

Height 6.3" x Length 16"
Extension 4.5"
62231-BS/LFR Brushed Silver
1 x 150 watt T-3 Halogen
C62231BSLFREN1218B Brushed Silver
2 x 18 watt GU-24 Spiral Fluorescent

Height 6.3" x Length 2Extension 4" 4.5"
62233-BS/LFR Brushed Silver
2 x 100 watt Halogen 120v J118 (T-3 Base)
C62233BSLFREN1213BS Brushed Silver
2 x 13 watt Spiral GU-24 2700K 1800Lm

Height 6.3" x Length 32"
Extension 4.5"

62234-BS/LFR Brushed Silver
3 x 100 watt Halogen 120v J78 (T-3 Base)
C62234BSLFREN1218BS Brushed Silver
2 x 18 watt GU-24 Spiral Fluorescent

Neon Wall and Vanity

Finish: Brushed Silver
Glass: Line Frosted
Lamps included

CETL Damp Location
Available in Fluorescent

Access 62255, 62256, 62257 Plasma Vanity and ADA Wall Fixture

Breadth 12" x Length 7"
Extension 3"
62255-BS/FST Brushed Silver
1 x 100 watt Halogen 120v J118 (T-3 Base)

Breadth 24" x Length 7"
Extension 3"
62256-BS/FST Brushed Silver
2 x 100 watt Halogen 120v J118 (T-3 Base)
C62256BSFSTEH3218Q Brushed Silver
2 x 18 watt G24 2700k 2500Lm

Breadth 36" x Length 7"
Extension 3"
62257-BS/FST Brushed Silver
3 x 100 watt Halogen 120v J118 (T-3 Base)
C62257BSFSTEN1313Q Brushed Silver
3 x 13w Type Quad Base G24q-1 2700k 2700Lm Bulb Type Quad

Finish: Brushed Silver
Glass: Frost
Lamps included
ADA
CETL Damp Location
Available in Fluorescent

PLC 3357-AL Naxos Contemporary Bath Wall Sconce

4.75" high x wide 35.5"
Extension : 3.5" (A.D.A.)

Finish: Aluminum
Shade: Frost Acrylic
1 24W T5HO (high output)

Access Helium Wall and Vanity Bath Lighting with Checkered Acid Frost Glass

4.75" high x Length 12.5"
Extension 3.5"

62041-BS/CKF Brushed Silver
1 x 100 watt Halogen 120v J118 (T-3 Base)

C62041BSCKFEN1113BQ Brushed Silver
1 x 13w Type Quad Base GU-24 2700k 900Lm Bulb Type Quad

4.75" high x Length 24.5"
Extension 4.25"

62042-BS/CKF Brushed Silver
2 x 100 watt Halogen 120v J118 (T-3 Base)

62042LED-BS/CKF Brushed Silver
Helium LED Wall & Vanity
13 watt LED 3000K 1520Lm

C62042BSCKFEN1226BS Brushed Silver
2 x 26w Type Spiral Base GU-24 2700k 3420Lm Bulb Type Spiral

4.75" high x Length 32"
Extension 5"

62043-BS/CKF Brushed Silver
2 x 100 watt Halogen 120v J118 (T-3 Base)

C62043BSCKFEH12245 Brushed Silver
2 x 24w Type T-5 HO Base Bi-Pin 3000k 3500Lm Bulb Type T-5 HO

62043LEDD-BS/CKF Brushed Silver
Helium Dimmable LED Wall & Vanity
25w LED 120v 3000k 3040Lm 121.6 Lumen

Finish: Brushed Silver
Glass: Checkered Acid Frost Glass
Includes Lamps

CETL Damp Location
Available in Fluorescent

Access 31032, 31033 Sequoia ADA Wall and Vanity Fluorescent Bath Lights

31032-BS/ACR Brushed Silver
Sequoia Wall & Vanity
2 x 24w T-5 HO Fluorescent (Bi-Pin Base)
Breadth 5.5" x Length 25.25"
Extension 3.62"

31033-BS/ACR Brushed Silver
Sequoia Wall & Vanity
2 x 39w T-5 HO Fluorescent (Bi-Pin Base)
Breadth 5.5" x 37" long
Extension 3.62"

Finish: Brushed Silver
Glass: Acrylic
Lamps included

ADA
CETL Damp Location
Energy Efficient

Access 62061, 62062, 62063 Roto ADA Wall and Vanity

5.5" high x Length 12"
Extension 4"
62061-SC/FST Satin Chrome
1 x 100 watt Halogen 120v J118 (T-3 Base)
C62061SCFSTEN1118Q Satin Chrome
1 x 18 watt G24 2700k 1250Lm

5.5" high x Length 2Extension 4" 4"
62062-SC/FST Satin Chrome
2 x 100 watt Halogen 120v J118 (T-3 Base)

5.5" high x Length 36"
Extension 4"
62063-SC/FST Satin Chrome
3 x 100 watt Halogen 120v J118 (T-3 Base)

Finish: Satin Chrome
Glass: Frost
Lamps included

ADA
CETL Dry Location Rated
Available in Fluorescent
