Tech Lighting Kable Components

Tech Lighting Kable

Giving a whole new air to interior lighting installations, Kable Lite is a minimally intrusive system with adaptability for wall-to-wall application. It is also a solution to interiors which cannot utilize the ceiling for lighting.

Tech Lighting K-Pivot Head Cable Light

1 x 75 watt MR16

700KPIV01 1" separation
700KPIV02 2" separation
700KPIV03 3.5" separation
700KPIV05 5.5" separation
700KPIV08 8" separation
Field-cuttable

Finish: Satin Nickel

Swivels 220°.
2" to 8" versions pivot on horizontal axis, 1" version pivots on vertical axis only. Can be customized to hang at distinct stem lengths.

Ideal for commercial lighting applications

1-year warranty

Tech Lighting K-Jane Head Cable Light

1 x 75 watt MR16

700KJAN05S 5" separation
700KJAN12S 12" separation
700KJAN24S 24" separation
700KJAN36S 36" separation
Field-cuttable

Finish: Satin Nickel

Pivots 220° on two axes and drops 1" below the Kable Lite system providing great light distribution

Can be customized to hang at distinct stem lengths.

Ideal for commercial lighting applications

1-year warranty

Tech Lighting K-Hello Head Cable Light

1 x 75 watt MR16

700KHELLO3 3.5" separation
700KHELLO5 5.5" separation

Finish: Satin Aluminum

Highly adjustable head tilts between the Kable Lite system for a 140° head rotation

Ideal for commercial lighting applications

5 year warranty with LED lamping

Tech Lighting K-Bye-Bye Head Cable Light

1 x 75 watt MR16

700KBYENC

Finish: Satin Aluminum

For cable separations of 3.5" to 8".
Head rotates 360°.

Ideal for commercial lighting applications

1-year warranty

Tech Lighting K-Corum Head LED Cable Light

5 watt LED, included
265.5 delivered lumen, 3000K
Dimmable with compatible ELV or Triac dimmers

700KLCRM for 5.5" Kable Lite separation

Finish: Satin Nickel

The head rotates 360° making it ideal for direct or indirect illumination.
Directed light.
From behind the center glows with only a hint of illumination.

Ideal for commercial lighting applications

5 year warranty with LED lamping

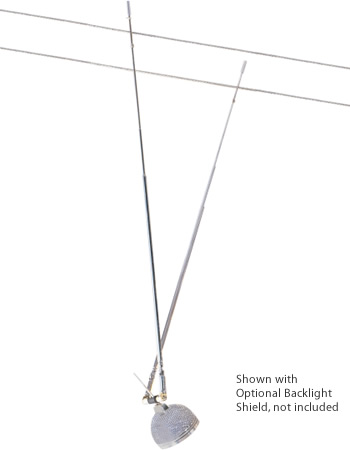

Tech Lighting K-Telescope Head Cable Light

1 x 75 watt MR16

700KTEL16C Chrome
700KTEL16S Satin Nickel

For cable separations of 1" to 48".
Head rotates 330° and has swivel and pivot action to direct the beam.

Ideal for commercial lighting applications

1-year warranty

Tech Lighting Kable FreeJack Connector

700KABCOC Chrome
700KABCOS Satin Nickel

Use FreeJack pendants and heads on cable.
Screw fixture FreeJack male connector into the Kable Lite FreeJack connector.

Use any Tech Lighting fixture or pendant that begins with 700FJ.

For cable separations of 8" or less.
May be field cut to desired separation, 2" minimum.

Any Tech Lighting fixture or pendant that has FJ in the product number
can be fitted with the Kable FreeJack and suspended from cable.

Tech Lighting Kable

Bare Cable
700KLABAREC
Tin plated copper cable adds a raw, industrial look to an install.

Rated for 300 watts at 12 volts, 600 watts at 24 volts. Load: 300 watt maximum at 12 volts to 30' before voltage drop occurs; 600 watt maximum at 24 volts to 60' before voltage drop occurs. #10 gauge tin-plated copper cable.

Insulated Cable
700KLAINSCL
Bare cable is sheathed in clear insulation that protects cable from the elements and enhances the sturdy feel.

Use insulated cable where required by local codes or in coastal areas, where salty air might oxidize bare cables. #10 gauge tin-plated copper cable; sheathed in clear insulation.

Tech Lighting Cable Connectors

Conductive Connectors
700PARTD2C Chrome
700PARTD2S Satin Nickel
Connectors join cables end to end.
Sold in pairs.

Isolating Connectors
700PARTD1 for use with Bare Cable
700PRTD1L for use with Insulated Cable
Plastic connectors join cables end to end and isolate power feeds from each other. All dual-feed canopies and dual-feed surface transformers are shipped with isolating connectors; order additional if required by layout.
Sold in pairs.

Tech Lighting Cable Turnbuckles

Turnbuckles are the key to the Kable Lite system. They tighten and secure the cables and provide the necessary tension for a clean look. All turnbuckles include mounting hardware for drywall.

Universal Turnbuckles
700PARTTC Chrome
700PARTTS Satin Nickel
Wall to Wall or Ceiling, Long or Turning Runs
5.5" long, 1.75" diameter.
When ceiling mounted, cables drop 2.5" from ceiling.
2" minimum cable separation.
Sold in pairs.
If mounting to metal, order isolating connector for each pair of turnbuckles.



Slimline Turbuckles
700PRTT1C Chrome
700PRTT1S Satin Nickel
700PRTT1IC Isolating Chrome
700PRTT1IS Isolating Satin Nickel
Wall to Wall or Ceiling, Straight Runs Under 20-feet
4" long, 0.5" diameter. When ceiling mounted, cables drop 1" from ceiling.
Sold in pairs.
If mounting to metal, order isolating version.

Slimline Anchors
700PRTT0C Chrome
700PRTT0S Satin Nickel
Wall to Wall or Ceiling, Straight Runs Under 20-feet
Use to secure cables at one end of run (with turnbuckles at other end). 1" long, 0.5" diameter.
Sold in pairs.



Soft Turnbuckles
700KSOFTTS Satin Nickel
Wall to Wall or Ceiling, Straight Runs Under 20-feet
Stylish satin nickel turnbuckle. 4" long, 0.5" diameter. When ceiling mounted, cables drop 1" from ceiling.
Sold in pairs.
If mounting to metal, order isolating connectors for each pair of turnbuckles.

Soft Anchors
700KSOFT0S Satin Nickel
Use to secure cables at one end of run (with turnbuckles at other end). 1" long, 0.5" diameter. Satin nickel.
Sold in pairs.

Special hardware is available for brick, cement, or plaster surfaces. For long runs of over twenty feet, turnbuckles should be reinforced with wood blocking behind the wall.

Inline Turnbuckles

Chrome
700PARTT2C Conductive
700PARTT3C Insulated

Satin Nickel
700PARTT2S Conductive
700PARTT3S Insulated

Conductive turnbuckles continue power.
Insulated turnbuckles isolate power feeds from each other.
Pair included.

Maintains tension in cable run with multiple turns.
Kable Lite systems with several turns will require inline turnbuckles to provide tension within the run.

Power Feed Turnbuckles

Power Feed Turnbuckles
Feed Power Through Wall

700PRC14C
700PRC14S

Use the power feed turnbuckles to pipe power from a single feed remote transformer through an accessible wall or ceiling and terminate the run.

Pair of insulated slimline turnbuckles with power feed capability. Back of wall must be accessible.
Minimum cable separation: 2"
Maximum Cable Run: twenty feet, unless reinforced.

For use with remote transformer

Kable Ceiling Supports

Tech Lighting Kable Supports

Kable Lite's design flexibility extends to all its components, including the ability to anchor lines to the ceiling for flexible height installations. Install the line close to the ceiling or drop it down with up to 30 feet of cable.

Additional Ceiling Supports
Additional support is needed for runs over 20-feet or to support heavier fixtures.

Adjustable Standoff
700PRTD3C Chrome 12'
700PRTD3S Satin Nickel 12'
700PRTD33C Chrome 30'
700PRTD33S Satin Nickel 30'
Suspension cable virtually disappears for a clean and elegant look. Wire grip allows easy adjustability. Standard with twelve feet of field-cuttable suspension cable; may also be specified with thirty feet of cable. Horizontal rod is 12" wide; field cut to desired cable separation (3.5" minimum).

Additional Ceiling Supports
Change Cable Drop or Cable Separation

Additional support is needed for runs over 20-feet or to support heavier fixtures.
Run cable up or down.
Change separation of cables.

Rigid T Standoff

2.5" Drop
700KTSO0201S 1" Long
700KTSO0202S 2" Long
700KTSO0203S 3.5" Long
700KTSO0205S 5.5" Long
700KTSO0208S 8" Long

5" Drop
700KTSO05S 1" Long
700KTSO0502S 2" Long
700KTSO0503S 3.5" Long
700KTSO0505S 5.5" Long
700KTSO0508S 8" Long

12" Drop
700KTSO12S 1" Long
700KTSO1202S 2" Long
700KTSO1203S 3.5" Long
700KTSO1205S 5.5" Long
700KTSO1208S 8" Long

Mounts to ceiling. Offered for a range of drops and
cable separations.
Not field-cuttable.

Finish: S Satin Nickel only

Additional Ceiling Supports
Change Cable Drop, Cable Separation, Turn

Additional support is needed for runs over 20-feet or to support heavier fixtures.
Run cable up or down.
Change separation of cables.
Turn tight angles.

Rigid Post Standoff

1" Drop
700KSO01C Chrome
700KSO01S Satin Nickel

2.5" Drop
700KSO02C Chrome
700KSO02S Satin Nickel

5" Drop
700KSO05C Chrome
700KSO05S Satin Nickel

12" Drop
700KSO12C Chrome
700KSO12S Satin Nickel

Can be used for cable separations from 2" to 36".
Pair included.
Not field-cuttable.

Rigid Post Standoff Turn

1" Drop
700KSOT01C Chrome
700KSO01S Satin Nickel

2.5" Drop
700KSOT02C Chrome
700KSOT02S Satin Nickel

5" Drop
700KSOT05C Chrome
700KSOT05S Satin Nickel

12" Drop
700KSOT12C Chrome
700KSOT12S Satin Nickel

Can be used for cable separations from 2" to 36".
Standoffs can also be specified with a turn support to provide tension for clean turns.
Pair included.
Not field-cuttable.

Heavy Duty Standoffs

Chrome
700KSOHD18C 18"
700KSOHD24C 24"

Satin Nickel
700KSOHD18S 18"
700KSOHD24S 24"

These longer standoffs have 4" diameter bases for stability and require a minimum 5.5" cable separation. Pair included. Not field-cuttable. May require longer hardwire feeds.

Use these heavy duty standoffs to support Kable Lite systems that drop 18" or 24" from the ceiling.

Power Feed Standoffs

Power Feed Standoffs
Feed Power Through Ceiling

Chrome
700KPFSO01C 1"
700KPFSO02C 2.5"
700KPFSO12C 12"

Satin Nickel
700KPFSO01S 1"
700KPFSO02S 2.5"
700KPFSO12S 12"

Power feed standoffs bring power to the cables within the run. Ceiling must be accessible.
Pair of rigid standoffs with power feed capability.
Minimum cable separation: 3.5".

For use with remote transformer

Kable Wall Supports and Turns

Kable Wall Turn

700KWSO01C Chrome
700KWSO01S Satin Nickel

A wall turn attaches to a surface to make simple turns.
Includes insulating tubing to cover where cables cross.
Pair included.



Kable Horizontal Wall Turn

700PRTC6C Chrome
700PRTC6S Satin Nickel

Directional hardware for making a floating horizontal or vertical turn when the ceiling is inaccessible.
Each includes six feet of field-cuttable cable to provide tension for turn.



Kable Wall Support Outside Rigger

700KWSO1202C Chrome
700KWSO1202S Satin Nickel

Directional hardware for making a floating horizontal or vertical turn when the ceiling is inaccessible.
Each includes six feet of field-cuttable cable to provide tension for turn.
