WAC Lighting Flexrail 1 Line Voltage Monorail Track Heads

WAC Reflex 17W HM1-LED17 Flexrail1 LEDme Fixture

LEDme® Reflex
High performance and precise thermal management with robust die-cast construction makes this light perfect for general, accent and wall wash applications in residential and commercial environments. For use with WAC Lighting's 120V Track system and compatible with other manufacturer's track (consult factory for specific brands).

• Power: 17W
• Lumens: 1125
• CBCP: Up to 3780
• Compare To: 20W HID
• CRI: 85
• Dimming: 100% - 10%
• Rated Life: 100,000 hours
• Energy Star® rated
• Alternate beam angles may be ordered separately
• Smooth and continuous ELV dimming
• Accepts one lens/accessory
• Die-cast aluminum construction
• Free of projected heat and UV and IR radiation
• ANSI Compliant Warm/Neutral LED Bins, for the finest color consistency possible
• 360° horizontal and 180° vertical aiming
• ETL & cETL listed

Beam: S - 20°, F - 45°
Color Temp: 27 - 2700K, 30 - 3000K, 35 - 3500K, 40 - 4000K

Finish: DB- Dark Bronze, PT - Platinum

Energy Star® rated
Accepts one lens/accessory
360° horizontal rotation and 180° vertical aiming
Dim with ELV (electronic low voltage) dimmer (120V only)
Free of projected heat, UV and IR radiation
Replaceable LED module (consult factory)
Alternate beam angles may be ordered separately
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum.
Driver: 120VAC 50/60Hz, 700mA current.
High power factor >0.9. Max Load: 17W.
High output LED.
Dimming: 120V only - Dim to 10% with electronic low voltage (ELV) dimmer.

Finish: Black (BK), Dark Bronze (DB), Platinum (PT) and White (WT) powder coat paint.
Standards: ETL & cETL Listed.

WAC Argos 25W HM1-LED25 Flexrail1 LEDme Fixture

A celebration of the SSL revolution, designed exclusively around LED technology, breaking through the conventions of earlier light sources. The rectangular form is derived from the optimal format for LED design on a PCB for thermal to surface area ratios. Engineered with minimal components, perfect balance precision aiming, and a single diffuser that can be easily removed with a tool-free mechanism. Developed for the most challenging applications in upscale residential and commercial environments.

• Power: 25W
• Lumens: Up to 1525
• CBCP: Up to 5868
• Compare To: 39W HID
• CRI: 85
• Dimming: 100% - 10%
• Rated Life: 100,000 hours
• Energy Star® rated
• 360° horizontal and 90° vertical hot aiming
• Smooth and continuous ELV dimming
• Free of projected heat and UV radiation
• Die-cast aluminum construction
• Tool-free lens assembly for easy in field change of beam angle
• ANSI Compliant warm/neutral LED bins for a finer color consistency
• Accepts one lens

Beam: S - 20°, F - 42°
Color Temp: 27 - 2700K, 30 - 3000K, 35 - 3500K, 40 - 4000K

Finish: DB- Dark Bronze, PT - Platinum

Energy Star® rated
Free of projected heat and UV and IR radiation
Single tool-free lens assembly for easy in field change out of beam angle
Available in two interchangeable optics
Alternate beam angles may be ordered separately
Replaceable LED modules
360° horizontal and 90° vertical "hot" aiming
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum with front lens assembly.
Driver: Input AC or 277VAC 50/60Hz, Max. Load: 25W
10 pieces Cree XT-E LED.
Total power consumption is 25W with driver.
Dimming: Dimmable with electronic low voltage (ELV) dimmer.

Finish: Black (BK), Dark Bronze (DB), Platinum (PT), and White (WT) powder coat paint.
Standards: UL & CUL Listed.

WAC Reflex 27W HM1-LED27 Flexrail1 LEDme Fixture

Reflex 27W
Utilizing the latest energy efficient LED technology, Reflex is engineered for precise thermal and optical performance. Ideally suited for high-end residential accent lighting and effective displays in shops, museums, hotels and restaurants. High performance and precise thermal management with robust die-cast construction makes this light perfect for general, accent and wall wash applications in residential and commercial environments. For use with WAC Lighting's 120V Track system and compatible with other manufacturer's track (consult factory for specific brands).

• Power: 27W
• Lumens: Up to 1890
• CBCP: Up to 7455
• Compare To: 39W HID
• CRI: 85
• Rated Life: 100,000 hours
• Alternate beam angles may be ordered separately
• Smooth and continuous ELV dimming
• Accepts one lens/accessory
• Die-cast aluminum construction
• Free of projected heat and UV and IR radiation
• ANSI Compliant Warm/Neutral LED Bins, for the finest color consistency possible
• 360° horizontal and 180° vertical aiming
• ETL & cETL listed

Beam: S - 20°, F - 45°
Color Temp: 27 - 2700K, 30 - 3000K, 35 - 3500K, 40 - 4000K

Finish: DB- Dark Bronze, PT - Platinum

Accepts one lens/accessory
360° horizontal rotation and 180° vertical aiming
Free of projected heat, UV and IR radiation
Replaceable LED module (consult factory)
Alternate beam angles may be ordered separately
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum.
Driver: 120VAC 50/60Hz, 700mA current.
High power factor >0.9. Max Load: 27W.
Dimming: No
High output LED.

Finish: Black (BK), Dark Bronze (DB), Platinum (PT) and White (WT) powder coat paint.
Standards: ETL & cETL Listed.

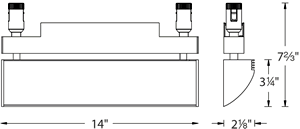

WAC Wall Washer LED 42W HM1-LED42W Flexrail1 LEDme Fixture

Designed and engineered to meet the challenging demands of the most discriminating designers and specifiers, these state-of-the-art LED thin-profile wall washers are ideal for upscale museums, and hospitality applications and other commercial spaces.

• Power: 42W
• Lumens: Up to 2520
• CRI: 85
• Dimming: 100% - 10%
• Compare to: 70W HID
• Rated Life: 100,000 hours
• Energy Star® rated
• Replaces halogen and fluorescent wall wash lights
• Smooth and continuous ELV dimming
• ANSI Compliant warm/neutral LED bins for a finer color consistency
• Die-cast aluminum construction
• Simple and professional design
• Thin side profile
• 45° vertical tilt

Color Temp: 27 - 2700K, 30 - 3000K, 35 - 3500K, 40 - 4000K

Finish: DB - Dark Bronze, PT - Platinum

Replaces halogen and fluorescent wall wash lights
Simple professional design
Thin side profile
45° vertical tilt
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Aluminum
Aiming: 45° vertical tilt.
Philips LED
Dimming: 120V only - Dim to 10% with electronic low voltage ELV) dimmer.

Finish: Available in black powder coat (BK), dark bronze (DB), white powder coat (WT), or platinum anodized (PT) finishes.
Standards: ETL & cETL listed.

WAC MR16 HM1-846 Flexrail1 Fixture

Flexrail1™ MR16
Offered in a compact size for a clean, unobtrusive look, Flexrail1 MR16 fixtures are constructed of die cast aluminum and engineered with an integral electronic transformer and compatible with WAC and other popular track and rail systems.

• Built in hot aiming adjustment
• 1W minimum load transformer
• Patented tool free locking mechanism for precise aiming
• Integral electronic transformer included
• Die-cast aluminum construction
• Clear lens included
• Accepts 12V LED MR16 or Halogen MR16 up to 75W max (order separately)

50W max or 75W max MR16

Finish: DB - Dark Bronze, PT - Platinum

1W minimum load transformer
Patented tool free locking mechanism for precise aiming
Integral electronic transformer
Die-cast aluminum construction
Clear lens included
Built in hot aiming adjustment
Accepts 1 lens, see below for alternate lens options

Materials: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Clear lens.
Transformer: 1W minimum load transformer
Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max (846) or 75W max (846L). Order separately.
Standards: UL & CUL Listed.

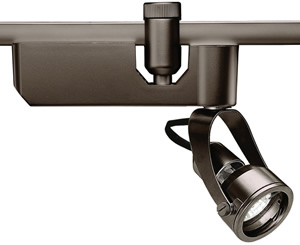

WAC MR16 HM1-849 Flexrail1 Fixture

Flexrail1™ MR16 Fixtures
Offered in a compact size for a clean, unobtrusive look, Flexrail1 MR16 fixtures are constructed of die cast aluminum and engineered with an integral electronic transformer and compatible with WAC and other popular track and rail systems. Offered in a compact size for a clean, unobtrusive look, Flexrail1 MR16 fixtures are constructed of die cast aluminum and engineered with an integral electronic transformer and compatible with WAC and other popular track and rail systems.

• Die-cast aluminum construction
• 1W minimum load transformer
• Integral electronic transformer included
• Clear lens included
• Accepts 12V LED MR16 or Halogen MR16 up to 75W max (order separately)

50W max or 75W max MR16

Finish: DB - Dark Bronze, PT - Platinum

1W minimum load transformer
Patented tool free locking mechanism for precise aiming
Integral electronic transformer
Die-cast aluminum construction
Clear lens included
Built in hot aiming adjustment
Accepts 1 lens, see below for alternate lens options

Materials: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Clear lens.
Transformer: 1W minimum load transformer
Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max (849) or 75W max (849L). Order separately.
Standards: UL & CUL Listed.

WAC PAR20 HM1-720 Flexrail1 Fixture

720 Flexrail1™ PAR20 Fixtures Constructed of die cast aluminum, the PAR fixtures are engineered with patented cast swivel, stem and tool-free locking mechanism for precise aiming control.

• Die-cast aluminum construction
• Patented tool free locking mechanism for precise aiming

120V, 50W max PAR20
Finish: DB- Dark Bronze, PT - Platinum

Patented tool free locking mechanism for precise aiming
Die-cast aluminum construction
350° horizontal rotation and 90° vertical aiming with integral ball and swivel mounting feature

Materials: Track head and connector are die-cast aluminum. Track adapter is polycarbonate. Medium base lamp socket is porcelain with nickel-plated copper shell.
120V, 50W max PAR20 (order separately).
Standards: UL & CUL Listed.

WAC 101 Flexrail1 GU10 Fixture

HM1-101 Track Fixtures
Flexrail1™ compatible cone style line voltage track head utilizing GU10 lamps.

• Uses GU10 lamps for a sleek look without the need for a transformer
• Die-cast aluminum construction
• Choose from decorative cased glass and metal shades

120V, 50W max, GU10 included
Finish: AM/DB - Amber/Dark Bronze, AM/PT - Amber/Platinum, DB/DB - Dark Bronze/Dark Bronze, PT/PT - Platinum/Platinum, WT/PT - White/Platinum, WT/DB - White/Dark Bronze

Uses GU10 lamps for a sleek look without
the need for a transformer
Die-cast aluminum construction
Choose from decorative cased glass and metal shades
350° horizontal rotation and 90° vertical aiming with integral ball and swivel mounting feature

Materials: Track head and connector are die-cast aluminum. Track adapter is polycarbonate. Medium base lamp socket is porcelain with nickel-plated copper shell.
120V, 50W GU10 included.
Standards: UL & CUL Listed.

WAC HM1-EN50 Quick Connect Adapter for Flexrail1

Order one per Quick Connect fixture or pendant used.
The threaded male adapter makes compatibility a snap. Simply insert the metal fitting into the system adapter, hand tighten the collar and you're done! Allows any QP pendant or QF fixture to be used with the Flexrail1 system.

Hundreds of fixture combinations are available for WAC Quick Connect Flexrail 1 Monorail. Xenon, LED, Halogen and other light choices. Fixtures come in standard lengths of 3", 6", 9" and 12". Fixture extensions of up to 48" are also available.
