Tech Lighting Wall Monorail (Retired)

Customize Your Tech Lighting Wall Monorail System

Low-voltage heads are fixed to Monorail attached to the wall.

Design your rail.

  • Determine how many pieces of rail you'll need.
  • Wall Monorail can be shaped by hand to follow a curved wall or soffit.
  • Wall Monorail bends horizontally to a radius as small as 6" and vertically to a radius as small as 24" or it can be ordered in factory pre-bent custom curves.
  • To go around corners or up or down around windows at sharp horizontal or vertical angles; rail can be field cut, then joined with connectors at sharp horizontal or vertical angles.
  • Beginning from the power feed canopy, begin adding standoffs symmetrically every three feet and at corners. Standoffs can be positioned to cover points where rails are joined.
  • Place the last standoff 4" to 6" from the end of the rail.
  • Finish with a set of end caps.
  • Or choose a plug-in kit for simple setups.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from an array architectural heads.
  • Add optional colorful and decorative accessories and functional optical controls.

Select your transformer.

  • Add up the wattage from the lights you have chosen. Choose 12 or 24 volt. Then select a visible surface mount transformer or a hidden remote transformer with power feed canopy.
  • Wall Monorail must be placed so it runs directly in front of the junction box if using a surface transformer or within two feet of the junction box if using a remote transformer.
  • A 16' cord and plug is available plug in a surface transformer.
  • If you are using LED fixtures, be sure to choose a transformer that is compatible with LED elements.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Wall Monorail Starter Kits: Choose Your Own Lights

Start with a Wall Monorail Kit
Then add any lights

Further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.

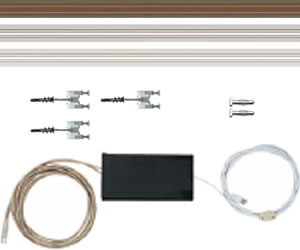

Tech Lighting 700WMKTA300 Wall Monorail Kits

Simplify your design by starting with a Tech Lighting Wall Monorail Kit.

700WMKTA300C Chrome
700WMKTA300S Satin Nickel
700WMKTA300Z Antique Bronze

Choose any lights to complete you custom Wall Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.

All Wall Monorail Kits include:

8' long Wall Monorail

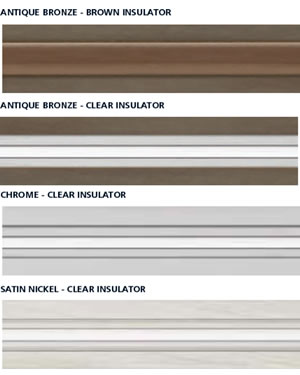

Hand-bendable, field-cuttable Wall Monorail in Antique Brass with Brown Insulator, Chrome or Satin Nickel with Clear Insulator.

Decorative End Caps
One set of decorative end caps. Decorative end caps fit into ends of Wall Monorail run for a finished look.

Three Wall Monorail Standoffs
Positions rail 1" from the wall. Use standoff supports every three feet of Wall Monorail run and at corners. Standoffs can be positioned to cover points where rails are joined.

12 volt 300 watt Plug-in Magnetic Remote Transformer with End Power Feed
12 volt 300 watt plug-in magnetic remote transformer with end power feed with 16' cord.

Tech Lighting 700MOA Wall Monorail

700MOA24 Monorail 24"
700MOA48
Monorail 48"
700MOA96
Monorail 96"

Hand-bendable, field-cuttable Wall Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end.

Color: Insulator is available in clear and brown.
Finish: Antique Bronze, Chrome, Satin Nickel.

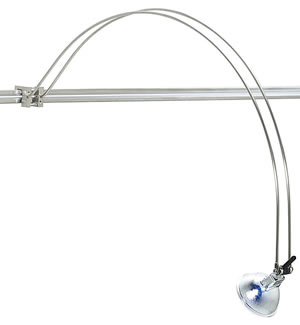

Tech Lighting Wall Archie 700WMARCH

700WMARCH

Compact and Mini Picture Lightss to Wall Monorail. 17" long with a 11" high swooping curve. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts. For Wall Monorail system only.

System: Available for Wall Monorail only.

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

Finish: Antique Bronze, Chrome or Satin Aluminum

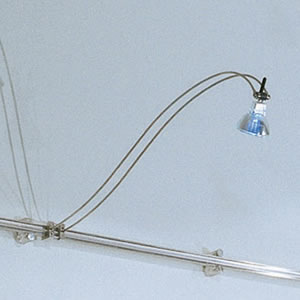

Tech Lighting Wall Georgi 700WMGRG

700WMGRG

Compact and Mini Picture Lightss to Wall Monorail. 18" long with 3" high gentle curve. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts not included). For Wall Monorail system only.

System: Available for Wall Monorail only.

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

Finish: Antique Bronze, Chrome or Satin Aluminum

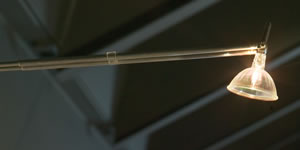

Telescopes from 9" to 25".

Telescopes from 9" to 25".

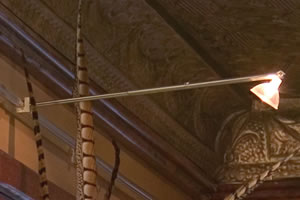

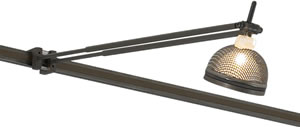

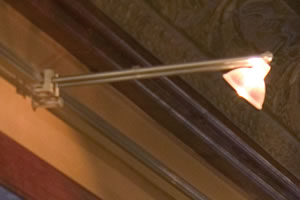

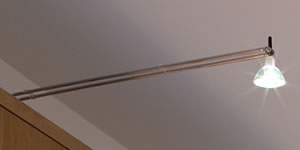

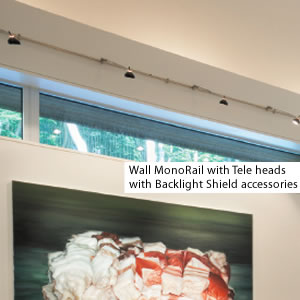

Tech Lighting Wall Telescope 700WMTEL

700WMTEL

Compact and Mini Picture Lightss to Wall Monorail. Telescopes from 9" to 25". Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts. For Wall Monorail system only.

System: Available for Wall Monorail only.

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder Accessory

Finish: Antique Bronze, Chrome or Satin Aluminum

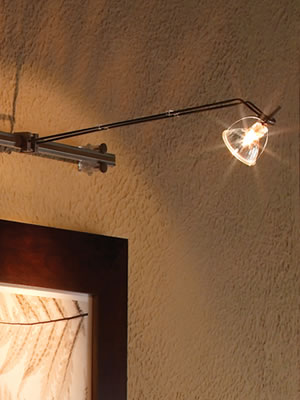

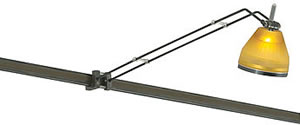

Tech Lighting Wally Lite 700WMWAL

700WMWAL12 12"
700WMWAL24 24"

Compact and Mini Picture Lightss to Wall Monorail. Available in two lengths. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts. For Wall Monorail system only.

System: Available for Wall Monorail only.

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder Accessory

Length 12" or 24"
Finish: Antique Bronze, Chrome or Satin Aluminum

Tech Lighting 700WMOCHED Wall Monorail FreeJack Connector

Adapts any FreeJack head to Tech Lighting's Wall Monorail system. For Wall Monorail only.

  • Two-piece connector unscrews to install around Wall Monorail; FreeJack male connector fits into bottom and twists to tighten.
  • Chrome, Satin Nickel.
  • Any FreeJack head (sold separately).

Enables Free Jack Heads to be used with Wall Monorail.

Tech Lighting 700WMOS01 Wall Monorail Standoff

Use standoff supports every three feet of Wall Monorail run and at corners. Standoffs can be po sitioned to cover points where rails are joined. Positions rail 1" from the wall. Order one for every three feet of run.

For best appearance, place the last standoff 4-6" from the end of the rail, and place standoffs symmetrically.

Finish: Antique Bronze, Chrome or Satin Aluminum

Tech Lighting 700WMOCCN Wall Monorail Conductive Connectors

Conductive Connectors join sections of rail together end to end
and are included with all Wall Monorail pieces. Order separately
if cutting and rejoining rails. Pair.

Finish: Antique Bronze, Chrome or Satin Aluminum

Tech Lighting 700WMOCINC Wall Monorail Isolating Connectors

Isolating Connectors join sections of rail and isolate power feeds from each other. All dual-feed canopies are shipped with isolating connectors; order additional if required by layout. Pair.

Tech Lighting 700WMOCFXH Wall Monorail Flexible Horizontal Connectors

Flexible Horizontal Connectors join sections of rail together end to end at desired sharp horizontal angle. Pair.

Finish: Antique Bronze, Chrome or Satin Aluminum

Tech Lighting 700WMOCFXV Wall Monorail Flexible Vertical Connectors

Flexible Vertical Connectors join sections of rail together end to end at desired vertical angle. Pair.

Finish: Antique Bronze, Chrome or Satin Aluminum

Tech Lighting 700WMOCCAP Wall Monorail End Caps

Decorative end caps fit into ends of Wall Monorail run for a finished look. Pair; order one pair for each end.

Finish: Antique Bronze, Chrome or Satin Aluminum

Wall Standoffs to Cantilever from a Wall

Another option to wall monorail.

Wall Standoffs to Cantilever from a Wall

There are two types of outside riggers—one for power, one for support. Both types of outside rigger extend 36" from the wall and are field-cuttable.

Tech Lighting 700MOSORG Monorail Support Outside Rigger

700MOSORG Monorail Support Outside Rigger

Extension from the wall, to support the rail. Use every three feet of run.

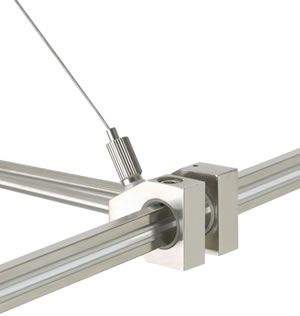

Tech Lighting 700MOPORG2 Monorail Power Outside Rigger

700MOPORG2 Monorail Power Outside Rigger

Extension 36" from the wall to support and power rail from a remote transformer. Field-cuttable. Includes 4" round canopy and 2" square canopy.

Finish: Antique Bronze, Chrome or Satin Nickel

How do I design my own Wall Monorail?

First: Choose Wall Monorail heads.
Choose accessories, if desired.
Choose lamps, 12 or 24 volt, that do not exceed maximum wattage of element or accessory.
Choose finish of system.

Use a scaled drawing as a reference.

A) Decide where you want the rail to run.
b) Sketch it to scale, so you know what Length you want.
Measure Length of Wall Monorail run; determine quantity and Length of Monorail pieces required.
Specify one pair of End Caps for each open end of run.
Determine number of Standoffs needed, one for every three feet of run.


Select Either

Remote Transformer
Choose:
Magnetic or electronic
12 volt or 24 volt
Single or dual-feed Specify a Power Feed Canopy, single or dual-feed. (if using a dual feed transformer be sure to order two canopies)

OR

Surface Transformer
Note: if using a Kable Lite Surface Transformer the transformer must be mounted adjacent to run.
Choose:
Magnetic or electronic
12 volt or 24 volt
Single Specify a Center Power Feed or End Power Feed Connector and determine part number.


Surface Transformer


Remote Transformer


Recessed Remote Transformer

*Wattage of the transformer must meet or exceed wattage of lamps.

If powering system with more than one transformer, add Isolating Connectors to isolate the feeds from each other.

Mounting:
Order Wall Monorail Standoffs.

This outline covers only the most common Wall Monorail applications.

Checklist
Make sure your Bill of Materials includes:

Transformer

Power Feed Canopy (for Remote Transformer)

End or Center Power Feed (for Surface Transformer)

Isolating Connectors (if necessary)

Standoffs (one for every three feet of run)

Wall Monorail

End Caps (one pair for each open end)

Elements

Lamps

Accessories and Optical Controls

Make sure all finishes match and product numbers end with C (Chrome), G () or S (Satin Nickel)

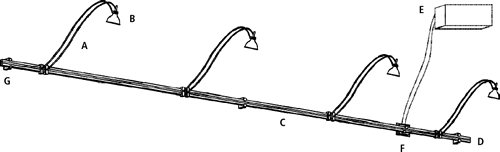

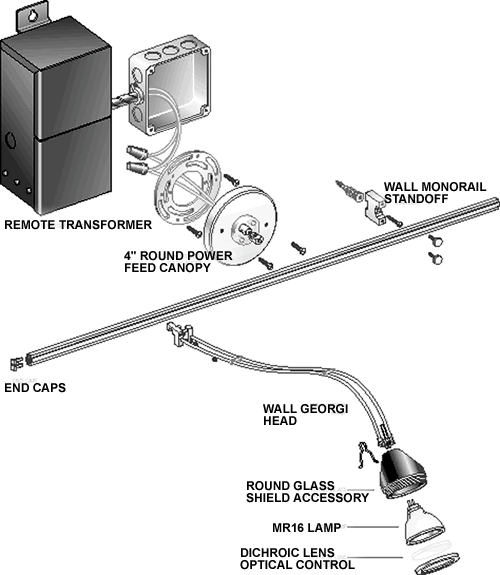

Sample Bill of Materials for Tech Lighting Wall Monorail System

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Item Quantity Number Description
A 4 700WMGRGC WMO-Georgi, chrome
B 4 300BLV116 12v 75 watt MR16 lamp, GE EYC 38°
C 1 700MOA96C Monorail 96", chrome
C 1 700MOA24C Monorail 24", chrome
D 2 700MOCCAPC End Caps, pair, chrome
E 1 700AT300T Remote Magnetic Transformer, 12v 300 watts
F 1 700WMOP2SQC Power Feed Canopy, 2" square, chrome
G 3 700WMOS01C Wall Monorail Standoffs, chrome

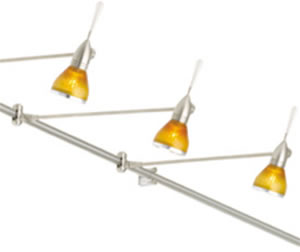

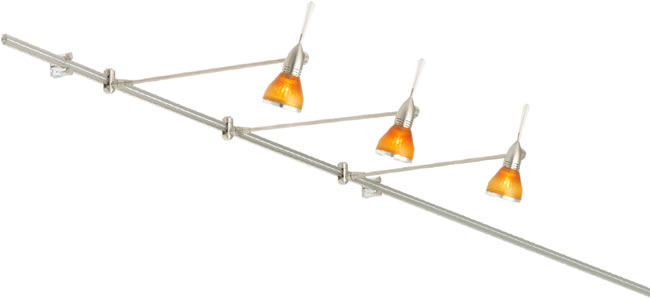

Satin Nickel Wall Monorail with Aero shown with Amber Round Glass Shield

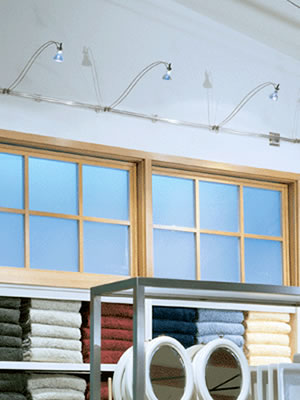

Tech Lighting Wall Monorail

Wall Monorail is a specialty low-voltage lighting system designed for gallery-style illumination. Specifically designed to bring light where you want to draw attention: artwork, merchandise or a company logo. With our new Wall Monorail FreeJack connector you can now select many more FreeJack compatible heads for use on a Wall Monorail system. Wall Monorail is also now available in our new Antique Bronze finish.

Wall Monorail is a specialty system designed to help draw attention to visual displays or markers.

  • Incorporates same rail and finish options used on the Monorail system

  • A great solution for tough-to-illuminate areas where ceiling meets wall

  • Complete selection of compatible FreeJack fixtures available by incorporating Tech Lighting's FreeJack adapter

The rail is low-voltage conductor of two individual conductive metal pieces fused together by a plastic separator. Hand-bendable, field-cuttable Wall Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails. Standard Monorail bends horizontally to a radius as small as 6" and vertically to a radius as small as 24". The Insulator is available in clear and brown.
