WAC Lighting dweLED - All LED Technology

Up to 80,000 hours rated life

Superior 90 CRI

ETL & cETL listed

dweLED™ decorative LED luminaires are designed to integrate within a variety of spaces ranging from multi-family residential to commercial and healthcare.

Options include ADA compliance, ELV dimming, 277 volt power, wet location, and a variety of sizes and finishes.

dweLED™ Ceiling Lights

WAC Lighting Geos FM-4606, FM-4610 dweLED Damp Location Ceiling Light

Geos Ceiling Mount - Multiple mid-powered LED source illuminate the diffuser uniformly and without socket shadows common in conventional flush mounts.

  • Super thin, edge-lit LED panel
  • Die-cast aluminum construction
  • Wall or ceiling mount with twist-lock mechanism
  • ADA compliant
  • Meets 2013 California Title 24 Efficiency
  • ETL & cETL damp location listed
  • Smooth and continuous ELV dimming
  • Transformer located in J box
  • 277V available (special order)

Color Temp: 2700K, 3000K
CRI: 90
Dimming : 100% - 10%
Rated Life : 70,000 hours
Finish: TT- Titanium or WT - White



6"

10"

FM-4606 8 watts
-27 2700K 551 LED Lumens
-30 3000K 608 LED Lumens

FM-4606-27-TT Small 6" Geos Flush Mount Titanium
FM-4606-27-WT Small 6" Geos Flush Mount White
FM-4606-30-TT Small 6" Geos Flush Mount Titanium
FM-4606-30-WT Small 6" Geos Flush Mount White

FM-4610 12.5 watts
-27 2700K 964 LED Lumens
-30 3000K 1064 LED Lumens

FM-4610-27-TT Large 10" Geos Flush Mount Titanium
FM-4610-27-WT Large 10" Geos Flush Mount White
FM-4610-30-TT Large 10" Geos Flush Mount Titanium
FM-4610-30-WT Large 10" Geos Flush Mount White

WAC Lighting FM-4006, FM-4009 Dice dweLED Ceiling Light

FM-4006, FM-4009 Dice Ceiling Mount
Thick-walled glass is uniformly illuminated in a design made for LED technology in a square format. Full range dimming control. Square, low profile LED flush mount light can be ceiling or wall mounted and is available in two sizes.

FM-4006 5 5/8 Inch Square LED Flush Mount/Sconce
FM-4009 8 7/8" Square LED Flush Mount/Sconce
  • Etched 3/4" thick pressed glass diffuser with interior ceramic glaze
  • Mount as a ceiling fixture or wall sconce
  • ADA compliant when mounted on wall
  • Meets 2013 California Title 24 Efficiency
  • ETL & cETL damp location listed for wall and ceiling application
  • Smooth and continuous ELV dimming
  • Transformer located in J box
  • 277V available (special order)

Finish: BN- Brushed Nickel, BZ - Bronze, CH - Chrome
Color Temp: 2700K, 3000K
CRI: 90
Dimming : 100% - 10%
Rated Life : 50,000 hours

• Mount as a ceiling fixture or wall sconce
• ADA compliant when mounted on wall
• Meets 2013 California Title 24 Efficiency
• ETL & cETL damp location listed for wall and ceiling application
• Smooth and continuous ELV dimming
• Transformer located in J box
• 277V available (special order)

Construction: Durable die-cast aluminum canopy, with thick opal glass.
Light Source: LED

Finish: Brushed Nickel (BN), Bronze (BZ) and Chrome (CH).
Standards: UL & CUL Listed.

Model Length Color Temp Watt LED Lumens Delivered Lumens
FM-4006-27 6" 2700K 15.5W 721 410
FM-4006-30 6" 3000K 15.5W 797 455
FM-4009-27 9" 2700K 24W 1158 635
FM-4009-30 9" 3000K 24W 1278 700

WAC Lighting FM-4014 Dice dweLED Ceiling Light

FM-4014 Dice - LED Ceiling and Wall

-27 2700K 1323 LED Lumens, 610 Delivered Lumens
-30 3000K 1356 LED Lumens, 640 Delivered Lumens

  • Etched 3/4" thick pressed glass diffuser with interior ceramic glaze
  • Mount as a ceiling fixture or wall sconce
  • ADA compliant when mounted on wall
  • ETL & cETL damp location listed
  • Smooth and continuous ELV dimming
  • Also rated for installation in closets
  • Transformer located in J box
  • 277V available (special order)

Finish: BN- Brushed Nickel
Color Temp: 2700K, 3000K
Watts: 31


WAC Lighting FM-4109, FM-4111 Slice dweLED Ceiling Light

FM-4109, FM-4111
Perfect as the sole light source in a room mounted to a ceiling or intriguing as a wall sconce.

  • Broad based ambient lighting from a distinctive highly versatile flush mount luminaire
  • Etched 3/4" thick pressed glass diffuser with interior ceramic glaze
  • Mount as a ceiling fixture or wall sconce
  • ADA compliant when mounted on wall
  • Meets 2013 California Title 24 Efficiency
  • ETL & cETL damp location listed for wall and ceiling application
  • Smooth and continuous ELV dimming
  • Transformer located in J box
  • 277V available (special order)

Finish: BN- Brushed Nickel, BZ - Bronze, CH - Chrome
Color Temp: 2700K, 3000K
CRI: 90
Dimming : 100% - 10%
Rated Life : 50,000 hours

Choose Size and Finish

FM-4109 9"
-27 2700K Color Temperature, 27 watts, 1356 LED Lumens, 750 Delivered Lumens
-30 3000K Color Temperature, 27 watts, 1392 LED Lumens, 770 Delivered Lumens

FM-4109-27-BN Brushed Nickel 8 7/8" Round LED Flush Mount/Sconce - 2700K
FM-4109-27-BZ Bronze 8 7/8" Round LED Flush Mount/Sconce - 2700K
FM-4109-27-CH Chrome 8 7/8" Round LED Flush Mount/Sconce - 2700K
FM-4109-30-BN Brushed Nickel 8 7/8" Round LED Flush Mount/Sconce - 3000K
FM-4109-30-BZ Bronze 8 7/8" Round LED Flush Mount/Sconce - 3000K
FM-4109-30-CH Chrome 8 7/8" Round LED Flush Mount/Sconce - 3000K

FM-4111 11"
-27 2700K Color Temperature, 31 watts, 1593 LED Lumens, 915 Delivered Lumens
-30 3000K Color Temperature, 31 watts, 1635 LED Lumens, 940 Delivered Lumens

FM-4111-27-BN Brushed Nickel 11" Round LED Flush Mount/Sconce - 2700K
FM-4111-27-BZ Bronze 11" Round LED Flush Mount/Sconce - 2700K
FM-4111-27-CH Chrome 11" Round LED Flush Mount/Sconce - 2700K
FM-4111-30-BN Brushed Nickel 11" Round LED Flush Mount/Sconce - 3000K
FM-4111-30-BZ Bronze 11" Round LED Flush Mount/Sconce - 3000K
FM-4111-30-CH Chrome 11" Round LED Flush Mount/Sconce - 3000K

dweLED™ Bath Collection

WAC Lighting WS-39513, WS-39522, WS-39528 Ashton dweLED Vanities and Sconces

  • Etched opal glass
  • Vertical or horizontal mount
  • ETL & cETL Wet Location listed
  • ADA compliant
  • Smooth and continuous ELV dimming
  • Transformer located in J box
  • WS-39513 emits downlight as well as ambient light
  • 277V available (special order)

Finish: AB- Antique Bronze, AN- Antique Nickel, BB- Burnished Brass, PN- Polished Nickel

Color Temp: 2700K
CRI: 90
Dimming: 100% - 10%
Rated Life: 50,000 hours

WS-39513 13"
Watt: 25.5w
LED Lumens: 1093
Delivered Lumens: 770

WS-39513-AB Antique Bronze
WS-39513-AN Antique Nickel
WS-39513-BB Burnished Brass
WS-39513-PN Polished Nickel

WS-39522 22"
Watt: 30w
LED Lumens: 1373
Delivered Lumens: 990

WS-39522-AB Antique Bronze
WS-39522-AN Antique Nickel
WS-39522-BB Burnished Brass
WS-39522-PN Polished Nickel

WS-39528 28"
Watt: 41w
LED Lumens: 1512
Delivered Lumens: 1320

WS-39528-AB Antique Bronze
WS-39528-AN Antique Nickel
WS-39528-BB Burnished Brass
WS-39528-PN Polished Nickel

WAC Lighting Kube dweLED Vanities and Sconces

Includes downlight. Ideal for shaving or putting on makeup, providing both direct and ambient lighting.

1 Light
WS-44505-CH Chrome
Watt: 18w
LED Lumens: 675
Delivered Lumens: 605

2 Lights
WS-44512-CH Chrome
Watt: 32w
LED Lumens: 1554
Delivered Lumens: 1355

3 Lights
WS-44522-CH Chrome
Watt: 47.5w
LED Lumens: 2346
Delivered Lumens: 2210

  • Each light also contains a powerful downlight
  • ETL & cETL damp location listed
  • ADA compliant for WS-44505
  • Smooth and continuous ELV dimming
  • Driver located in J box with minimum inside dimension of 3 1/2" x 3 1/2" x 1 1/2"
  • 277V available for WS-44505 and WS-44512 (special order)
  • WS-44522 has Universal Voltage Input (120V-277V)

Finish: 1355 2210 CH- Chrome

Color Temp: 2700K
CRI: 90
Dimming: 100% - 10%
Rated Life: 60,000 hours

Select Size


WAC Lighting Rondelle WS-42505, WS-42514, WS-42524 dweLED Vanities and Sconces

1 Light
WS-42505-PN Polished Nickel, Opal
6.1" x 4.5" x 7.2"
Watt: 8.5w
LED Lumens: 230
Delivered Lumens: 220

2 Lights
WS-42514-PN Polished Nickel, Opal
6.1" x 14.1" x 7.4"
Watt: 16w
LED Lumens: 518
Delivered Lumens: 490

3 Lights

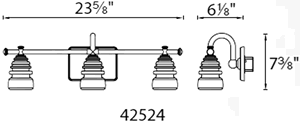

WS-42524-PN Polished Nickel, Opal
23.63" x 6.13" x 7.38"
Watt: 24.5w
LED Lumens: 865
Delivered Lumens: 805

The look of vintage telegraph glass insulators from the 1850's combined with the latest LED technology. These glass insulators were used for telegraph, telephone and electrical wires. Today people everywhere collect antique glass insulators. These reproductions are ETL & CETL listed for damp locations.

Three configurations available for a myriad of residential and commercial applications. Perfect for modern bathrooms, as well as hallways, entryways and foyers. Etc. and cell damp location listed 60,000 hours rated life, high 90 CRI, color temp: 3000K. 277V available (special order) 60,000 hours rated life smooth and continuous Elva dimming, driver located in J box.

  • ETL & cETL damp location listed
  • Smooth and continuous ELV dimming
  • Driver located in J box
  • 277V available (special order)

Finish: 1355 2210 CH- Chrome

Color Temp: 2700K
CRI: 90
Dimming: 100% - 10%
Rated Life: 60,000 hours

dweLED™ Swing Arm Lamp Collection

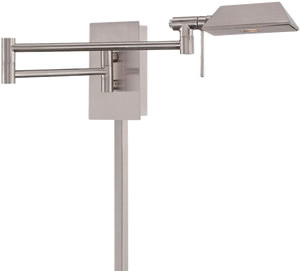

WAC Lighting BL-1223-CH Swing Arm Lamp

WAC Lighting BL-1223, BL-1327 Cue dweLED Swing Arm Wall Lamp

Single Headed

BL-1223-CH Chrome

Double Headed

BL-1327-CH Chrome

BL-1223, BL-1327 Cue Swing Arm
Clean architectural lines with tightly engineered adjustability. Precision directional lighting with fingertip dimming for comfortable task illumination in the home or office. Available in three handsome plate finishes.

  • Smooth swing arm operation
  • Two 12 inch cord covers included
  • Fingertip touch dimming on head
  • Fits 2" x 4" switch box
  • ETL & cETL damp location listed
  • Integral driver
  • Conversion plate for 4" J box included
  • For hard-wired and portable (8 foot cord) installation

Type: Single, Double
Watt:
8.5W, 16.5W
LED Lumens:
489, 978
Delivered Lumens:
315, 480

Finish: BR - Brushed Brass, BN - Brushed Nickel, CH - Chrome
Color Temp: 3000K
CRI: 85
Dimming : 100% - 10% (Integral dimmer)
Rated Life : 30,000 hours

• Smooth swing arm operation
• Two 12 inch cord covers included
• Fingertip touch dimming on head
• Fits 2" x 4" switch box
• ETL & cETL damp location listed
• Integral driver
• Conversion plate for 4" J box included
• For hard-wired and portable (8 foot cord) installation

Construction: Die-cast aluminum head. Plated steel base. Polyurethane-housed neck.
Color Temperature: 3000K
CRI: 85

Above: WAC Lighting BL-1327-CH
Below: WAC Lighting BL-1327-CH Swing Arm Lamp

Above: WAC Lighting BL-1527-PN
Below: WAC Lighting BL-1527-AN Swing Arm Lamp

WAC Lighting BL-1527-RB Swing Arm Lamp

WAC Lighting BL-1527 Hemmingway dweLED Swing Arm Wall Lamp

BL-1527-AN Antique Nickel
BL-1527-BB Burnished Brass
BL-1527-PN Polished Nickel
BL-1527-RB Rubbed Bronze

BL-1527 Hemmingway Swing Arm
Contrary to its classical design, Hemmingway conceals the most current generation of high color rendering LED arrays which ensure even light distribution and comfortable task illumination. Every joint swings to deliver light wherever needed. Offered in four classic metal finishes matching the Hemmingway LED picture light.

  • Smooth swing arm operation
  • One 18 inch cord cover included
  • Fingertip touch dimming on canopy
  • Meets 2013 California Title 24 Efficiency
  • ETL & cETL damp location listed
  • Fits 2" x 4" vertical switch box
  • Integral driver
  • For hard-wired and portable (8 foot cord) installation

Watt: 6.5W
LED Lumens:
445
Delivered Lumens:
325

Finish: AN- Antique Nickel, BB- Burnished Brass, RB- Rubbed Bronze, PN- Polished Nickel
Color Temp: 3000K
CRI: 90
Dimming : 100% - 10% (Integral dimmer)
Rated Life : 50,000 hours

• Smooth swing arm operation
• Two 12 inch cord covers included
• Fingertip touch dimming on canopy
• Meets 2013 California Title 24 Efficiency
• ETL & cETL damp location listed
• Fits 2"x4" vertical switch box
• Integral driver
• For hard-wired and portable (8 foot cord) installation

• Construction: Die-cast aluminum
• Color Temperature: 3000K
• CRI: 85


Above: WAC Lighting BL-1630
Below: WAC Lighting BL-1630-WT Swing Arm Lamp

WAC Lighting BL-1630 DwelLED Stretch dweLED Swing Arm Wall Lamp

BL-1630-BK Black
BL-1630-WT White

BL-1630 Stretch Swing Arm
A contemporary utilitarian design. Stretch incorporates a rubberized flexible and fixable arm as part of this unique modern design. The die-cast aluminum head also serves as the heat sink for the powerful 7.5 watt LED.

  • A contemporary utilitarian design
  • Flexible, yet fixable rubber tube for directing light
  • Two 12 inch cord covers included
  • Fits 2" x 4" vertical switch box
  • ETL & cETL damp location listed
  • Fingertip touch dimming on back plate
  • Integral driver
  • Conversion plate for 4" J box included
  • For hard-wired and portable (8 foot cord) installation

Watt: 7.5W
LED Lumens:
489
Delivered Lumens:
260

Finish: BK - Black, WT - White
Color Temp: 3000K
CRI: 85
Dimming : 100% - 10% (Integral dimmer)
Rated Life : 30,000 hours

• Flexible, yet fixable rubber tube for directing light
• Two 12 inch cord covers included
• Fits 2"x4" vertical switch box
• ETL & cETL damp location listed
• Fingertip touch dimming on back plate
• Integral driver
• Conversion plate for 4" J box included
• For hard-wired and portable (8 foot cord) installation

• Construction: Die-cast aluminum head. Plated steel base. Polyurethane-housed neck.
• Color Temperature: 3000K
• CRI: 85

dweLED™ Picture Lights

PL-LED14-27-RB Rubbed Bronze 14" Hardwire Hemmingway LED Picture Light

Above: 14" BB - Burnished Brass Portable, ready to plug in (PL-LED14P-27-BB).
Below: 24" PN - Polished Nickel Hardwire Picture Lights (PL-LED24-27-PN)

WAC PL-LED14, PL-ED24 dweLED Hemmingway LED Picture Lights

LED Picture Light 14 Inch Hardwired
PL-LED14-27-AN Antique Nickel
PL-LED14-27-PN Polished Nickel
PL-LED14-27-RB Rubbed Bronze
PL-LED14-27-BB Brushed Brass

LED Picture Light 14 Inch Portable (with Cord Plug)
PL-LED14P-27-AN Antique Nickel
PL-LED14P-27-PN Polished Nickel
PL-LED14P-27-RB Rubbed Bronze
PL-LED14P-27-BB Brushed Brass

LED Picture Light 24 Inch Hardwired
PL-LED24-27-AN Antique Nickel
PL-LED24-27-PN Polished Nickel
PL-LED24-27-RB Rubbed Bronze
PL-LED24-27-BB Brushed Brass

LED Picture Light 24 Inch Portable (with Cord Plug)
PL-LED24P-27-AN Antique Nickel
PL-LED24P-27-PN Polished Nickel
PL-LED24P-27-RB Rubbed Bronze
PL-LED24P-27-BB Brushed Brass

PL-LED14, PL-LED24 Hemmingway Picture Light
Available hardwired or ready to plug in.
Recognized by the Lighting for Tomorrow LED light design competition, Hemmingway illuminates fine artwork utilizing the optimal spectrum of colors. Unlike conventional lights, these LED picture lights provide full spectrum illumination without damaging infrared and ultraviolet rays. Available in four designer finishes and two sizes to complement upscale art framing.

  • Chronophoton™ Technology preserves artwork while providing vibrant color rendering
  • Head rotates 90° up or down and extends out 14w" from mounting surface
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matchi ng finish included

Finish: AN- Antique Nickel, BB - Burnished Bronze, RB - Rubbed Bronze, PN - Polished Nickel
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10% Dimmable to 10% with electronic low voltage (ELV) dimmer.
Rated Life : 70,000 hours

Construction: Aluminum with frosted glass lens.
Power: Direct wiring, no remote driver needed. 120V input / 24V output.
Light Source: 24 (14") or 48 (24") 2700K high power LEDs.
Standards: ETL Listed.

14" AN - Antique Nickel Hardwire Picture Lights (PL-LED14-27-AN)

14" RB - Rubbed Bronze (PL-LED14-27-RB)

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED14-27 14" Hard Wired 9.4W 595 302
PL-LED14P-27 14" Portable 9.4W 595 302
PL-LED24-27 24" Hard Wired 16.9W 1186 605
PL-LED24P-27 24" Portable 16.9W 1186 605

WAC PL-LED15, PL-LED25, PL-LED37 Vibe dweLED Picture Lights

BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass

14 1/4" Hard Wired Vibe Picture Light
PL-LED15-27-BK Black
PL-LED15-27-BN Brushed Nickel
PL-LED15-27-CH Chrome
PL-LED15-27-SB Satin Brass

24 7/8" Hard Wired Vibe Picture Light
PL-LED25-27-BK Black
PL-LED25-27-BN Brushed Nickel
PL-LED25-27-CH Chrome
PL-LED25-27-SB Satin Brass

24 7/8" Portable Vibe Picture Light
PL-LED25P-27-SB Satin Brass
PL-LED25P-27-BN Brushed Nickel
PL-LED25P-27-CH Chrome
PL-LED25P-27-SB Satin Brass

36 7/8" Hard Wired Vibe Picture Light
PL-LED37-27-BK Black
PL-LED37-27-BN Brushed Nickel
PL-LED37-27-CH Chrome
PL-LED37-27-SB Satin Brass

36 7/8" Portable Vibe Picture Light
PL-LED37P-27-BK Black
PL-LED37P-27-BN Brushed Nickel
PL-LED37P-27-CH Chrome
PL-LED37P-27-SB Satin Brass

PL-LED15, PL-LED25, PL-LED37 Vibe Picture Light
Available hardwired or ready to plug in.
Designed to disappear, the low profile Vibe picture light features a canopy that both hides behind the artwork and serves as the mount. At less than an inch in diameter, the Vibe picture light shrouds the smallest light source available to provide substantial, full spectrum, and high quality lighting. Three lengths with 35 degree rotation accommodates artwork of varying sizes.

  • Chronophoton™ Technology conserves artwork while providing vibrant color rendering
  • Head rotates 35° up or down
  • 110° beam angle
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matching finish included

Finish: BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10%
Rated Life : 70,000 hours

Construction: Aluminum with frosted plastic lens
Power: Integral driver, no remote driver needed
Light Source: Direct wiring or plug-in LED
Mounting: Hard wired and plug-in models available
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer.

Finish: Black (BK), Brushed Nickel (BN), Chrome (CH) and Satin Brass (SB)
Standards: ETL cETL Listed

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED15-27 15" Hard Wired 8.5W 595 240
PL-LED15P-27 15" Portable 8.5W 595 240
PL-LED25-27 25" Hard Wired 16W 1186 535
PL-LED25P-27 25" Portable 16W 1186 535
PL-LED37-27 37" Hard Wired 23W 1785 850
PL-LED37P-27 37" Portable 23W 1785 850

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
