Kichler Design Pro LED 12V Hardscape
Deck, Step and Bench Landscape Lighting

Kichler Design Pro LED 12V Hardscape
Deck, Step and Bench Landscape Lighting

Discover LED like you've never seen it.

Unique Hardscape LED light fixtures that are

  • Available in multiple Kelvin Temperature options; warm white 2700K, pure white 3000K and cool white 4200K
  • Available in 1, 3, 6, and 9 LED fixtures
  • Long-life LED light source – 40,000 hours at industry standard L70
  • Tested to withstand the elements for years of enjoyment
  • Easy to install
  • Easily adapts to almost any hardscape, deck, step or bench application

Finishes compliment popular stone and decking options

Metal Finishes
Unfinished Copper Plated Brass (CO)
Copper will naturally patina over time.
Bronzed Brass (BBR)
Cast Brass with Bronzed finish.
Marine Grade Powder Coat Finishes Cast Aluminum
Textured Architectural Bronze (AZT) Gray (GRY)
Sand (SD) Textured White (WHT)

Multiple Kelvin Temperature

Maximum Flexibility

Easy installation, low voltage usage, low profile (.66" wide) and low heat output of Design Pro LED enables them to be used in a variety of outdoor applications.

  • Retaining walls of all types – new and existing construction
  • Brick or stone columns
  • Under all types of steps, including wood, composite, stone and brick, etc. with and without risers
  • Under deck and chair/hand and fence rails
  • Lips or the undersides of a wide variety of outdoor surfaces
  • Pergolas
  • Outdoor kitchen and bar areas (under lips and toe kicks)
  • Raised beds/planters
  • Boat docks (as permitted by local codes)
  • Customize illumination by mounting farther back, for a scalloped effect, or forward for a more even effect.

Easy to Install

Thoughtful design, so whether new or existing construction, you can design effectively and install it efficiently.

A built-in driver and an operable voltage range of 9-15V virtually eliminate voltage drop in every Design Pro LED Hardscape, Deck, Step and Bench Light fixture.



New Construction
LED Light fixture and stainless steel mounting bracket are preassembled and ready to install.



Retrofit
Need to mount on a flat or vertical surface? No problem. The available flat mount accessory brackets (15716SS, 1517SS, 1518SS, 1519SS) allow for a variety of retrofit and new build applications.



Deck, Step and Bench Installation
Don't need the brackets? Don't pay for them. Kichler provides the product options that make it convenient for your specific job. For non-hardscape applications, the threaded screw holders also allow for easy install. In fact you can mount these LED fixtures on any surface where you can drill two holes.

Housing

Cast Aluminum, Cast Brass, Copper Plated Brass
Copper will naturally patina over time.

Light Source

Integrated High Output Nichia LED, tightly binned for color uniformity and constant current driver.

Beam Spread 55°
Color Temperature (CCT) & CRI

2700K (-280/+0), 300K (-200/+175), 4200K (-400/+400)/80s CRI

Operating Voltage Range 9V - 15V AC/DC with no loss in output due to constant current technology
Lumen Main. Tested to an L-70 of 40,000 hours
Wiring 70" of usable #18-2, SPT-1W leads, Pro series wire connectors supplied
Mounting Stainless steel masonry bracket and mounting screws
Optional Accessories Mounting brackets
  Subjected to highly accelerated life testing - 3rd party reliability testing
Not for use with electronic transformers.
Power Usage at 12V AC Input VA and Watts:
Single LED

0.19 W, 0.28VA
Multiply fixture VA by the number of fixtures used to determine size of transformer

3 LED

0.75 W, 1.3VA
Multiply fixture VA by the number of fixtures used to determine size of transformer

6 LED

1.4 W, 2.4VA
Multiply fixture VA by the number of fixtures used to determine size of transformer

9 LED

2.2 W, 3.7VA
Multiply fixture VA by the number of fixtures used to determine size of transformer

1 LED 15744
Above: 15744WHT30 with Bracket (Textured White)
Below: 15744SD42 (Sand)

Kichler 15744 1-Light Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting

3 inch, 3000K pure white, 1 LED Design Pro hardscape fixture.
Without Bracket: Width 0.75" x Height 0.5" x Length: 3"
With Bracket: Width 3" x Height 0.75" x Length: 3"

See more choices on a desktop computer or by turning your screen horizontal.
15744AZT27 Textured Architectural Bronze
15744AZT30 Textured Architectural Bronze
15744AZT42 Textured Architectural Bronze
15744BBR27 Bronzed Brass
15744BBR30 Bronzed Brass
15744BBR42 Bronzed Brass
15744CO27 Copper
15744CO30 Copper
15744CO42 Copper
15744GRY27 Gray
15744GRY30 Gray
15744GRY42 Gray
15744SD27 Sand
15744SD30 Sand
15744SD42 Sand
15744WHT27 Textured White
15744WHT30 Textured White
15744WHT42 Textured White

3 LED with Bracket 15745
Above: 15745BBR42 (Bronzed Brass)
Below: 15745CO42 (Copper)

Kichler 15745 3-Light Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting

Without Bracket: Width 0.75" x Height 0.5" x Length: 7"
With Bracket: Width 3" x Height 0.75" x Length: 7"

See more choices on a desktop computer or by turning your screen horizontal.
15745AZT27 Textured Architectural Bronze
15745AZT30 Textured Architectural Bronze
15745AZT42 Textured Architectural Bronze
15745BBR27 Bronzed Brass
15745BBR30 Bronzed Brass
15745BBR42 Bronzed Brass
15745CO30 Copper
15745CO27 Copper
15745CO42 Copper
15745GRY27 Gray
15745GRY30 Gray
15745GRY42 Gray
15745SD27 Sand
15745SD30 Sand
15745SD42 Sand
15745WHT30 Textured White
15745WHT27 Textured White
15745WHT42 Textured White

6 LED with Bracket 15746
Above: 15746GRY30 (Gray)
Below: 15746BBR42 (Bronzed Brass)

Kichler 15746 6-Light Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting

Without Bracket: Width 0.75" x Height 0.5" x Length: 13"
With Bracket: Width 3" x Height 0.75" x Length: 13"

See more choices on a desktop computer or by turning your screen horizontal.
15746AZT27 Textured Architectural Bronze
15746AZT30 Textured Architectural Bronze
15746AZT42 Textured Architectural Bronze
15746BBR27 Bronzed Brass
15746BBR30 Bronzed Brass
15746BBR42 Bronzed Brass
15746CO30 Copper
15746CO27 Copper
15746CO42 Copper
15746GRY27 Gray
15746GRY30 Gray
15746GRY42 Gray
15746SD27 Sand
15746SD30 Sand
15746SD42 Sand
15746WHT30 Textured White
15746WHT27 Textured White
15746WHT42 Textured White

9 LED 15756
Above: 15756WHT42 with Bracket (Textured White)

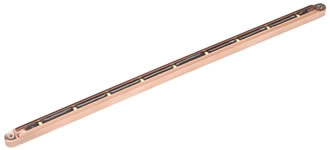

Below: 15755CO30 (Copper)

Kichler 15756 9-Light Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting

Without Bracket: Width 0.75" x Height 0.5" x Length: 19"
With Bracket: Width 3" x Height 0.75" x Length: 19"

See more choices on a desktop computer or by turning your screen horizontal.
15756AZT27 Textured Architectural Bronze
15756AZT30 Textured Architectural Bronze
15756AZT42 Textured Architectural Bronze
15756BBR27 Bronzed Brass
15756BBR30 Bronzed Brass
15756BBR42 Bronzed Brass
15756CO30 Copper
15756CO27 Copper
15756CO42 Copper
15756GRY27 Gray
15756GRY30 Gray
15756GRY42 Gray
15756SD30 Sand
15756SD27 Sand
15756SD42 Sand
15756WHT30 Textured White
15756WHT27 Textured White
15756WHT42 Textured White

Kichler 15716SS, 1517SS, 1518SS, 1519SS Stainless Steel Linear LED Bracket Accessories

Hardscape mounting brackets
Stainless Steel

15716SS 4 pack LED Retrofit Bracket (3in)
15717SS 4 pack LED Retrofit Bracket (6.9in)
15718SS 4 pack LED Retrofit Bracket (12.9in)
15719SS 4 pack LED Retrofit Bracket (18.9in)

Connection Accessories

Kichler 15501, 15502, 15505, 15506 12 Gauge Low Voltage Cable

Low Voltage Cable - 12 gauge

15501BK 100' 12 gauge wire
15502BK 250' 12 gauge wire
15505BK 500' 12 gauge wire
15506BK 1000' 12 gauge wire

Kichler 15504 250' 10 gauge Low Voltage Cable

Low Voltage Cable - 10 gauge - 250', #12-2, 10-2, 8-2 conductor SPT cable. UL listed for 12-Volt outdoor lighting applications. UV stabilized black PVC insulation. For direct burial.

    Price
15504BK 250' 10 gauge wire

Kichler 15503 250' 8 gauge Low Voltage Cable

Low Voltage Cable - 8 gauge - 250', #12-2, 10-2, 8-2 conductor SPT cable. UL listed for 12-Volt outdoor lighting applications. UV stabilized black PVC insulation. For direct burial.

15503BK 250' 8 gauge wire


Kichler 15579, 15589 Wire Connector

For connecting #8, #10, #12 and #18 gauge landscape wiring.

Wire connector offers one step, twist-on, waterproof, in-line cable splicing for direct burial. Services both 12-Volt or 120-Volt line voltage.

15579BK 10 pack
15589BK 10 pack


Kichler 15529 Pro Wire Connectors

Bulk pack of 100 connectors

15529BL Brown

Kichler Professional Series Transformers

Features a stainless steel case.
Kichler's Professional Series provides the best options and flexibility needed for most installations. Output voltage range will suit most jobs. Features include a commercial grade toroid core and coil submersible rating, pluggable timer and photocell outlets, plus a lifetime warranty.

15PR75SS Stainless Steel 75 Watt
15PR100SS Stainless Steel 100 Watt
15PR200SS Stainless Steel 200 Watt
15PR300SS Stainless Steel 300 Watt
15PRD600SS Stainless Steel 600 Watt
15PR600SS Stainless Steel 600 Watt
15PR900SS Stainless Steel 900 Watt
15PR1200SS Stainless Steel 1200 Watt
See more choices on a desktop computer or by turning your screen horizontal.

Kichler Plus Series Transformers

Features a powder coated case.
Kichler's Plus Series Transformers feature a 6' cord, pluggable options with a powder coated steel case.
This unit is not approved for use with fixtures placed in ponds or landscape water features.

See more choices on a desktop computer or by turning your screen horizontal.
15PL75AZT Textured Architectural Bronze 75 Watt
15PL100AZT Textured Architectural Bronze 100 Watt
15PL200AZT Textured Architectural Bronze 200 Watt
15PL300AZT Textured Architectural Bronze 300 Watt
15PL600AZT Textured Architectural Bronze 600 Watt
15PL900AZT Textured Architectural Bronze 600 Watt

Kichler Manual Series Transformers

Features a powder coated case.
Kichler's Manual Series Transformers are the ideal solution when on/off switching is desired at the transformer and nowhere else. Timers and photocells are not offered as options for this unit.
This unit is not approved for use with fixtures placed in ponds or landscape water features. For exterior use only.

See more choices on a desktop computer or by turning your screen horizontal.
15M100AZT Textured Architectural Bronze 100 Watt
15M200AZT Textured Architectural Bronze 200 Watt
15M300AZT Textured Architectural Bronze 300 Watt
15M600AZT Textured Architectural Bronze 600 Watt

Kichler 15E60BK, 15E120BK Economy Transformers

15E60BK Black Material (Not Painted) 60 Watt
15E120BK Black Material (Not Painted) 120 Watt

Transformer Accessories

Kichler 15557 Mechanical Transformer Timer

Can be used with Professional and Plus Series Transformers

15557BK Black Material (Not Painted)


Kichler 15556 Digital Transformer Timer

Can be used with Professional and Plus Series Transformers
Integrated battery backup

15556WH White


Kichler 15534 Remote Plug-In Transformer Photocell

Can be used with Professional and Plus Series Transformers

15534BK Black Material (Not Painted)


Kichler 15565 Plug-In Transformer Photocell

Can be used with Professional and Plus Series Transformers

15565BK Black Material (Not Painted)


Kichler 15511 Synchronizer Device

Synchronize all transformers used in a landscape setting so they turn on and off at the same time. (Jumper wire is not included)

15511BK Black
