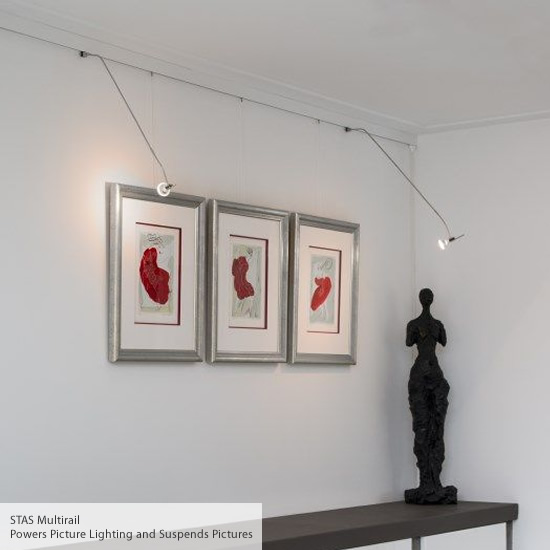

STAS Multirail Picture Rail with Picture Lights

STAS Multirail

STAS Multirail is a globally patented picture hanging system equipped with integrated power supply wires.

Lighting fixtures can be clicked into the rail at any spot to illuminate your wall decorations.

The STAS Multirail System includes these components:

Picture Rail
Segments are 6.5-feet long (78.75")
Available in White or Natural Aluminum (Silver)
Rail hangs artwork and powers lights
Rail comes with installation parts, end caps and joining segments
Can run along curved walls
Corner segments available for 90 degree turns

Power
One 45 watt transformer will power up to 10 Lights and up to 8 segments, 52.5-feet of picture rail.

Picture Lights
4-watt 12 volt LED picture lights click into track at any point.

Hooks and Cords
Cords connect to the rail and hold hooks
Cords slide along rail
Hooks adjust up and down cords
Hook and Cord Sets can hold up to 44 lbs
Multiple paintings can be suspended from a single cord
Large artwork can be secured with two cords

Two Year Warranty

Complete Kits

STAS 78.75" Multirail with Installation Kit

Rail hangs artwork and powers lights
Can run along curved walls

White or Natural (Silver) aluminum
Material: Aluminium

78.75" long
0.43" x 1.10" (11 x 28 mm)
A maximum of 8 segments per power adapter

Multirail Installation Kit
Rail comes with installation parts, end caps and joining segments

1 x 6.5-Foot Rail
6 x Anchors
6 x Screws
6 x Snap in Supports
1 x Rail Connecting Support
1 x 12v Connecting Conductor
2 x End Caps

Kit has rail and two endcaps for a complete installation.
Connecting Support and Conductor allows each Multirail kit to connect to the next and be powered with a single transformer.

Kit does not include lights, transformer or picture hooks.

STAS Multirail Conductor Straight

12 volt Conductive Picture Rail Connector

STAS multirail conductor 12V, conductive connection to connect 2 pieces of multirail corner.

Works with White or Silver rail.

STAS Multirail Conductor Corner

12 volt Conductive Picture Rail Corner

STAS multirail conductor 12V, angled conductive connection to connect 2 pieces of multirail in a corner.

Works with White or Silver rail.

STAS Multirail Connector

12 volt Conductive Picture Rail Connector

STAS multirail connection to connect 2 pieces of multirail.

Includes screw and wall anchor.

Works with White or Silver rail.

STAS Multirail Sirius Light Fixture

Lighting fixtures with LED lamps can be clicked into the rail at any spot to illuminate your wall decorations.

4 watt LED

Overall 19.98"
15.75" from the wall
Adjustable

The modern designed Sirius fixture is easy to install in all STAS multirail systems. Sirius is available in a length of 19.68 inches (50 cm), executed in chrome. You can click the fixture into the rail with a simple motion. Adjusting the fixture is not necessary, you only need to install the lamp and through the flexible portion of the fixture you can highlight the wall decorations in the desired manner.

STAS Multirail Signo Light Fixture

Lighting fixtures with LED lamps can be clicked into the rail at any spot to illuminate your wall decorations.

4 watt LED

Overall 27.56"
24.41" from the wall
Adjustable

Chrome

The modern designed Signo fixture is easy to install in all STAS multirail systems. Simply click the fixture into the rail. The greater the distance to the artwork, the more diffuse the light beam will be. The signo fixture is installed at 24.41 inches (62 cm) from the wall and is ideal for lighting larger pieces of art. The Signo fixture is available in chrome and is executed with a flexible part, allowing you to illuminate your wall decorations just the way you want. Further adjustment of the fixture is not necessary, you only need to install the lamp.

STAS VL10700 4 watt powerLED Lamps

Product code VL10700
Lamp type LED
Glass style Matte
Housing style MR11
Base type GU4
Power 4W
Operating Voltage 12V
Wattage equivalent 20W
Light color Warm white
Light output 170 lm
Color temperature 3000 K
Lifespan 20.000 hours
UV stop Yes
Angle 30°
Dimmable No

The new generation STAS power LED 4W is ideal to light artwork. This LED is provided with a beautiful closed housing which enables sufficient heat release yet avoids light spill at the rear side. Furthermore, the LED lamp is equipped with 3 LEDS and a frosted lens. The STAS powerLED has a long lifespan (20,000 hours) and is suitable for all STAS fixtures.

STAS Multirail Power Supply
STAS Power Supply Model VT20900

45 watt Power Supply
AC in DC out

7.15" long x 2.4" wide x 1.38" high

The STAS multirail power adapter 45 W supplies electricity to your STAS multirail system. One adapter will supply power to a maximum of 17.5 Yards of rail (16 meter / 8 segments), and to a maximum of 10 LED lamps (4 W).

To install more than 17.5 Yards of rail and / or more than 10 LED lamps use a second adapter and DO NOT LINK RAIL.

CAUTION: if you use multiple adapters, make absolutely sure you create independent circuits. In other words: two adapters cannot be connected! So, NEVER link two segments of rail that are each connected to a different adapter! You can only connect rail segments that share the same adapter.

Specifications:
Input AC Voltage : 90-264 VAC / 47-63 Hz
Output DC Voltage : 9-12 V constant current
Rated Current output : 3.8 A
Rated Power output : 45.6 W

Universal AC input / Full range
Adjustable output voltage and current level
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Fully isolated plastic case with terminal block style of I/O
Built-in active PFC function, comply with EN61000-3-2 class C (>75% load)
Class 2 power unit
Pass LPS
100% full load burn-in test
High reliability
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting

STAS Multirail Picture Rail Hooks and Cords

Readymade Hooks and Cords Sets

Cords connect to the rail and hold hooks
Cords slide along rail
Hooks adjust up and down cords

Multiple paintings can be suspended from a single cord
Large artwork can be secured with two cords

There are combinations of hooks and cords for loads up to 8.8 lbs, 22 lbs, 33 lbs and 44lbs per set to pick from. It's better to use two or more cord-hook combinations for the larger frames, so the weight capacity is certainly enough, plus you can level the frame better when you have two hook - cord combinations to hang your artwork on.

Clear (perlon) cord with cobra end + STAS smartspring hook

Clear Perlon Cords virtually disappear on the wall.

For loads up to 8.8 lbs

Length
59 inch
78.75 inch
118 inch



Clear (perlon) cord with cobra end + STAS zipper hook

Zipper hooks easily move up and down cord and lock when the latch is released.

For loads up to 33 lbs

Length
59 inch
78.75 inch
118 inch



Steel Cable + STAS zipper hook

Zipper hooks easily move up and down cable and lock when the latch is released.

For loads up to 44 lbs

Length
59 inch
78.75 inch
118 inch



Steel Cable (white coating) + STAS zipper hook

Zipper hooks easily move up and down cable and lock when the latch is released.

For loads up to 22 lbs

Length
78.75 inch



Steel Cable + STAS zipper pro hook

Pro Hook has a catch to make it more difficult to remove artwork from hook.
Zipper hooks easily move up and down cable and lock when the latch is released.

Length
59 inch
78.75 inch
118 inch

STAS Multirail adds elegance, glamour and sophistication to your space and lets your works of art take center stage.

STAS Multirail is a globally patented picture hanging system equipped with integrated 12 V power supply wires (low voltage). Lighting fixtures with LED lamps can be clicked into the rail at any spot to illuminate your wall decorations.

One transformer can power up to 10 Lights and up to 8 segments, 52.5-feet of picture rail.
To power more distance or more lights, add another transformer and isolate the next rails.

DO NOT CONNECT MULTIPLE TRANSFORMERS

CAUTION: If you use multiple adapters, make absolutely sure you create independent circuits. In other words: two adapters cannot be connected! So, NEVER link two segments of rails that are each connected to a different adapter! You can only connect rail segments that share the same adapter.

Top benefits of the STAS Multirail:

The STAS Multirail is a thick-walled and massively strong, yet elegant rail, equipped with integrated 12 V power supply wires (low voltage)

STAS lighting fixtures can be plugged in at any point of the rail.

LED lighting is energy efficient, has a long lifespan and produces no infrared radiation; safe for your artwork.

The rail is paintable in a color to your taste and easy to cut to size using a hacksaw.

The STAS Multirail supports multiple cords and multiple hooks per cord up to 99.21 lbs (45 kg) per 39.25" of picture rail.

Specifications:

  • Mounting: Wall mounted system suitable for most wall types.
  • Power: 12 volt system (low voltage).
  • Dimmable: Current adapters are not dimmable.
  • Maximum load: 99.21 lbs (45 kg) per 39.25" of picture rail
  • Rail material: Aluminium rail.
  • Rail dimensions: 0.43 x 1.10 inch (11 x 28 mm).
  • Rail length: 78.74 inch (200 cm) per rail segment (a maximum of 8 segments per power adapter).
  • Rail color: White or Natural (silver) aluminum

Warranty
STAS picture hanging systems guarantees the quality of the supplied hanging systems and the quality of the materials used.
This warranty runs for a period of five (5) years from purchase of the hanging system and one (1) year for all STAS multirail 12 V components. Failure to comply with the cautions stated in this manual may affect your safety and will void your warranty.

STAS Multirail Installation

Cut the Rail to Size If Neccesary

1 - Measure and Mark

Place wooden strip (included) in the powered groove to prevent crimping the wiring as you cut.

The rail is easy to cut to size using a hacksaw.

Mount the Rail

Mark 1.2" from the ceiling or where you want the top of the rail to be.

Use a 6mm (15/64) drill bit.

Pre-drill. Mounting holes are every 12".

Push in an anchor, then the mounting.

Push the rail over the the supports.

Press down rail until you hear the snap.



If you want to, paint the rail to match or coordinate with the wall.



Connecting supports join two lengths of rail.



Conducting connectors power additional lengths of rail.



Corner connectors bring rail seamlessly around outside or inside corners.

Rail ends finish the look.



Assemble the Light Fixture

Screw open the socket connector on the light.



Push in MR11 GU4 lamp (bulb included) until you hear the click.



Tighten the screws to secure the lamp.



Click fixture into the rail.



Connect the Adapter

Plug 12 volt transformer into the rail and into the wall.



Do not use more than one transformer on connected rail.



Be sure to plug the lamp into the track in the direction marked.



Each fixtures uses 4 watts of power. The transformer can safely power 10 fixtures.

CAUTION

  • Do not short-circuit the output terminals
  • Never use more than one adapter when connecting the rails
  • Ensure the correct voltage is used as continuous excess voltage could damage your multirail system
  • Maximum load: 40 Watt
  • Use max. 10 STAS 4 Watt PowerLEDs and max. 17.5 yards (16 m) of rail per adapter.

Hang Art

Picture hanging cables rock into the multirail.

The hook slides along the rail to where you want.



The hook to hold the painting moves up or down on the cable to the height you want.



The light is adjustable to perfectly highlight your artwork.



Lightly twist to remove the light fixture.

IMPORTANT SAFETY INSTRUCTIONS

Instructions for all STAS picture hanging systems pertaining to a risk of injury to persons

  • Keep perlon cords and steel cables out of reach of children.
  • Indoor use only.
  • Do not use in humid areas.
  • Do not make adjustments to the system.
  • Always choose screws and plugs that are specifically suited for the respective material.

Extra instructions for all STAS picture hanging systems with 12 V system pertaining to a risk of fire, electric shock, exposure to excessive UV radiation, or injury to persons:

Caution: Before starting, turn off the power at the main circuit panel.

  • The total wattage may never exceed the capacity of the transformer.
  • Do not short-circuit the output terminals.
  • Ensure the correct voltage is used as continuous excess voltage could damage your multirail system.
  • The transformer cables may not be extended or shortened in any case.
  • Turn off the system/unplug and allow to cool before replacing the bulb.
  • Bulb and enclosure could get hot.
  • Do not look directly at the lighted bulb.
  • Keep hot bulb away from materials that may burn.
  • MR11 – GU4 is the only suitable lamp for STAS armatures.
  • Do not operate the unit with a missing or damaged bulb.
  • Keep out of reach from children.
  • Deviation from the assembly instructions may result in a risk of fire or electric shock.
  • When using more than one adapter you need to create independent circuits. Make sure you never connect the rails with more than one adapter at a time!
    Otherwise this will result in a short ciruit.
  • Insert the wooden strip before sawing/shortening the rail to prevent damage to the power lines.
  • Never make any adjustments to the system other than stated in this manual.
  • Always use original STAS products, parts, lighting fixtures and (LED) lamps.
