WAC Display & Picture Lights

WAC Display & Picture Lights

Installed and clamp-mount display lights for lighting pictures or trade show booths, temporary exhibits, booths or craft displays. WAC Lighting permanent or Portable display lights accomplish many tasks in environments from lighting window displays to indoor environments.

WAC Surface Mounted Low Voltage Flexible Light MM-204, shown with MBS16 Mesh Bulb Shield, not included. Snaps over an MR11 or MR16 bulb and diffuses glare from the back of the bulb.

Display Lights

For years, WAC Lighting's assortment of display lighting solutions has made W.A.C. the leader in lighting permanent and temporary displays. The display lightings are preferred for wall partitions and for their plug-and-play ease of use. Display lightings accomplish many tasks in environments from lighting window displays to indoor accenting.

The precise angling feature and heavy-duty universal clamp attachment contribute to the wide popularity of display Lights. Units are available with classic or modern designs in low and line voltage options. Both include a cord and plug and several clamping options for quick and secure placement on booths and wall partitions.

Display lights are ideal for lighting temporary exhibits, booths, craft displays, etc. Rod models periscope from 22" to 32". Fixtures come equipped with a standard clamp that works on flat surfaces up to 2 1/2" Wide. Optional clamp allows use on surfaces up to 4" Wide and a pipe clamp version works on 1 1/2" to 2 1/2" pipe. All fixtures are supplied with a 10' cord and plug. The low voltage styles include a 60W 3 prong plug-in electronic transformer.

For years, the assortment of display lighting solutions has made W.A.C. the leader in lighting permanent and temporary displays. The clamp-mount display lights are in lighting permanent and temporary displays. The clamp-mount display lights are preferred for wall partitions and other temporary lighting needs for their plug-and-play preferred for wall partitions and other temporary lighting needs for their plug-and-play ease of use. Our permanent/Portable display lights accomplish many tasks in environments from lighting window displays to indoor accenting.

LEDME LED Showcase Lighting

displays and home accessories come alive with diminutive LEDME Showcase Lighting fixtures which operate at cool operating temperatures with a strong lumen output. Designed with a flexible stem, our new lights offer a variety of beam angles for a wide range of display applications.

Available in handsome Brushed Nickel, Chrome and Black metal finishes. LED fixtures are longlasting with a potential life of 30,000 hours and thermally efficient, deploying beams free of projected heat, ultraviolet and infrared rays. Perfect for colored or heat sensitive subjects such as perishables or artwork. An LED unit with 4500K color temperature produces 110 lumens, performing approximately the same as a 20w MR11 halogen lamp.

WAC DL-150-BK Line Voltage Clamp Mount Display Lights

Clamp Mount Display Lights

The precise angling feature and heavy-duty universal clamp attachment contribute to the wide popularity of display Lights. Units are available with classic or modern designs in low and line voltage options. Both include a cord and plug and several clamping options for quick and secure placement on booths and wall partitions.

Directional Display Lighting

The stand-alone surface mount or Portable directional display lights allow the use of MR16 lamps in many demanding applications. From lighting stand alone carts and displays to providing quality lighting to tight spaces, the uses of surface mount canopy style directional display lights is only limited by the imagination.

Additional directional display light designs may be available, as several may be customized using our track head designs.

PL-LED14-27-RB Rubbed Bronze 14" Hardwire Hemmingway LED Picture Light

Above: 14" BB - Burnished Brass Portable, ready to plug in (PL-LED14P-27-BB).
Below: 24" PN - Polished Nickel Hardwire Picture Lights (PL-LED24-27-PN)

WAC PL-LED14, PL-ED24 dweLED Hemmingway LED Picture Lights

LED Picture Light 14 Inch Hardwired
PL-LED14-27-AN Antique Nickel
PL-LED14-27-PN Polished Nickel
PL-LED14-27-RB Rubbed Bronze
PL-LED14-27-BB Brushed Brass

LED Picture Light 14 Inch Portable (with Cord Plug)
PL-LED14P-27-AN Antique Nickel
PL-LED14P-27-PN Polished Nickel
PL-LED14P-27-RB Rubbed Bronze
PL-LED14P-27-BB Brushed Brass

LED Picture Light 24 Inch Hardwired
PL-LED24-27-AN Antique Nickel
PL-LED24-27-PN Polished Nickel
PL-LED24-27-RB Rubbed Bronze
PL-LED24-27-BB Brushed Brass

LED Picture Light 24 Inch Portable (with Cord Plug)
PL-LED24P-27-AN Antique Nickel
PL-LED24P-27-PN Polished Nickel
PL-LED24P-27-RB Rubbed Bronze
PL-LED24P-27-BB Brushed Brass

PL-LED14, PL-LED24 Hemmingway Picture Light
Available hardwired or ready to plug in.
Recognized by the Lighting for Tomorrow LED light design competition, Hemmingway illuminates fine artwork utilizing the optimal spectrum of colors. Unlike conventional lights, these LED picture lights provide full spectrum illumination without damaging infrared and ultraviolet rays. Available in four designer finishes and two sizes to complement upscale art framing.

  • Chronophoton™ Technology preserves artwork while providing vibrant color rendering
  • Head rotates 90° up or down and extends out 14w" from mounting surface
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matchi ng finish included

Finish: AN- Antique Nickel, BB - Burnished Bronze, RB - Rubbed Bronze, PN - Polished Nickel
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10% Dimmable to 10% with electronic low voltage (ELV) dimmer.
Rated Life : 70,000 hours

Construction: Aluminum with frosted glass lens.
Power: Direct wiring, no remote driver needed. 120V input / 24V output.
Light Source: 24 (14") or 48 (24") 2700K high power LEDs.
Standards: ETL Listed.

14" AN - Antique Nickel Hardwire Picture Lights (PL-LED14-27-AN)

14" RB - Rubbed Bronze (PL-LED14-27-RB)

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED14-27 14" Hard Wired 9.4W 595 302
PL-LED14P-27 14" Portable 9.4W 595 302
PL-LED24-27 24" Hard Wired 16.9W 1186 605
PL-LED24P-27 24" Portable 16.9W 1186 605

WAC PL-LED15, PL-LED25, PL-LED37 Vibe dweLED Picture Lights

BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass

14 1/4" Hard Wired Vibe Picture Light
PL-LED15-27-BK Black
PL-LED15-27-BN Brushed Nickel
PL-LED15-27-CH Chrome
PL-LED15-27-SB Satin Brass

24 7/8" Hard Wired Vibe Picture Light
PL-LED25-27-BK Black
PL-LED25-27-BN Brushed Nickel
PL-LED25-27-CH Chrome
PL-LED25-27-SB Satin Brass

24 7/8" Portable Vibe Picture Light
PL-LED25P-27-SB Satin Brass
PL-LED25P-27-BN Brushed Nickel
PL-LED25P-27-CH Chrome
PL-LED25P-27-SB Satin Brass

36 7/8" Hard Wired Vibe Picture Light
PL-LED37-27-BK Black
PL-LED37-27-BN Brushed Nickel
PL-LED37-27-CH Chrome
PL-LED37-27-SB Satin Brass

36 7/8" Portable Vibe Picture Light
PL-LED37P-27-BK Black
PL-LED37P-27-BN Brushed Nickel
PL-LED37P-27-CH Chrome
PL-LED37P-27-SB Satin Brass

PL-LED15, PL-LED25, PL-LED37 Vibe Picture Light
Available hardwired or ready to plug in.
Designed to disappear, the low profile Vibe picture light features a canopy that both hides behind the artwork and serves as the mount. At less than an inch in diameter, the Vibe picture light shrouds the smallest light source available to provide substantial, full spectrum, and high quality lighting. Three lengths with 35 degree rotation accommodates artwork of varying sizes.

  • Chronophoton™ Technology conserves artwork while providing vibrant color rendering
  • Head rotates 35° up or down
  • 110° beam angle
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matching finish included

Finish: BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10%
Rated Life : 70,000 hours

Construction: Aluminum with frosted plastic lens
Power: Integral driver, no remote driver needed
Light Source: Direct wiring or plug-in LED
Mounting: Hard wired and plug-in models available
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer.

Finish: Black (BK), Brushed Nickel (BN), Chrome (CH) and Satin Brass (SB)
Standards: ETL cETL Listed

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED15-27 15" Hard Wired 8.5W 595 240
PL-LED15P-27 15" Portable 8.5W 595 240
PL-LED25-27 25" Hard Wired 16W 1186 535
PL-LED25P-27 25" Portable 16W 1186 535
PL-LED37-27 37" Hard Wired 23W 1785 850
PL-LED37P-27 37" Portable 23W 1785 850

LEDME Showcase Lighting

WAC LED -SL-101 LED Display Lights

WAC LED Display Lights
Choose from 25° and 40°
Choose 3000K (Warm) or 4500K (Cool)
Choose Black, Brushed Nickel or Chrome

LEDme® Display Spot Light
Designed with a flexible neck, vents for thermal management, and a threaded, adjustable mounting rod, the LEDme Display Spot Light offers three color temperatures, die cast aluminum construction and long life LEDs for a flexible, easy to install energy efficient lighting display solution.

  • Power: 3W
  • Lumens: Up to 110
  • Color Temperature: 3000K, 4500K
  • CRI: 85
  • Rated Life: 100,000 hours
  • Die-cast aluminum construction
  • Choose from two different beam spreads
  • Replaceable LED modules

Finish: BK-Black, BN-Brushed Nickel, CH-Chrome
Color Temp: WW - 3000K, NW - 4500K
Beam: F - 25°, W - 40°
Lumens: 100 or 110
CBCP 25°: 1617 or 1872
40°: 696 or 807
Interchangeable Lens: SL-LEN F - 25°, W - 40°
Replacement Modules: RM1X3-30-SL 3000K or RM1X3-45-SL 4500K

•Quick and easy installation
• Available in 2 color temperatures
• Choose from 2 beam spreads
• Flexible neck for easy adjustment
• Threaded rod allows for mounting in varying applications
• Rod is adjustable from 4-164" and may be field cut
• Vents for thermal management extend LED life
• interchangeable reflectors for changing beam spreads
• Replaceable LED modules
• Free of projected heat, UV and IR radiation
• Includes 72" wire
• 100,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Die-cast aluminum head, steel rod, copper base and acrylic lens.
Driver: Plug-in LEDme® magnetic low voltage driver required (order separately).
Light Source: Includes one 3W 3000K or 4500K LED.
Total power consumption of 3W.

Finish: Black (BK) powder coat paint and electroplated Brushed Nickel (BN)
and Chrome (CH).
Standards: UL and CUL Listed.

WAC Lighting LED-700MA12-P LEDme® Class 2 Non-Dimming Driver

LED-700MA12-P LED
Driver 700Ma For LED-Sl-101 - Up To 4 Fixtures

LEDme® Driver LED-700MA12-P Compact and reliable constant current LED power supply for up to four LED-SL101 display showcase lights

  • Reliable constant current LED power supply
  • Surge protection
  • Short circuit protection
  • Works in BOTH series wiring and home-run wiring

Input Voltage: 120V AC
Input Current: 0.2A
Output Voltage: 12V DC MAX
Output Current: 700mA DC constant current
Load: 12W Maximum
Loading Wire: 22 AWG. 6 ft maximum length
Listing: U.L. listed, File Number E325675

Model Watt Power up to L x W x H
LED-700MA12-P 9W 4 x HR-LED2XX 5" x 3 1/8" x 1 5/8"

Low Voltage Clamp Mount Display Lights

WAC DL-214 Low Voltage Clamp Mount Display Lights

DL-214-BK Black
DL-214-WT White

Display Light 120V-12V with Plugin Transformer DL-214
Perfect for illuminating wall displays and artwork, Clamp Mount Display Spot Lights offer a variety of low and line voltage styles and extensions perfect for trade shows, offices, homes, stores and arts and crafts fairs.

  • Includes 2" clamp and 10' cord with plug
  • Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max
  • Mesh or solid bulb shield option (order separately)
  • 1W minimum load

Finish: BK -Black, WT-White
Lamp: 12V, 50W max, MR11/MR16 order separately

• Includes 2" clamp and 10' cord with plug-in transformer
• Comes with a 60W class II 120V to 12V electronic plug in transformer.
• 1W minimum load
• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (not included)

Aiming: Flexible arm allows a full range of vertical and horizontal orientation.
Materials: Fixture head and connector are aluminum. Periscoping arm is steel. Clamp is heavy duty polycarbonate. Bi-pin socket is ceramic with silver plated contacts.
Standards: UL and CUL Listed.


Make Product Selections on this page


WAC SBS Solid Bulb Shield & MBS Mesh Bulb Shield

MBS-16 Mesh Shield

MBS-16-BK Black
MBS-16-WT White
MBS-16-BN Brushed Nickel

SBS-16 Solid Shield

SBS-16-BK Black
SBS-16-BN Brushed Nickel
SBS-16-WT White

Accessories: MBS-16 Mesh Shield or SBS-16 Solid Shield

Finish: BK-Black, BN-Brushed Nickel, WT-White

Line Voltage Clamp Mount Display Lights

WAC DL-150 Line Voltage Clamp Mount Display Lights

DL-150-BK Black

Display Light DL-150
Perfect for illuminating wall displays and artwork, Clamp Mount Display Spot Lights offer a variety of low and line voltage styles and extensions perfect for trade shows, offices, homes, stores and arts and crafts fairs.

  • High output quartz lamp fixture
  • Die cast aluminum fixture with die cast Black louver for glare control
  • Telescoping adjustment from 22" to 32"
  • Includes 2" clamp and 1' cord with plug

Finish: BK -Black, WT-White
Lamp: 120V, 150W max, J-150-S order separately

• Includes 2" clamp and 10' cord.
• Sliding adjustable socket to accommodate lamp positioning
• 120V 150W linear halogen, J-150S lamp included.
• Periscoping style arm can allow the head of the display light to be place up to an extra 10" back from surface and then locked in place with a simple twist and lock.

Aiming: Ball and hub aiming feature allows a full range of vertical and horizontal orientation. All die-cast parts assure the aiming angle is kept in place through continuous use and maintenance.
Materials: Fixture head and connector are die-cast aluminum. Periscoping arm is steel. Internal louvers aluminum. Clamp is heavy duty polycarbonate.
Medium base lamp socket is porcelain with nickel-plated copper shell.
Standards: UL and CUL Listed.



WAC DL-188 Line Voltage Clamp Mount Display Lights

DL-188-BK Black
DL-188-WT White

WAC DL-188 Line Voltage Clamp Mount Display Lights
Perfect for illuminating wall displays and artwork, Clamp Mount Display Spot Lights offer a variety of low and line voltage styles and extensions perfect for trade shows, offices, homes, stores and arts and crafts fairs.

  • Sliding adjustable socket to accommodate lamp positioning
  • Telescoping adjustment from 22" to 32"
  • Includes 2" clamp and 10' cord with plug

Finish: BK -Black, WT-White
Lamp: LED PAR20/LED PAR30/LED BR20/LED BR30/LED BR40 or 120V, 150W max, BR30/PAR20/PAR30/PAR38, order separately

• Includes 2" clamp and 10' cord.
• Sliding adjustable socket to accommodate lamp positioning
• Accepts various lamp options (order separately)
LED Lamps: LED PAR20, LED PAR30, LED BR20, LED BR30, LED BR40
Non-LED Options (120V, 150W max): BR30, PAR20, PAR30, PAR38
• Periscoping style arm can allow the head of the display light to be place
up to an extra 10" back from surface and then locked in place with a simple
twist and lock.

Aiming: Yoke and swivel aiming feature allows a full range of vertical and
horizontal orientation. Large locking screw assures the aiming angle is kept in
place through continuous use and maintenance.
Materials: Fixture head and connector are aluminum. Periscoping arm is
steel. Clamp is heavy duty polycarbonate. Bi-pin socket is ceramic with silver
plated contacts.
Standards: UL and CUL Listed.

Barn Doors Accessory available, not included.



WAC DLC-4 Clamp

4" Clamp Flat Surfaces 1/2" x 4" Wide

DLC-4-BK Black
DLC-4-WT White

The DLC-4 clamp is Adjustable to accomodate flat surfaces from 2" to 4" Wide.

Finish BK-Black, WT-White



WAC DLC-P Pipe Clamp

DLC-P-BK Black
DLC-P-WT White

Pipe Clamp for pipe up to 2 1/2 inch in Diameter

Pipe Clamp - up to 2 1/2" Diameter

The DLC-P pipe clamp works on from 1/2" to 2 1/2" pipe.

Finish BK-Black, WT-White

Low Voltage Directional Display Lighting

WAC Lighting ME-204 Flex Low Voltage Flexible Display Light with Transformer in Canopy

Low Voltage Surface Mount 50W
ME-204-BK Black
ME-204-WT White

8W LED
ME-204LED-BK Black
ME-204LED-WT White

Flexible Spot Lights - ME-204
The "ME" style contains an electronic transformer in the canopy.
Adjustable for a variety of display applications, the bendable, low and line voltage Flex lights are designed and engineered with a unique, sturdy yet flexible cable arm for easy aiming and illuminating hard to light areas. Offered in multiple finishes and lengths to complement any décor.

  • Integral electronic transformer included
  • 1 watt minimum load
  • Integral 60W Electronic Transformer
  • Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max
  • LED MR16 included when ordered as LED
  • 1 watt minimum load
  • Can be ceiling or wall mounted
  • Bulb shield option (order separately)
  • Lens not included

Finish: BK -Black, BN-Brushed Nickel, WT-White
Lamp: Halogen - 12V, 50W max, MR11G/MR16G, order separately
LED - LED MR16, order separately

• Integral Electronic transformer
• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
• LED MR16 included when ordered as LED
• 1 watt minimum load
• Can be wall or ceiling mounted
• Mesh bulb shield ordered separately

Construction: Fixture head and canopy are steel. Flexible arm is steel.
Transformer: 120V/12V Electronic transformer with auto reset, soft start, and short circuit protection features.
Dimming: Smooth and continuous ELV dimming to 10%
Aiming: Flexible arm permits multiple aiming angles
Standards: UL CUL Listed

WAC Surface Mounted Low Voltage Flexible Light MM-204, shown with MBS16 Mesh Bulb Shield, not included. Snaps over an MR11 or MR16 bulb and diffuses glare from the back of the bulb.

WAC Lighting MM-204 Flex Low Voltage Flexible Display Light with Remote Transformer

Low Voltage Surface Mount Flexible 50W
MM-204-WT White
MM-204-BN Brushed Nickel

LED Low Voltage Surface Mount Electronic 8W
MM-204LED-BK Black
MM-204LED-WT White
MM-204LED-BN Brushed Nickel

Flexible Spot Lights - ME-204
The "MM" mini canopies use remote transformers and require behind the surface access.
Adjustable for a variety of display applications, the bendable, low and line voltage Flex lights are designed and engineered with a unique, sturdy yet flexible cable arm for easy aiming and illuminating hard to light areas. Offered in multiple finishes and lengths to complement any décor.

  • Opposite side access required for installation
  • Installs in walls, ceilings, or furniture wherever accessible from both sides up to thickness of 1 inch
  • Remote transformer required (order separately)
  • 1 watt minimum load
  • Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max
  • LED MR16 included when ordered as LED
  • Can be ceiling or wall mounted
  • Bulb shield option (order separately)
  • Lens not included

Finish: BK -Black, BN-Brushed Nickel, WT-White
Lamp: Halogen - 12V, 50W max, MR11G/MR16G, order separately
LED - LED MR16, order separately

• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
• LED MR16 included when ordered as LED
• 1 watt minimum load
• Can be wall or ceiling mounted
• Mesh bulb shield ordered separately

Construction: Fixture head and canopy are steel. Flexible arm is steel.
Transformer: Remote transformer required (order separately)
Dimming: Smooth and continuous ELV dimming to 10%
Aiming: Flexible arm permits multiple aiming angles
Standards: ETL cETL Listed

WAC Series 204 Low Voltage Track Head with 25" Flexible Aimable Neck

Also available as a Low Voltage Track Head
Compatible with Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible.

  • Metal construction
  • Easily re-lamped from the front without the use of tools
  • Flexible cable arm for easy aiming
  • Bulb shield accessories available
  • Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
Lamp: 8W LED
50W Halogen MR16 (not included)
75W Halogen MR16 (not included)
Lens: Clear lens included



Electronic or Magnetic Transformers Accessories

Select an electronic or magnetic transformer.
Use a single transformer for a series of lights.



Options / Accessories

Lens Options: Amber, Blue, Green, Red, Yellow Color Lens options, UV Filter Lens, Frosted Lens, Spread Lens, Beam Elongating, Honeycomb Louver, Mesh Shield, Solid Shield

009 Framing Projector Low Voltage Track Head Includes self-contained electronic transformer

WAC Series 009 Framing Projector Low Voltage Track Head

H Series (Halo compatible)
HHT-009L-BK Black MR16 75W max
HHT-009L-WT White MR16 75W max

J Series (Juno compatible)
JHT-009L-BK Black MR16 75W max
JHT-009L-WT White MR16 75W max

L Series (Lightolier compatible)
LHT-009L-BK Black MR16 75W max
LHT-009L-WT White MR16 75W max

Premium Low Voltage Track Light
The Framing Projector uses two lenses for precise focus adjustment to highlight artwork and wall décor or project images, signs and corporate logos.

Framing Projector Track Head

  • Accepts "D" size glass and metal gobos (order separately)
  • Die-cast aluminum construction
  • Tool-free lockable aiming
  • 355° horizontal rotation and 180° vertical tilt
  • Accepts "D" size glass and metal gobos
  • Use an FPA or EYF MR16 lamp for optimal performance (order separately)
  • *Fixture cannot be extended
  • Available as a LEDme® LED fixture
  • Compatible with any Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible track lighting system.

Construction: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Two focusing lenses and metal shims contained in framing snoot. Bi-pin ceramic socket for MR16 lamp.
Transformer: Integral electronic transformer for 12 volt MR16 lamps
Lamp: Uses 12V MR16, 75W max (not included).

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

• Die-cast aluminum construction
• Tool-free lockable aiming
• 355° horizontal rotation and 180° vertical tilt
• Accepts "D" size glass and metal gobos
• *Fixture cannot be extended

Finish: BK-Black, WT-White
Lamp: MR16, 75W max (order separately)


009 Framing Projector Low Voltage Track Head Includes self-contained electronic transformer

WAC Series LED009 LEDme® Framing Projector Low Voltage Track Head

L Series (Lightolier compatible)
L-LED009-WW-WT White 3000K

J Series (Juno compatible)

Using state of the art multi-chip LED technology, the Framing Projector uses two lenses for precise focus adjustment to highlight artwork and wall décor or project images, signs and corporate logos.

LED Framing Projector Track Head

Power: 22W
Lumens: Up to 1,465
CRI: Up to 90
Rated Life: 60,000 Hours

  • Accepts "D" size glass and metal gobos (order separately)
  • Die-cast aluminum construction
  • Meets 2013 California Title 24 Efficency
  • Die-cast aluminum construction
  • Accepts "D" size glass and metal gobos (order separately)
  • 355° horizontal rotation and 90° vertical aiming
  • ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
  • Compatible with J and J2 Track System
  • Compatible with any Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible track lighting system.

Construction: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Two focusing lenses and metal shims contained in framing snoot.
Driver: Input voltage: 120VAC 50/60Hz
Max Load: 22W
Light Source: 22W Philip LuxoenS LED.
Total power consumption of 22W with included driver.

Finish: Abrasion resistant paint finish.
Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

• Can be used to project images, signs, and corporate logos
• Meets 2013 California Title 24 Efficiency
• Uses two lenses to allow precise focus adjustment
• Accepts "D" size Glass and Metal Gobos
• 355° horizontal rotation and 90° vertical aiming
• ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
• Accepts 1 lens
• 60,000 hours potential LED life
• 5 year WAC Lighting product warranty

Finish: BK-Black, WT-White
Lamp: MR16, 75W max (order separately)

H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

H-LED009-27-BK J-LED009-27-BK L-LED009-27-BK LED Framing Projector - 2700K
H-LED009-27-WT J-LED009-27-WT L-LED009-27-WT LED Framing Projector - 2700K
H-LED009-35-BK J-LED009-35-BK L-LED009-35-BK LED Framing Projector - 3500K
H-LED009-35-WT J-LED009-35-WT L-LED009-35-WT LED Framing Projector - 3500K
H-LED009-CW-BK J-LED009-CW-BK L-LED009-CW-BK LED Framing Projector - 4500K
H-LED009-CW-WT J-LED009-CW-WT L-LED009-CW-WT LED Framing Projector - 4500K
H-LED009-WW-BK J-LED009-WW-BK L-LED009-WW-BK LED Framing Projector - 3000K
H-LED009-WW-WT J-LED009-WW-WT L-LED009-WW-WT LED Framing Projector - 3000K
H-LED009-927-BK J-LED009-927-BK L-LED009-927-BK LED Framing Projector - 2700K - 90 CRI
H-LED009-927-WT J-LED009-927-WT L-LED009-927-WT LED Framing Projector - 2700K - 90 CRI
H-LED009-9W-BK J-LED009-9W-BK L-LED009-9W-BK LED Framing Projector - 3000K - 90 CRI
H-LED009-9W-WT J-LED009-9W-WT L-LED009-9W-WT LED Framing Projector - 3000K - 90 CRI

Photo shows 008FP Framing Projector installed on 007 track head.

WAC Lighting 008FP Framing Projector Accessory

008FP-BK Black
008FP-DB Dark Bronze
008FP-WT White

The 008FP Framing Projector accessory easily attaches to the LED810, LED820, 007 and 896 track heads and display lights allowing the display of a four-sided image. The addition of the optional 008FP framing projector allows a square or rectangular area of light to be formed on artwork with minimal light spill, giving paintings and drawings a "self luminating" effect. Tappered back, Diecast aluminum track head, with integral electronic transformer. Compatible with Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible.

  • For use with LED lamp
  • Steel snoot with plastic capped metal shims
  • Uses four shims to create a square or rectangular light area
  • Frames a crisp edge with no light spillage
  • Gives artwork a self-illuminating appearance
  • Easy to install
  • For use with models LED810, LED820, 007 and 896
  • Abrasion resistant powder coat paint finish

Finish: BK- Black, DB- Dark Bronze, WT- White

Framing Projector for use with the LED810, LED820, 007 and 896 track heads and display lights

Creates a square or rectangular light area to illuminate artwork or displays. Frames a crisp edge with no light spillage, making paintings look as if they are self-luminating. Best effect is achieved with low level ambient light and distances less than 10 feet.

Description: Premier series framing projector accessory for use with W.A.C. brand 007 series track heads, display lights, and monpoints.
Attaches to the end of the track head.
Materials: Steal lens snoot, metal shims with plastic end caps, glass focusing lens.
Systems: Can be used with the following fixtures; HHT-007, HHT-007L, JHT-007, JHT-007L, LHT-007, LHT-007L DL-007, ME-007, MI-007, LP-007

Finish: Abrasion resistant powder coat paint finish. Black (BK) or White (WT).
Listing: U.L. & C.U.L. listed. 5 year W.A.C. Lighting product warranty.

WAC Lighting LED810 LEDme Impulse Low Voltage LED Track Head

Impulse 810
Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this thermally efficient Energy Star compliant light offers architectural lighting options including a framing projector and barn door accessories.

WAC LED820 Impulse High Lumen Output Low Voltage LED Track Head

Impulse 820
Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this efficient light offers architectrual lighting options, including a framing projector and barn door accessories.

Accepts these Accessories:


801BD Barn Door Accessory in Black, Dark Bronze or White


008FP Framing Projector in Black, Dark Bronze or White

WAC Series 007 Premium Low Voltage Track Head Spotlight

007 Premium Low Voltage Track Light
Low Voltage lights offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

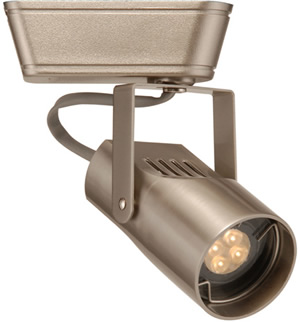

WAC Series 007LED Premium Low Voltage LED Track Head Spotlight

007 Premium Low Voltage LED Track Light
Low Voltage LED lights offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

WAC ME-007, ME-007LED Single Spot Light with Electronic Transformer

ME-007-BK Black
ME-007-WT White
ME-007-BN Brushed Nickel

ME-007LED-BK Black
ME-007LED-WT White
ME-007LED-BN Brushed Nickel

Single Spot Light with Electronic Transformer
Engineered with an integral transformer and designed for mounting to walls or ceilings, low and line voltage Display Spot Lights deploy optimal accent lighting from surface mounted canopies that can be custom designed with any of WAC low voltage track heads.

  • ME canopies have a diameter of 4 1/2"
  • Built-In 60W Electronic Transformer

Lamp: Halogen - 12V, 50W max, MR16, order separately
LED - LED MR16, order separately

Finish: BK -Black, BN-Brushed Nickel, WT-White

Integral Electronic transformer
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
LED MR16 included when ordered as LED
1 watt minimum load
Can be wall or ceiling mounted
Available extensions from 6 to 48 inches
Fixtures available with 6", 12", 18", 24", 36", 48", 72" and 96" extensions (factory assembled in BK, WT, or BN). Specify fixture style and finish when ordering (i.e.: ME-007LED-X6-BK).
Extended fixtures are available only as a complete unit from the factory.
Special lens types such as spread lenses and UV lenses can be ordered from WAC and used in place of the supplied clear lens.

Lenses Available
Color Lens LENS-16
Amber, Blue, Green, Red, Yellow
UV Filter Lens
Frosted Lens
Spread Lens
Beam Elongating
Honeycomb Louver
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
LENS-16-HCL
Extensions Available
X6
X12
X18
X24
X36
X48
6"
12"
18"
24"
36"
48"

Can use the WAC 008FP Framing Projector. The 008FP Framing Projector accessory easily attaches to the 007 allowing the display of a four sided image.

Photo below left shows 008FP Framing Projector installed on ME-007 Low Voltage Monopoint. Order ME-007 fixture plus 008 Framing Projector.

Photo shows 008FP Framing Projector installed on 007 Single Spot.




WAC Lighting 008FP Framing Projector Accessory

008FP-BK Black
008FP-DB Dark Bronze
008FP-WT White

The 008FP Framing Projector accessory easily attaches to the LED810, LED820, 007 and 896 track heads and display lights allowing the display of a four-sided image. The addition of the optional 008FP framing projector allows a square or rectangular area of light to be formed on artwork with minimal light spill, giving paintings and drawings a "self luminating" effect. Tappered back, Diecast aluminum track head, with integral electronic transformer. Compatible with Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible.

  • For use with LED lamp
  • Steel snoot with plastic capped metal shims
  • Uses four shims to create a square or rectangular light area
  • Frames a crisp edge with no light spillage
  • Gives artwork a self-illuminating appearance
  • Easy to install
  • For use with models LED810, LED820, 007 and 896
  • Abrasion resistant powder coat paint finish

Finish: BK- Black, DB- Dark Bronze, WT- White

Framing Projector for use with the LED810, LED820, 007 and 896 track heads and display lights

Creates a square or rectangular light area to illuminate artwork or displays. Frames a crisp edge with no light spillage, making paintings look as if they are self-luminating. Best effect is achieved with low level ambient light and distances less than 10 feet.

Description: Premier series framing projector accessory for use with W.A.C. brand 007 series track heads, display lights, and monpoints.
Attaches to the end of the track head.
Materials: Steal lens snoot, metal shims with plastic end caps, glass focusing lens.
Systems: Can be used with the following fixtures; HHT-007, HHT-007L, JHT-007, JHT-007L, LHT-007, LHT-007L DL-007, ME-007, MI-007, LP-007

Finish: Abrasion resistant powder coat paint finish. Black (BK) or White (WT).
Listing: U.L. & C.U.L. listed. 5 year W.A.C. Lighting product warranty.

Wall Mounted Track Lights

WAC TBKT Track Wall Suspension Bracket

Using the WAC TBKT Track Suspension Bracket any Halo, Juno, Lightolier or compatible track can be wall mounted. Ideal for picture lighting or wall grazing effects. An effective lighting solution where very high ceilings create an ambient lighting problem.

Track accommodates line or low voltage heads. Quick connect transformers allow fixtures from the Quick Connect system to be used. Select from any Track Head or Quick Connect Track Head.

TBKT Track Suspension Bracket supports track and fixtures. Extends 24" from wall. Use two per 4-foot Length, three per 8-foot Length.

TBKT: Brushed Nickel, Dark Bronze, Black or White


Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
