Recessed Lighting
Mini Recessed & Pucks Mini Recessed Recessed Bath Lighting Mirrors

Recessed Lighting - Shower Trims

WAC Lighting R-422 4" Recessed Downlight Shower Light Trim

R-422-WT White

4 Inch Line Voltage Downlight R-422 Shower Light with Glass lens - UL Listed for wet locations
Wet location listed glass dome shower trim. Typical applications include bathrooms, saunas, workrooms and patios.
For use with R-400 series Line voltage downlight housings.

  • Interchangeable lamps
  • Durable stamped metal construction
  • Retention clips hold trim firmly to housing
  • Abrasion resistant powder coat paint or plated metal finish
  • Various lamp options available including LED
  • Shower light is wet location listed.

Finish-Trim: WT-White
A19 40W

Durable stamped metal construction
Retention clips hold trim firmly to housing
Abrasion resistant powder coat paint or plated metal finish
Handles surfaces up to.75"
5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Tempered frosted glass dome lens. Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED PAR20 lamp or Medium base incandescent or 4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts max. Compact Fluorescent lamps are rated for 13 watts max. Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB) or White (WT).
Standards: UL & CUL Listed. Suitable for wet locations.

WAC R-651 6" Line Voltage Shower Light

R-651-WT White

6 Inch Line Voltage Recessed Downlights R-651 Shower Light with Glass Lens
Wet location listed glass lens shower trim. Typical applications include bathrooms, saunas, workrooms and patios. For use with R-600 series Line voltage downlight housings.
UL Listed For Wet Locations

  • Interchangeable lamps
  • Shower light is wet location listed
  • Durable stamped metal construction
  • Steel spring clips secure lamp to housing
  • Provided with foam rubber gasket around outer perimeter
  • Abrasion resistant powder coat paint or plated metal finish
  • Snap-in socket holders secure and position lamps
  • Various lamp options available including LED PAR30
  • Multiple wattage options

Housing: A19, 40W R-602D-N-ICA, R-603D-R-ICA
Finish-Baffle/Trim: WT-White
A19, 40W

Secured to lamp holder bracket by steel springs
Provided with foam rubber gasket around outer perimeter
Abrasion resistant powder coat paint or plated metal finish
Handles surfaces up to w"
5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Secured within lamp housing by steel spring clips. Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent lamps. Incandescent lamps are rated for up to 75W watts max.
Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in White (WT).
Standards: UL & CUL Listed. Suitable for wet locations.

Above: HR-LED321-CH
Below: HR-LED321-WT

WAC LEDme Recessed Downlight HR-LED331 Round, Baffle
Round Shower Light

HR-LED331-CH Chrome
HR-LED331-WT White

3" Shower Light - Round Trim - UL Listed For Wet Location
LED331
Round recessed shower trim with interior woven lens.
For use with HR-LED309 series housings.

  • Power: 5.5W (IC Rated), 8W (Non-IC)
  • Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
  • Comparable: 35W x 50 watt MR16
  • CRI: Up to 85
  • Dimming: 100% - 10%
  • Rated Life: 100,000 Hours
  • Super low profile trim at less than.125" thick
  • Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
  • Abrasion resistant powder coat paint or plated metal finish
  • Smooth and continuous ELV dimming
  • Narrow flood beam spread
  • 3" housing required (order separately)
  • Shower light is UL and CUL listed for wet locations

Finish-Trim: CH-Chrome, WT-White
LED included with housing, order separately

Less than.125" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Black baffle w/Brushed Nickel trim (BK/BN) and White baffle w/White trim (WT/WT).
Standards: UL & CUL Listed.

WAC LEDme Shower Light HR-LED371 Square
Square Shower Light

HR-LED371-CH Chrome
HR-LED371-WT White

3" Shower Light - Square Trim - UL Listed for Wet Location
LED371
Square recessed shower trim with interior woven lens.
For use with HR-LED309 series housings.

  • Power: 5.5W (IC Rated), 8W (Non-IC)
  • Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
  • Comparable: 35W x 50 watt MR16
  • CRI: Up to 85
  • Dimming: 100% - 10%
  • Rated Life: 100,000 Hours
  • Super low profile trim at less than.125" thick
  • Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
  • Abrasion resistant powder coat paint or plated metal finish
  • Smooth and continuous ELV dimming
  • Narrow flood beam spread
  • 3" housing required (order separately)
  • Shower light is UL and CUL listed for wet locations

Finish-Trim: CH-Chrome, WT-White
LED included with housing, order separately

Less than.125" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Two heavy gauge E-clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Chrome (CH) and White (WT).
Standards: UL Listed for wet locations.

WAC Lighting HR-D418 Drop Dish Dome Trim for Showers

HR-D418-CB Copper Bronze
HR-D418-WT White

4 Inch Premium Low Voltage Downlight HR-D418 Shower Light - Drop Dish Glass Dome - UL Listed for wet locations
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Wet location listed glass dome trim. Typical applications include bathrooms, sauna's, workrooms and patios. For use with HR-8400 series low voltage housings.

  • Accomodates most LED MR16 or Halogen MR16 lamps
  • Die-cast aluminum construction
  • Steel spring clips secure trim to housing
  • Abrasion resistant powder coat paint or plated metal finish
  • Smooth and continuous ELV or MLV dimming depending on transformer
  • Transformer and junction box accessible from below the ceiling
  • Various lamp options available including LED
  • Clear lens supplied, can be replaced with various options
  • Shower light is wet location listed

MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H, HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
Finish-Trim: CB-Copper Bronze, WT-White

Shower light with drop dish glass dome recessed downlight
The supplied clear glass lens can be replaced with one lens accessory
Handles surfaces up to w" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W maximum, see individual housing for wattage rating.

Finish: Abrasion resistant powder coat painted or plated metal finish. Available in Copper Bronze (CB) or White (WT).
Standards: UL & CUL Listed, Suitable for damp locations

HR-LED471 WT

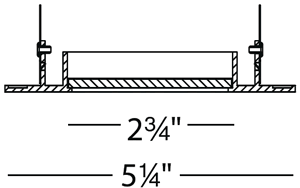

WAC LEDme Shower Light HR-LED471 Square

HR-LED471-CH Chrome
HR-LED471-WT White

4 Inch LEDme® Downlight LED471 Shower Light, Square - UL Listed For West Locations
Square recessed shower trim with interior woven lens. For use with HR-LED418 series housings.

  • Die-cast aluminum construction
  • Abrasion resistant powder coat paint or plated metal finish
  • Super low profile, less than.125" thick
  • Narrow flood beam spread
  • Deep regression of light source allows for very low glare with a 40° visual cutoff angle
  • Recessed depth from LEDs to trim edge is 2 3/8"
  • 4" Housing required - order separately

LEDs included with housing. Order separately.
Finish-Trim: CH-Chrome, WT-White

Less than 8" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to w" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes six 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Chrome (CH) and White (WT).
Standards: UL Listed for wet locations.

WAC R-522 5" Line Voltage Shower Light Trim

R-522-WT White

5 Inch Line Voltage Downlight R-522 Shower Light with Glass Lens - UL Listed for wet locations
Offered with easy to install housings for remodeling and new construction projects, the 5-inch Line Voltage Recessed Downlights provide superior illumination, photometric efficiency and control designed with a variety of styles and lamping for residential and light commercial applications. Wet location listed glass lens shower trim. Typical applications include bathrooms, saunas, workrooms and patios.
For use with R-500 series Line voltage downlight housings.

  • Interchangeable lamps
  • Durable stamped metal construction
  • Steel spring clips secure lamp to housing
  • Provided with foam rubber gasket around outer perimeter
  • Abrasion resistant powder coat paint or plated metal finish
  • Snap-in socket holders secure and position lamps
  • Various lamp options available including LED
  • Multiple wattage options
  • Shower light is wet location listed

Finish-Trim: WT-White
A19 40W

Secured within lamp housing by steel spring clips
Provided with foam rubber gasket around outer perimeter
Abrasion resistant powder coat paint or plated metal finish
Ideal for residential and light commercial applications
Multiple wattage options
Handles surfaces up to.75"
5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Lens is clear shaped glass. Secured within lamp housing by steel spring clips.
Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent or 4-pin CFL lamps. Incandescent lamps are rated for up to 75W watts max. Compact Fluorescent lamps are rated for 26 watts max. Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.
