Kichler Design Pro Direct Wire 2.0 Dimmable LED Under Cabinet Lights

Kichler Design Pro LED Direct Wire 2.0

120 Volt
Limited Lifetime Warranty

Energy efficiency anywhere

Design Pro LED Direct Wire offers trouble-free, energy efficient operation along with the simple installation of a self-contained unit. The dimmable version is designed and tested to work with a wide variety of dimming switches for a true range of light level control.

Kichler Design Pro LED Direct Wire delivers high-tech LED at a value. It's proof that unprecedented long life, unmatched energy savings and beautiful light don't have to break the bank.

Dimming Compatibility

Adding a dimmer switch to Design Pro LED Direct Wire 120V lighting creates the utmost in accent lighting control. Consider these tips when choosing and installing dimming switches:

  • A dimmer consumes some of the power that goes to the lighting fixture. The initial lumen output (or overall brightness) of the light source will be decreased when compared to a simple, two-pole, on-off switch.

  • Kichler has tested all LED fixtures against a variety of popular and readily available dimmer switches to assure that lumen output and dimmer control are maximized. We've created dimmer-compatible LED fixtures that will give homeowners a full range of dimming capability.

  • Most dimmers will not dim down to zero. Expect dimming range from 75% to 95%.

Different type dimmer switches will deliver different results:

Dimmer Type What to expect
Standard triac Will reduce initial lumen output from 94% to 76%
Rotary Will dim 100% to black
Electric low voltage Will create a smaller dim range, typically from 80% to 62%

Features

  • Long-life light emitting diodes (LED) provide approximately 40,000 hour life span to L70 (70% initial lumens) -about 15 years of standard operation.
  • True optics: pure white light and controlled beam spread with no fade or drop off of light
  • Color Rendering Index - mid 80's
  • Energy Star qualified
  • High brightness LED
  • Higher efficiency
  • 3000K correlated color temperature average ± 150K is similar to Xenon
  • 1" Profile is 4.5" W
  • Hinged assembly
  • Keyhole mounting
  • Standard Installation
  • Multiple knock outs for installation ease
  • Side KO's for optional end-to-end assembly
  • UL listed NM & BX single cable connector included
  • Dimmable with conventionally available wall dimmers
  • On-off Switch
  • Built-in driver
  • UL Listed
  • cUL Listed

Limited Lifetime Warranty

Click to email for pricing. Appears on the California Energy Commission, Appliance Efficiency Database as required by Title 24 - 2008 Legislation

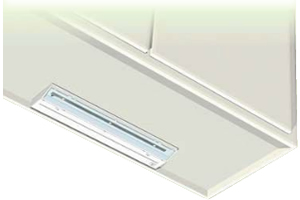

Back Mount Design

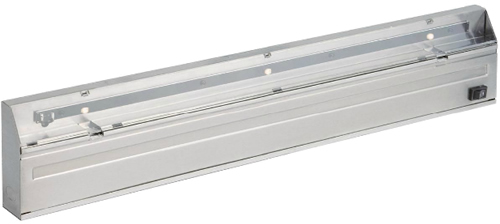

Kichler Direct Wire LED - Direct-Wire 4-Light LED Undercabinet Light 12058 in Stainless Steel

Step 1: Select Appropriate Light Fixture Sizes and Finish - Determine Direct Wire or Cord and Plug Power Supply

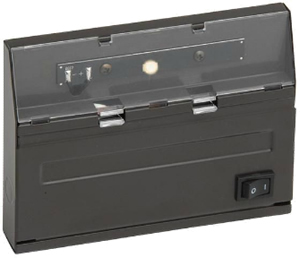

Kichler 6" Design Pro LED Direct Wire Unit 12055

12055BZ Bronze
12055SS Stainless Steel
12055WH White
  • 1 High Brightness LED built in
  • 3.9 Watts
  • 6" long x 4.5" wide x 1" H
  • UL Listed
  • CSA Listed

Direct Wire LED - Direct-Wire 1-Light LED 120v/4w 6 inch - 12055

Finish: Bronze, White or Stainless Steel
Body Material: Stainless Steel
Dia./4.5" wide
Body Height 1" long : 6"



Kichler 22" Design Pro LED Direct Wire Unit 12057

12057BZ Bronze
12057SS Stainless Steel
12057WH White
  • 3 High Brightness LED built in
  • 9.3 Watts
  • 22" long x 4.5" wide x 1" H
  • UL Listed
  • CSA Listed

Direct Wire LED - Direct-Wire 3-Light LED 120v/9.3w 22 inch - 12057

Finish: Bronze, White or Stainless Steel
Body Material: Stainless Steel
Dia./4.5" wide
Body Height 1" long : 22"

Step 2: Select Accessories - Cord & Plug, Connectors

38" Power Cord & Plug Accessory 10582

10582WH Cord & Plug

Direct Wire Cord and Plug White Power Cord and Plug Accessory
UL CSA Listed



Duplex BX Cable Connector 10588 SI

10588SI Cable Connector Duplex Bx
  • Connects two cables to any convenient wireway knockout located on the fixture. This allows for a group of fixtures to be wired in Series, using a single knockout. Connector is listed for use with 14-2 steel armored cable, 3/8 trade size reduced wall flexible steel, aluminum conduit or steel flexible metal conduit

Direct Wire Cable Connector Duplex BX 10588SI
wide 1.76" x Body Height 0.851" x Length 1.4"
Various Duplex BX Cable Connector connects two cables to any of the convenient wireway knockouts located on the fixture. This allows for a group of fixtures to be wired in a series using a single knockout. Connectors listed for use with: 14/2 steel armored cable, 3/8" trade size reduced wall flexible steel, aluminum conduit or steel flexible metal conduit.

Finish: Silver
UL CSA Listed
Body Material: Zinc



Connector for NM (non-metal) & BX Cable 10589 SI

10589SI Cable Connector Single Bx
  • UL listed for both non-metal or BX cables
  • Connects a single cable to any convenient wireway knockout located on the fixture.

Direct Wire Cable Connector Single BX 10589SI
wide 1.18" x Body Height 0.874" x Length 1.04"
Various Single BX Cable Connector connects a single cable to any of the convenient wireway knockouts located on the fixture.

Finish: Silver
UL CSA Listed
Body Material: Zinc
