Kichler C Series Commercial Grade LED Landscape Lighting

Kichler C Series Landscape Lighting
Kichler Commercial Outdoor Lighting
Line Voltage Integrated LED

The C-Series line is composed of Canopy, Wall Packs, Area and Security lights with In-Ground, Flood and Accent landscape lighting as well. Coordinating finishes achieve a cohesive end effect. This expanded array of platforms provides a functional lighting solution for new construction or existing properties.

Kichler Lighting's commercial-grade offering – the C-Series – was designed specifically for the rigorous demands of commercial outdoor lighting.

120-277V LED fixtures for robust outdoor installation plans to enhance the visual appeal of a property with landscape fixtures. Each fixture is designed with Kichler's attention to quality and value, delivering dependable operation, rugged die cast aluminum housings and a durable polyester powder coat finish that stands up to environmental demands.

Kichler C Series Landscape Lighting includes; C-Series In-Ground, C-Series Flood, C-Series Accent, 120V Accent LED, 120V Retrofit Accent and In-Ground and 120-277V Lamps and Accessories.

Kichler C Series Flood and Accent Landscape Lighting

C-Series Flood and Accent Fixtures are durably constructed to suit the landscape lighting needs of new or existing properties. Each fixture offers a sleek yet robust housing, a clear and clean quality of light, and incredible energy savings: all while keeping your project budget in line.

Kichler C-Series Flood and Accent – LED
Integrated LED – 120V-277V

Kichler Small Flood – 12W
C Series Flood and Accent Landscape Lighting

Knuckle Mount:
16221AZT30
16221BKT30

Trunnion Mount:
16221AZT30TR
16221BKT30TR

Slip-Fit Mount:
16221AZT30SL
16221BKT30SL

Head Height 3.29" x Length 7" x 6" wide Lead Wire 6"

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

  • Integrated LED
  • 120V-277V Universal voltage
  • Built in surge protection
  • All-metal housing
  • Textured polyester powder coat finish


Kichler Small Flood – 23W
C Series Flood and Accent Landscape Lighting

Knuckle Mount:
16222AZT30
16222BKT30

Trunnion Mount:
16222AZT30TR
16222BKT30TR

Slip-Fit Mount:
16222AZT30SL
16222BKT30SL

Head Height 3.29" x Length 7" x 6" wide Lead Wire 6"

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

  • Integrated LED
  • 120V-277V Universal voltage
  • Built in surge protection
  • All-metal housing
  • Textured polyester powder coat finish

Kichler Medium Flood – 33W
C Series Flood and Accent Landscape Lighting

Knuckle Mount:
16223AZT30
16223BKT30

Trunnion Mount:
16223AZT30TR
16223BKT30TR

Slip-Fit Mount:
16223AZT30SL
16223BKT30SL

Head Height 3.48" x 8" long x wide 8.8"
Lead Wire 6"

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

  • Integrated LED
  • 120V-277V Universal voltage
  • Built in surge protection
  • All-metal housing
  • Textured polyester powder coat finish


Kichler Medium Flood – 50W
C Series Flood and Accent Landscape Lighting

Knuckle Mount:
16224AZT30
16224BKT30

Trunnion Mount:
16224AZT30TR
16224BKT30TR

Slip-Fit Mount:
16224AZT30SL
16224BKT30SL

Head Height 3.48" x Length 8" x wide 8.8"
Lead Wire 6"

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

  • Integrated LED
  • 120V-277V Universal voltage
  • Built in surge protection
  • All-metal housing
  • Textured polyester powder coat finish


Kichler Large Flood – 85W
C Series Flood and Accent Landscape Lighting

Knuckle Mount:
16225AZT30
16225BKT30

Trunnion Mount:
16225AZT30TR
16225BKT30TR

Slip-Fit Mount:
16225AZT30SL
16225BKT30SL

Head 4.6" x 9.5" x 11"
Lead Wire 6"

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

  • Integrated LED
  • 120V-277V Universal voltage
  • Built in surge protection
  • All-metal housing
  • Textured polyester powder coat finish

Integrated LED – 120V-277V
C-Series Accent – LED

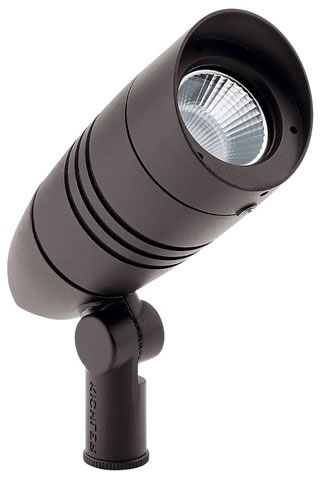

Kichler Integrated LED Small Accent – 5W
120V-277V
C-Series Accent – LED

Replaces the equivalent of a 35W Halogen.

3000K
15° Beam Spread:
16209AZT30
16209BKT30
40° Beam Spread:
16210AZT30
16210BKT30
55° Beam Spread:
16211AZT30
16211BKT30

5W, .9pf
473-478 lm
91-93 lm/W

4000K
15° Beam Spread:
16209AZT40
16209BKT40
40° Beam Spread:
16210AZT40
16210BKT40
55° Beam Spread:
16211AZT40
16211BKT40

5W, .9pf
495-514 lm
93-100 lm/W

80+
120V-277V, 50-60Hz. Surge protection up to 4kV.
1 integrated high-output LED with 3-step binning for color consistency.
Custom reflector optics. Tested to a Lumen Maintenance L70 of 60,000 hrs.

Housing Cast Aluminum
Comes with 3 gel-filled wire nuts. IP66 rated.
Vandal-proof hardware installed.

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16280 Long Visor/Cowl, 16282 Hexcell Louver
16284 Frosted Lens, 16286 Amber Lens, 16288 Green Lens

7.07" long x 2.57" high
2.46" to knuckle



Kichler Integrated LED Small Accent – 10W
120V-277V
C-Series Accent – LED

Replaces the equivalent of a 50W Halogen.

3000K
15° Beam Spread:
16212AZT30
16212BKT30
40° Beam Spread:
16213AZT30
16213BKT30
55° Beam Spread:
16214AZT30
16214BKT30

10W, .9pf
807-831 lm
82-84 lm/W

4000K
15° Beam Spread:
16212AZT40
16212BKT40
40° Beam Spread:
16213AZT40
16213BKT40
55° Beam Spread:
16214AZT40
16214BKT40

10W, .9pf
914-942 lm
91 lm/W

80+
120V-277V, 50-60Hz. Surge protection up to 4kV.
1 integrated high-output LED with 3-step binning for color consistency.
Custom reflector optics. Tested to a Lumen Maintenance L70 of 60,000 hrs.

Housing Cast Aluminum
Comes with 3 gel-filled wire nuts. IP66 rated.
Vandal-proof hardware installed.

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16280 Long Visor/Cowl, 16282 Hexcell Louver
16284 Frosted Lens, 16286 Amber Lens, 16288 Green Lens

7.07" long x 2.57" high
2.46" to knuckle

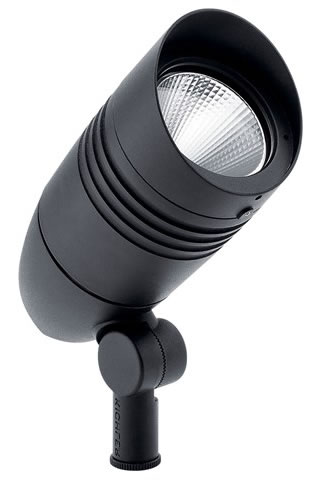

Kichler Integrated LED Large Accent – 14W
120V-277V
C-Series Accent – LED

Replaces the equivalent of a 90W Halogen.

3000K
15° Beam Spread:
16215AZT30
16215BKT30
40° Beam Spread:
16216AZT30
16216BKT30
55° Beam Spread:
16217AZT30
16217BKT30

14W, .9pf
1263-1326 lm
90-92 lm/W

4000K
15° Beam Spread:
16215AZT40
16215BKT40
40° Beam Spread:
16216AZT40
16216BKT40
55° Beam Spread:
16217AZT40
16217BKT40

14W, .9pf
1347-1424 lm
96-102 lm/W

80+
120V-277V, 50-60Hz. Surge protection up to 4kV.
1 integrated high-output LED with 3-step binning for color consistency.
Custom reflector optics. Tested to a Lumen Maintenance L70 of 60,000 hrs.

Housing Cast Aluminum
Comes with 3 gel-filled wire nuts. IP66 rated.
Vandal-proof hardware installed.

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16281 Long Visor/Cowl, 16283 Hexcell Louver
16285 Frosted Lens, 16287 Amber Lens, 16289 Green Lens

8.43" long x 3.92" high
2.85" to knuckle



Kichler Integrated LED Large Accent – 14W
120V-277V
C-Series Accent – LED

Replaces the equivalent of a 90W Halogen.

3000K
15° Beam Spread:
16215AZT30
16215BKT30
40° Beam Spread:
16216AZT30
16216BKT30
55° Beam Spread:
16217AZT30
16217BKT30

14W, .9pf
1263-1326 lm
90-92 lm/W

4000K
15° Beam Spread:
16215AZT40
16215BKT40
40° Beam Spread:
16216AZT40
16216BKT40
55° Beam Spread:
16217AZT40
16217BKT40

14W, .9pf
1347-1424 lm
96-102 lm/W

80+
120V-277V, 50-60Hz. Surge protection up to 4kV.
1 integrated high-output LED with 3-step binning for color consistency.
Custom reflector optics. Tested to a Lumen Maintenance L70 of 60,000 hrs.

Housing Cast Aluminum
Comes with 3 gel-filled wire nuts. IP66 rated.
Vandal-proof hardware installed.

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16281 Long Visor/Cowl, 16283 Hexcell Louver
16285 Frosted Lens, 16287 Amber Lens, 16289 Green Lens

8.43" long x 3.92" high
2.85" to knuckle



Kichler Integrated LED Large Accent – 21W
120V-277V
C-Series Accent – LED

Replaces the equivalent of a 35W Metal Halide.

3000K
15° Beam Spread:
16218AZT30
16218BKT30
40° Beam Spread:
16219AZT30
16219BKT30
55° Beam Spread:
16220AZT30
16220BKT30

21W, .9pf
1889-2033 lm
89-97 lm/W

4000K
15° Beam Spread:
16218AZT40
16218BKT40
40° Beam Spread:
16219AZT40
16219BKT40
55° Beam Spread:
16220AZT40
16220BKT40

21W, .9pf
1950-2111 lm
93-99 lm/W

80+
120V-277V, 50-60Hz. Surge protection up to 4kV.
1 integrated high-output LED with 3-step binning for color consistency.
Custom reflector optics. Tested to a Lumen Maintenance L70 of 60,000 hrs.

Housing Cast Aluminum
Comes with 3 gel-filled wire nuts. IP66 rated.
Vandal-proof hardware installed.

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16281 Long Visor/Cowl, 16283 Hexcell Louver
16285 Frosted Lens, 16287 Amber Lens, 16289 Green Lens

8.43" long x 3.92" high
2.85" to knuckle

Accent – LED
Integrated LED – 120V

Kichler Small LED Accent – 12.5W
Integrated LED – 120V

Replaces the equivalent of a 50W Halogen.

3000K
10° Beam Spread:
16200BBR30
35° Beam Spread:
16201BBR30
60° Beam Spread:
16206BBR30

12.5W, .85pf
590 lm, 47 lm/W

4250K
10° Beam Spread:
16200BBR42
35° Beam Spread:
16201BBR42
60° Beam Spread:
16206BBR42

12.5W, .85pf
646 lm, 52 lm/W

80+
Voltage Range 108V-132V, 50-60Hz. Surge protection up to 4kV.
Light Source 5 integrated high-output LEDs with 3-step binning for color consistency.
Tested to a Lumen Maintenance L70 of 40,000 hrs.

IP66 rated.

Finish: BBR Bronzed Brass (Cast Brass)
Brass will naturally patina over time.

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16065FRO Frosted Lens, 16065AMB Amber Lens, 16065GRN Green Lens

3" wide x 4.75" high
115° adjustment



Kichler Large LED Accent – 19.5W
Integrated LED – 120V

Replaces the equivalent of a 75W Halogen.

3000K
10° Beam Spread:
16202BBR30
35° Beam Spread:
16203BBR30
60° Beam Spread:
16207BBR30

19.5W, .90pf
947 lm
49 lm/W

4250K
10° Beam Spread:
16202BBR42
35° Beam Spread:
16203BBR42
60° Beam Spread:
16207BBR42

19.5W, .90pf
993 lm
51 lm/W

80+
Voltage Range 108V-132V, 50-60Hz. Surge protection up to 4kV.
Light Source 8 integrated high-output LEDs with 3-step binning for color consistency.
Tested to a Lumen Maintenance L70 of 40,000 hrs.

IP66 rated.

Finish: BBR Bronzed Brass (Cast Brass)
Brass will naturally patina over time.

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16066FRO Frosted Lens, 16066AMB Amber Lens, 16066GRN Green Lens

4.4" wide x 5.5" high
115° adjustment



Kichler Large LED Accent – 29W
Integrated LED – 120V

Replaces the equivalent of a 100W Halogen.

3000K
10° Beam Spread:
16204BBR30
35° Beam Spread:
16205BBR30
60° Beam Spread:
16208BBR30

29W, .90pf 1131 lm
39 lm/W

4250K
10° Beam Spread:
16204BBR42
35° Beam Spread:
16205BBR42
60° Beam Spread:
16208BBR42

29W, .90pf 1368 lm
47 lm/W

80+
Voltage Range 108V-132V, 50-60Hz. Surge protection up to 4kV.
Light Source 8 integrated high-output LEDs with 3-step binning for color consistency.
Tested to a Lumen Maintenance L70 of 40,000 hrs.

IP66 rated.

Finish: BBR Bronzed Brass (Cast Brass)
Brass will naturally patina over time.

Accessories: 15276 Power Post®, 15601 Surface Mounting Flange, 15609 Junction Box Mounting Bracket
15645, 15656, 15657, 15658 Stems, 16066FRO Frosted Lens, 16066AMB Amber Lens, 16066GRN Green Lens

4.4" wide x 5.5" high
115° adjustment

Retrofit Accent
120V – Requires lamp
HID High Intensity Discharge

Kichler Retrofit Small Accent
120V – Requires lamp

15231AZT
15231BKT
7W PAR20 Wet (18081-18086)
Compares up to 35W Halogen
HID High Intensity Discharge

Small 4" accent light for cross-lighting, spotlighting or grazing.

4" wide x 6.25" high x 7.25" long

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)



Kichler Retrofit Medium Accent
120V – Requires lamp

15241AZT
15241BKT
12W PAR30L Wet (18111-18116)
Compares up to 50W Halogen
HID High Intensity Discharge

Medium-sized (5") floodlight for cross-lighting, accenting or grazing.

5" wide x 6.75" high x 9" long

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)



Kichler Retrofit Large Accent
120V – Requires lamp

15251AZT
15251BKT
17W PAR38 Wet (18093-18098)
Compares up to 75W Halogen
HID High Intensity Discharge

Large (7") accent light for wider light spread along walls, shrubs, trees.

6.5" wide x 7.75" high x 9.75" long

Finish: AZT (Textured Architectural Bronze)
BKT (Textured Black)



Kichler Retrofit Small Compact

15230AZT
35W Max. PAR20 Metal Halide
or 50W Max. PAR20 Incandescent
HID High Intensity Discharge

Adjustable, compact accent light (3.75" diameter) for up or downlighting. Choice of Textured Architectural Bronze. or textured Midnight Spruce.. Up and down lighting versatility.

6" wide x 9" high x 10" long

Finish: AZT (Textured Architectural Bronze)



Kichler Retrofit Large Compact
120V – Requires lamp

15250AZT
12W PAR30L Wet (18111-18116)
Compares up to 50W Halogen
HID High Intensity Discharge

Adjustable accent light in a larger size (5" diameter) for up or downlighting. Up and down lighting versatility.

5.5" wide x 7.75" high x 5.5" long

Finish: AZT (Textured Architectural Bronze)



Kichler Retrofit Downlight
120V – Requires lamp

15255AZT
17W PAR38 Wet (18093-18098)
Compares up to 75W Halogen
HID High Intensity Discharge

This 7" downlight can be surface or tree-mounted to distribute a wide light spread to illuminate objects below. The fixture features an incandescent reflector for use with an E17 lamp which can also be removed for use with a PAR38/R40.

6.6" wide x 7.85" high x 9.04" long

Finish: AZT (Textured Architectural Bronze)


See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
