The C-Series line is composed of Canopy, Wall Packs, Area and Security lights with In-Ground, Flood and Accent landscape lighting as well. Coordinating finishes achieve a cohesive end effect. This expanded array of platforms provides a functional lighting solution for new construction or existing properties.
Kichler Lighting's commercial-grade offering – the C-Series – was designed specifically for the rigorous demands of commercial outdoor lighting.
Kichler C Series Flood and Accent Landscape Lighting >
Kichler C Series Canopy, Wall Packs, Area and Security Lights >
Kichler C Series In-Ground Landscape Lighting
High-quality C-Series In-Ground fixtures have been designed with the elements in mind. From the installation sleeve that's compatible with soil or cement, to the strain relief that works to prevent water from below, or the factory seal that remains sealed as you adjust the light direction, these heavy-duty fixtures are built to integrate with nature.
Kichler C Series In-Ground
Integrated LED – 120V-277V
Kichler C Series In-Ground
Integrated LED – 120V-277V
Exceptionally Engineered
With the Kichler Lighting C-Series In-ground
fixture, you can adjust the direction of the beam
up to 15-degrees by utilizing an Allen wrench from
the outside. This means you don't have to open
the fixture, leaving the factory seal intact to better
protect against water ingression.
Designed for Versatility
The beam direction adjustment feature adds
versatility to each fixture. Whether you need
the beam facing up to light a flagpole or pointed
directionally to illuminate a section of wall, a
simple adjustment can help you accomplish the
desired end effect.
Kichler C SeriesIn-Ground – 10 W
Integrated LED – 120V-277V
3000K
45° Beam Spread
16227CBR30
60° Beam Spread
16228CBR30
4000K
45° Beam Spread
16227CBR40

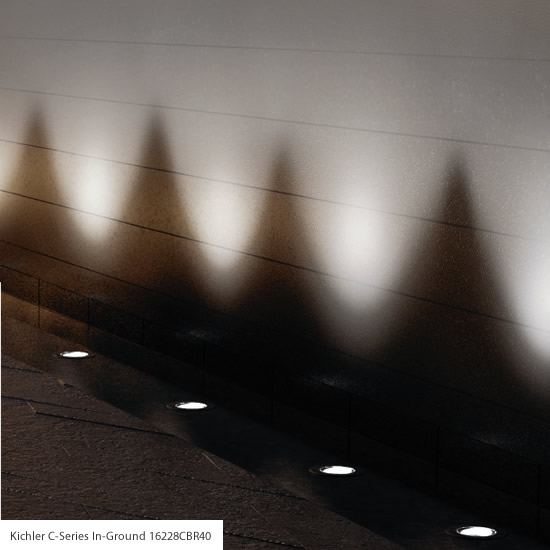

60° Beam Spread
16228CBR40
5000K
45° Beam Spread
16227CBR50
60° Beam Spread
16228CBR50
6.26" wide x 10.3" high
Cast Brass
9.7W
775 lm
80 lm/W
80
120V-277V, 50-60Hz.
Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hours.
Kichler C Series In-Ground – 20 W
Integrated LED – 120V-277V
3000K
45° Beam Spread
16230CBR30
60° Beam Spread
16258CBR30
4000K
45° Beam Spread
16230CBR40
60° Beam Spread
16258CBR40
5000K
45° Beam Spread
16230CBR50
60° Beam Spread
16258CBR50
6.26" wide x 10.3" high
Cast Brass
20.3W
1625 lm
80 lm/W
120V-277V, 50-60Hz.
Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hours.
Kichler Retrofit In-Ground
120V – Requires Lamp
Kichler 15295AZ C Series PAR38 In-Ground
120V – Requires Lamp
In-Ground PAR38
15295AZ
HID High Intensity Discharge In-Ground PAR36 Well Light
Finish: AZ Architectural Bronze
10" diameter 150W
Incandescent in-ground light. Adjustable to 150-degrees.
Use with blue filter 15626 to intensify green color in the landscape.
LED Lamp Options
7W PAR20 Wet (18081-18086) Compares up to 35W Halogen
12W PAR30 Wet (18087-18092) Compares up to 50W Halogen
12W PAR30L Wet (18111-18116) Compares up to 50W Halogen
17W PAR38 Wet (18093-18098) Compares up to 75W Halogen

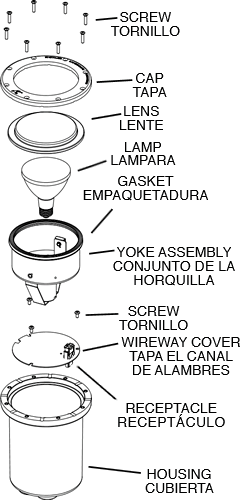

Kichler 15268AZ C Series Small In-Ground PAR20/PAR30
120V – Requires Lamp
Small In-Ground PAR20/PAR30
15268AZ
Small In-Ground PAR20/PAR30 Well Light Smaller
Finish: AZ Architectural Bronze
7" diameter in-ground light designed for use with PAR20 and PAR30.
LED Lamp Options
7W PAR20 Wet (18081-18086) Compares up to 35W Halogen
12W PAR30 Wet (18087-18092) Compares up to 50W Halogen
12W PAR30L Wet (18111-18116) Compares up to 50W Halogen
Kichler 15266AZ C Series In-Ground 70W MH Quad-Tap
120V – Requires Lamp
In-Ground 70W MH Quad-Tap
15266AZ
70W metal halide in-ground light
Adjustable to 150-degree angle
Use with blue filter 15626 to intensify green color in the landscape.
Finish: AZ Architectural Bronze
LED Lamp Options
7W PAR20 Wet (18081-18086) Compares up to 35W Halogen
12W PAR30 Wet (18087-18092) Compares up to 50W Halogen
12W PAR30L Wet (18111-18116) Compares up to 50W Halogen
Kichler 15688AZ C Series In-Ground Accent Accessories Rock Guard
Rock Guard 15688AZ
Finish: AZ Architectural Bronze
For use with: 15263, 15264, 15265, 15295
9.63" Dia. x 1.29" high
Retrofit fixtures
