Landscape Lighting Kichler Outdoor Lighting Step Lights, Mini Step Lights, Brick Lights

Kichler VLO Variable Lumen Output 12V Integrated LED Landscape Lighting

Kichler 12V Integrated LED Accent with VLO

Kichler's premium product, no bulb changing, entirely sealed, optimal light quality, with a built-in feature for adjusting lumen levels. Enables flexibility and finetuning of the lighting design. Kichler's longest-lasting product.

In pursuit of the product that is the best investment and will last the longest. You want the very best lighting design, as well as fixtures that will adapt as your landscape changes.

Sealed
Employs advanced engineering, sealing the fixture from all elements

Heat Management
Advanced thermal management, keeping heat away from the LED and resulting in longer life

Light Quality
Optimal, uniform light from center to edge

Bulb Replacement
No bulb replacement required

Lumen Depreciation
No noticeable loss of brightness during the warranty period

Surge Protection
6kV system protection

Beam Spread Adjustment
Expand beam spread with a special lens accessory; aids in fine-tuning design

Lumen Adjustment
Adjust lumens to three levels with the touch of a magnet; aids in fine-tuning the lighting design or adjusting to plant and tree growth

No LED Color Shift

15 year Warranty

Kichler VLO LED High Lumen Accent Integrated LED Landscape Lighting

16160AZT27 - 15° Textured Architectural Bronze
16160BKT27 - 15° Textured Black
16160CBR27 - 15° Centennial Brass
16161AZT27 - 35° Textured Architectural Bronze
16161BKT27 - 35° Textured Black
16161CBR27 - 35° Centennial Brass
16162AZT27 - 60° Textured Architectural Bronze
16162BKT27 - 60° Textured Black
16162CBR27 - 60° Centennial Brass
2700K

16160AZT30 - 15° Textured Architectural Bronze
16160BKT30 - 15° Textured Black
16160CBR30 - 15° Centennial Brass
16161AZT30 - 35° Textured Architectural Bronze
16161BKT30 - 35° Textured Black
16161CBR30 - 35° Centennial Brass
16162AZT30 - 60° Textured Architectural Bronze
16162BKT30 - 60° Textured Black
16162CBR30 - 60° Centennial Brass
16162AZT50 - 60° Textured Architectural Bronze
3000K

Level 1* = 14W/19VA, 1000 lm, 71 lm/W
Level 2 = 18W/23VA, 1200 lm, 67 lm/W

2.75" wide x 6" long x 4.5" high

Included Accessories:
6000-volt System Surge Protection.
8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key 18 AWG, 105° C, 300V 48" of usable #18-2 SPT-1W leads

Optional Accessories Below (not included, sold seperately)

Riser Stems AZT/BKT (1/2"): 6" 15645, 12" 15656, 18" 15657, 24" 15658
Adjustable 15570
Stem Coupler 15649

CBR (1/2"): 3" 15509, 6" 15510, 12" 15511, 18"15512, 24" 15513

Mounting Accessories AZT/BKT:
Surface Flange 15601
Bracket 15607
Tree Mount 15609
Elbow 15647
Gutter Mount 15489

Kichler VLO 5000K LED High Lumen Accent

16162AZT50 Textured Architectural Bronze
60° Wide Flood
5000K - Bright White

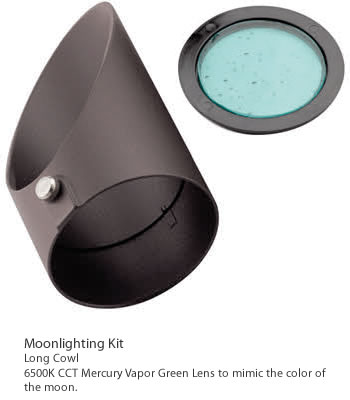

Comes equipped with a moonlighting kit which includes a Long Cowl and a 6500K CCT Mercury Vapor Green Lens to mimic the color of the moon.

Use Tree Bracket Mount (15609AZT) to install the fixture on trees for an optimal moonlighting effect.

Kichler VLO LED Large Accent 12V Integrated LED Landscape Lighting

16018AZT27 - 15° Textured Architectural Bronze
16018BKT27 - 15° Textured Black
16018CBR27 - 15° Centennial Brass
16019AZT27 - 35° Textured Architectural Bronze
16019BKT27 - 35° Textured Black
16019CBR27 - 35° Centennial Brass
16020AZT27 - 60° Textured Architectural Bronze
16020BKT27 - 60° Textured Black
16020CBR27 - 60° Centennial Brass
2700K

16018AZT30 - 15° Textured Architectural Bronze
16018BKT30 - 15° Textured Black
16018CBR30 - 15° Centennial Brass
16019AZT30 - 35° Textured Architectural Bronze
16019BKT30 - 35° Textured Black
16019CBR30 - 35° Centennial Brass
16020AZT30 - 60° Textured Architectural Bronze
16020BKT30 - 60° Textured Black
16020CBR30 - 60° Centennial Brass
3000K

2.75" wide x 6" long x 4.5" high

Included Accessories:
6000-volt System Surge Protection
8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key
18 AWG, 105° C, 300V 48" of usable #18-2 SPT-1W leads

Optional Accessories Below (not included, sold seperately)

CBR: Mounting Base 15493
Elbow 15514
Two Fixture "T" 15515
Bracket 15516
Tree Mount 15609
Gutter Mount 15489

Cowls: Long 16068

Lenses: Amber 16072AMB, Green 16072GRN, Hexcell 16075BK,
Beam Expander 16091FRO

Stakes: 8" 15575, 14" 15576, Power Post 15276

27 2700K - Warm White 835 lm, 69 lm/W

30 3000K - Pure White 835 lm, 69 lm/W

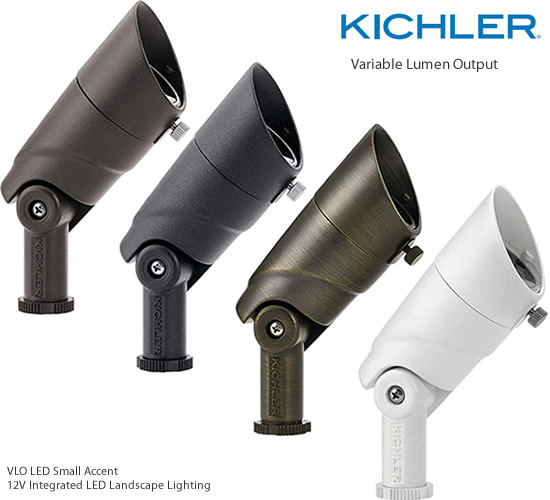

Kichler VLO LED Small Accent 12V Integrated LED Landscape Lighting

16015AZT27 - 15° Textured Architectural Bronze
16015BKT27 - 15° Textured Black
16015CBR27 - 15° Centennial Brass
16016AZT27 - 35° Textured Architectural Bronze
16016BKT27 - 35° Textured Black
16016CBR27 - 35° Centennial Brass
16017AZT27 - 60° Textured Architectural Bronze
16017BKT27 - 60° Textured Black
16017CBR27 - 60° Centennial Brass
2700K

16015AZT30 - 15° Textured Architectural Bronze
16015BKT30 - 15° Textured Black
16015CBR30 - 15° Centennial Brass
16016AZT30 - 35° Textured Architectural Bronze
16016BKT30 - 35° Textured Black
16016CBR30 - 35° Centennial Brass
16016WHT30 - 35°
16017AZT30 - 60° Textured Architectural Bronze
16017BKT30 - 60° Textured Black
16017CBR30 - 60° Centennial Brass
3000K

Watt/VA, Lumens, Efficacy
Level 1 = 2W/3.5VA, 100 lm, 50 lm/W
Level 2(VLO factory setting) = 3.5W/5.5VA, 200 lm, 57 lm/W
Level 3 = 5.5W/7.5VA, 300 lm, 55 lm/W

2" wide x 4.5" long x 3.75" high

Included Accessories
6000-volt System Surge Protection.
8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key
48" of usable #18-2, SPT-1W leads

Optional Accessories Below (not included, sold seperately)

Riser Stems AZT/BKT (1/2"): 6" 15645, 12" 15656,
18" 15657, 24" 15658. Adjustable 15570.
Stem Coupler 15649.

CBR (1/2"): 3" 15509, 6" 15510, 12" 15511, 18"15512,
24" 15513.

Mounting Accessories AZT/BKT:
Surface Flange 15601
Bracket 15607Tree Mount 15609
Elbow 15647
Gutter Mount 15489

CBR: Mounting Base 15493
Elbow 15514
Two Fixture "T" 15515
Bracket 15516
Tree Mount 15609
Gutter Mount 15489

Cowls: Long 16067

Lenses: Amber 16071AMB, Green 16071GRN,

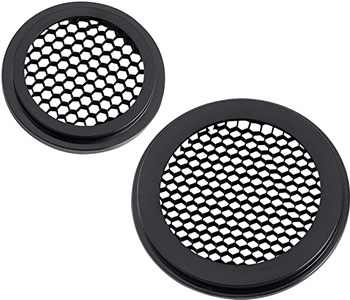

Hexcell 16073BK, Beam Expander 16090FRO

Stakes: 8" 15575, 14" 15576, Power Post 15276

27 2700K - Warm White 300 lm, 55 lm/W

30 3000K - Pure White 300 lm, 55 lm/W

Kichler VLO LED Mini Wall Wash

16026AZT27 Textured Architectural Bronze
16026BKT27 Textured Black
16026CBR27 Centennial Brass
2700K

16026AZT30 Textured Architectural Bronze
16026BKT30 Textured Black
16026CBR30 Centennial Brass
3000K

Watt/VA, Lumens, Efficacy
Level 1 (VLO factory setting) = 2.5W/4VA, 150 lm, 60 lm/W
Level 2 = 5W/7VA, 300 lm, 60 lm/W
Level 3 = 8W/10.5VA, 450 lm, 56 lm/W
Level 4 = 10W/14VA, 600 lm, 60 lm/W

4.25" wide x 2.25" long x 5.25" high

Included Accessories
4000-volt System Surge Protection
8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key
18 AWG, 105°C, 300V 48" of usable #18-2 SPT-1W leads

Beam Angle
Beam spread vertical of 86°, horizontal of 108°

Optional Accessories Below (not included, sold seperately)

Riser Stems AZT/BKT (1/2"): 6" 15645, 12" 15656, 18" 15657, 24" 15658
Adjustable 15570
Stem Coupler 15649.
CBR (1/2"): 3" 15509, 6" 15510, 12" 15511, 18" 15512, 24" 15513

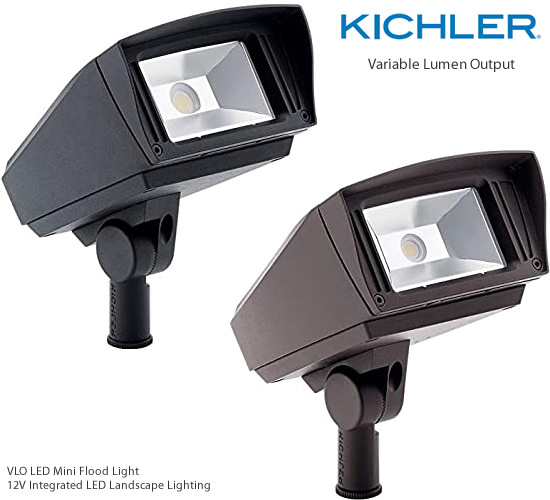

Kichler 16022 VLO LED Mini Flood Light

16022AZT27 Textured Architectural Bronze
16022BKT27 Textured Black
2700K

16022AZT30 Textured Architectural Bronze
16022BKT30 Textured Black
3000K

Level 1 (VLO factory setting) = 7W/11VA, 500 lm, 71 lm/W
Level 2 = 9W/14VA, 675 lm, 75 lm/W
Level 3 = 12W/18VA, 865 lm, 72 lm/W

6" wide x 6" long x 7" high

Included Accessories
6000-volt System Surge Protection 8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key
18 AWG, 105°C, 300V 48" of usable length, SJTW
Beam spread vertical of 88°, horizontal of 126°

Optional Accessories Below (not included, sold seperately)

Mounting Accessories AZT/BKT: Surface Flange 15601
Bracket 15607
Tree Mount 15609
Elbow 15647
Gutter Mount 15489

CBR: Mounting Base 15493
Elbow 15514
Two Fixture "T" 15515
Bracket 15516
Tree Mount 15609
Gutter Mount 15489

Kichler VLO LED Underwater Accent

Kichler Warm White VLO LED Underwater Accent Lights on Amazon

16027SS27 - 60° Stainless Steel
2700K

Kichler Cool White VLO LED Underwater Accent Lights on Amazon

16027SS30 - 60° Stainless Steel
3000K

Level 1 = 1.5W/3.5VA, 100 lm, 66 lm/W
Level 2 (VLO factory setting) = 3W/5VA, 200 lm, 66 lm/W
Level 3 = 5.5W/7.5VA, 400 lm, 72 lm/W

2" wide x 2" long x 2" high

Included Accessories
4000-volt System Surge Protection
Removable 316 Stainless Steel Adjustable Bracket and Cowl, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key
18 AWG, 105°C, 300V, 25' usable length, SJTW or SJOW

Optional Accessory (not included, sold seperately)
Weighted Base 16084BK

More Kichler Water Lights >

Kichler VLO LED In-Ground

Kichler 15° VLO Warm White LED In-Ground on Amazon
Kichler 35° VLO Warm White LED In-Ground on Amazon
Kichler 60° VLO Warm White LED In-Ground on Amazon

16023CBR27 - 15°
16024CBR27 - 35°
16025CBR27 - 60°
2700K

Kichler 15° VLO Cool White LED In-Ground on Amazon
Kichler 35° VLO Cool White LED In-Ground on Amazon
Kichler 60° VLO Cool White LED In-Ground on Amazon

16023CBR30 - 15°
16024CBR30 - 35°
16025CBR30 - 60°
3000K

Level 1 = 5.3W/8VA, 350 lm, 66 lm/W
Level 2 (VLO factory setting) = 8.3W/11.75VA, 550 lm, 66 lm/W
Level 3 = 12W/16VA, 850 lm, 71 lm/W

6" wide x 7.5" high

Centennial Brass

Included Accessories
6000-volt System Surge Protection.
4600 lb Drive-Over Rating.
2 Replacement Screws, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key.
18 AWG, SPT-1W 105°C, 300V, 60' of usable length.

Optional Accessory (not included, sold seperately) Tops: Side Fire 16093CBR, Four-Way 16094CBR, Cowl 16095CBR, Rock Guard 16096CBR
Concrete Kit 16099BK
Vandal Proof Hardware 16098BK
Lens Clip 16097BK
Lenses: 16072AMB
16072GRN
Hexcell Louver 16075BK
Beam Expander 16091FRO

Kichler VLO Variable Lumen Output 12V Integrated LED Landscape Lighting
