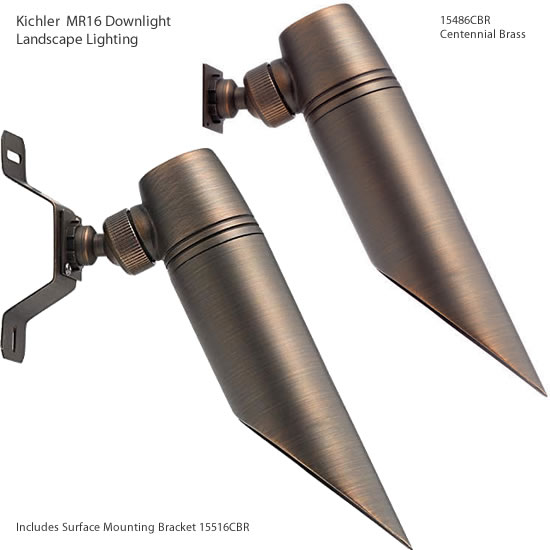

Kichler Brass Downlight MR16 Landscape Lighting
15486CBR Centennial Brass
MR16 Bi-Pin
2.25" wide x 11.5" long x 3.25" high
Includes Surface Mounting Bracket 15516CBR
and locknut.
30" of usable #18-2, SPT-1W leads.
Cable connectors included.
Optional Accessories Below (not included, sold seperately)
Mounting Accessories: Surface Flange 15601.
Bracket 15607. Mounting Base 15493.
Elbow
15514. Two Fixture "T" 15515. Bracket 15516.
Tree Mount 15609. Gutter Mount 15489

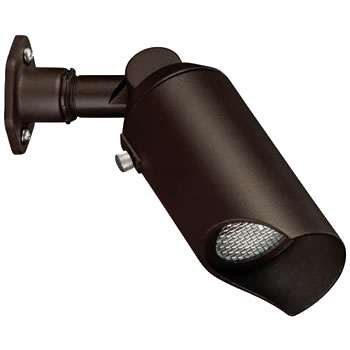

Kichler Mini Downlight MR16 Landscape Lighting
15087AZT Textured Architectural Bronze
MR16 Bi-Pin
2.5" wide x 4" high
Includes Surface Mounting Bracket 15607 and
locknut. 35" of usable #18-2, SPT-1W leads.
Cable connectors included.
Optional Accessories Below (not included, sold seperately)
Mounting Accessories AZT/BKT: Surface Flange
15601.
Bracket 15607.
Tree Mount 15609.
Elbow
15647.
Gutter Mount 15489.
Locknut LK87CBR.
Accessories
Surface Mounting Flange with Neoprene Gasket For Watertight Seal
![]() |
15601AZT | Cast Aluminum Textured Architectural Bronze |
15601BKT | Cast Aluminum Textured Black | |
15601MST | Cast Aluminum Textured Midnight Spruce | |
15601BBR | Cast Brass Bronzed Brass |
Flange For Tree / Surface Mounting
![]() |
15607AZT | Cast Aluminum Textured Architectural Bronze |
15607BKT | Cast Aluminum Textured Black | |
15607WHT | Cast Aluminum Textured White | |
15607BBR | Cast Brass Bronzed Brass |
Polycarbonate Lens
15677CLR - Accessory lens of clear polycarbonate
plastic. Provides additional internal protection from
lawn sprinklers, etc.
![]() |
15677CLR | Clear |

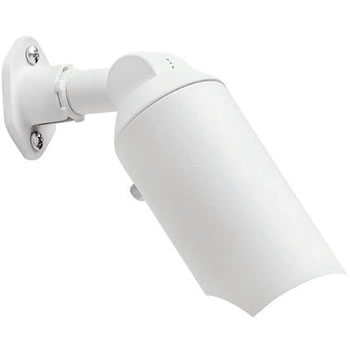

Kichler Mini Downlight MR16 Landscape Lighting
15093WHT Textured White
MR16 Bi-Pin
2.5" wide x 3.75" high
Includes White Surface Mounting Bracket
15607, hardware, and locknut.
35" of usable #18-2, SPT-1W leads.
Cable connectors included.
Optional Accessories Below (not included, sold seperately)
Mounting Accessories: Surface Flange 15601.
Bracket 15607. Tree Mount 15609. Elbow 15647.
Gutter Mount 15489.
Accessories
Surface Mounting Flange with Neoprene Gasket For Watertight Seal
![]() |
15601AZT | Cast Aluminum Textured Architectural Bronze |
15601BKT | Cast Aluminum Textured Black | |
15601MST | Cast Aluminum Textured Midnight Spruce | |
15601BBR | Cast Brass Bronzed Brass |
Flange For Tree / Surface Mounting
![]() |
15607AZT | Cast Aluminum Textured Architectural Bronze |
15607BKT | Cast Aluminum Textured Black | |
15607WHT | Cast Aluminum Textured White | |
15607BBR | Cast Brass Bronzed Brass |
Polycarbonate Lens
15677CLR - Accessory lens of clear polycarbonate
plastic. Provides additional internal protection from
lawn sprinklers, etc.
![]() |
15677CLR | Clear |
Kichler Long Cowl Mini Downlight MR16Landscape Lighting
15494AZT Textured Architectural Bronze
15494CBR Centennial Brass
MR16 Bi-Pin
2.5" wide x 10" long x 3.75" high
Includes Junction Box Mounting Bracket 15609
and locknut.
35" of usable #18-2, SPT-1W leads.
Optional Accessories Below (not included, sold seperately)
Mounting Accessories: Surface Flange 15601.
Bracket 15607.
Elbow 15647.
Gutter Mount
15489.
Kichler Lighting 15255 120v Downlight
15255AZT Textured Architectural Bronze
15255BKT Textured Black
7" downlight for below horizontal effects with wide light spread. Available as surface or tree-mounted.
Finish: Textured Architectural Bronze or Textured Black
Lamp Not Included
Lead Wire Length 8"
Safety Rated: Wet
Socket Base: Medium
Number of 1
Lamp Type: PAR38/R40
Max watt : 175W
wide 6.6" high 7.85" long : 9.04"
Kichler C Series Commercial Line Voltage Integrated LED Landscape Lighting >
Kichler 12V Centennial Brass Mini Pendants
15500CBR
Centennial Brass Solid Pendant
1 x 5 watt MR16
Incandescent
2.25" wide x 4.25" high
15501CBR Twinkler
Centennial Brass Perforated Pendant
1 x 5 watt MR16
Incandescent
2.25" wide x 5.75" high
12 volt downlight mini pedants to hang alone or in clusters. Wet Location rated.
Finish: Centennial Brass
Material: Cast Brass
UL Wet Location
Dabmar LV403 Hanging 12 volt Tree Light
Tree Mount
Wire Cable Included
5.63" high x 4.29" wide
Maximum 1156/93 SC 21 Watts, Lamp Included
Material: Cast Aluminum
Lens: No Lens, Open Lamp
Finishes: Powder Coated
Black, Bronze, Green, Verde Green
12 Volts
Low Voltage Transformer Required for Installation, Sold Separately
ETL Approved for Wet Location
Dabmar LV304 Hanging 12 volt Tree Light
Lamp
LV304: Bipin Base MR16 Halogen 20 watts
LV304-LED3: MR16 LED COB 3 watts
LV304-LED7: MR16 LED SMD 7 watts
Lamp Included
Tree Mount
Wire Cable Included
5.63" high x 2.97" wide
Material: Cast Aluminum
Lens: Clear, Heat Resistant, Tempered Glass
Finishes: Powder Coated Green
12 Volts
Low Voltage Transformer Required for Installation, Sold Separately
ETL Approved for Wet Location
Hadco DSL2 Low Voltage Die-cast Aluminum Directable DownLyte
Finish A Black
B White
Low Voltage
18W maximum S-8 (1141) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 8-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable. 12 Volt system requires remote transformer.
HOUSING: Machined aluminum top cap and cast aluminum body with adjustable yoke. Fasteners are 300 series stainless steel.
Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Frosted tempered glass lens.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
Height 3 5/8" (92mm)
wide 2.5" (64mm)
Compare Mini Step Lights, Mini Wall Lights & Deck Lights...>
Kichler Transformers & Accessories >
Voltage | Lamp Wattage | Finish | Stock | ||
---|---|---|---|---|---|
DSL2-A | Square Surface Downlyte with Bracket w/Lamp | 12v | 18W 1141 | Black | Quick Ship |
DSL2-B | Square Surface Downlyte with Bracket w/Lamp | 12v | 18W 1141 | White | Quick Ship |
