Step Lights & Wall Lights

Kichler Louvered Surface Mount LED Step Lights

16171AZT27 Textured Architectural Bronze
16171BKT27 Textured Black
16171CBR27 Centennial Cast Brass
0.82W/1.45VA
2700K, 7 lm, 8 lm/W

16171AZT30 Textured Architectural Bronze
16171BKT30 Textured Black
16171CBR30 Centennial Cast Brass
0.82W/1.45VA
3000K, 7 lm, 8 lm/W

6" wide x 3" high
.75" thick

Includes 4000-volt System Surge Protection.
Includes Diffuser, Mounting Hardware, Mounting Template, Wire Connectors, and Locknut
84" of usable 18 AWG 105 C, 300V, SPT-1W leads

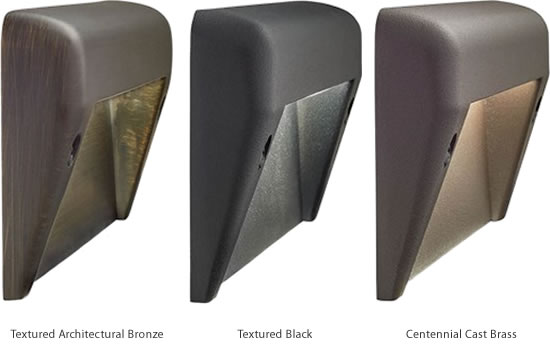

Kichler Contemporary Surface Mount LED Step Lights

16172AZT27 Textured Architectural Bronze
16172BKT27 Textured Black
16172CBR27 Centennial Cast Brass
0.82W/1.45VA
2700K, 17 lm, 20 lm/W

16172AZT30 Textured Architectural Bronze
16172BKT30 Textured Black
16172CBR30 Centennial Cast Brass
0.82W/1.45VA
3000K, 17 lm, 20 lm/W

6.2" wide x 2.6" high
.75" thick

Includes 4000-volt System Surge Protection.
Includes Diffuser, Mounting Hardware, Mounting Template, Wire Connectors, and Locknut
84" of usable 18 AWG 105 C, 300V, SPT-1W leads

Kichler Mini LED Step Lights

15780AZT27R
0.86W/1.86VA
2700K, 41 lm, 50 lm/W

15780AZT30R
0.86W/1.86VA
3000K, 43 lm, 51 lm/W

5" wide x 3.5" high
Recessed 2.5" deep
Recessed box 3" wide x 2" high

Includes Gel-Filled Wire Nuts and Locknut
Included stainless steel mounting hardware and junction box
Wire connection must be made inside fixture

Kichler Mini Louvered LED Step Lights

15782AZT27R Textured Architectural Bronze
15782BKT27R Textured Black
15782CBR27 Centennial Brass
15782WHT27R Textured White
0.86W/1.86VA
2700K, 41 lm, 50 lm/W

15782AZT30R Textured Architectural Bronze
15782BKT30R Textured Black
15782CBR30 Centennial Brass
15782WHT30R Textured White
0.86W/1.86VA
3000K, 43 lm, 51 lm/W

5" wide x 3.5" high
Recessed 2.5" deep
Recessed box 3" wide x 2" high

Designed to be integrated into outdoor steps. Casts a low, even spread of energy efficient LED light. With louvered faceplate in Centennial Cast Brass, Copper, Textured Architectural Bronze, Textured Black, or Textured White. Also available with louvered faceplate in Copper.

Includes Gel-Filled Wire Nuts and Locknut
Included stainless steel mounting hardware and junction box
Wire connection must be made inside fixture

UL Wet Location

Kichler Centennial Brass Deck and Patio Lighting >

WAC LEDme WL-LED200 LEDme® Step & Wall Lights

Vertical Scoop Step Lights
Trimless Vertical Step Light
See more details and options  >

WL-LED200 LEDme® Step and Wall Lights
With a sleek profile and no visible hardware, LEDme® Step and Wall Lights are designed to seamlessly blend into any architecture. These lights offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Cast aluminum body is sealed for both indoor and outdoor applications.

WAC LEDme Step & Wall Lights >

WAC LEDme WL-LED100 LEDme® Step & Wall Lights

Horizontal Scoop Step Lights
Trimless Horizontal Step Light
See more details and options  >

WL-LED100 LEDme® Step and Wall Lights
With a sleek profile and no visible hardware, LEDme® Step and Wall Lights are designed to seamlessly blend into any architecture. These lights offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Cast aluminum body is sealed for both indoor and outdoor applications.

WAC LEDme Step & Wall Lights >

WAC LEDme WL-LED300 LEDme® Step & Wall Lights

LED Step Light Circular Scoop
See more details and options  >

WL-LED300 LEDme® Step and Wall Lights
With a sleek profile and no visible hardware, LEDme® Step and Wall Lights are designed to seamlessly blend into any architecture. These lights offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Cast aluminum body is sealed for both indoor and outdoor applications.

WAC LEDme Step & Wall Lights >

WAC LEDme WL-LED300-C LEDme® Step & Wall Lights

WL-LED300-C LED Step Light Circular Face
See more details and options  >

WL-LED310 LEDme® Step and Wall Lights
With a sleek profile and no visible hardware, LEDme® Step and Wall Lights are designed to seamlessly blend into any architecture. These lights offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Cast aluminum body is sealed for both indoor and outdoor applications.

WAC LEDme Step & Wall Lights >

Hinkley Lighting 1542 Vertical Deck Light

Hinkley Lighting's Hardy Island Landscape Lighting includes Cast Brass T-3 Bi-Pin and LED pathlights in various sizes and styles. Coordinating Cast Brass well lights have flat, grill, eyebrow or directional tops. Deck lights are available as eyebrow or louvered round or louvered rectangular steplights and brick lights. Spot lights, flood lights and wall wash lights will finish your look and complete your landscape lighting design.

1542BZ Bronze
1 x 12 watt T-5 Wedge, included
Leadwire: 60"

1542BZ-LED Bronze
1542MZ-LED Matte Bronze
1-1.50w LED, included
LED Info: Lumens: 100
3000K 80 CRI
LED 2w
Incandescent Equivalency: 12w
1.5w LED 2.4VA.
Leadwire: 16"

wide 3.3" x 4.8" high
C-US Rated Wet Location
12 volt

Hinkley Hardy Island Landscape Lighting Collection >

BZ Bronze Die Cast Aluminum

MZ Matte Bronze Cast Brass

Dabmar LV-LED60 Recessed Step and Wall Light

An excellent durable choice for commercial or residential lighting.

Housing Material: Powder Coated Cast Aluminum
Available Finish: Stainless Steel
Cover Material: Stainless Steel
Lens: Crystal Lens
Pre-Wired with UL Listed Direct Burial Wire/Cable

ETL Approval Pending

3.25"
Outside Dimension 5.5" x 5.5"
Depth.875"

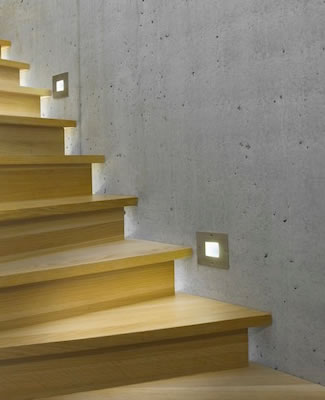

SLV Lighting 227485, 227490, 227495 Wetsy Exterior Step Light or Well Light

227485U Round Cover
227490U Quadratic Cover Window Round
227495U Quadratic Cover Window Square

Socket/Bulb: GX53/GX53 9W max. or LED GX53, 5W
Recommended bulb: 9W, 2700K 280lm, 508860U
Optional bulb: GX53 LED 120V 5W 30° BEAM 350lm warm white 2800K, 794002U
or GX53 LED 120V 5W 60° BEAM 350lm warm white 2800K, 794012U

Material: Aluminum Cover stainless steel 316
Cover: 5.2" (round)
Cover: 5.2" x 5.2" (square)

Supply line: 6.6 ft

Included parts: Mounting pot
