These Low Voltage Track heads work on most available track.
If you are adding to an existing track lighting system we can help you identify which track heads will be compatible. Photos are at the bottom of this page.
WAC Series 007 Premium Low Voltage Track Head Spotlight
007
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
007 - 50W max, 007L - 75W max, 007LED - 8W
• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Available Framing Projector accessory (order separately)
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
007 model uses 12V MR16G, 50W max lamp.
007L model uses 12V MR16, 75W max. 007LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN)
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-007-BK | JHT-007-BK | LHT-007-BK | Low Voltage Track Head 50W |
HHT-007-WT | JHT-007-WT | LHT-007-WT | Low Voltage Track Head 50W |
HHT-007-BN | JHT-007-BN | LHT-007-BN | Low Voltage Track Head 50W |
HHT-007L-BK | JHT-007L-BK | LHT-007L-BK | Low Voltage Track Head 75W |
HHT-007L-WT | JHT-007L-WT | LHT-007L-WT | Low Voltage Track Head 75W |
HHT-007L-BN | JHT-007L-BN | LHT-007L-BN | Low Voltage Track Head 75W |
HHT-007LED-BK | JHT-007LED-BK | LHT-007LED-BK | LED Low Voltage Track Head - 8W |
HHT-007LED-WT | JHT-007LED-WT | LHT-007LED-WT | LED Low Voltage Track Head - 8W |
HHT-007LED-BN | JHT-007LED-BN | LHT-007LED-BN | LED Low Voltage Track Head - 8W |
Photo shows 008FP Framing Projector installed on 007 track head.
WAC Lighting 008FP Framing Projector Accessory
008FP-BK Black
008FP-DB Dark Bronze
008FP-WT White
The 008FP Framing Projector accessory easily attaches to the
LED810, LED820, 007 and 896 track heads and display lights allowing the display of a four-sided image. The addition
of the optional 008FP framing projector allows a
square or rectangular area of light to be formed on artwork
with minimal light spill, giving paintings and drawings a "self
luminating"
effect. Tappered back, Diecast aluminum track head, with integral
electronic transformer. Compatible with Halo or Halo compatible,
Juno or Juno compatible or Lightolier or Lightolier compatible.
Finish: BK- Black, DB- Dark Bronze, WT- White
Framing Projector for use with the LED810, LED820, 007 and 896 track heads and display lightsCreates a square or rectangular light area to illuminate artwork or displays. Frames a crisp edge with no light spillage, making paintings look as if they are self-luminating. Best effect is achieved with low level ambient light and distances less than 10 feet.
Description: Premier series framing projector accessory for use with W.A.C. brand
007 series track heads, display lights, and monpoints.
Attaches to the
end of the track head.
Materials: Steel lens snoot, metal shims with plastic end caps, glass focusing lens.
Systems: Can be used with the following fixtures;
HHT-007, HHT-007L, JHT-007, JHT-007L, LHT-007, LHT-007L
DL-007, ME-007, MI-007, LP-007
Finish: Abrasion resistant powder coat paint finish. Black (BK) or White (WT).
Listing: U.L. & C.U.L. listed. 5 year W.A.C. Lighting product warranty.
LAN CLUB Shanghai Restaurant
Customized canopy mounted LED009-WW framing projectors with butterfly gobo insert and 4" LEDme™ warm white recessed downlights
WAC Series 009 Framing Projector Low Voltage Track Head
Premium Low Voltage Track Light
The Framing Projector uses two lenses for precise focus adjustment to highlight artwork and wall décor or project images, signs and corporate logos.
WAC Series 009 Framing Projector Track Head
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Two focusing lenses and metal shims
contained in framing snoot. Bi-pin ceramic socket for MR16 lamp.
Transformer: Integral electronic transformer for 12 volt MR16 lamps
Uses 12V MR16, 75W max.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
• Die-cast aluminum construction
• Tool-free lockable aiming
• 355° horizontal rotation and 180° vertical tilt
• Accepts "D" size glass and metal gobos
• *Fixture cannot be extended
Finish: BK-Black, WT-White
MR16, 75W max (order separately)
009 Framing Projector Low Voltage Track Head Includes self-contained electronic transformer
Low Voltage Framing Projector 75W
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
HHT-009L-BK | JHT-009L-BK | LHT-009L-BK |
HHT-009L-WT | JHT-009L-WT | LHT-009L-WT |
WAC Series 160 Gimbal Ring Low Voltage Track Head
160
Gimbal Ring Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK-Black, WT-White
160LED 8W LED
160 50W
Halogen MR16
160L
75W
Halogen MR16
Lens: Clear lens included
• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
160 model uses 12V MR16G, 50W max lamp.
160L model uses 12V MR16, 75W max. 160LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-160-BK | JHT-160-BK | LHT-160-BK | Low Voltage Track Head 50W |
HHT-160-WT | JHT-160-WT | LHT-160-WT | Low Voltage Track Head 50W |
HHT-160L-BK | JHT-160L-BK | LHT-160L-BK | Low Voltage Track Head 75W |
HHT-160L-WT | JHT-160L-WT | LHT-160L-WT | Low Voltage Track Head 75W |
HHT-160LED-BK | JHT-160LED-BK | LHT-160LED-BK | LED Low Voltage - 120V Track Light - 8W |
HHT-160LED-WT | JHT-160LED-WT | LHT-160LED-WT | LED Low Voltage - 120V Track Light - 8W |
WAC Series 180 Gimbal Ring Low Voltage Track Head
180
Gimbal Ring Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
Lens: Clear lens included
• Metal construction
• Swivel arm for easy aiming
• 350° horizontal rotation and 90° vertical aiming
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
180 model uses 12V MR16G, 50W max lamp.
180L model uses 12V MR16, 75W max. 180LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN)
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-180-BK | JHT-180-BK | LHT-180-BK | Low Voltage Track Head 50W |
HHT-180-BN | JHT-180-BN | LHT-180-BN | Low Voltage Track Head 50W |
HHT-180L-BK | JHT-180L-BK | LHT-180L-BK | Low Voltage Track Head 75W |
HHT-180L-WT | JHT-180L-WT | LHT-180L-WT | Low Voltage Track Head 75W |
HHT-180L-BN | JHT-180L-BN | LHT-180L-BN | Low Voltage Track Head 75W |
HHT-180LED-BK | JHT-180LED-BK | LHT-180LED-BK | LED Low Voltage - 8W |
HHT-180LED-WT | JHT-180LED-WT | LHT-180LED-WT | LED Low Voltage - 8W |
HHT-180LED-BN | JHT-180LED-BN | LHT-180LED-BN | LED Low Voltage - 8W |
Shown with optional mesh bulb shield
Bulb Shield Accessory (order separately)
WAC Series 204 Low Voltage Track Head with 25" Flexible Aimable Neck
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
Lens: Clear lens included
• Metal construction
• Easily re-lamped from the front without the use of tools
• Flexible cable arm for easy aiming
• Bulb shield accessories available (order separately)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
204 model uses two 12V MR16G, 50W max lamps.
204L model uses 12V MR16, 75W max. 204LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN),
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-204-BK | JHT-204-BK | LHT-204-BK | Low Voltage Track Head 50W |
HHT-204-WT | JHT-204-WT | LHT-204-WT | Low Voltage Track Head 50W |
HHT-204-BN | JHT-204-BN | LHT-204-BN | Low Voltage Track Head 50W |
HHT-204L-BK | JHT-204L-BK | LHT-204L-BK | Low Voltage Track Head 75W |
HHT-204L-WT | JHT-204L-WT | LHT-204L-WT | Low Voltage Track Head 75W |
HHT-204L-BN | JHT-204L-BN | LHT-204L-BN | Low Voltage Track Head 75W |
HHT-204LED-BK | JHT-204LED-BK | LHT-204LED-BK | LED Low Voltage - 120V Track Light - 8W |
HHT-204LED-WT | JHT-204LED-WT | LHT-204LED-WT | LED Low Voltage - 120V Track Light - 8W |
HHT-204LED-BN | JHT-204LED-BN | LHT-204LED-BN | LED Low Voltage - 120V Track Light - 8W |
WAC MBS-16 Mesh Bulb Shield
MBS-16-BK Black
MBS-16-BN Brushed Nickel
MBS-16-WT White
Snaps over bulb to reduce glare from back of bulb.
Finish: BK-Black, BN-Brushed Nickel, WT-White
WAC SBS-16 Solid Bulb Shield
SBS-16-BK Black
SBS-16-BN Brushed Nickel
SBS-16-WT White
Snaps over bulb to eliminate glare from back of bulb.
Finish: BK-Black, BN-Brushed Nickel, WT-White

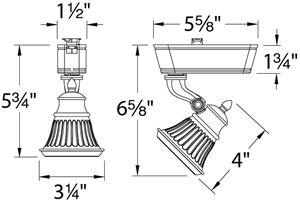

WAC Caribe 874 Premium Low Voltage Track Light
Caribe 874
Premium Low Voltage Track Light
The rich look of stunning antique bronze and nickel finishes highlight this Low Voltage track luminaire. A handsome luminaire designed with a striking, classic profile creates a special ambiance for any room. Ideal for a wide array of environments ranging from residential to and hospitality.
WAC 120V 50, 75 or 150 watt Caribe Track Light >
Finish: AB - Antique Bronze
8W LED
50W
Halogen MR16
75W
Halogen MR16
Order with or without lens.
• Fixtures specifically designed to ensure proper lamp fit
• 360° horizontal rotation and 90° vertical aiming
• Fully enclosed back to prevent light leaks
• Easily re-lamped from the front
• Utilize the second circuit on the J2 style track with the use of the JCLIP
• 5 year WAC Lighting product warranty
• Order with lens ring to hold up to two additional lenses
• Utilize the second circuit on the J2 style track with the use of the JCLIP
• 5 year WAC Lighting product warranty
Construction: Die-cast aluminum alloy lamp holder housing,
spun metal shade and polycarbonate track adapter. G5.3 base ceramic
socket with silver-plated contacts. Die-cast retaining ring holds
up to two lenses.
Transformer: Electronic transformer with auto reset, soft start,
and short circuit protection. 120VAC/60Hz input.
874 model uses 12V MR16G, 50W max.
874L model uses 12V MR16G, 75W max. 874LED model
uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000
hour rated life, Dimming to 10%, CRI: 85.
Finish: Electroplated Antique Bronze (AB).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-874-AB | JHT-874-AB | LHT-874-AB | Caribe - Low Voltage Track Head 50W |
HHT-874L-AB | JHT-874L-AB | LHT-874L-AB | Caribe - Low Voltage Track Head 75W |
HHT-874-LENS-AB | JHT-874-LENS-AB | LHT-874-LENS-AB | Caribe - Low Voltage Track Head 50W W/ Lens |
HHT-874L-LENS-AB | JHT-874L-LENS-AB | LHT-874L-LENS-AB | Caribe - Low Voltage Track Head 75W W/ Lens |
HHT-874LED-AB | JHT-874LED-AB | LHT-874LED-AB | Caribe - LED Low Voltage - 120V Track Light |
WAC Rialto 886 Premium Low Voltage Track Light
Rialto 886
Premium Low Voltage Track Light
Old world charm meets high style with the Rialto low voltage luminaire. Combining classic hand finishes with a beveled design for a rich elegance that coordinates with many architectural styles, this luminaire adds flair to high performance lighting, ideal for accent or spot applicatipons.
WAC 120V 50, 75 or 150 watt Caribe Track Light >
Finish: AB - Antique Bronze
8W LED
50W
Halogen MR16
75W
Halogen MR16
Order with or without lens.
• Fixtures specifically designed to ensure proper lamp fit
• 360° horizontal rotation and 90° vertical aiming
• Fully enclosed back to prevent light leaks
• Easily re-lamped from the front
• Utilize the second circuit on the J2 style track with the use of the JCLIP
• 5 year WAC Lighting product warranty
Construction: Die-cast aluminum alloy lamp holder housing,
spun metal shade and polycarbonate track adapter. G5.3 base ceramic
socket with silver-plated contacts.
Transformer: Electronic transformer with auto reset, soft start,
and short circuit protection. 120VAC/60Hz input.
886 model uses 12V MR16G, 50W max.
886L model uses 12V MR16G, 75W max. 886LED model
uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000
hour rated life, Dimming to 10%, CRI: 85.
Finish: Electroplated Antique Bronze (AB) and Antique Nickel (AN).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-886-AB | JHT-886-AB | LHT-886-AB | Rialto - Low Voltage Track Head 50W |
HHT-886L-AB | JHT-886L-AB | LHT-886L-AB | Rialto - Low Voltage Track Head 75W |
HHT-886LED-AB | JHT-886LED-AB | LHT-886LED-AB | Rialto - LED Low Voltage - 120V Track Light |
WAC Radiant 856 Premium Low Voltage Track Head
Radiant 856
Premium Low Voltage Track Light
Experience the warm charm and high style of the Radiant low voltage track luminiare. Designed in four finishes including an elegant Antique Bronze the Radiant features a transitional look with a rich elegance that compliments many architectural styles, ideal for various spot lighting applications.
Finish: AB - Antique Bronze, BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• 350° horizontal rotation and 90° vertical aiming
• Screw and swivel yoke for precise aiming adjustment
• Fully enclosed back to prevent light leaks
• Easily re-lamped from the front
• Electronic transformer soft start feature is designed to prolong lamp life
• Utilize the second circuit on the J2 style track with the use of the JCLIP
• Accommodates 1 additional lens or accessory with the use of lens clip
• "Quick-Ship" item: always in stock and ready for immediate shipment
• 5 year WAC Lighting product warranty
Construction: Die-cast aluminum fixture with polycarbonate
track adapter. Ceramic bi-pin socket.
Transformer: Soft start electronic transformer, with auto reset and short
circuit protection. Input AC/60Hz.
856 model uses 12V MR16G, 50W max.
856L model uses 12V MR16G, 75W max. 856LED model
uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000
hour rated life, Dimming to 10%, CRI: 85.
Finish: Electroplated Antique Bronze (AB) and Brushed Nickel (BN),
Powdercoat paint Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-856-BK | JHT-856-BK | LHT-856-BK | Radiant Low Voltage Track Head 50W |
HHT-856-WT | JHT-856-WT | LHT-856-WT | Radiant Low Voltage Track Head 50W |
HHT-856-AB | JHT-856-AB | LHT-856-AB | Radiant Low Voltage Track Head 50W |
HHT-856-BN | JHT-856-BN | LHT-856-BN | Radiant Low Voltage Track Head 50W |
HHT-856L-BK | JHT-856L-BK | LHT-856L-BK | Radiant Low Voltage Track Head 75W |
HHT-856L-WT | JHT-856L-WT | LHT-856L-WT | Radiant Low Voltage Track Head 75W |
HHT-856L-AB | JHT-856L-AB | LHT-856L-AB | Radiant Low Voltage Track Head 75W |
HHT-856L-BN | JHT-856L-BN | LHT-856L-BN | Radiant Low Voltage Track Head 75W |
HHT-856LED-BK | JHT-856LED-BK | LHT-856LED-BK | Radiant - LED Low Voltage LED - 8W |
HHT-856LED-WT | JHT-856LED-WT | LHT-856LED-WT | Radiant - LED Low Voltage LED - 8W |
HHT-856LED-AB | JHT-856LED-AB | LHT-856LED-AB | Radiant - LED Low Voltage LED - 8W |
WAC Series 801 Low Voltage Track Head
801
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Shown with optional 801BD Barndoors installed. Order
separately. Available in black or white.
Finish: BK - Black, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Metal construction
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical tilt
• Clear lens included
• Available barn door accessory for glare control
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
801 model uses 12V MR16G, 50W max lamp.
801L model uses 12V MR16, 75W max. 801LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
![]() 801BD Barn Door Accessory in Black, Dark Bronze or White |
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-801-BK | JHT-801-BK | LHT-801-BK | 50w Low Voltage Track Fixture |
HHT-801-WT | JHT-801-WT | LHT-801-WT | 50w Low Voltage Track Fixture |
HHT-801L-BK | JHT-801L-BK | LHT-801L-BK | 75w Low Voltage Track Fixture |
HHT-801L-WT | JHT-801L-WT | LHT-801L-WT | 75w Low Voltage Track Fixture |
WAC Barn Door Accessory for LED and Low Voltage Track Light Accessory
Finish: BK - Black, DB - Dark Bronze, WT - White
801BD-BK | Barn Door for use with Track Head |
801BD-DB | Barn Door for use with Track Head |
801BD-WT | Barn Door for use with Track Head |
WAC Series 802 Low Voltage Track Head
802
Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
802 model uses 12V MR16G, 50W max lamp.
802L model uses 12V MR16, 75W max. 802LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN)
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-802-BK | JHT-802-BK | LHT-802-BK | Low Voltage Track Head 50W |
HHT-802-WT | JHT-802-WT | LHT-802-WT | Low Voltage Track Head 50W |
HHT-802-BN | JHT-802-BN | LHT-802-BN | Low Voltage Track Head 50W |
HHT-802L-BK | JHT-802L-BK | LHT-802L-BK | Low Voltage Track Head 75W |
HHT-802L-WT | JHT-802L-WT | LHT-802L-WT | Low Voltage Track Head 75W |
HHT-802L-BN | JHT-802L-BN | LHT-802L-BN | Low Voltage Track Head 75W |
HHT-802LED-BK | JHT-802LED-BK | LHT-802LED-BK | 120V LED Track Light |
HHT-802LED-WT | JHT-802LED-WT | LHT-802LED-WT | 120V LED Track Light |
HHT-802LED-BN | JHT-802LED-BN | LHT-802LED-BN | 120V LED Track Light |
WAC Series 808 Low Voltage Track Head
808
Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, DB - Dark Bronze, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Metal construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Recessed lamp position and baffle for minimal glare
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
808 model uses two 12V MR16G, 50W max lamps.
808L model uses 12V MR16, 75W max. 808LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-808-BK | JHT-808-BK | LHT-808-BK | Low Voltage Track Head 50W |
HHT-808-DB | JHT-808-DB | LHT-808-DB | Low Voltage Track Head 50W |
HHT-808-WT | JHT-808-WT | LHT-808-WT | Low Voltage Track Head 50W |
HHT-808L-BK | JHT-808L-BK | LHT-808L-BK | Low Voltage Track Head 75W |
HHT-808L-DB | JHT-808L-DB | LHT-808L-DB | Low Voltage Track Head 75W |
HHT-808L-WT | JHT-808L-WT | LHT-808L-WT | Low Voltage Track Head 75W |
HHT-808LED-BK | JHT-808LED-BK | LHT-808LED-BK | LED Low Voltage - 8W |
HHT-808LED-DB | JHT-808LED-DB | LHT-808LED-DB | LED Low Voltage - 8W |
HHT-808LED-WT | JHT-808LED-WT | LHT-808LED-WT | LED Low Voltage - 8W |
WAC Series 809 Low Voltage Track Head
809
Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
809 model uses two 12V MR16G, 50W max lamps.
809L model uses 12V MR16, 75W max. 809LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN)
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-809-BK | JHT-809-BK | LHT-809-BK | Low Voltage Track Head 50W |
HHT-809-WT | JHT-809-WT | LHT-809-WT | Low Voltage Track Head 50W |
HHT-809-BN | JHT-809-BN | LHT-809-BN | Low Voltage Track Head 50W |
HHT-809L-BK | JHT-809L-BK | LHT-809L-BK | Low Voltage Track Head 75W |
HHT-809L-WT | JHT-809L-WT | LHT-809L-WT | Low Voltage Track Head 75W |
HHT-809L-BN | JHT-809L-BN | LHT-809L-BN | Low Voltage Track Head 75W |
HHT-809LED-BK | JHT-809LED-BK | LHT-809LED-BK | LED Low Voltage - 8W |
HHT-809LED-WT | JHT-809LED-WT | LHT-809LED-WT | LED Low Voltage - 8W |
HHT-809LED-BN | JHT-809LED-BN | LHT-809LED-BN | LED Low Voltage - 8W |
WAC Series 814 Low Voltage Track Fixture with Glass Shade
814
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, WT - White
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• Multiple glass and shield options (required, order separately)
• 360° horizontal rotation and 180° vertical tilt
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: Integral electronic transformer for 12 volt MR16 lamps. 120V input.
Dimmable with electronic low voltage dimmers.
814 model uses 12V MR16G, 50W max lamp.
814L model uses 12V MR16, 75W max.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-814-BK | JHT-814-BK | LHT-814-BK | Low Voltage Track Head 50W |
HHT-814-WT | JHT-814-WT | LHT-814-WT | Low Voltage Track Head 50W |
HHT-814L-BK | JHT-814L-BK | LHT-814L-BK | Low Voltage Track Head 75W |
HHT-814L-WT | JHT-814L-WT | LHT-814L-WT | Low Voltage Track Head 75W |
G111 Series Acid etched translucent
press molded bell - 2.25" wide x 1.75" L
WAC Glass Shade G111
Acid Etched Translucent Press Molded Bell
Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.25"
G111-AM | G100 Series - Amber - Bell Glass Shade |
G111-BL | G100 Series - Blue - Bell Glass Shade |
G111-WT | G100 Series - White - Bell Glass Shade |
G112 Series - Acid etched translucent
press molded grooved cylinder - 2.5" wide x 1.75" L
WAC Glass Shade G112
Acid Etched Translucent Press Molded Grooved Cylinder
Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.5"
G112-AM | G100 Series - Amber - Cylinder Glass Shade |
G112-WT | G100 Series - White - Cylinder Glass Shade |
G113 Series - Acid etched translucent
press molded molded ring - 3 3/8" wide x 1.875"
WAC Glass Shade G113
Acid Etched Translucent Press Molded Ring
Finish AM-Amber, BL-Blue, WT-White
Length 1.875" wide 3 3/8"
G113-AM | G100 Series - Amber - Ring Glass Shade |
G113-WT | G100 Series - White - Ring Glass Shade |
G114 Series - Acid etched mouth blown cased glass deep bell - 2 5 /8" wide x 2 1 /2 "L
WAC Glass Shade G114
Acid Etched Cased Glass Deep Bell
Finish AM-Amber, BL-Blue, GR-Green, RD-Red, WT-White
Length 2.5" wide 2 5/8"
G114-AM | G100 Series - Amber - Deep Bell Glass Shade |
G114-BL | G100 Series - Blue - Deep Bell Glass Shade |
G114-RD | G100 Series - Red - Deep Bell Glass Shade |
G114-WT | G100 Series - White - Deep Bell Glass Shade |
G115 Series - Mesh bulb shield - 2.25" wide x 1.75" L
WAC Mesh Shield G115
Mesh Bulb Shield.
Finish DB-Dark Bronze, CH-Chrome, PT-Platinum
Length 1.75" wide 2.25"
G115-BN | G100 Series - Chrome - Mesh Bulb Shield |
G115-DB | G100 Series - Bronze - Mesh Bulb Shield |
G116 Series - Solid bulb shield- 2.25" wide x 1.75" L
WAC Solid Shield G116
Solid Bulb Shield.
Finish DB-Dark Bronze, CH-Chrome, PT-Platinum
Length 1.75" wide 2.25"
G116-BN | G100 Series - Chrome - Solid Bulb Shield |
G116-DB | G100 Series - Bronze - Solid Bulb Shield |
WAC Series 816 Premium Low Voltage Track Head
816
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• Easily re-lamped from the front without the use of tools
• Use aiming wand for easy adjustment
• 350° horizontal rotation and 90° vertical tilt
Construction: Die-cast aluminum track head with polycarbonate
transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
816 model uses two 12V MR16G, 50W max lamps.
816L model uses 12V MR16, 75W max. 816LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN),
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-816-BK | JHT-816-BK | LHT-816-BK | Low Voltage Track Head 50W |
HHT-816-WT | JHT-816-WT | LHT-816-WT | Low Voltage Track Head 50W |
HHT-816-BN | JHT-816-BN | LHT-816-BN | Low Voltage Track Head 50W |
HHT-816L-BK | JHT-816L-BK | LHT-816L-BK | Low Voltage Track Head 75W |
HHT-816L-WT | JHT-816L-WT | LHT-816L-WT | Low Voltage Track Head 75W |
HHT-816L-BN | JHT-816L-BN | LHT-816L-BN | Low Voltage Track Head 75W |
HHT-816LED-BK | JHT-816LED-BK | LHT-816LED-BK | LED Low Voltage - 8W |
HHT-816LED-WT | JHT-816LED-WT | LHT-816LED-WT | LED Low Voltage - 8W |
HHT-816LED-BN | JHT-816LED-BN | LHT-816LED-BN | LED Low Voltage - 8W |
WAC Double Droid 817 Premium Low Voltage Track Head
Double Droid 817
Premium Low Voltage Track Light
A stylish spot light, Double Droid features solid construction and unique aiming features for simple adjustments. Ideal for residential, and
hospitality applications.
Finish: BK - Black, WT - White, PT/BK - Platinum/Black, PT/WT - Platinum/White
2 X 8W LED
2 X
50W
Halogen MR16
2 X
75W
Halogen MR16
• Die-cast aluminum construction
• 350° horizontal rotation and 90° vertical tilt
• "L" style yoke and pivoting heads for precise aiming
• Each head has independent vertical adjustment
• Silicon hot aiming sleeve
• Clear lens included
Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets. Clear glass lenses included.
Transformer: 1 watt to 60 watt load.
817 model uses two 12V MR16G, 35W max lamps.
817LED model uses two 12V, 8W MR16 LED lamps included . 450 lumens
each, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Platinum track head with
Black adapter (PT/BK), Platinum track head with White adapter (PT/WT)
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-817-BK | JHT-817-BK | LHT-817-BK | Double Droid Low Voltage Track Head 50W |
HHT-817-PT/BK | JHT-817-PT/BK | LHT-817-PT/BK | Double Droid Low Voltage Track Head 50W |
HHT-817-PT/WT | JHT-817-PT/WT | LHT-817-PT/WT | Double Droid Low Voltage Track Head 50W |
HHT-817-WT | JHT-817-WT | LHT-817-WT | Double Droid Low Voltage Track Head 50W |
HHT-817LED-BK | JHT-817LED-BK | LHT-817LED-BK | Double Droid - Low Voltage LED - 8W |
HHT-817LED-PT/BK | JHT-817LED-PT/BK | LHT-817LED-PT/BK | Double Droid - Low Voltage LED - 8W |
HHT-817LED-PT/WT | JHT-817LED-PT/WT | LHT-817LED-PT/WT | Double Droid - Low Voltage LED - 8W |
HHT-817LED-WT | JHT-817LED-WT | LHT-817LED-WT | Double Droid - Low Voltage LED - 8W |
WAC Series 164 Low Voltage Track Head
Range 164L
Premium Low Voltage Track Light
Form follows function with instrument-like design and technology of the Range low voltage spot. Engineered to precision, these specification grade luminaires are ideal for commercial, hospitality and applications where high performance and vesatility are required.
Finish: BK - Black, WT - White
• 350° horizontal rotation and 90° vertical aiming with built-in degree
scales, two aiming screws for locking aiming angle
• Easily re-lamped from the front
• Electronic transformer soft start feature is designed to prolong lamp life
• Threaded lens cap has three evenly spaced integral tension clips.
Additional lens accessory support is provided by a separate check ring
placed within the lens cap.
• Accommodates 1 lenses and 1 accessory (clear lens included)
• 5 year WAC Lighting product warranty
Construction: Die-cast aluminum fixture with integral aiming indicators
to assure precise directional adjustment.
Transformer: Soft start electronic transformer, with auto reset and short
circuit protection. Input AC/60Hz.
164L model uses 12V MR16G, 75W max.
164LED model uses 12V, 8W MR16 LED lamp included . 450 lumens,
3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed, Patent Pending.
H Series (Halo compatible) |
J Series (Juno compatible) |
L Series (Lightolier compatible) |
|
HHT-164L-BK | JHT-164L-BK | LHT-164L-BK | Low Voltage Track Head 75W |
HHT-164L-WT | JHT-164L-WT | LHT-164L-WT | Low Voltage Track Head 75W |
HHT-164LED-BK | JHT-164LED-BK | LHT-164LED-BK | Range - LED Low Voltage - 120V Track Light - 8W |
HHT-164LED-WT | JHT-164LED-WT | LHT-164LED-WT | Range - LED Low Voltage - 120V Track Light - 8W |
WAC Dune 826 Low Voltage Track Head
Dune 826
Premium Low Voltage Track Light
A stylish spot light, Double Droid features solid construction and unique aiming features for simple adjustments. Ideal for residential, and
hospitality applications.
Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• 350° horizontal rotation and 90° vertical tilt
• Loop back aiming arm for simple adjustments
• Screw on lens cap
• Clear lens included
Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets.
Transformer: 1 watt to 60 watt load.
826 model uses two 12V MR16G, 50W max lamps.
826L model uses 12V MR16, 75W max. 826LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN),
and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-826-BK | JHT-826-BK | LHT-826-BK | Dune Low Voltage Track Head 50W |
HHT-826-WT | JHT-826-WT | LHT-826-WT | Dune Low Voltage Track Head 50W |
HHT-826-BN | JHT-826-BN | LHT-826-BN | Dune Low Voltage Track Head 50W |
HHT-826L-BK | JHT-826L-BK | LHT-826L-BK | Dune Low Voltage Track Head 75W |
HHT-826L-WT | JHT-826L-WT | LHT-826L-WT | Dune Low Voltage Track Head 75W |
HHT-826L-BN | JHT-826L-BN | LHT-826L-BN | Dune Low Voltage Track Head 75W |
HHT-826LED-BK | JHT-826LED-BK | LHT-826LED-BK | Dune - Low Voltage LED - 8W |
HHT-826LED-WT | JHT-826LED-WT | LHT-826LED-WT | Dune - Low Voltage LED - 8W |
HHT-826LED-BN | JHT-826LED-BN | LHT-826LED-BN | Dune - Low Voltage LED - 8W |
WAC 846 Series Low Voltage Track Head
846
Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, WT - White
8W LED
50W
Halogen MR16
75W
Halogen MR16
• Die-cast aluminum construction
• Patented tool-free lockable aiming mechanism
• 360° horizontal rotation and 180° vertical tilt
• Hot aiming knob for easy adjustment
• Clear lens included (Halogen version)
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
846 model uses 12V MR16G, 50W max lamp.
846L model uses 12V MR16, 75W max. 846LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-846-BK | JHT-846-BK | LHT-846-BK | Low Voltage Track Head 50W |
HHT-846-WT | JHT-846-WT | LHT-846-WT | Low Voltage Track Head 50W |
HHT-846L-BK | JHT-846L-BK | LHT-846L-BK | Low Voltage Track Head 75W |
HHT-846L-WT | JHT-846L-WT | LHT-846L-WT | Low Voltage Track Head 75W |
HHT-846LED-BK | JHT-846LED-BK | LHT-846LED-BK | LED Low Voltage Track Head 8W |
HHT-846LED-WT | JHT-846LED-WT | LHT-846LED-WT | LED Low Voltage Track Head 8W |
WAC 936 Series Low Voltage Track Head
936
Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.
Finish: BK - Black, WT - White
50W
Halogen MR16
75W
Halogen MR16
• Metal construction
• Patented tool-free lockable aiming mechanism
• 350° horizontal rotation and 90° vertical tilt
• Fully enclosed back to prevent light leaks
• Two lamping options
Construction: Metal track head with polycarbonate transformer case and
track adapter.
Two wire leads with u-posts for attaching to AR111 or PAR36
lamp terminal base.
Transformer: Use AR111 or PAR36 lamp (sold separately).
Integral electronic transformer for 12 volt lamps. 120V input.
Dimmable with electronic low voltage dimmers.
936 model uses 12V MR16G, 50W max lamp.
936L model uses 12V MR16, 75W max.
Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
H Series (Halo Compatible |
J Series (Juno Compatible |
L Series (Lightolier Compatible |
|
HHT-936-BK | JHT-936-BK | LHT-936-BK | Low Voltage Track Head 50W |
HHT-936-WT | JHT-936-WT | LHT-936-WT | Low Voltage Track Head 50W |
HHT-936L-BK | JHT-936L-BK | LHT-936L-BK | Low Voltage Track Head 75W |
HHT-936L-WT | JHT-936L-WT | LHT-936L-WT | Low Voltage Track Head 75W |
WAC Lighting Low Voltage Track Fixture Extension
X6 | 6" |
X12 | 12" |
X18 | 18" |
X24 | 24" |
X36 | 36" |
X48 | 48" |
There are 3 standard types of track lighting. If you are adding to an existing system you will need to determine which type of track lighting you have.
Single Circuit Track
120V Single Circuit has a 20 Amp capacity. It is available compatible with Halo, Juno or Lightolier.
WAC Lighting Single-Circuit Tracks & Components >
Two-Circuit Track
Juno compatible 2-Circuit track carries two circuits that can be used independently (up to 2400 watts on each circuit) or jointly switched (up to a total of 4800 watts) used together. This can give you more control, allowing different pendants or lights on a single track to be controled by different switches or more capacity allowing more lights on a single track.
WAC Lighting Juno compatible Two-Circuit Tracks & Components >
design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
