Kichler Commercial Outdoor Lighting
Line Voltage Integrated LED

The C-Series line is composed of Canopy, Wall Packs, Area and Security lights with In-Ground, Flood and Accent landscape lighting as well. Coordinating finishes achieve a cohesive end effect. This expanded array of platforms provides a functional lighting solution for new construction or existing properties.

Kichler Lighting's commercial-grade offering – the C-Series – was designed specifically for the rigorous demands of commercial outdoor lighting.

Kichler C Series Commercial Outdoor Lighting Ceiling and Wall Fixtures includes; C-Series Wall Packs, C-Series Wall Mounted Area Lights, C-Series Slim Wall, C-Series Canopy Lights, C-Series Two-Light Security and 120-277V Lamps and Accessories.

The C-Series line provides a functional lighting solution for new construction or existing properties, such as:

  • Hotels
  • Restaurants
  • Shopping centers
  • Office structures
  • Shipping docks
  • Storage units
  • Multi-family structures
  • Parking garages

C-Series Ceiling and Wall Lighting

Get performance you can depend on with Kichler Lighting's C-Series Ceiling and Wall fixtures.

Whether you need ample lighting for unloading cargo, or secure coverage for safe passage or parking, we have a solution. Our traditional looking wall packs are ideal for new construction or property maintenance. The wall-mounted area light delivers a broad throw of light from above, while the slim wall offers a modern style for installations closer to eye-level. Canopy and Security lights then offer secure overhead illumination for installations like parking garages or employee entrances.

Installation Features

Fixtures in this line were designed with ease of installation in mind.

Hinged Assembly
(Available on Large Wall Packs)
Top portion of fixture can be unhinged and set aside to allow for ease of installation.

Hinged Mounting Plate
(Available on Canopy)
Pop-out safety hook allows the fixture to hang in place while wiring.

Installation Features

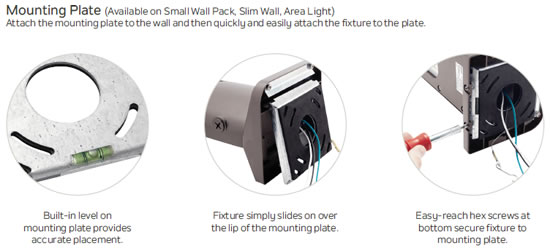

Mounting Plate
(Available on Small Wall Pack, Slim Wall, Area Light)
Attach the mounting plate to the wall and then quickly and easily attach the fixture to the plate.

Installation Features

Protection from Ingression
Knockouts available for wires or photocell feature gaskets to prevent water ingression to Junction Box.
Fixtures also feature fully potted drivers to protect electrical components from water damage.

Reliably Durable
The ceiling and wall line features die cast aluminum housings with stainless steel, tamper resistant hardware. Gaskets surrounding knockouts and mounting plates protect against water ingression, as does the fully potted drivers. Durable, UV resistant, tempered glass lenses can weather the elements while also promoting a well dispersed light transmission. And each fixture in the C-Series line is available in Textured Architectural Bronze – a finish that has proven to withstand the elements year after year.

Dependable Operation
With most C-Series platforms, you get 120V-277V universal voltage plus built-in surge protection (up to 4kV). You also get quality LEDs, assuring the color you choose – 3000K, 4000K or 5000K – is consistent from fixture to fixture. And each fixture in this section offers enhanced efficacy, with many delivering more than 90 lumens/watt.

5 year warranty on LED light engines and electrical components.

C-Series Wall Packs
Integrated LED – 120V-277V

Kichler C-Series Wall Packs offer a powerful footprint of light – both broad and deep – from the extended height of a building. As most of these are installed higher up on shipping and storage buildings, parking structures or hotels, features like the hinged assembly, captive screws and quick connects simplify the installation process.

Kichler C-Series Small Wall Pack – 19W
Integrated LED – 120V-277V

Replaces the equivalent of a 70W HID.

3000K
16231AZT30
18.5W, .94pf
1750 lm, 95 lm/W
90+

4000K
16231AZT40
18.5W, .94pf
2400 lm, 130 lm/W
70+

5000K
16231AZT50
18.5W, .94pf
2400 lm, 130 lm/W
70+

Finish: AZT Textured Architectural Bronze

Mounting Height 10' to 12'
8.62" wide x 7.6" high

Voltage Range: 120V-277V, 50-60Hz.
Surge protection up to 4kV.
Light Source: Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance of > 55,000 hrs.

Accessories: 16245BK C-Series Photocell



Kichler C-Series Large Wall Pack – 37W
Integrated LED – 120V-277V

Replaces the equivalent of a 100W HID.

3000K
16232AZT30
37W, .91pf
3950 lm
107 lm/W
80+

4000K
16232AZT40
37W, .91pf
4400 lm
119 lm/W
70+

5000K
16232AZT50
37W, .91pf
4400 lm
119 lm/W
70+

Finish: AZT Textured Architectural Bronze

Mounting Height 12' to 15'
14.4" wide x 9.29" high

Voltage Range: 120V-277V, 50-60Hz.
Surge protection up to 4kV.
Light Source: Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance of > 55,000 hrs.

Accessories: 16245BK C-Series Photocell



Kichler C-Series Large Wall Pack – 46W
Integrated LED – 120V-277V

Replaces the equivalent of a 100W-150W HID.

3000K
16233AZT30
46W, .91pf
4525 lm
98 lm/W
80+

4000K
16233AZT40
46W, .91pf
5225 lm
114 lm/W
70+

5000K
16233AZT50
46W, .91pf
5225 lm
114 lm/W
70+

Finish: AZT Textured Architectural Bronze

Mounting Height 13' to 16'
14.4" wide x 9.29" high

Voltage Range: 120V-277V, 50-60Hz.
Surge protection up to 4kV.
Light Source: Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance of > 61,000 hrs.

Accessories: 16245BK C-Series Photocell

C-Series Wall Mounted Area Lights
Integrated LED – 120V-277V

C-Series Wall Mounted Area Lights offer a throw of light – often to solid surfaces below like sidewalks or nearby parking. Its sleek profile and generous light delivery make this fixture appealing for consumerfacing establishments like retail centers, educational facilities, office buildings and medical facilities.

Kichler C-Series 20W Wall Mounted Area Lights
Integrated LED – 120V-277V

Replaces the equivalent of a 70W HID.

3000K
16234AZT30
20W, .92pf
1950 lm
98 lm/W

4000K
16234AZT40
20W, .92pf
2225 lm
111 lm/W

5000K
16234AZT50
20Wl, .92pf
2225 lm
111 lm/W

Finish: AZT Textured Architectural Bronze

Mounting Height 8' to 10'
6.22" wide x 13.9" extension

70+
120V-277V, 50-60Hz.
Surge protection up to 4kV.
High-output, energy efficient LED array.
Tested to a Lumen Maintenance L70 of > 36,000 hrs.

Accessories: 16245BK C-Series Photocell


Kichler C-Series 39W Wall Mounted Area Lights
Integrated LED – 120V-277V

Replaces the equivalent of a 100W HID.

3000K
16235AZT30
39W, .90pf
3650 lm
94 lm/W

4000K
16235AZT40
39W, .90pf
4250 lm
109 lm/W

5000K
16235AZT50
39W, .90pf
4250 lm
109 lm/W

Finish: AZT Textured Architectural Bronze

Mounting Height 10' to 12'
6.22" wide x 13.9" extension

70+
120V-277V, 50-60Hz.
Surge protection up to 4kV.
High-output, energy efficient LED array.
Tested to a Lumen Maintenance L70 of > 36,000 hrs.

Accessories: 16245BK C-Series Photocell

C-Series Slim Wall
Integrated LED – 120V-277V

Kichler C-Series Slim Wall Lights offer a modern design that can be installed as a downlight as well as an uplight (with trunnion accessory). Its light output is ideal for mounting heights of 8- to 15-feet – perfect for Office, Restaurant, or Retail entryways or walkways.

Kichler C-Series C-Series Slim Wall – 10W
Integrated LED – 120V-277V

Replaces the equivalent of a 50W HID.
Can also install as an up-light utilizing the trunnion mount accessory.

3000K
16236AZT30
10W, .90pf
900 lm, 90 lm/W

4000K
16236AZT40
10W, .90pf
1150 lm, 115 lm/W

5000K
16236AZT50
10W, .90pf
1150 lm, 115 lm/W

Finish: AZT Textured Architectural Bronze

Mounting Height 8' to 10'
7.08" wide x 9.09" high

120V-277V, 50-60Hz.
Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance of > 55,000 hrs.

Accessories: 16256AZT C-Series Junction Box, 16245BK C-Series Photocell, 16292AZT Trunnion Mount



Kichler C-Series C-Series Slim Wall Pack (New Style) – 18W
Integrated LED – 120V-277V

Replaces the equivalent of a 100W HID.
Can also install as an up-light utilizing the trunnion mount accessory.

3000K
16237AZT30
18W, .93pf
1775 lm
99 lm/W
80+

4000K
16237AZT40
18W, .93pf
2225 lm
124 lm/W
80+

5000K
16237AZT50
18W, .93pf
2200 lm
122 lm/W
70+

Finish: AZT Textured Architectural Bronze

Mounting Height 10' to 12'
7.08" wide x 9.09" high

120V-277V, 50-60Hz.
Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hrs.

Accessories: 16256AZT C-Series Junction Box, 16245BK C-Series Photocell, 16292AZT Trunnion Mount



Kichler C-Series C-Series Slim Wall Pack (New Style) – 38W
Integrated LED – 120V-277V

Replaces the equivalent of a 200W HID.
Can also install as an up-light utilizing the trunnion mount accessory.

3000K
16238AZT30
37.5W, .98pf
3400 lm
91 lm/W
80+

4000K
16238AZT40
37.5W, .98pf
4000 lm
107 lm/W
80+

5000K
16238AZT50
37.5W, .98pf
3975 lm
106 lm/W
70+

Finish: AZT Textured Architectural Bronze

Mounting Height 14' to 16'
7.08" wide x 9.09" high

120V-277V, 50-60Hz.
Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hrs.

Accessories: 16256AZT C-Series Junction Box, 16245BK C-Series Photocell, 16292AZT Trunnion Mount

C-Series Security Lights
Integrated LED – 120V-277V

C-Series Security Lights are the optimal solution for spaces like employee entrances, garages or storage units that require intermittent lighting to safely illuminate nearby activity. Kichler Lighting C-Series Security lights feature an integrated PIR motion sensor that detects movement within a range of 240 degrees in front of the fixture, as well as 360 degrees below.

Kichler C-Series Security Lights– 21W
Integrated LED – 120V-277V

White 16251WHT50
Textured Bronze 16255AZT50

Color Temp. (CCT) 5000K
Wattage, pf 20.5W, .99pf
Delivered Lumens
& Efficacy
1900 lm, 93 lm/W
CRI 80+

Finish: WHT White or AZT Textured Architectural Bronze

Mounting Height 10' to 13'
10.43" wide x 6.22" high

120V, 50-60Hz.
Surge protection up to 4kV.
High-output, energy efficient LED array.
Tested to a Lumen Maintenance L70 of > 36,000 hrs.
Dual Sensor: Front passive infrared sensor at 240°, bottom sensor 360°.
Rotatable and adjustable flood heads.
Built-in photocell.

C-Series Canopy Lights
Integrated LED – 120V-277V

C-Series Canopy Lights are for areas like parking garages and outdoor overhangs.
C-Series Canopy delivers a vast distribution of light from directly overhead. The fixture also includes a quick-mount mounting plate feature for fast, easy installation.

Kichler C-Series Canopy Lights – 38W
Integrated LED – 120V-277V

Replaces the equivalent of a 100W HID.

3000K
16243AZT30
38W, .92pf
3450 lm
91 lm/W

4000K
16243AZT40
38W, .92pf
4575 lm
120 lm/W

5000K
16243AZT50
38W, .99pf
4575 lm
120 lm/W

Finish: AZT Textured Architectural Bronze

Mounting Height 12' to 15'
10.29" wide x 3.9" high

70+
120V-277V, 50-60Hz. Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hrs.

Accessories: 16245BK C-Series Photocell



Kichler C-Series Canopy Lights – 54W
Integrated LED – 120V-277V

Replaces the equivalent of a 100-150W HID.

3000K
16244AZT30
54W, .99pf
5750 lm
106 lm/W

4000K
16244AZT40
54W, .93pf
6525 lm
121 lm/W

5000K
16244AZT50
54W, .99pf
6525 lm
121 lm/W

Finish: AZT Textured Architectural Bronze

Mounting Height 15' to 18'
10.29" wide x 3.9" high

70+
120V-277V, 50-60Hz. Surge protection up to 4kV.
Single, high output, energy efficient COB LED.
Tested to a Lumen Maintenance L70 of > 55,000 hrs.

Accessories: 16245BK C-Series Photocell
