Hardscape Landscape and Step Lighting

WAC Lighting Hardscape Quick Connect Luminaire With Dual CCT

Factory-sealed water tight fixture
Transformer required

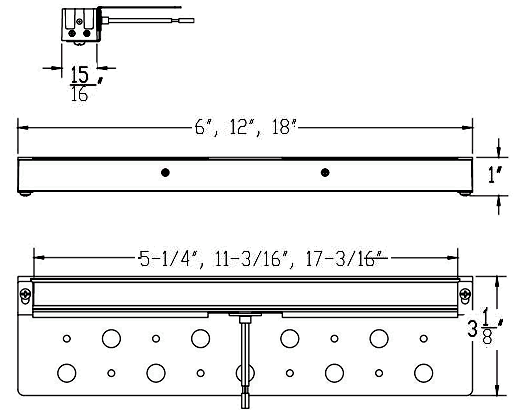

7062 - 6"
27 - 2700K - 85
30 - 3000K - 85
85 CRI, 4.5 watts, 110 Lumens

7122 - 12"
27 - 2700K - 85
30 - 3000K - 85
85 CRI, 7 watts, 230 Lumens

7182 - 18"
27 - 2700K - 85
30 - 3000K - 85
85 CRI, 8.5 watts, 350 Lumens

Input: 9-15 VAC, 50/60Hz
Rated Life: 50000 Hours

Quick release connection at fixture to easily detach after installation
Hardscape easily detaches from capstone bracket after installation

Integral brightness control, select color temperature option.
Tightly spaced and diffused LEDs for even illumination.

Mounting options included: stainless steel under capstone brackets, clips and hardware.
Can be mounted on wall in all orientations.

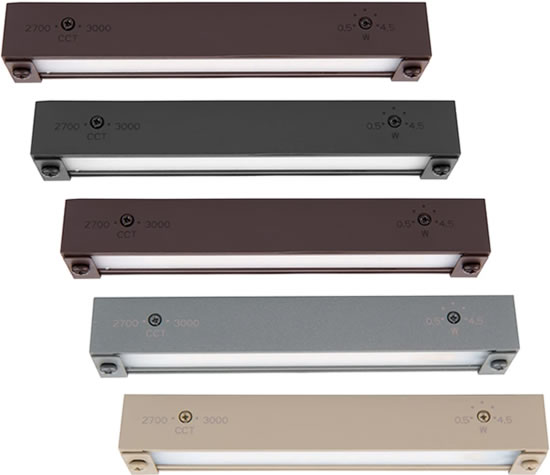

Finishes
BBR - Bronze on Brass
BK - Black on Aluminum
BZ - Bronze on Aluminum
GH - Graphite on Aluminum
SD - Sand on Aluminum
Material: Solid die-cast brass

WAC Transformers >

10 years warranty

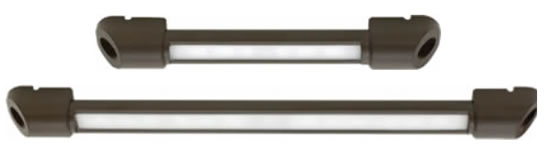

Kichler Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting

• Available in multiple Kelvin Temperature options; warm white 2700K, pure white 3000K and cool white 4200K
• Available in 1, 3, 6, and 9 LED fixtures
• Long-life LED light source – 40,000 hours at industry standard L70
• Tested to withstand the elements for years of enjoyment
• Easy to install
• Easily adapts to almost any hardscape, deck, step or bench application

Easy installation, low voltage usage, low profile (.66" wide) and low heat output of Design Pro LED enables them to be used in a variety of outdoor applications.

Unfinished Copper Plated Brass, Cast Brass with Bronzed finish
Cast Aluminum with Marine Grade Powder Coat Textured finishes in Architectural Bronze (AZT), Gray (GRY), Sand (SD), Textured White (WHT)

Easy to Install
Thoughtful design, so whether new or existing construction, you can design effectively and install it efficiently. A built-in driver and an operable voltage range of 9-15V virtually eliminate voltage drop in every Design Pro LED Hardscape, Deck, Step and Bench Light fixture.

New Construction
LED Light fixture and stainless steel mounting bracket are preassembled and ready to install.

Retrofit
Need to mount on a flat or vertical surface? No problem. The available flat mount accessory brackets (15716SS, 1517SS, 1518SS, 1519SS) allow for a variety of retrofit and new build applications.

Deck, Step and Bench Installation
Don't need the brackets? Don't pay for them. Kichler provides the product options that make it convenient for your specific job. For non-hardscape applications, the threaded screw holders also allow for easy install. In fact you can mount these LED fixtures on any surface where you can drill two holes.

Kichler Design Pro LED 12V Hardscape Deck, Step and Bench Landscape Lighting  >
Sizes, options, parts and accessories
