WAC Lighting Line Voltage Track Heads

Halo, Juno or Lightolier Compatible Track Heads

These Line Voltage Track heads work on most available track.
If you are adding to an existing track lighting system we can help you identify which track heads will be compatible. Photos are at the bottom of this page.

WAC Caribe 797 Premium Line Voltage Track Light

Caribe 797 Premium Line Voltage Track Light
The rich look of stunning antique bronze and nickel finishes highlight this Line Voltage track luminaire. A handsome luminaire designed with a striking, classic profile creates a special ambiance for any room. Ideal for a wide array of environments ranging from residential to and hospitality.

  • Die-cast aluminum housing and spun metal shade
  • Tool-free lockable aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks
  • Order as 797LENS to include die-cast retaining ring that holds up to two lenses

Finish: AB - Antique Bronze
Lamp: PAR20, 50W max (order separately)

• Die-cast aluminum housing and spun metal shade
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks
• Order as 797LENS to include die-cast retaining ring that holds up to two lenses

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 50W max PAR20 Halogen lamp.

Finish: Available in Antique Bronze (AB).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

HTK-797-AB JTK-797-AB LTK-797-AB Line Voltage Track Head Par20 50W
HTK-797-LENS-AB JTK-797-LENS-AB LTK-797-LENS-AB Line Voltage Track Head 50W W/ Lens

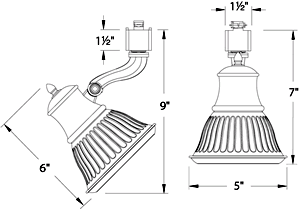

WAC Rialto 794 Premium Line Voltage Track Light

Rialto 794 Premium Line Voltage Track Light
Old world charm meets high style with the Rialto line voltage luminaire. Combining classic hand finishes with a beveled design for a rich elegance that coordinates with many architectural styles, this luminaire adds flair to high performance lighting, ideal for accent or spot applicatipons.

  • Machined solid brass construction
  • Hand finished brushed metal details
  • Tool-free lockable aiming
  • 360° horizontal rotation and 90° vertical aiming
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: AB - Antique Bronze
Lamp: PAR30, 75W max (order separately)

• Machined solid brass construction
• Hand finished brushed metal details
• Tool-free lockable aiming
• 360° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 75W max PAR30 Halogen lamp.

Finish: Available in Antique Bronze (AB).
Standards: UL & CUL Listed.

H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

HTK-794-AB JTK-794-AB LTK-794-AB Line Voltage Track Head Par30 75W

WAC Caribe 798 Premium Line Voltage Track Light

Caribe 798 Premium Line Voltage Track Light
The rich look of stunning antique bronze and nickel finishes highlight this Line Voltage track luminaire. A handsome luminaire designed with a striking, classic profile creates a special ambiance for any room. Ideal for a wide array of environments ranging from residential to and hospitality.

  • Die-cast aluminum housing and spun metal shade
  • Tool-free lockable aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks
  • Order as 798LENS to include die-cast retaining ring that holds up to two lenses

Finish: AB - Antique Bronze
Lamp: PAR30, 75W max (order separately)

• Die-cast aluminum housing and spun metal shade
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks
• Order as 798LENS to include die-cast retaining ring that holds up to two lenses

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 75W max PAR30 Halogen lamp.

Finish: Available in Antique Bronze (AB).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

HTK-798-AB JTK-798-AB LTK-798-AB Line Voltage Track Head Par30 75W
HTK-798-LENS-AB JTK-798-LENS-AB LTK-798-LENS-AB Line Voltage Track Head 75W W/ Lens

WAC Rialto 793 Premium Line Voltage Track Light

Rialto 793 Premium Line Voltage Track Light
Old world charm meets high style with the Rialto line voltage luminaire. Combining classic hand finishes with a beveled design for a rich elegance that coordinates with many architectural styles, this luminaire adds flair to high performance lighting, ideal for accent or spot applicatipons.

  • Machined solid brass construction
  • Hand finished brushed metal details
  • Tool-free lockable aiming
  • 360° horizontal rotation and 90° vertical aiming
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: AB - Antique Bronze
Lamp: PAR20, 50W max (order separately)

• Machined solid brass construction
• Hand finished brushed metal details
• Tool-free lockable aiming
• 360° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 50W max PAR20 Halogen lamp.

Finish: Available in Antique Bronze (AB).
Standards: UL & CUL Listed.

H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

HTK-793-AB JTK-793-AB LTK-793-AB Line Voltage Track Head Par20 50W

WAC 101 Miniature Line Voltage Track Light Fixture with Glass Shade

101 Miniature Line Voltage Track Light with Glass Shade
Achieve the sleek look of MR16 fixtures wit hout the need for a bulky transformer. A variety of styles and finishes to accomodate any interior space.

  • Includes GU10 lamp
  • Includes decorative glass shade

Finish: BK - Black or WT - White
Shade Color: AM/ - Amber or WT/ - White
Lamp: GU10, 50W max (included)

• Includes GU10 lamp & decorative glass shade
• Easily re-lamped from the front without the use of tools
• Yoke mounted gimbal ring track head
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical aiming

Construction: Formed metal with polycarbonate track adaptor and aiming screws in black or white to match track finish. GU10 based 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Lamp included. 50W max Halogen GU10 lamp.
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

HTK-101-AM/BK JTK-101-AM/BK LTK-101-AM/BK Amber Glass Track Black Head Line Voltage Track Head
HTK-101-AM/WT JTK-101-AM/WT LTK-101-AM/WT Amber Glass White Track Head Line Voltage Track Head
HTK-101-WT/BK JTK-101-WT/BK LTK-101-WT/BK White Glass Track Black Head Line Voltage Track Head
HTK-101-WT/WT JTK-101-WT/WT LTK-101-WT/WT White Glass White Track Head Line Voltage Track Head

WAC 103 Line Voltage Track Fixture

103 Miniature Line Voltage Track Light
Achieve the sleek look of MR16 fixtures without the need for a bulky transformer. A variety of styles and finishes to accomodate any interior space.

  • Includes GU10 lamp
  • Easily re-lamped from the front without the use of tools
  • Tool-free lockable aiming
  • Available with pre-installed LED GU10 lamp

Finish: BK - Black, DB - Dark Bronze or WT - White
Lamp: GU10, 50W max (included)

• Includes GU10 lamp
• Easily re-lamped from the front without the use of tools
• Yoke mounted gimbal ring track head
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical aiming

Construction: Formed metal with polycarbonate track adaptor and aiming screws in black or white to match track finish. GU10 based 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Lamps included. 8W LED GU10 or 50W max Halogen GU10.

Finish: Available in Black (BK), Dark Bronze (DB), and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-103-BK JTK-103-BK LTK-103-BK Line Voltage Track Head
HTK-103-DB JTK-103-DB LTK-103-DB Line Voltage Track Head
HTK-103-WT JTK-103-WT LTK-103-WT Line Voltage Track Head
HTK-103LED-BK JTK-103LED-BK LTK-103LED-BK Line Voltage Track Head with LED Gu10 Bulb Included
HTK-103LED-DB JTK-103LED-DB LTK-103LED-DB Line Voltage Track Head with LED Gu10 Bulb Included
HTK-103LED-WT JTK-103LED-WT LTK-103LED-WT Line Voltage Track Head with LED Gu10 Bulb Included

WAC 104 Gimbal Ring Line Voltage Track Fixture

104 Miniature Gimbal Ring Line Voltage Track Light
Achieve the sleek look of MR16 fixtures without the need for a bulky transformer. A variety of styles and finishes to accomodate any interior space.

  • Includes GU10 lamp
  • Easily re-lamped from the front without the use of tools
  • Swivel yoke design for precise aiming
  • Available with pre-installed LED GU10 lamp

Finish: BK - Black, DB - Dark Bronze or WT - White
Lamp: GU10, 50W max (included)

• Includes GU10 lamp
• Easily re-lamped from the front without the use of tools
• Yoke mounted gimbal ring track head
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical aiming

Construction: Formed metal with polycarbonate track adaptor and aiming screws in black or white to match track finish. GU10 based 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Lamps included. 8W LED GU10 or 50W max Halogen GU10.

Finish: Available in Black (BK), Dark Bronze (DB), and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-104-BK JTK-104-BK LTK-104-BK Line Voltage Track Head
HTK-104-DB JTK-104-DB LTK-104-DB Line Voltage Track Head
HTK-104-WT JTK-104-WT LTK-104-WT Line Voltage Track Head
HTK-104LED-BK JTK-104LED-BK LTK-104LED-BK Line Voltage Track Head with LED GU10 Bulb (included)
HTK-104LED-DB JTK-104LED-DB LTK-104LED-DB Line Voltage Track Head with LED GU10 Bulb (included)
HTK-104LED-WT JTK-104LED-WT LTK-104LED-WT Line Voltage Track Head with LED GU10 Bulb (included)

WAC Series 178 Line Voltage Track Head

178 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Fixed position socket
  • Lockable vertical aiming
  • Available barn door accessory for glare control
  • Accepts 1 lens with the use of a lens clip
  • Barn Door Accessory(order separately)

Finish: BK - Black, BN - Brushed Nickel or WT - White
Lamp: Accepted Lamps: A, BR, PAR20 (50W max), PAR38 (150W max), LED PAR20, LED PAR30, LED PAR38, LED BR20, and LED BR30

• Metal construction
• Fixed position socket
• Lockable vertical aiming
• 350° horizontal rotation and 90° vertical aiming. The side aiming knob allows for adjustment of the socket depth as well as vertical aiming.
• Available barn door accessory for glare control
• Accepts 1 lens with the use of a lens clip

Construction: Metal track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses LED BR20/30/40, LED PAR20/30/38, or 50W max Halogen 120V A, BR, G, PAR20/30/38.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

Fixture shown with PAR30BD barn door
accessory (sold separately, shown below).


See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-178-BK JTK-178-BK LTK-178-BK Line Voltage Track Head
HTK-178-WT JTK-178-WT LTK-178-WT Line Voltage Track Head
HTK-178-BN JTK-178-BN LTK-178-BN Line Voltage Track Head
Accepts these Accessories:

PAR20BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White

PAR30BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White

PAR38BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White
With Lens Holder for Par20, Par30 or Par38 Lamps Holders for other lamps may be available.

Colored Lens or Dichroic Color Lenses

Frosted or Clear Lenses, Beam Elongating Lenses, Spread Lenses, UV Filter Lenses


WAC Series 188 Line Voltage Track Head

188 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Fixed position socket
  • Lockable vertical aiming
  • Available barn door accessory for glare control
  • Accepts 1 lens with the use of a lens clip
  • Accepted Lamps: A, BR, PAR20 (50W max), PAR38 (150W max), LED PAR20, LED PAR30, LED PAR38, LED BR20, and LED BR30. Order lamp separately.
  • Barn Door Accessory(order separately)

Finish: BK - Black, BN - Brushed Nickel or WT - White
Lamp: Accepted Lamps: A, BR, PAR20 (50W max), PAR38 (150W max), LED PAR20, LED PAR30, LED PAR38, LED BR20, and LED BR30

• Metal construction
• Fixed position socket
• Lockable vertical aiming
• 350° horizontal rotation and 90° vertical aiming. The side aiming knob allows for adjustment of the socket depth as well as vertical aiming.
• Available barn door accessory for glare control
• Accepts 1 lens with the use of a lens clip

Construction: Metal track head with die-cast locking knob for aiming and polycarbonate track adapter. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses LED BR20/30/40, LED PAR20/30/38, or 50W max Halogen 120V A, BR, G, PAR20/30/38.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-188-BK JTK-188-BK LTK-188-BK Line Voltage Track Head
HTK-188-WT JTK-188-WT LTK-188-WT Line Voltage Track Head
HTK-188-BN JTK-188-BN LTK-188-BN Line Voltage Track Head
Accepts these Accessories:

PAR20BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White

PAR30BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White

PAR38BD Barn Door Accessory in Brushed Nickel, Black, Dark Bronze or White
With Lens Holder for Par20, Par30 or Par38 Lamps Holders for other lamps may be available.

Colored Lens or Dichroic Color Lenses

Frosted or Clear Lenses, Beam Elongating Lenses, Spread Lenses, UV Filter Lenses


WAC 720 Series Halogen Line Voltage Track Head

720 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Die-cast aluminium construction
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks
  • Patented tool-free lockable aiming mechanism

Finish: BK - Black or WT - White
Lamp: PAR20, 50W max (order separately)

• Die-cast aluminium construction
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks
• 350° horizontal rotation and 90° vertical aiming. The side locking knob maintains aiming angle and fixture position integrity.
• Patented tool-free lockable aiming mechanism

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses medium base PAR20 lamps, 50W max.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-720-BK JTK-720-BK LTK-720-BK Line Voltage Track Head Die Cast
HTK-720-WT JTK-720-WT LTK-720-WT Line Voltage Track Head Die Cast

WAC 725 Series Halogen Line Voltage Track Head

725 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Tool-free lockable aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: BK - Black or WT - White
Lamp: A/PAR20/R20, 60W (order separately)

• Metal construction
• Tool-free lockable aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Formed metal with polycarbonate track adapter and aiming screws in black or white to match track finish. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses medium base A, PAR20 or R20 lamps, 60W max. 120 volt.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-725-BK JTK-725-BK LTK-725-BK Line Voltage Track Head
HTK-725-WT JTK-725-WT LTK-725-WT Line Voltage Track Head

WAC 730 Series Halogen Line Voltage Track Head

730 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Die-cast aluminium construction
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks
  • Patented tool-free lockable aiming mechanism

Finish: BK - Black or WT - White
Lamp: PAR30, 75W max (order separately)

• Die-cast aluminium construction
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks
• 350° horizontal rotation and 90° vertical aiming. The side locking knob maintains aiming angle and fixture position integrity.
• Patented tool-free lockable aiming mechanism

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses medium base PAR30 lamps, 75W max.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-730-BK JTK-730-BK LTK-730-BK Line Voltage Track Head Die Cast
HTK-730-WT JTK-730-WT LTK-730-WT Line Voltage Track Head Die Cast

WAC Series 738 Line Voltage Track Head

738 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Die-cast aluminium construction
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks
  • Patented tool-free lockable aiming mechanism

Finish: BK - Black or WT - White
Lamp: PAR38, 150W (order separately)

• Die-cast aluminium construction
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks
• 350° horizontal rotation and 90° vertical aiming. The side locking knob maintains aiming angle and fixture position integrity.
• Patented tool-free lockable aiming mechanism

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses medium base PAR38 lamp, 150W max.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-738-BK JTK-738-BK LTK-738-BK Line Voltage Track Head Die Cast
HTK-738-WT JTK-738-WT LTK-738-WT Line Voltage Track Head Die Cast

WAC 763 Series Halogen Line Voltage Track Head

763 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Double yoke design for easy aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Open-back design for an industrial look
  • Uses PAR20, LED PAR20, or LED BR20 Lamp (order separately)

Finish: BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR20, LED PAR20, or LED BR20 Lamp (order separately)

• Metal construction
• Double yoke design for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Open-back design for an industrial look

Construction: Formed metal with polycarbonate track adapter and aiming screws in black or white to match track finish. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses PAR20, 50W max lamp. LED lamp options include LED BR20 or LED PAR20 (order separately).

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-763-BK JTK-763-BK LTK-763-BK Line Voltage Track Head
HTK-763-WT JTK-763-WT LTK-763-WT Line Voltage Track Head
HTK-763-BN JTK-763-BN LTK-763-BN Line Voltage Track Head

WAC Series 764 Line Voltage Gimbal Ring Track Head

764 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Double yoke design for easy aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Open-back design for an industrial look
  • Uses PAR30, LED PAR30, or LED BR30 Lamp (order separately)

Finish: BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR30, LED PAR30, or LED BR30 Lamp (order separately)

• Metal construction
• Double yoke design for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Open-back design for an industrial look

Construction: Formed metal with polycarbonate track adapter and aiming screws in black or white to match track finish. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses PAR30, 75W max lamp. LED lamp options include LED BR30 or LED PAR30 (order separately).

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-764-BK JTK-764-BK LTK-764-BK Line Voltage Track Head
HTK-764-WT JTK-764-WT LTK-764-WT Line Voltage Track Head
HTK-764-BN JTK-764-BN LTK-764-BN Line Voltage Track Head
HTK-764-39E-BK JTK-764-39E-BK LTK-764-39E-BK  HID Track Head Par30L 39W
HTK-764-39E-WT JTK-764-39E-WT LTK-764-39E-WT  HID Track Head Par30L 39W
HTK-764-70E-BK JTK-764-70E-BK LTK-764-70E-BK  HID Track Head Par30L 70W
HTK-764-70E-WT JTK-764-70E-WT LTK-764-70E-WT  HID Track Head Par30L 70W

WAC Series 765 Line Voltage Gimbal RingTrack Head

765 Line Voltage Track Light
Line Voltage luminaires offer a large assortment of styles, finishes and features for residential, commercial and hospitality environments.

  • Metal construction
  • Double yoke design for easy aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Open-back design for an industrial look
  • Uses PAR38, LED PAR38, and LED BR40 Lamp (order separately)

Finish: BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR38, LED PAR38, and LED BR40 Lamp (order separately)

• Metal construction
• Double yoke design for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Open-back design for an industrial look

Construction: Formed metal with polycarbonate track adapter and aiming screws in black or white to match track finish. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses PAR38, 150W max lamp. LED lamp options include LED BR40 or LED PAR38 (order separately).

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-765-BK JTK-765-BK LTK-765-BK Line Voltage Track Head
HTK-765-WT JTK-765-WT LTK-765-WT Line Voltage Track Head
HTK-765-BN JTK-765-BN LTK-765-BN Line Voltage Track Head

WAC Radiant 773 Premium Line Voltage Track Head

Radiant 773 Premium Line Voltage Track Light
Experience the warm charm and high style of the Radiant line voltage track luminiare. Designed in four finishes including an elegant antique bronze the Radiant features a transitional look with a rich elegance that compliments many architectural styles, ideal for various spot lighting applications.

  • Die-cast aluminum construction
  • Screw and swivel yoke for precise aiming
  • 350° horizontal rotation and 90° vertical aiming
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: AB - Antique Bronze, BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR20, 50W (order separately)

• Metal construction
• Screw and swivel yoke for precise aiming
• Lockable vertical aiming
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 50W max PAR20 Halogen lamp.

Finish: Available in Antique Bronze (AB), Black (BK), Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-773-BK JTK-773-BK LTK-773-BK Line Voltage Track Head
HTK-773-WT JTK-773-WT LTK-773-WT Line Voltage Track Head
HTK-773-AB JTK-773-AB LTK-773-AB Line Voltage Track Head
HTK-773-BN JTK-773-BN LTK-773-BN Line Voltage Track Head

WAC Radiant 774 Premium Line Voltage Track Head

Radiant 774 Premium Line Voltage Track Light
Experience the warm charm and high style of the Radiant line voltage track luminiare. Designed in four finishes including an elegant Antique Bronze the Radiant features a transitional look with a rich elegance that compliments many architectural styles, ideal for various spot lighting applications.

  • Die-cast aluminum construction
  • Screw and swivel yoke for precise aiming
  • 350° horizontal rotation and 90° vertical aiming
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: AB - Antique Bronze, BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR20, 50W (order separately)

• Metal construction
• Screw and swivel yoke for precise aiming
• Lockable vertical aiming
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 75W max PAR30 Halogen lamp.

Finish: Available in Antique Bronze (AB), Black (BK), Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed.

H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-774-BK JTK-774-BK LTK-774-BK Line Voltage Track Head
HTK-774-WT JTK-774-WT LTK-774-WT Line Voltage Track Head
HTK-774-AB JTK-774-AB LTK-774-AB Line Voltage Track Head
HTK-774-BN JTK-774-BN LTK-774-BN Line Voltage Track Head

WAC Radiant 775 Premium Line Voltage Track Head

Radiant 775 Premium Line Voltage Track Light
Experience the warm charm and high style of the Radiant line voltage track luminiare. Designed in four finishes including an elegant Antique Bronze the Radiant features a transitional look with a rich elegance that compliments many architectural styles, ideal for various spot lighting applications.tions.

  • Die-cast aluminum construction
  • Screw and swivel yoke for precise aiming
  • 350° horizontal rotation and 90° vertical tilt
  • Easily re-lamped from the front without the use of tools
  • Fully enclosed back to prevent light leaks

Finish: AB - Antique Bronze, BK - Black, BN - Brushed Nickel or WT - White
Lamp: PAR38, 150W max (order separately)

• Metal construction
• Screw and swivel yoke for precise aiming
• Lockable vertical aiming
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Fully enclosed back to prevent light leaks

Construction: Die-cast aluminum track head with die-cast locking knob for aiming and polycarbonate track adaptor. Medium base 250V porcelain socket with nickel-plated copper screw shell.
Lamp: Order lamps separately. Uses 150W max PAR38 Halogen lamp.

Finish: Available in Antique Bronze (AB), Black (BK), Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed.

See more choices on a desktop computer or by turning your screen horizontal.
H Series
(Halo compatible)
J Series
(Juno compatible)
L Series
(Lightolier compatible)

HTK-775-BK JTK-775-BK LTK-775-BK Line Voltage Track Head
HTK-775-WT JTK-775-WT LTK-775-WT Line Voltage Track Head
HTK-775-AB JTK-775-AB LTK-775-AB Line Voltage Track Head
HTK-775-BN JTK-775-BN LTK-775-BN Line Voltage Track Head

WAC H18, H24, H36 or H48 Line Voltage Track Head Extensions

Extends H System HTK (Halo or Halo compatible) line voltage track heads. Contact us for Lightolier or Juno availability.
This extension stem clips onto any Halo or Halo compatible track head, then clips to the track.

Finish: BK - Black, WT - White, BN - Brushed Nickel, DB - Dark Bronze
See more choices on a desktop computer or by turning your screen horizontal.
H18-BK 18" Black
H18-WT 18" White
H18-BN 18" Brushed Nickel
H18-DB 18" Dark Bronze
H24-BK 24" Black
H24-WT 24" White
H24-BN 24" Brushed Nickel
H24-DB 24" Dark Bronze
H36-BK 36" Black
H36-WT 36" White
H36-BN 36" Brushed Nickel
H36-DB 36" Dark Bronze
H48-BK 48" Black
H48-WT 48" White
H48-BN 48" Brushed Nickel
H48-DB 48" Dark Bronze

Halo or Halo compatible

Halo or Halo compatible track
3 Wire

Juno or Juno compatible

Juno or Juno compatible track
Wide 2 Wire

Available Single Circuit or Two Circuit

Lightolier or Lightolier compatible

Lightolier or Lightolier compatible track
2 Wire

Identify Types of Track Lighting

There are 3 standard types of Track lighting. If you are adding to an existing system you will need to determine which type of track lighting you have.

Single Circuit Track

120V Single Circuit has a 20 Amp capacity. It is available compatible with Halo, Juno or Lightolier.

Two-Circuit Track

Juno compatible 2-Circuit track carries two circuits that can be used independently (up to 2400 watts on each circuit) or jointly switched (up to a total of 4800 watts) used together. This can give you more control, allowing different pendants or lights on a single track to be controled by different switches or more capacity allowing more lights on a single track.


See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
