Customize Your Track Lighting System

Ceiling mounted track lighting with adjustable spotlight fixtures and pendants are an excellent choice for both residential and commercial use. There are an unbelievable variety of attractive and functional fixures available.

Track lights make it easy to make changes in your lighting. You can mix pendants and track heads to direct light on specific areas.

Design your track layout.

Determine your mounting.

  • Track can be attached to the ceiling, suspended or mounted off the wall.
  • If the track is to be suspended, determine how far from the ceiling you would you like your track to run. A kit is available with everything you need to suspend track up to 48" or even more using extension rods. A sloped ceiling adapter is available.
  • Attach directly to T-bar drop ceilings using the correct attachment.
  • Wall mount brackets extend track 24" from the wall.

Select your power feed.

  • A floating canopy can be connected anywhere along the length of the track.
  • A live end connector brings power to the end of a track.
  • You can power track using a 15' cord with plug and switch wired to a live end connector.
  • A current limiter is available if needed. If the track is overloaded, the current limiter circuit breaker will trip and shut down power to the track.
  • Track lighting is a line voltage system. No transformer is required.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from hundreds of low and line voltage pendants and fixtures.
  • Extensions stems can extend fixtures up to 48" from the track or even more using extension rods.
  • Add optional colorful and decorative accessories and functional optical controls.
  • Adapters allow fixtures from many companies to be used on the same track.
  • Use nearly any pendant, whether it is designed for track or not using an adapter. If the pendant is heavier, add a hook suspending the pendant exactly where you want it.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Halo or Halo compatible

Halo or Halo compatible track
3 Wire

Juno or Juno compatible

Juno or Juno compatible track
Wide 2 Wire

Available Single Circuit or Two Circuit

Lightolier or Lightolier compatible

Lightolier or Lightolier compatible track
2 Wire

Identify Types of Track Lighting

There are 3 standard types of Track lighting. If you are adding to an existing system you will need to determine which type of track lighting you have.

Single Circuit Track

120V Single Circuit has a 20 Amp capacity. It is available compatible with Halo, Juno or Lightolier.

Two-Circuit Track

Juno compatible 2-Circuit track carries two circuits that can be used independently (up to 2400 watts on each circuit) or jointly switched (up to a total of 4800 watts) used together. This can give you more control, allowing different pendants or lights on a single track to be controled by different switches or more capacity allowing more lights on a single track.

Track

WAC Single Circuit Track

Halo® compatible

HT2 2 Foot Track with 2 Endcaps
HT4 4 Foot Track with 2 Endcaps
HT6 6 Foot Track with 2 Endcaps
HT8
8 Foot Track with 2 Endcaps

Lightolier® compatible

LT2 2 Foot Track with 2 Endcaps
LT4 4 Foot Track with 2 Endcaps
LT6 6 Foot Track with 2 Endcaps
LT8 8 Foot Track with 2 Endcaps

Two end caps and mounting hardware supplied with each section.

  • Field cuttable and easily installed on sheetrock, plaster, wood, or suspended ceilings.
  • May be suspended on WAC SK-18", 24", 36" or 48" suspension kits (see below for ordering information).
  • Electrical connections available to supply power anywhere on a single track or run (used with a live end, a BX-style live end or a floating canopy).
  • Use compatible track heads and Quick Connect adapters with each system. i.e. HT track with H system track heads or EN-HQ50AR adapters.
  • Juno®, Halo®and Lightolier® compatible systems available.

Finish: Dark Bronze, Brushed Nickel, Black or White

H: Halo® compatible
J: Juno® compatible
L: Lightolier® compatible

Model No. Length Width Height
T2 23 3/4" 1 3/8" 3/4"
T4 47 1/4" 1 3/8" 3/4"
T6 71" 1 3/8" 3/4"
T8 94 1/2" 1 3/8" 3/4"
See more choices on a desktop computer or by turning your screen horizontal.
See more choices on a desktop computer or by turning your screen horizontal.

WAC Lighting ENDCAP for Track Lighting

H-ENDCAP Halo® compatible End Cap For Track

L-ENDCAP Lightolier® compatible End Cap For Track

Isolated grounding conductor, decorative end.
Two end caps are supplied with each section of track ordered.
This is only neccessary if you are field cutting track and will have more ends than endcaps supplied. Remember a live end power feed finishes off the end where it is used.

Track Connectors

WAC Lighting Single Circuit Track "I" Connector

HI Halo® compatible Straight Line Connector

LI Lightolier® compatible Straight Line Connector

Joins two sections of track with electrical continuity

HI-H Track
LI-L Track
JI-J/J2 Track



WAC Lighting Single Circuit Track "I" Dead End Connector

HI-DEC Halo® compatible Dead End Straight Connector

LI-DEC Lightolier® compatible Dead End Straight Connector

Joins two sections of track without electrical continuity

HI-DEC-H Track
LI-DEC-L Track
JI-DEC-J/J2 Track



WAC Lighting Single Circuit Track "L" Connector - Left or Right

HL-LEFT Halo® compatible Left L Connector

LL-LEFT Lightolier® compatible Left L Connector

Joins two track sections to make power feedable 90° left-hand polarity turns

HL-LEFT or HL-RIGHT - H Track
LL-LEFT or LL-RIGHT - L Track
JL-LEFT or JL-RIGHT - J/J2 Track



WAC Lighting Single Circuit Track "T" Connector

HT Halo® compatible T Connector

LT Lightolier® compatible T Connector

Joins three track sections in a "T" configuration
Power feedable on H and J only
T connector with opposite polarity can be custom ordered.

HT-H Track
LT-L Track
JT-J/J2 Track



WAC Lighting Single Circuit Track "X" Connector

HX Halo® compatible X Connector

LX Lightolier® compatible X Connector

Joins four track sections in an "X" configuration
Power feedable on H and J only

HX-H Track
LX-L Track
JX-J/J2 Track



WAC Lighting Single Circuit Track Flexible Track Connector

HFLX Halo® compatible Flexible Track Connector

LFLX Lightolier® compatible Flexible Track Connector

Connects two track sections at angles from 60 to 180 degrees
Use as a transition from wall-to-wall, wall-to-ceiling, or ceiling to ceiling

HFLX-H Track
LFLX-L Track
JFLX-J/J2 Track

Mounting

Ceiling Mounted

Standard mounting hardware is supplied with each track section.
Track can be attached directly to a flat or sloped ceiling.

WAC Lighting T-BARCLIP T-Bar Drop Ceiling Attachment

T-BARCLIP T-Bar Drop Ceiling Attachment

  • Attaches track to T-bar drop ceilings
  • Use two for 2 foot or 4 foot tracks, three for 6' or 8' track

Finish: Chrome
Dimensions: 1 1/2" x 1 1/4"



JTK-765 J Series Line Voltage PAR38 150w Track Heads >
Suspended using SK48 48" Track Suspension Kits

WAC Track Suspension Stem Kit SK18, SK24, SK36 & SK48

Kit includes track bracket, rod and ceiling canopy. Canopy covers a 4" octagon box and permits power wiring through the rod. Par ts and instructions included.

SK18 18"
SK24 24"
SK36 36"
SK48 48"

Finish: Black or White

Discounted on Amazon

Used to suspend any line volt track systems from a ceiling or dropped ceiling. Kit consists of a ceiling canopy, down rod and track bracket. Canopies come with hardware to mount to either a junction box or ceiling surface. Drop grid ceilings require T-Bar clips. Rod allows power feed wires (up to three 12 gauge wires) through the center, and supports the weight of the track. Rods should be positioned over a power component such as a live end or "I" power connector

Use two suspension kits for 2"and 4' tracks, three kits for 6' and 8' track sections. For power to 2-wire systems, add a live end (LLE) or flexible connector (LFLX) or straight line power connector (LI-PWR). For power to 3-wire or Wide 2-wire systems (J-style), connect with HLE or JLE, HI-PWR or JI-PWR, HFLX or J FLX.

WAC Track Suspension kits

Track Suspension kits can hang the entire track from rods or cables. The canopy can cover an outlet box and provide the power as well as supporting the weight of the track. WAC offers 18", 24", 36", or 48" stems to suspend track lighting.



WAC Lighting Track Lighting Suspension Kit Extensions

R18 18"

R24 24"

R36 36"

Extends track from ceiling
Lengths longer than 96" not recommended as a voltage drop may occur
72" rod shipped as two 36" rods with threaded coupler to be joined in the field
96" rod shipped as two 48" rods with threaded coupler to be joined in the field

Finishes: BK-Black, BN-Brushed Nickel, DB-Dark Bronze, WT-White

See more choices on a desktop computer or by turning your screen horizontal.

WAC SK14 Sloped Ceiling Hang Straight Adapter for Track Suspension kits

SK14 Sloped Ceiling Hang Straight Adapter

Swivel Adapters are available to accommodate sloped ceilings. Use with suspension kits (above) to accomodate sloped ceilings. Max Capacity: 7A, 800w, 120v

SK14

Finish: BK-Black, BN-Brushed Nickel, DB-Dark Bronze or White

Choose Finish



WAC Lighting SK05 Suspension Adjustment Collar for Track Lighting

SK05 Adapter Kit To Field Cut Sk Extension

Used when suspension rod is field cut to custom lengths

Choose Finish



WAC Lighting RI Rod Coupler for Suspending Track Lighting

RI Rod Couplers For R-Extensions

Join two rods for suspensions longer than 48"




WAC TBKT Track Wall Suspension Bracket

TBKT Track Bracket-Extends 24" From Wall

Using the WAC TBKT Track Suspension Bracket any Halo, Juno, Lightolier or compatible track can be wall mounted. Ideal for picture lighting or wall grazing effects. An effective lighting solution where very high ceilings create an ambient lighting problem.

Track accommodates line or low voltage heads. Quick connect transformers allow fixtures from the Quick Connect system to be used. Select from any Track Head or Quick Connect Track Head.

TBKT Track Suspension Bracket supports track and fixtures. Extends 24" from wall. Use two per 4-foot Length, three per 8-foot Length.

TBKT: Brushed Nickel, Dark Bronze, Black or White


Power Feed

WAC Lighting Single Circuit Track Live End Connector

HLE Halo® compatible Live End Connector

LLE Lightolier® compatible Live End Connector

Used for direct wiring from conduit through the ceiling



WAC Lighting Single Circuit Track Live End BX Connector

HBXLE Halo® compatible Live End Connector For Bx Cable

LBXLE Lightolier® compatible Live End Connector For Bx Cable

Live end connector, use with surface mounted BX or non-metallic sheathed cable
Also provides through the ceiling connection



WAC Lighting Single Circuit Track "I" Power Connector for Track Lighting

HI-PWR Halo® compatible Straight Line Power Connector

LI-PWR Lightolier® compatible Straight Line Power Connector

Power entry point at the connection of two tracks



WAC Lighting Single Circuit Track Power Feed "T" Connector Halo and Juno compatible only

HT Halo® compatible T Connector

LT Lightolier® compatible T Connector

Joins three track sections in a "T" configuration
Power feedable on H and J only
T connector with opposite polarity can be custom ordered.



WAC Track Canopy Plate CP

CP Canopy Plate

Covers a standard 4" octagon box,used in conjunction with:

LL-LEFT, LL-RIGHT, LLE, LFLX, HLE, HFLX, HL-LEFT, HL-RIGHT, HT, HX, HI-PWR, JLE, JL-LEFT, JL-RIGHT, JFLX, JT, JX, JI-PWR

Finish: BK-Black, BN-Brushed Nickel, DB-Dark Bronze, WT-White

Model No. Track System Length Width Height
CP L, H, J 4 1/2" 4 1/2" 1/8"


WAC Lighting Single Circuit Track Floating Canopy

HFC Halo® compatible

LFC Lightolier® compatible

Connects to octagon box
Track can be powered anywhere along the length of the track.



WAC 15' Cord & Plug

HCORD Cord

Max. capacity 7 AMP, 800w, 120v.

HCORD H 15"
Finish BK-Black, WT-White



WAC 15' Cord & Plug with Switch

LCORDSET 15Ft Cord Male Plug And Switch

Max. capacity 7 AMP, 800w, 120v.

LCORD L 15"
Finish BK-Black, WT-White

Current Limiter Circuit Breakers

WAC Lighting Track Current Limiter Live-End Connector

WAC Lighting Track Current Limiter I Connector

WAC Lighting Track Current Limiter L Connector

WAC Lighting Track Current Limiter

  • Double Live End
  • Double Live End - Left
  • Double Live End - Right
  • Single Live End

There are many options.

  • The WAC Track Current Limiter is easy to install and assures compliance to California Title 24 or ASHRAE 90.1 requirements
  • Track Current Limiters are offered in various models to accommodate standard one and two-circuit track systems and their maximum wattage
  • The Track Current Limiter may be mounted as a standard canopy used in place of a Live-end, I connector or L connector
  • If the track is overloaded, the Current Limiter circuit breaker will trip and shut down power to the track
  • Available in maximum wattages of: 120w, 300w, 900w and 1200w

Accessories

WAC Lighting Low Voltage Track Fixture Extensions

X6 6"
X12 12"
X18 18"
X24 24"
X36 36"
X48 48"
  • Extends J- and J2-system track fixtures. Available as complete, factory-assembled unit only – specify extension, fixture & finish (ie. X18-JHT-809-WT).
  • Shipped as two 36" rods with XI threaded coupler to be joined in the field.
  • Shipped as two 48" rods with XI threaded coupler to be joined in the field.
  • Lengths longer than 96" not recommended as a voltage drop may occur.
See more choices on a desktop computer or by turning your screen horizontal.

Track Single Canopies - Mount a single track head or pendant to a junction box

WAC Monopoint Canopy Adapter for Halo style track lights.

HMP H Series (Halo compatible) Monopoint Canopy

Used to mount a single H system track fixture to an octagon box. When used with a low voltage track head the transformer box will protrude off of the face of the monopoint.

HMP H 5 3/8" 5 3/8" 3/8"
Finish BK-Black, WT-White



WAC Monopoint Canopy Adapter for Juno or Lightolier style track lights

JMP J Series (Juno compatible) Monopoint Canopy

LMP L Series (Lightolier compatible) Monopoint Canopy

Install any single Lightolier or Lightolier compatible track head or track adapted pendant without the track. Used to mount a single L system track fixture to an octagon box. When used with a low voltage track head the transformer, box will protrude off of the face of the monopoint.

LMP L 3/4" 4 3/8"
Finish BK-Black, WT-White

Fixtures

WAC Lighting Track Collection

WAC Lighting's extensive track collection includes hundreds of different models. Whether you are looking for a fixture that has a certain style or fixture that is suited for a specific task, WAC Lighting has the ideal choice. The extensive collection of track fixtures is available in a wide range of designer finishes and lamping options.

WAC Lighting Track Lighting with Low Voltage Track Heads

WAC Lighting Low Voltage Track Heads are a stylish and versatile choice for your lighting needs. Ideal for residential, and hospitality applications, a wide variety of choices are vailable in Bronze, Platinum, Brushed Nickel, Black or White finishes. - Five year warranty



WAC Lighting Track Lighting with Line Voltage Track Heads

Ideal for or display applications, WAC Lighting Line Voltage Track Heads come in a variety of lamp sizes and styles. Models are available in single circuit Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible. 2 circuit track is available in Juno compatible. They may be compatible to fit on existing track installations. - Five year warranty

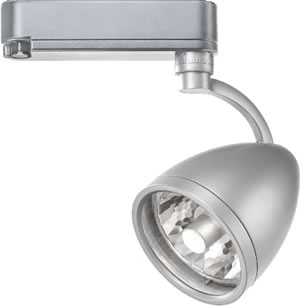

WAC Lighting Track Lighting with Metal Halide & HID Track Heads

WAC Lighting Metal Halide & HID Track Heads feature a choice of electronic ballasts for superior power regulation for significant energy savings and longer lamp life. High CRI PAR metal halide lamps puts out an amazing amount of light. A variety of beam spreads for effects from spot to wide flood. The energy efficient choice for highlighting merchandise or architectural details in a commercial or residential application. - Five year warranty



WAC Lighting LED Track Lighting

WAC Lighting LED Track Heads next generation accent and display lighting fixtures, LEDme Track Lights are thermally energy efficient, long lasting and deliver a strong light output with a color temperature similar to incandescent lamping. These fixtures are perfect for effective displays, high-end residential accent lighting and displays in museums, hotels and restaurants. High quality LEDs offer beams free of projected heat and ultraviolet radiation. Perfect for colored or heat sensitive merchandise such as perishables, apparel or artwork. - Five year warranty

Quick Connect Track Heads

WAC Quick Connect Heads for Track Lighting

Wac Lighting Quick Connect Heads can be used on Halo, Juno, Lightolier or other popular 120 volt track lighting systems using a track adapter.



WAC Lighting Quick Connect Fixtures for Track Lighting

EN-HQ50AR Halo® compatible
EN-JQ50AR Juno® compatible
EN-LQ50AR Lightolier® compatible

WAC Lighting's Quick Connect collection of fixtures can be used with any standard Track Systems using a WAC Lighting Quick Connect Track Adapter.

Easily connect the metal fitting into the track lighting adapter, tighten and snap into any popular track lighting system.

Modern styles, decorative yet functional. The Quick Connect Series of low voltage track heads includes a selection of 12 styles and a wide variety glass and metal shielding options.

All Quick Connect track head stems are available with standard stem lengths from 3" to 12" so they can be low profile or closer to the action.

Quick Connect fixtures all have a male adapter. With the appropriate adapter, they can be mounted on a variety of track, rail and surface mount systems.

Line Voltage Track Pendants

WAC Lighting Line Voltage Track Pendants

These line voltage pendants can be plugged directly into Halo, Juno, Lightolier or other popular 120 volt track lighting systems without the need for an adapter.

Available in white, amber or blue mouth blown, etched and cased glass or Brushed Nickel, Copper Bronze finish metal. These pendants can use any medium base bulbs.

Pendant Adapter

WAC Track Suspension Loop

Hang any chain hung fixture from new or existing track.

3-inch electrical loop accepts chain hung fixtures, 35 pounds maximum.

L L-LOOP 3"
H H-LOOP 3"
J J-LOOP 3"

Finish: Black, Dark Bronze, Brushed Nickel or White

Quick Connect Pendants for Track Lighting

WAC Quick Connect Pendants for Track Lighting

Wac Lighting Quick Connect Pendants can be used on Halo, Juno, Lightolier or other popular 120 volt track lighting systems using a track adapter.

WAC Lighting Artisan Pendants

This unique collection includes iridescent pendants with hand painted backgrounds in blue, green, rose and gold. The Brittany and Mini Brittany have layers of classic Italian opaline glass crafted into dramatic opalescent flowers in gorgeous hues of amber, gold and milky blue come. The Rococo pendant has beautiful mouth blown art glass hand crafted by fine Italian artisans with amber and opal frit, richly layered in speckles of gold.



WAC Lighting Contemporary Pendants

These sophisticated mouth blown, cased glass pendants create a soft glow. Choose from a variety of shapes and colors. The unique Micha pendant is hand crafted from pieces of crushed glass. No two pendants are identical with unique patterns and textures.



WAC Lighting Cosmopolitan Pendants

Unique pendants contemporary and industrial pendants of glass, metal and carved or faceted optical crystal.



WAC Lighting European Pendants

Crafted by some of the world's most highly skilled artisans, these pendants feature dichroic art glass, colored glass, unique iridescent glass, murrine glass and other glass in a variety of shapes, colors and patterns.



WAC Lighting Early Electric Collection
Nostalgic design transformed beautifully into energy efficient LED pendants

Pendants Light your entire kitchen with less than 100 watts of energy. The industrial look of yesteryear with well-proportioned design. These vintage stylee incorporates exposed hardware in a glare-free miniaturized LED versions in beautiful finishes. Using just 5 watts of energy, these nostalgic pendants provide warm illumination but are cool to the touch.



WAC Lighting Eternity Jewelry Collection
A modern twist on crystal

Breathtaking clusters of sparkle and brilliance. A myriad of glistening crystals add an exquisite touch to the most sophisticated decor. Modern lights developed with proprietary LED technology and old world artisanship. These elegant pendants add more than just ambiance providing generous light sufficient for tasks.



WAC Lighting Quick Connect Pendants for Track Lighting

EN-HQ50AR Halo® compatible
EN-JQ50AR Juno® compatible
EN-LQ50AR Lightolier® compatible

WAC Lighting's Quick Connect collection of pendants a features hundreds of hand blown glass designs. Low voltage pendants include a selection of hundreds of individual styles and colors of glass. Fine glass shades are sourced from leading factories around the world including Germany, Italy, Eastern Europe, Asia and the American Pacific Northwest.

New LEDme Quick Connect Pendants bring a clean, modern look to both commercial and residential settings. These stylish pendants are exclusively designed using the latest energy efficient technology and provide a strong and consistent light source. The evolutionary design and sleek, Compact size results in a stunning decorative accent.

The threaded male adapter used on WAC Lighting Quick Connect fixtures makes inter-system compatibility a snap. Simply insert the metal fitting into the appropriate system adapter, hand tighten the threaded collar and you are done!

120V Track Sample Layout

A SK18 Track Suspension Rod
B LLE Live End Connector
C LT2 2 foot Section of LHT Track
D LL-LEFT "L" Connector (Left)
E L-95-WW LEDme LED track head
F L-Endcap End Cap


Polarity is just a matter of matching ends.

Understanding Polarity

(Example Using H Track)

The Two–wire side of an "H" Track has an indicator groove running its length

  • Using a left connector, the track would run with the groove along the outside.
  • Using a right connector, the track would run with the groove along the inside.

Left Connector (HL–LEFT)
• Groove on the Outside Edge
• Contacts on the Outer Angle

Right Connector (HL–RIGHT)
• Groove on the Inside Edge
• Contacts on the Inner Angle


See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
