WAC Lighting Precision Track Fixtures

WAC LED20 LEDme Exterminator 120V Line Voltage LED Track Lighting for Halo or Halo compatible, Juno or Juno compatible, Lightolier or Lightolier compatible

WAC LED20 LEDme Exterminator 120V Line Voltage LED Track Lighting on Amazon

LEDme® Exterminator
Superior illumination. Compact Design. Outperforms a 20W Metal Halide Spot. Small, Unobtrusive Package.

• Power: 23W
• Lumens: Up to 1453
• CBCP: Up to 6772
• CRI: Up to 90
• Dimming: 100% - 10%
• Rated Life: 60,000 hours
• Compare To: 39W HID
• Energy Star rated
• Meets 2013 California Title 24 Efficency
• Smooth and continuous ELV dimming
• ANSI Compliant warm/neutral LED bins for a finer color consistency
• Lockable vertical aiming for precise adjustments
• 355° horizontal rotation and 180° vertical aiming
• Accepts one lens/accessory

Free of projected heat and UV and IR radiation
Twist lock aiming mechanism
Available in two interchangeable optics
Alternate beam angles may be ordered separately
Replaceable LED modules
Accommodates 1 lens or accessory
355° horizontal and 180° vertical aiming
Lockable vertical aiming for precise adjustments
60,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum with removable lens cap for easy change of lenses or accessories
Driver: Input AC 50/60Hz.
High output LED.
Dimming: Dimmable with electronic low voltage (ELV) dimmer (120V only).

Finish: Black (BK), Platinum (PT - W Track Only) and White (WT) powder coat paint.
Standards: ETL Listed.

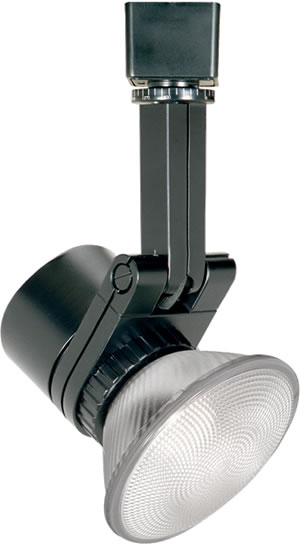

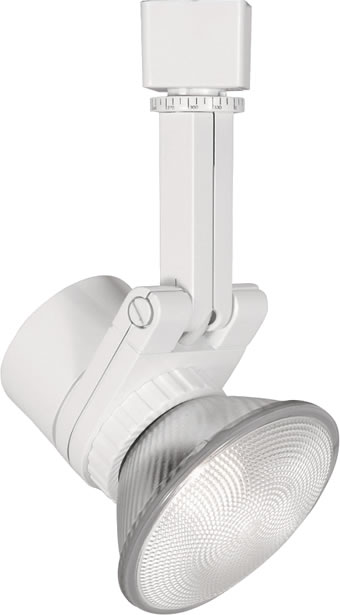

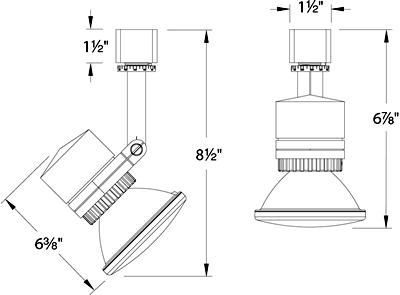

WAC 713 120V Track Line Voltage Precision Spot PAR20 - 50W and PAR30 - 75W Track Head

Studio 713 Premium Line Voltage Track Light
An architectural grade spot luminaire, Studio is designed for luxury residential, hospitality and commercial applications where high performance, fit and finish are critical.

• Die-cast aluminum construction

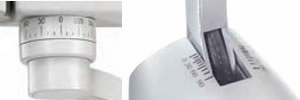

• Lockable precision aiming with 10° interval guide marks
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools
• Two lamping options

Finish: BK - Black or WT - White

Die-cast aluminum construction
Lockable precision aiming with 10° interval guide marks
350° horizontal rotation and 90° vertical tilt
Easily re-lamped from the front without the use of tools
Two lamping options

Construction: Die-cast aluminum fixture. Heavy gauge aiming screws painted to match fixture finish.
Order lamps separately. Uses 50W max PAR20 or 75W max PAR30.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

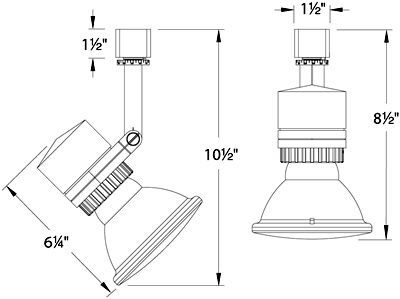

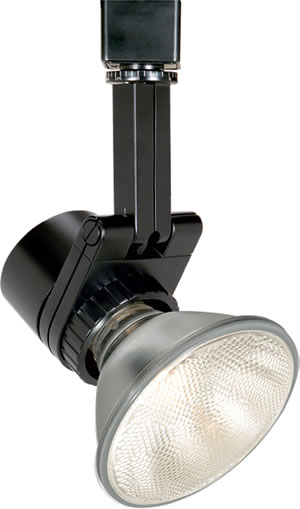

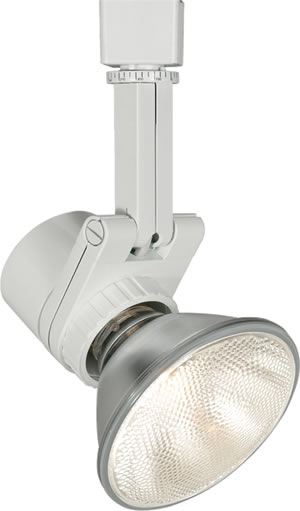

WAC 733 120V Track Line Voltage Precision Spot PAR38 Track Head

Studio 733 Premium Line Voltage Track Light
An architectural grade spot luminaire, Studio is designed for luxury residential, hospitality and commercial applications where high performance, fit and finish are critical.

• Die-cast aluminum construction
• Lockable precision aiming with 10° interval guide marks
• 350° horizontal rotation and 90° vertical tilt
• Easily re-lamped from the front without the use of tools

Finish: BK - Black or WT - White

Die-cast aluminum construction
Lockable precision aiming with 10° interval guide marks
350° horizontal rotation and 90° vertical tilt
Easily re-lamped from the front without the use of tools

Construction: Die-cast aluminum fixture. Heavy gauge aiming screws painted to match fixture finish.
Order lamps separately. Uses 150W max PAR38.

Finish: Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC Series Range 164 Low Voltage Track Head

Range 164L Premium Low Voltage Track Light
Form follows function with instrument-like design and technology of the Range low voltage spot. Engineered to precision, these specification grade luminaires are ideal for commercial, hospitality and applications where high performance and vesatility are required.

• Die-cast aluminum construction
• Lockable precision aiming with 10° interval guide marks
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Accepts 1 lens and 1 accessory
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, WT - White

350° horizontal rotation and 90° vertical aiming with built-in degree scales, two aiming screws for locking aiming angle
Easily re-lamped from the front
Electronic transformer soft start feature is designed to prolong lamp life
Threaded lens cap has three evenly spaced integral tension clips.
Additional lens accessory support is provided by a separate check ring placed within the lens cap.
Accommodates 1 lenses and 1 accessory (clear lens included)
5 year WAC Lighting product warranty

Construction: Die-cast aluminum fixture with integral aiming indicators to assure precise directional adjustment.
Transformer: Soft start electronic transformer, with auto reset and short circuit protection. Input AC/60Hz.
164L model uses 12V MR16G, 75W max.
164LED model uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed, Patent Pending.

WAC Series 164 Low Voltage Track Head

Range 164L Premium Low Voltage Track Light
Form follows function with instrument-like design and technology of the Range low voltage spot. Engineered to precision, these specification grade luminaires are ideal for commercial, hospitality and applications where high performance and vesatility are required.

• Die-cast aluminum construction
• Lockable precision aiming with 10° interval guide marks
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Accepts 1 lens and 1 accessory
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, WT - White

350° horizontal rotation and 90° vertical aiming with built-in degree scales, two aiming screws for locking aiming angle
Easily re-lamped from the front
Electronic transformer soft start feature is designed to prolong lamp life
Threaded lens cap has three evenly spaced integral tension clips.
Additional lens accessory support is provided by a separate check ring placed within the lens cap.
Accommodates 1 lenses and 1 accessory (clear lens included)
5 year WAC Lighting product warranty

Construction: Die-cast aluminum fixture with integral aiming indicators to assure precise directional adjustment.
Transformer: Soft start electronic transformer, with auto reset and short circuit protection. Input AC/60Hz.
164L model uses 12V MR16G, 75W max.
164LED model uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed, Patent Pending.

WAC HID202 HID CDM T4 Vamp Commercial Grade Spot Track Head

HID202 - HID CDM T4 Vamp Commercial Grade Spot Lights
Adjustable beam angle (3 angle options) metal halide fixture.

• HID CDM T4, 20W/39W/70W
• Energy efficient high power factor electronic ballast.
• Up to 3 filter lenses
• Provides a cost effective lamping solution.
• Reflectors are integral to the fixture, assuring lighting design consistency.

Finish: BK - Black, PT - Platinum, WT - White
HID CDM T4, 20W/39W/70W

Energy efficient high power factor electronic ballast.
Provides a cost effective lamping solution.
350° horizontal rotation and 90° vertical aiming with indexing scales.
Reflectors are integral to the fixture, assuring lighting design consistency.

Construction: Die-cast aluminum fixture, cap ring and check ring.
Clear 8 inch tempered glass lens included.
HID CDM T4, 20W/39W/70W

Finish: Available in black powder coat (BK),
white powder coat (WT), or platinum anodized (PT) finishes
Standards: ETL & cETL listed

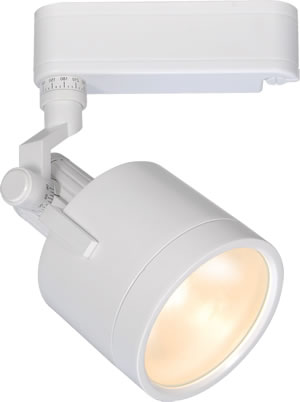

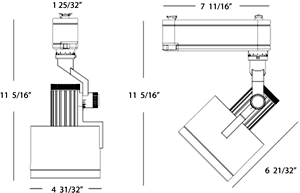

WAC HID202A HID CDM T4 Vamp Commercial Grade Spot Track Head

HID202A Adjustable HID CDM T4 Vamp - 15° - 30° Adjustable beam angle on fixture
Adjustable beam angle (3 angle options) metal halide fixture.

• HID CDM T4, 20W/39W/70W
• Lens Options: Up to 3 filter lenses and accessory
• Energy efficient high power factor electronic ballast.
• Provides a cost effective lamping solution.
• Reflectors are integral to the fixture, assuring lighting design consistency.
• Lamp sold separately

Finish: BK - Black, PT - Platinum, WT - White
HID CDM T4, 20W/39W/70W

HID CDM T4, 20W/39W/70W
Lens Options: Up to 3 filter lenses and accessory
Energy efficient high power factor electronic ballast.
350° horizontal rotation and 90° vertical aiming with indexing scales.
Provides a cost effective lamping solution.
Reflectors are integral to the fixture, assuring lighting design consistency.
Lamp sold separately

Construction: Die-cast aluminum fixture, cap ring and check ring.
Clear 8 inch tempered glass lens included.
HID CDM T4, 20W/39W/70W

Finish: Available in black powder coat (BK), white powder coat (WT), or platinum anodized (PT) finishes
Standards: ETL & cETL listed

WAC HID220 HID CDM PAR20 Vamp Commercial Grade Spot Track Head

HID220 HID CDM PAR20 Vamp Commercial Grade Spot Lights

• HID CDM PAR20, 20W/39W
• Energy efficient high power factor electronic ballast.
• Up to 3 filter lenses and accessories
• Provides a cost effective lamp option while still offering good illumination quality.
• Provides a wide variety of beam spreads.

Finish: BK - Black, PT - Platinum, WT - White
HID CDM PAR20, 20W/39W

Energy efficient high power factor electronic ballast.
Provides a cost effective lamp option while still offering good illumination quality.
350° horizontal rotation and 90° vertical aiming with indexing scales.
Provides a wide variety of beam spreads.

Construction: Die-cast aluminum fixture, cap ring and check ring.
Clear 8 inch tempered glass lens included.
HID CDM PAR20, 20W/39W

Finish: Available in black powder coat (BK), white powder coat (WT), or platinum anodized (PT) finishes
Standards: ETL & cETL listed
