WAC Lighting Low Voltage LED Track Heads

WAC Series 816LED Premium Low Voltage LED Track Head

816 Premium Low Voltage Track Light
Low Voltage lights offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35 W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture
• Fixtures specifically designed to ensure proper lamp fit

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED

Die-cast aluminum construction
Easily re-lamped from the front without the use of tools
Use aiming wand for easy adjustment
350° horizontal rotation and 90° vertical tilt

Construction: Die-cast aluminum track head with polycarbonate
transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
816 model uses two 12V MR16G, 50W max lamps.
816L model uses 12V MR16, 75W max. 816LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN),
and White (WT).
Standards: UL & CUL Listed.

WAC Caribe 874 Premium Low Voltage Track Light

Caribe 874 Premium Low Voltage Track Light
The rich look of stunning antique bronze and nickel finishes highlight this Low Voltage track light. A handsome light designed with a striking, classic profile creates a special ambiance for any room. Ideal for a wide array of environments ranging from residential to and hospitality.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35 W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture
• Fixtures specifically designed to ensure proper lamp fit

Finish: AB - Antique Bronze
8W LED

360° horizontal rotation and 90° vertical aiming
Fully enclosed back to prevent light leaks
Fixtures specifically designed to ensure proper lamp fit
Easily re-lamped from the front
Order with lens ring to hold up to two additional lenses
Adapters in dark bronze and brushed nickel finish to match track finishes
Utilize the second circuit on the J2 style track with the use of the JCLIP
5 year WAC Lighting product warranty

Construction: Die-cast aluminum alloy lamp holder housing, spun metal shade and polycarbonate track adapter. G5.3 base ceramic socket with silver-plated contacts.
Transformer: 1 watt to 60 watt load.
12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Electroplated Antique Bronze (AB).
Standards: UL & CUL Listed.

WAC LED710 Cartier LEDme® Track Track Head

Cartier LEDme® Track Light
Achieving energy efficiency and meeting current lighting power density requirements without sacrificing upscale styling, the Cartier track light uniquely incorporates old world craftsmanship featuring hand-worked finishes, onyx crystal elements and instrument grade details. High-level craftsmanship and old world styling are combined with the flexibility and performance of modern track lighting. Precision engineering, hand finishes and onyx crystal details make this fixture perfect for upscale spaces with sophisticated taste. For use with WAC Lighting's 120V Track system and compatible with other manufacturer's track.

• Power: 14W
• Lumens: Up to 1070
• CBCP: Up to 5166
• Compare to: 75W MR16
• CRI: Up to 90
• Dimming: 100% - 8%
• Rated Life: 60,000 hours
• Meets 2013 California Title 24 Efficency
• Smooth and continuous ELV dimming
• ANSI Compliant Warm/Netural LED bins for a finer color consistency
• Replaceable LED module and reflectors

Finish: AB - Antique Bronze, AN - Antique Nickel

Meets 2013 California Title 24 Efficiency
Smooth and continuous ELV dimming
ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
Replaceable LED module and reflectors
60,000 hour rated life
5 year WAC Lighting product warranty

Construction: Spun aluminum body with black onyx crystal aiming finial and clear lens.
Driver: Input AC/60Hz; High power factor >0.9
Max Load: 10W
10W Cree Multi-chip LED.
Total power consumption of 14W with included driver.
Dimming: May be dimmed to 8% with electronic low voltage (ELV) dimmer.

Finish: White powder coat inside/electroplated outside.
Available in Antique Bronze (AB) and Antique Nickel (AN).
Standards: UL & CUL Listed. Meets Energy Star Requirements.

WAC Double Droid 817LED Premium Low Voltage LED Track Head

Double Droid - LED Low Voltage Track Light
A stylish and versatile choice for your spot lighting needs, Droid features solid die cast aluminum lights designed with twin pivoting heads and silicon hot aiming sleeves for easy and precise adjustment to any desired angle. Ideal for residential, and hospitality applications, each offers 350-degree horizontal and 90-degree vertical tilt.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35 W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture
• Fixtures specifically designed to ensure proper lamp fit

Finish: BK - Black, WT - White, PT/BK - Platinum/Black, PT/WT - Platinum/White
2 X 8W LED

Die-cast aluminum construction
350° horizontal rotation and 90° vertical tilt
"L" style yoke and pivoting heads for precise aiming
Each head has independent vertical adjustment
Silicon hot aiming sleeve
Clear lens included

Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets. Clear glass lenses included.
Transformer: 1 watt to 60 watt load.
817 model uses two 12V MR16G, 35W max lamps.
817LED model uses two 12V, 8W MR16 LED lamps included . 450 lumens
each, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Platinum track head with
Black adapter (PT/BK), Platinum track head with White adapter (PT/WT)
and White (WT).
Standards: UL & CUL Listed.

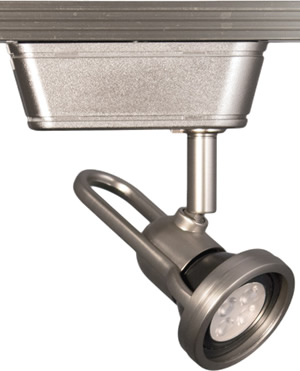

WAC 826LED Dune Low Voltage LED Track Head

Dune - LED Low Voltage Track Light
Using just over six watts, the Dune LED low voltage track light is constructed of die cast aluminum and designed with a yoke that offers 350-degree horizontal rotation with a 90-degree vertical tilt. Dune can be retrofitted into many popular track systems in the marketplace.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture
• Fixtures specifically designed to ensure proper lamp fit

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED

Die-cast aluminum construction
350° horizontal rotation and 90° vertical tilt
Loop back aiming arm for simple adjustments
Screw on lens cap
Clear lens included

Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets.
Transformer: 1 watt to 60 watt load.
826 model uses two 12V MR16G, 50W max lamps.
826L model uses 12V MR16, 75W max. 826LED model uses a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed.

WAC 846LED Series Low Voltage LED Track Head

846 Premium Low Voltage Track Light
Low Voltage lights offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED lamp included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture

Finish: BK - Black, WT - White
8W LED

Die-cast aluminum construction
Patented tool-free lockable aiming mechanism
360° horizontal rotation and 180° vertical tilt
Hot aiming knob for easy adjustment
Clear lens included (Halogen version)

Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
846 model uses 12V MR16G, 50W max lamp.
846L model uses 12V MR16, 75W max. 846LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC 856LED LEDme Radiant Low Voltage LED Track Head

Radiant LED Low Voltage Track Light
Featuring die cast aluminum construction, Radiant offers lockable aiming screws for precision control along with a preinstalled MR16 LED with dimming capabilities. The light is specifically designed to ensure proper LED lamp fit and maximum lighting quality.

• Power: 8W
• Lumens: 450
• CBCP: 833
• Compare To: 35 W MR16
• Color Temp: 3000K
• CRI: 85
• Dimming: Yes
• Rated Life: 25,000 hours
• Dimmable MR16 LED included
• 1 watt to 60 watt load transformer
• Lamp comes pre-installed in fixture
• Fixtures specifically designed to ensure proper lamp fit

Finish: AB - Antique Bronze, BK - Black, BN - Brushed Nickel, WT - White
8W LED

350° horizontal rotation and 90° vertical aiming
Screw and swivel yoke for precise aiming adjustment
Fully enclosed back to prevent light leaks
Easily re-lamped from the front
Electronic transformer soft start feature is designed to prolong lamp life
Utilize the second circuit on the J2 style track with the use of the JCLIP
Accommodates 1 additional lens or accessory with the use of lens clip
"Quick-Ship" item: always in stock and ready for immediate shipment
5 year WAC Lighting product warranty

Construction: Die-cast aluminum fixture with polycarbonate track adapter. Ceramic bi-pin socket.
Transformer: Soft start electronic transformer, with auto reset and short circuit protection. Input AC/60Hz.
856 model uses 12V MR16G, 50W max.
856L model uses 12V MR16G, 75W max. 856LED model uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Electroplated Antique Bronze (AB) and Brushed Nickel (BN), Powdercoat paint Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC Lighting LED810 LEDme Impulse Low Voltage LED Track Head

Impulse 810
Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this thermally efficient Energy Star compliant light offers architectural lighting options including a framing projector and barn door accessories.

• Power: 12W
• Lumens: Up to 951
• CBCP: Up to 4481
• Compare To: 75W MR16
• CRI: Up to 90
• Dimming: 100% - 10%
• Lens Options: 1 replacement lens
• Rated Life: 60,000 hours
• Meets 2013 California Title 24 Efficency
• Smooth and continuous ELV dimming
• ANSI Compliant Warm/Netural LED bins for a finer color consistency
• 360° horizontal rotation and 180° vertical aiming
• Perfect for or museum applications where the use of a barn door or framing projector is needed for beam control
• Free of UV and IR radiation, for color sensitive clothing or artwork
• Alternate beam angles may be ordered separately

Finish: BK - Black, DB - Dark Bronze, WT - White

Meets 2013 California Title 24 Efficiency
Smooth and continuous ELV dimming
Free of projected heat and UV radiation
ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
360° horizontal rotation and 180° vertical aiming
60,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body with steel yoke and clear lens.
Driver: Input AC/60Hz; High power factor >0.9
Max Load: 10W
10W Cree Multi-chip LED.
Total power consumption of 14W with included driver.
Dimming: May be dimmed to 8% with electronic low voltage (ELV) dimmer.

Finish: Powder coat paint. Black (BK), Dark Bronze (DB), White (WT).
Standards: UL & CUL Listed.

WAC Barn Door Accessory for LED and Low Voltage Track Light Accessory

• Metal construction
• Use to control glare for optimal lighting
• Easy to install
• For use with models LED810, LED820 and 801

Finish: BK - Black, DB - Dark Bronze, WT - White

801BD-BK	Barn Door for use with Track Head
801BD-DB	Barn Door for use with Track Head
801BD-WT	Barn Door for use with Track Head

WAC Lighting 008FP Framing Projector for Track Light

008FP-BK Black
008FP-DB Dark Bronze
008FP-WT White

WAC Lighting 008FP Framing Projector on Amazon

Framing Projector Picture Lights >

The 008FP Framing Projector accessory easily attaches to the 007 allowing the display of a four-sided image. The addition of the optional 008FP framing projector to the 007 allows a square or rectangular area of light to be formed on artwork with minimal light spill, giving paintings and drawings a "self luminating" effect. Tappered back, Diecast aluminum track head, with integral electronic transformer. Compatible with Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible.

• For use with LED lamp
• Steel snoot with plastic capped metal shims
• Uses four shims to create a square or rectangular light area
• Frames a crisp edge with no light spillage
• Gives artwork a self-illuminating appearance
• Easy to install
• For use with models LED810, LED820, 007 and 896
• Abrasion resistant powder coat paint finish

Finish: BK- Black, DB- Dark Bronze, WT- White

Framing Projector for use with the LED810, LED820, 007 and 896 track heads and display lights

Creates a square or rectangular light area to illuminate artwork or displays. Frames a crisp edge with no light spillage, making paintings look as if they are self-luminating. Best effect is achieved with low level ambient light and distances less than 10 feet.

Description: Premier series framing projector accessory for use with W.A.C. brand 007 series track heads, display lights, and monpoints.
Attaches to the end of the track head.
Materials: Steel lens snoot, metal shims with plastic end caps, glass focusing lens.
Systems: Can be used with the following fixtures; HHT-007, HHT-007L, JHT-007, JHT-007L, LHT-007, LHT-007L DL-007, ME-007, MI-007, LP-007

Finish: Abrasion resistant powder coat paint finish. Black (BK) or White (WT).
Listing: U.L. & C.U.L. listed. 5 year W.A.C. Lighting product warranty.

WAC LED820 Impulse High Lumen Output Low Voltage LED Track Head

Impulse 820
Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this efficient light offers architectrual lighting options, including a framing projector and barn door accessories.

• Power: 23W
• Lumens: Up to 1366
• CBCP: Up to 6048
• Compare To: 100W Halogen
• CRI: Up to 90
• Dimming: 100% - 10%
• Lens Options: 1 replacement lens
• Rated Life: 60,000 hours
• Meets 2013 California Title 24 Efficency
• Smooth and continuous ELV dimming
• ANSI Compliant Warm/Netural LED bins for a finer color consistency
• 360° horizontal rotation and 180° vertical aiming
• Perfect for or museum applications where the use of a barn door or framing projector is needed for beam control
• Free of UV and IR radiation, for color sensitive clothing or artwork
• Alternate beam angles may be ordered separately

Finish: BK - Black, DB - Dark Bronze, WT - White

Meets 2013 California Title 24 Efficiency
Smooth and continuous ELV dimming
Free of projected heat and UV radiation
ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
360° horizontal rotation and 180° vertical aiming
60,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body with steel yoke and clear lens.
Driver: Input: 120VAC/60Hz, 700mA current. High power factor >0.9.
Max Load: 23W
20W LUXEON S Multi-chip LED.
See fixture performance chart for total power consumption.
Dimming: To 10% with electronic low voltage (ELV) dimmer.

Finish: Powder coat paint. Black (BK), Dark Bronze (DB), White (WT).
Standards: ETL and cETL Listed.
