WAC Lighting W Track Architectural Track System

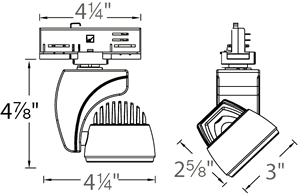

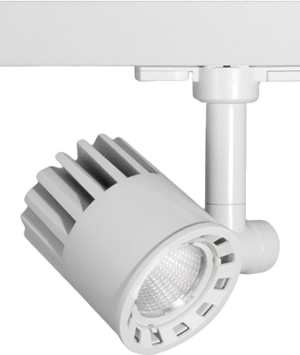

WAC Lighting 120 Volt WTK-LED25 or 277 Volt WHK-LED25 Argos 2-Circuit W-Track Heads - Compare To 39W HID

Customize Your Architectural Track Lighting System

Upgraded for high profile projects, WAC Lighting Architectural Track Systems deliver energy efficient lamping and performance driven light output. Built for demanding applications, your architectural lighting solution begins with these robust, precision crated systems.

Heavy duty architectural grade track with two independently controllable circuits and stem or cable suspensions.

The 2-Circuit Architectural Track is available 120V and 277V. Each circuit is rated 20A (2 x 20A = 40A max) with 2400 W max (120V), 5540 W max (277V) per circuit. The Precision Series has a 1 5/16" profile. The Recessed Series is available in flanged or spackled in flangeless design.

Design track layout.

Determine what you want to light.
Decide where track heads, pendants or both will be placed to direct light where you want it.
Design the Track Lighting layout, connecting the lights.
Track Lighting runs in straight lines, but does not have to run parallel to a wall.
Track is available in connectable four, eight or twelve foot sections which may be field cut to exactly the length you want.
L, T and X connectors allow monorail to make right angles.
Choose a finish. WAC Lighting W-Track is available in Platinum, Black or White.

Determine your mounting.

WAC Lighting W-Track may be surface mounted or recessed.
It is available flanged or flangeless.
A clip can suspend the track from drop ceilings.

Select your power feed.

WAC Lighting W Track is available 120V or 277V.
A live end connector brings power to the end of a track.
Power can also be supplied at the connection of two tracks.
A canopy plate covers a standard 4" octagonal box.
A current limiter is available if needed. If the track is overloaded, the current limiter circuit breaker will trip and shut down power to the track.
Track lighting is a line voltage system. No transformer is required.

Choose your lights.

Decide where the fixtures should be installed to put light where you want it.
Select WAC Lighting Architectural Track Lights specific to W Track.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Track

W Track WT Surface Mount Two Circuit Architectural Track

WAC Lighting W Track 2-Circuit Architectural Track System

Heavy duty architectural grade track with two independently controllable circuits.
Stem or cable suspensions available.

WAC W Track 2-Circuit Track on Amazon

W Track Surface Mount or Recessed Two Circuit 120V / 277V Architectural Track
Heavy duty architectural grade track with two independently controllable circuits. Recess, surface mount or suspend from stems or cables.

Provides two separate 20 AMP circuits.
Power per Circuit: 1920W max (120V), 4432W max (277V)
Operating Current: Each circuit is rated 20A (2 x 20A = 40A max)
Each circuit can be independently switched.
Extruded aluminum construction
Available in black powder coat, white powder coat, or platinum anodized finishes.

Length 4 - 4ft, 8 - 8ft, 12 - 12ft - May be field cut
Track Type: RT - Flanged, RTL - Flangeless, Surface Mount which may be suspended from stems or cables
Finish: BK-Black, PT-Platinum, WT-White
Each section includes two matching end caps.

Available in connectable four, eight or twelve foot sections which may be field cut to exactly the length you want.

Materials: Solid copper alloy bus bars in an extruded aluminum with a rectangular cross-sectional area of 4.2 mm2
Electric feed capability through all jointers/feeders (except Power Connector and Flexible Connector) using standard 2 inch knock-outs
Mounting: Fixtures may be installed or removed anywhere along the track. Minimum fixture spacing is 1 foot. Track fixture has safety interlocks when installed/removed. Polarization is guaranteed throughout the system

Finish: Available in black powder coat (BK), white powder coat (WT), or platinum anodized (PT) finishes
Standards: UL & CUL listed

Surface Mount

WT4-BK	W Track - W2 120V 2-Circuit Track (4')
WT4-PT	W Track - W2 120V 2-Circuit Track (4')
WT4-WT	W Track - W2 120V 2-Circuit Track (4')
WT8-BK	W Track - W2 120V 2-Circuit Track (8')
WT8-PT	W Track - W2 120V 2-Circuit Track (8')
WT8-WT	W Track - W2 120V 2-Circuit Track (8')
WT12-BK	W Track - W2 120V 2-Circuit Track (12')
WT12-PT	W Track - W2 120V 2-Circuit Track (12')
WT12-WT	W Track - W2 120V 2-Circuit Track (12')

Recessed

Clean recessed architectural look in a flanged or flangeless installation.

Flangeless is 100mm (wide) by 43mm (height).

Flanged

W Track Recessed Series Flanged Design

WT4-RT-BK	W Track - W2 120V 2-Circuit Recessed Track (4')
WT4-RT-PT	W Track - W2 120V 2-Circuit Recessed Track (4')
WT4-RT-WT	W Track - W2 120V 2-Circuit Recessed Track (4')
WT8-RT-BK	W Track - W2 120V 2-Circuit Recessed Track (8')
WT8-RT-PT	W Track - W2 120V 2-Circuit Recessed Track (8')
WT8-RT-WT	W Track - W2 120V 2-Circuit Recessed Track (8')
WT12-RT-BK	W Track - W2 120V 2-Circuit Recessed Track (12')
WT12-RT-PT	W Track - W2 120V 2-Circuit Recessed Track (12')
WT12-RT-WT	W Track - W2 120V 2-Circuit Recessed Track (12')

Flangeless

W Track Recessed Series Spackled in Flangeless Design

WT4-RTL-BK	W Track - W2 120V 2-Circuit Recessed Track (4')
WT4-RTL-PT	W Track - W2 120V 2-Circuit Recessed Track (4')
WT4-RTL-WT	W Track - W2 120V 2-Circuit Recessed Track (4')
WT8-RTL-BK	W Track - W2 120V 2-Circuit Recessed Track (8')
WT8-RTL-PT	W Track - W2 120V 2-Circuit Recessed Track (8')
WT8-RTL-WT	W Track - W2 120V 2-Circuit Recessed Track (8')
WT12-RTL-BK	W Track - W2 120V 2-Circuit Recessed Track (12')
WT12-RTL-PT	W Track - W2 120V 2-Circuit Recessed Track (12')
WT12-RTL-WT	W Track - W2 120V 2-Circuit Recessed Track (12')

Track Connectors & Power Feed

Flanged

Flangeless

WAC Lighting 2-Circuit W-Track Live End Connector

WAC W Track 2-Circuit Track Live End on Amazon

120V/277V Recessed 2 Circuit Architectural Track
Use for direct wiring through ceiling.

Flanged

Flangeless

WAC Lighting 2-Circuit W-Track "I" Connector

WAC I Connector 2-Circuit Track on Amazon

Power entry point at the connection of two tracks.
Joins two tracks.

Flanged

Flangeless

WAC Lighting 2-Circuit W-Track "L" Connector - Left or Right

WAC 2-Circuit Track L Connector on Amazon

Used to join two track sections to make a power feedable 90° angle turns

Flanged

Flangeless

WAC Lighting 2-Circuit W-Track "T" Connector

WAC W Track 2-Circuit Track T Connector on Amazon

Used to join three track sections to make a "T" configuration.
Power feedable.
Polarity on outside edge

Flanged

Flangeless

WAC Lighting 2-Circuit W-Track "X" Connector

WAC W Track 2-Circuit Track X Connector on Amazon

Used to join four track sections to make an " x " configuration.
Power feedable.

Current Limiter Circuit Breakers

Above: WEDL-1A-WT RT - Track Current Limiter - Live End Left for Surface Mount Two Circuit Architectural Track

Above: WEDL-RT-1A-WT RT - Flanged Track Current Limiter - Live End Left for Recessed Two Circuit Architectural Track
Below: WEDL-RTL-1A-WT RTL - Flangless Track Current Limiter - Live End Left for Recessed Two Circuit Architectural Track - Track Current Limiter - Live End Right for Recessed Two Circuit Architectural Track

WAC Lighting Track Current Limiter

WAC W Track 2-Circuit Track Current Limiter on Amazon

Surface Mount

Live End Current Limiter - Left WEDL-A/WHEDL-A
Live End Current Limiter - Right WEDR-A/WHEDR-A

Flanged

Live End Current Limiter Flanged - Left WEDL-RT-A/WHEDL-RT-A
Live End Current Limiter Flanged - Right WEDR-RT-A/WHEDR-RT-A

Flangeless

Live End Current Limiter Flangeless - Left WEDL-RTL-A/WHEDL-RTL-A
Live End Current Limiter Flangeless - Right WEDR-RTL-A/WHEDR-RTL-A

There are many options.

Rating: 1A - 1 Amp, 2A - 2.5Amp, 5A - 5Amp, 7A - 7.5Amp, 10A - 10Amp, 12A - 12Amp
Finish: BK- Black, WT - White, PT - Platinum

Recessed Two Circuit Architectural Track
Easy to install and aids in compliance to California Title 24 of ASHRAE 90.1 requirements

Paloma W-Track Fixtures

WAC Lighting WTK-LED512, WHK-LED512 Paloma 2-Circuit W-Track Heads

WAC W Track WHK-LED512 Paloma 2-Circuit W-Track Heads on Amazon

Paloma LED512: Single diode LED compact track luminaire.

Power: 11.5W
Lumens: Up to 780
CBCP: Up to 3430
CRI: Up to 90
Compare To: 50W MR16
Dimming: 100% - 10% (for 120V only)
Rated Life: 50,000 hours
Exclusively designed for our 120V and 277V, W Track systems
Meets 2013 California Title 24 Effiency
Smooth and continuous ELV dimming
Available in LED, HID and Incandescent light sources
Accommodates up to 1 filter lenses and 1 accessory - Color Lenses, Filter Lenses, Beam Control Accessories
360° horizontal rotation and 180° vertical aiming
Threaded lens cap is easily removed for simple front load re-lamping
Die-cast aluminum construction

Beam: S - 19°, N - 24°, F - 36°
Color Temp: 927 - 2700K, 27-2700K, 930 - 3000K, 30-3000K, 35-3500K, 40-4000K

Finish: BK-Black, PT-Platinum, WT-White

Accommodates 1 filter lens and 1 accessory
365° horizontal rotation and 180° vertical aiming
Die-cast aluminum construction
50,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum with cap ring Aiming: 365° horizontal rotation and 180° vertical aiming with indexing scales. Spring lock to secure the aiming adjustment on horizontal.
Available in Bridgelux LED; Higher CRI options available.
Consult factory.
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer (120V only) Finish: Available in black powder coat (BK),
white powder coat (WT), or platinum anodized (PT) finishes
Standards: ETL & cETL listed

WTK - 120V

WTK-LED512	12W LED Paloma Track Head for W-Track
WTK-LED512	12W LED Paloma Track Head for W-Track - 90 CRI

WHK - 277V

WHK-LED512	12W LED Paloma Track Head for W-Track
WHK-LED512	12W LED Paloma Track Head for W-Track - 90 CRI

WAC Lighting WTK-LED522, WHK-LED522 Paloma 2-Circuit W-Track Heads

WAC W Track WHK-LED522 Paloma 2-Circuit W-Track Heads on Amazon

Paloma LED522: Single diode LED compact track luminaire.

Power: 23.5W
Lumens: Up to 1310
CBCP: Up to 5780
CRI: Up to 90
Compare To: 75W MR16
Dimming: 100% - 10% (for 120V only)
Rated Life: 50,000 hours
Exclusively designed for our 120V and 277V, W Track systems
Meets 2013 California Title 24 Effiency
Smooth and continuous ELV dimming
Available in LED, HID and Incandescent light sources
Accommodates up to 1 filter lenses and 1 accessory - Color Lenses, Filter Lenses, Beam Control Accessories
360° horizontal rotation and 180° vertical aiming
Threaded lens cap is easily removed for simple front load re-lamping
Die-cast aluminum construction

Beam: S - 19°, N - 24°, F - 36°
Color Temp: 927 - 2700K, 27-2700K, 930 - 3000K, 30-3000K, 35-3500K, 40-4000K

Finish: BK-Black, PT-Platinum, WT-White

Accommodates 1 filter lens and 1 accessory
365° horizontal rotation and 180° vertical aiming
Die-cast aluminum construction
50,000 hour rated life
5 year WAC Lighting product warranty

WTK - 120V

WTK-LED522	23W LED Paloma Track Head for W-Track
WTK-LED522	23W LED Paloma Track Head for W-Track - 90 CRI

WHK - 277V

WHK-LED522	23W LED Paloma Track Head for W-Track
WHK-LED522	23W LED Paloma Track Head for W-Track - 90 CRI
