WAC Lighting Low Voltage Track Heads

WAC Series 802 Low Voltage Track Head

802 Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
Swivel yoke for easy aiming
350° horizontal rotation and 90° vertical tilt
Mesh back vent for heat dissipation
Clear lens included (Halogen version)

Construction: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
802 model uses 12V MR16G, 50W max lamp.
802L model uses 12V MR16, 75W max. 802LED model uses a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed.

WAC Series 808 Low Voltage Track Head

808 Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Metal construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Recessed lamp position and baffle for minimal glare
• Clear lens included
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, DB - Dark Bronze, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Metal construction
Swivel yoke for easy aiming
350° horizontal rotation and 90° vertical tilt
Recessed lamp position and baffle for minimal glare
Clear lens included (Halogen version)

Construction: Die-cast aluminum track head with polycarbonate transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
808 model uses two 12V MR16G, 50W max lamps.
808L model uses 12V MR16, 75W max. 808LED model uses a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC Series 809 Low Voltage Track Head

809 Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Die-cast aluminum construction
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
Swivel yoke for easy aiming
350° horizontal rotation and 90° vertical tilt
Mesh back vent for heat dissipation
Clear lens included (Halogen version)

Construction: Die-cast aluminum track head with polycarbonate transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
809 model uses two 12V MR16G, 50W max lamps.
809L model uses 12V MR16, 75W max. 809LED model uses a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed.

WAC Series 814 Low Voltage Track Fixture with Glass Shade

814 Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Die-cast aluminum construction
• Multiple glass and shield options (order separately)
• 360° horizontal rotation and 180° vertical tilt

Finish: BK - Black, WT - White
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
Multiple glass and shield options (required, order separately)
360° horizontal rotation and 180° vertical tilt

Construction: Die-cast aluminum track head with polycarbonate transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: Integral electronic transformer for 12 volt MR16 lamps. 120V input.
Dimmable with electronic low voltage dimmers.
814 model uses 12V MR16G, 50W max lamp.
814L model uses 12V MR16, 75W max.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC Glass Shade G111

Acid Etched Translucent Press Molded Bell

Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.25"

WAC Glass Shade G112

Acid Etched Translucent Press Molded Grooved Cylinder

Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.5"

WAC Glass Shade G113

Acid Etched Translucent Press Molded Ring

Finish AM-Amber, BL-Blue, WT-White
Length 1.875" wide 3 3/8"

WAC Glass Shade G114

Acid Etched Cased Glass Deep Bell

Finish AM-Amber, BL-Blue, GR-Green, RD-Red, WT-White
Length 2.5" wide 2 5/8"

WAC Mesh Shield G115

Mesh Bulb Shield.

Finish DB-Dark Bronze, CH-Chrome, PT-Platinum
Length 1.75" wide 2.25"

WAC Solid Shield G116

Solid Bulb Shield.

Finish DB-Dark Bronze, CH-Chrome, PT-Platinum
Length 1.75" wide 2.25"

WAC Series 816 Premium Low Voltage Track Head

816 Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Die-cast aluminum construction
• Easily re-lamped from the front without the use of tools
• Use aiming wand for easy adjustment
• 350° horizontal rotation and 90° vertical tilt
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
Easily re-lamped from the front without the use of tools
Use aiming wand for easy adjustment
350° horizontal rotation and 90° vertical tilt

Construction: Die-cast aluminum track head with polycarbonate
transfor mer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
816 model uses two 12V MR16G, 50W max lamps.
816L model uses 12V MR16, 75W max. 816LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN),
and White (WT).
Standards: UL & CUL Listed.

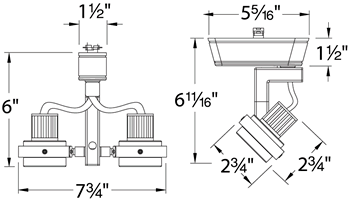

WAC Double Droid 817 Premium Low Voltage Track Head

Double Droid 817 Premium Low Voltage Track Light
A stylish spot light, Double Droid features solid construction and unique aiming features for simple adjustments. Ideal for residential, and hospitality applications.

• Die-cast aluminum construction
• 350° horizontal rotation and 90° vertical tilt
• "L" style yoke and pivoting heads for precise aiming
• Each head has independent vertical adjustment
• Silicon hot aiming sleeve
• Clear lens included
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, WT - White, PT/BK - Platinum/Black, PT/WT - Platinum/White
2 X 8W LED
2 X 50W Halogen MR16
2 X 75W Halogen MR16

Die-cast aluminum construction
350° horizontal rotation and 90° vertical tilt
"L" style yoke and pivoting heads for precise aiming
Each head has independent vertical adjustment
Silicon hot aiming sleeve
Clear lens included

Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets. Clear glass lenses included.
Transformer: 1 watt to 60 watt load.
817 model uses two 12V MR16G, 35W max lamps.
817LED model uses two 12V, 8W MR16 LED lamps included . 450 lumens
each, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Platinum track head with
Black adapter (PT/BK), Platinum track head with White adapter (PT/WT)
and White (WT).
Standards: UL & CUL Listed.

WAC Series 164 Low Voltage Track Head

Range 164L Premium Low Voltage Track Light
Form follows function with instrument-like design and technology of the Range low voltage spot. Engineered to precision, these specification grade luminaires are ideal for commercial, hospitality and applications where high performance and vesatility are required.

• Die-cast aluminum construction
• Lockable precision aiming with 10° interval guide marks
• 350° horizontal rotation and 90° vertical aiming
• Easily re-lamped from the front without the use of tools
• Accepts 1 lens and 1 accessory
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, WT - White

350° horizontal rotation and 90° vertical aiming with built-in degree scales, two aiming screws for locking aiming angle
Easily re-lamped from the front
Electronic transformer soft start feature is designed to prolong lamp life
Threaded lens cap has three evenly spaced integral tension clips.
Additional lens accessory support is provided by a separate check ring placed within the lens cap.
Accommodates 1 lenses and 1 accessory (clear lens included)
5 year WAC Lighting product warranty

Construction: Die-cast aluminum fixture with integral aiming indicators to assure precise directional adjustment.
Transformer: Soft start electronic transformer, with auto reset and short circuit protection. Input AC/60Hz.
164L model uses 12V MR16G, 75W max.
164LED model uses 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed, Patent Pending.

WAC Dune 826 Low Voltage Track Head

Dune 826 Premium Low Voltage Track Light
A stylish spot light, Double Droid features solid construction and unique aiming features for simple adjustments. Ideal for residential, and hospitality applications.

• Die-cast aluminum construction
• 350° horizontal rotation and 90° vertical tilt
• Loop back aiming arm for simple adjustments
• Screw on lens cap
• Clear lens included
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
350° horizontal rotation and 90° vertical tilt
Loop back aiming arm for simple adjustments
Screw on lens cap
Clear lens included

Construction: Die-cast aluminum fixture with polycarbonate track adapter.
Heat resistant rubber grips over rear socket assemblies.
Ceramic bi-pin sockets.
Transformer: 1 watt to 60 watt load.
826 model uses two 12V MR16G, 50W max lamps.
826L model uses 12V MR16, 75W max. 826LED model uses a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed.

WAC 846 Series Low Voltage Track Head

846 Premium Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Die-cast aluminum construction
• Fixtures specifically designed to ensure proper lamp fit
• Patented tool-free lockable aiming mechanism
• 360° horizontal rotation and 180° vertical tilt
• Hot aiming knob for easy adjustment
• Clear lens included (Halogen version only)
• Available with pre-installed LED MR16 lamp

Finish: BK - Black, WT - White
8W LED
50W Halogen MR16
75W Halogen MR16

Die-cast aluminum construction
Patented tool-free lockable aiming mechanism
360° horizontal rotation and 180° vertical tilt
Hot aiming knob for easy adjustment
Clear lens included (Halogen version)

Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Transformer: 1 watt to 60 watt load (for LED).
846 model uses 12V MR16G, 50W max lamp.
846L model uses 12V MR16, 75W max. 846LED model uses
a 12V, 8W MR16 LED lamp included . 450 lumens, 3000K CCT, 25,000 hour
rated life, Dimming to 10%, CRI: 85.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.

WAC 936 Series Low Voltage Track Head

936 Low Voltage Track Light
Low Voltage luminaires offer a wide variety of styles and finishes for a multitude of lighting applications in residential, commercial and hospitality environments.

• Metal construction
• Patented tool-free lockable aiming mechanism
• 350° horizontal rotation and 90° vertical tilt
• Fully enclosed back to prevent light leaks
• Two lamping options

Finish: BK - Black, WT - White
50W Halogen MR16
75W Halogen MR16

Metal construction
Patented tool-free lockable aiming mechanism
350° horizontal rotation and 90° vertical tilt
Fully enclosed back to prevent light leaks
Two lamping options

Construction: Metal track head with polycarbonate transformer case and track adapter.
Two wire leads with u-posts for attaching to AR111 or PAR36 lamp terminal base.
Transformer: Use AR111 or PAR36 lamp (sold separately).
Integral electronic transformer for 12 volt lamps. 120V input.
Dimmable with electronic low voltage dimmers.
936 model uses 12V MR16G, 50W max lamp.
936L model uses 12V MR16, 75W max.

Finish: Powder coat paint. Available in Black (BK) and White (WT).
Standards: UL & CUL Listed.
