WAC Lighting Architectural Track Heads

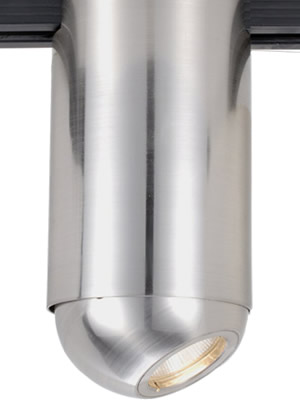

WAC LED610 LEDme Galileo Track Head

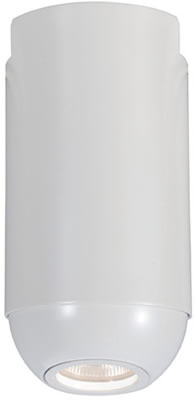

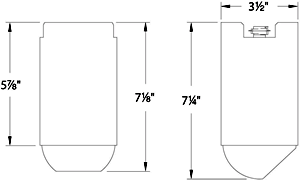

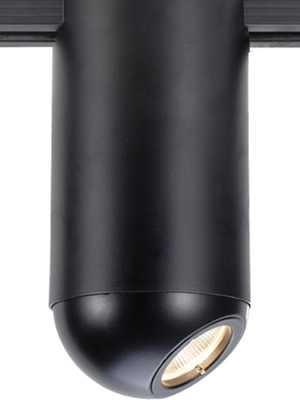

Galileo LED610 LEDme® Track Light
Maintaining a clean form without interruption to the visual line regardless of aiming direction,Galileo takes inspiration from observatories that sweep the heavens with a 360° rotation that never alters its profile. Innovative engineering integrates form and function with state-of-the-art LED technology. Simplicity and attention to detail allow for a 360° aiming rotation without altering the profile, maintaining clean form without interruption to the visual line. For use with WAC Lighting's 120V Track system and compatible with other manufacturer's track (consult factory for specific brands).

  • Power: 14W
  • Lumens: Up to 1014
  • CBCP: Up to 4843
  • Compare To: 75W MR16
  • CRI: Up to 90
  • Dimming: 100% - 8%
  • Rated Life: 60,000 hours
  • Meets 2013 California Title 24 Efficency
  • Smooth and continuous ELV dimming
  • ANSI Compliant Warm/Netural LED bins for a finer color consistency
  • Replaceable LED module

Finish: BK - Black, BN - Brushed Nickel, WT - White

• Meets 2013 California Title 24 Efficiency
• Smooth and continuous ELV dimming
• ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
• Replaceable LED module
• 60,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Extruded aluminum cover with die-cast aluminum head and clear lens.
Driver: Input AC/60Hz; High power factor >0.9
Max Load: 10W
10W Cree Multi-chip LED.
Total power consumption of 14W with included driver.
Dimming: May be dimmed to 8% with electronic low voltage (ELV) dimmer.

Finish: Powder coat paint finish, electroplated.
Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed. Meets Energy Star Requirements.

H Series (Halo compatible)
J Series (Juno compatible)
L Series (Lightolier compatible)
H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

H-LED610F-27-BK J-LED610F-27-BK L-LED610F-27-BK 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Black
H-LED610F-27-BN J-LED610F-27-BN L-LED610F-27-BN 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Brushed Nickel
H-LED610F-27-WT J-LED610F-27-WT L-LED610F-27-WT 14 watt LEDme Galileo Track Head - 120V Track - 2700K - White
H-LED610F-35-BK J-LED610F-35-BK L-LED610F-35-BK 14 watt LEDme Galileo Track Head - 120V Track - 3500K - Black
H-LED610F-35-BN J-LED610F-35-BN L-LED610F-35-BN 14 watt LEDme Galileo Track Head - 120V Track - 3500K - Brushed Nickel
H-LED610F-35-WT J-LED610F-35-WT L-LED610F-35-WT 14 watt LEDme Galileo Track Head - 120V Track - 3500K - White
H-LED610F-927BK J-LED610F-9WBK L-LED610F-9WBK 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - Black
H-LED610F-927BN J-LED610F-9WBN L-LED610F-9WBN 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - Brushed Nickel
H-LED610F-927WT J-LED610F-9WWT L-LED610F-9WWT 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - White
H-LED610F-9WBK J-LED610F-CW-BK L-LED610F-CW-BK 14 watt LEDme Galileo Track Head - 120V Track - 4000K - Black
H-LED610F-9WBN J-LED610F-CW-BN L-LED610F-CW-BN 14 watt LEDme Galileo Track Head - 120V Track - 4000K - Brushed Nickel
H-LED610F-9WWT J-LED610F-CW-WT L-LED610F-CW-WT 14 watt LEDme Galileo Track Head - 120V Track - 4000K - White
H-LED610F-CW-BK J-LED610F-P27BK L-LED610F-P27BK 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Black
H-LED610F-CW-BN J-LED610F-P27BN L-LED610F-P27BN 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Brushed Nickel
H-LED610F-CW-WT J-LED610F-P27WT L-LED610F-P27WT 14 watt LEDme Galileo Track Head - 120V Track - 2700K - White
H-LED610F-WW-BK J-LED610F-WW-BK L-LED610F-WW-BK 14 watt LEDme Galileo Track Head - 120V Track - 3000K - Black
H-LED610F-WW-BN J-LED610F-WW-BN L-LED610F-WW-BN 14 watt LEDme Galileo Track Head - 120V Track - 3000K - Brushed Nickel
H-LED610F-WW-WT J-LED610F-WW-WT L-LED610F-WW-WT 14 watt LEDme Galileo Track Head - 120V Track - 3000K - White
H-LED610S-27-BK J-LED610S-27-BK L-LED610S-27-BK 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Black
H-LED610S-27-BN J-LED610S-27-BN L-LED610S-27-BN 14 watt LEDme Galileo Track Head - 120V Track - 2700K - Brushed Nickel
H-LED610S-27-WT J-LED610S-27-WT L-LED610S-27-WT 14 watt LEDme Galileo Track Head - 120V Track - 2700K - White
H-LED610S-35-BK J-LED610S-35-BK L-LED610S-35-BK 14 watt LEDme Galileo Track Head - 120V Track - 3500K - Black
H-LED610S-35-BN J-LED610S-35-BN L-LED610S-35-BN 14 watt LEDme Galileo Track Head - 120V Track - 3500K - Brushed Nickel
H-LED610S-35-WT J-LED610S-35-WT L-LED610S-35-WT 14 watt LEDme Galileo Track Head - 120V Track - 3500K - White
H-LED610S-9WBK J-LED610S-9WBK L-LED610S-927BK 14 watt LEDme Galileo Track Head - 120V Track - 2700K - 90 CRI - Black
H-LED610S-9WBN J-LED610S-9WBN L-LED610S-927BN 14 watt LEDme Galileo Track Head - 120V Track - 2700K - 90 CRI - Brushed Nickel
H-LED610S-9WWT J-LED610S-9WWT L-LED610S-927WT 14 watt LEDme Galileo Track Head - 120V Track - 2700K - 90 CRI - White
H-LED610S-CW-BK J-LED610S-CW-BK L-LED610S-9WBK 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - Black
H-LED610S-CW-BN J-LED610S-CW-BN L-LED610S-9WBN 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - Brushed Nickel
H-LED610S-CW-WT J-LED610S-CW-WT L-LED610S-9WWT 14 watt LEDme Galileo Track Head - 120V Track - 3000K - 90 CRI - White
H-LED610S-P27BK J-LED610S-P27BK L-LED610S-CW-BK 14 watt LEDme Galileo Track Head - 120V Track - 4000K - Black
H-LED610S-P27BN J-LED610S-P27BN L-LED610S-CW-BN 14 watt LEDme Galileo Track Head - 120V Track - 4000K - Brushed Nickel
H-LED610S-P27WT J-LED610S-P27WT L-LED610S-CW-WT 14 watt LEDme Galileo Track Head - 120V Track - 4000K - White
H-LED610S-WW-BK J-LED610S-WW-BK L-LED610S-WW-BK 14 watt LEDme Galileo Track Head - 120V Track - 3000K - Black
H-LED610S-WW-BN J-LED610S-WW-BN L-LED610S-WW-BN 14 watt LEDme Galileo Track Head - 120V Track - 3000K - Brushed Nickel
H-LED610S-WW-WT J-LED610S-WW-WT L-LED610S-WW-WT 14 watt LEDme Galileo Track Head - 120V Track - 3000K - White

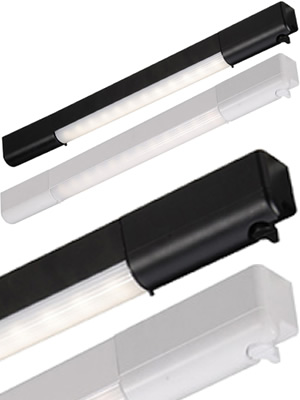

WAC Lighting LED110W, LED210W LEDme Wall Wash LED Track Light

Wash Light - Designed to Illuminate Bookcases, Shelving, Wall Art and Signage
The LEDme® Wash Light delivers a symmetrical wide angle beam spread and excellent color rendition. This sophisticated light is an energy efficient track solution that dims to one percent with an electronic low voltage dimmer and is compatible with the industry's most popular track systems. The LEDme® Wash Light is an ideal replacement for the outdated T5 fluorescent lighting, as its optimal thermal management ensures a longer life.

  • Power: 14W (LED110), 27W (LED210)
  • Lumens: Up to 935 (LED110), Up to 1990 (LED210)
  • CRI: 85
  • Dimming: 100% - 10%
  • Rated Life: 70,000 hours

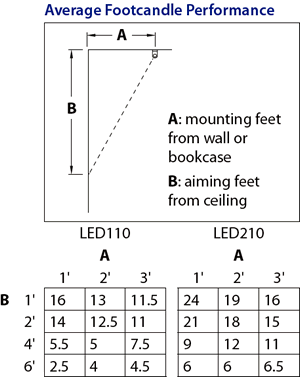

  • Perfect solution for lighting stacks, shelves or signage
  • Meets 2013 California Title 24 Efficiency
  • Smooth and continuous ELV dimming
  • ANSI Compliant Warm/Neutral LED bins for a fine color consistency
  • Low profile, extends only 2" from track
  • Adjustable aiming of beam and various mounting orientations

Finish: BK - Black, WT - White

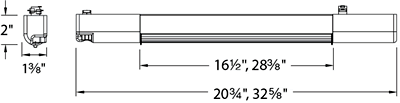

• Available in 2 lengths
• 114° symmetrical wide-angle beam spread
• 0° to 26° aiming from vertical in either direction
• Low profile with a height of only 1d"
• Integral electronic transformer
• Replaceable LED module
• Adapter with locking knob holds fixture securely to track
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Extruded aluminum body with polycarbonate diffuser lens and die-cast aluminum adapters.
Driver: Input AC 60Hz
High output LEDs in 3000K and 4000K color temperatures.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer.

Finish: Abrasion resistant Black (BK) and White (WT) powder coat finish.
Standards: UL & CUL Listed for use in dry locations.

H Series (Halo compatible)
J Series (Juno compatible)
L Series (Lightolier compatible)
H Series
(Halo Compatible
J Series
(Juno Compatible
L Series
(Lightolier Compatible

H-LED110W-CW-BK J-LED110W-CW-BK L-LED110W-CW-BK 14W LEDme Wash Light For 120V L Track
4000K - Upgraded Lumens
H-LED110W-CW-WT J-LED110W-CW-WT L-LED110W-CW-WT 14W LEDme Wash Light For 120V L Track
4000K - Upgraded Lumens
H-LED110W-WW-BK J-LED110W-WW-BK L-LED110W-WW-BK 14W LEDme Wash Light For 120V L Track
3000K - Upgraded Lumens
H-LED110W-WW-WT J-LED110W-WW-WT L-LED110W-WW-WT 14W LEDme Wash Light For 120V L Track
3000K - Upgraded Lumens
H-LED210W-CW-BK J-LED210W-CW-BK L-LED210W-CW-BK 27W LEDme Wash Light For 120V L Track
4000K - Upgraded Lumens
H-LED210W-CW-WT J-LED210W-CW-WT L-LED210W-CW-WT 27W LEDme Wash Light For 120V L Track
4000K - Upgraded Lumens
H-LED210W-WW-BK J-LED210W-WW-BK L-LED210W-WW-BK 27W LEDme Wash Light For 120V L Track
3000K - Upgraded Lumens
H-LED210W-WW-WT J-LED210W-WW-WT L-LED210W-WW-WT 27W LEDme Wash Light For 120V L Track
3000K - Upgraded Lumens

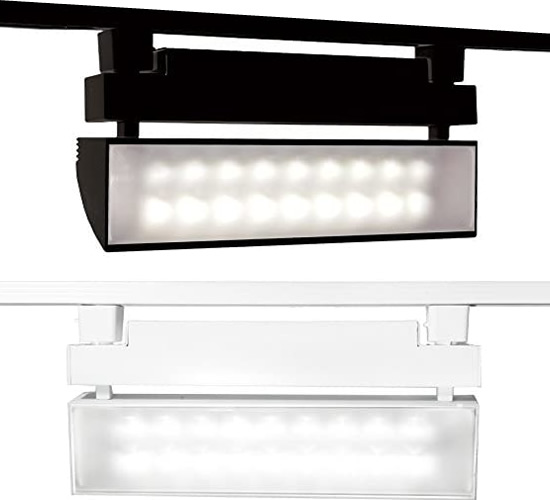

WAC Lighting LED42W LED Wall Washer 2-Circuit W-Track Heads

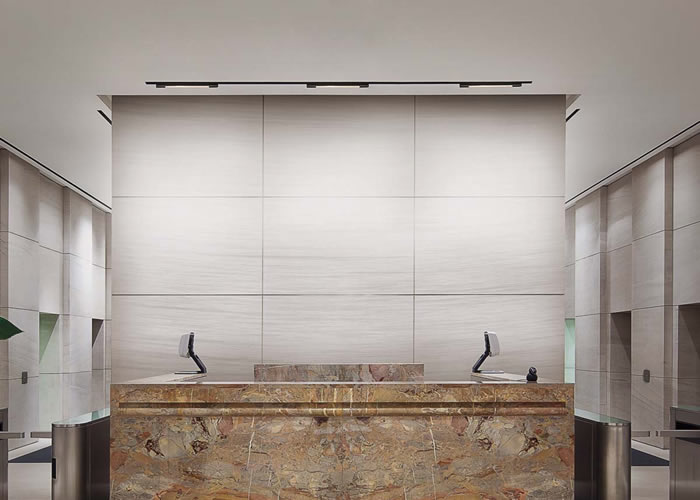

Optimal uniformity from an asymmetrical wall wash luminaire designed to reduce necessary mounting distance from the wall compared to fluorescent wall washers. Designed and engineered to meet the challenging demands of the most discriminating designers and specifiers, these state-of-the-art LED thin-profile wall washers are ideal for upscale museums, and hospitality applications and other commercial spaces.

Due to the asymmetrical forward throw and tilting, WAC LED Wall Washer can be mounted closer to the wall than fluorescent.

  • Power: 42W
  • Lumens: Up to 2520
  • Compare to: 55 watt CFL
  • CRI: 85
  • Dimming: 100% - 10% (120V only)
  • Rated Life: 100,000 hours
  • Energy Star® Rated
  • Replaces halogen and fluorescent wall wash luminaires
  • Die-cast aluminum construction
  • ANSI Compliant Warm/Neutral LED Bins for a finer color consistency
  • Thin profile
  • 45° vertical tilt

Color Temp: 27 - 2700K, 30 - 3000K, 35 - 3500K, 40 - 4000K

Finish: BK-Black, PT-Platinum, WT-White

• Replaces halogen and fluorescent wall wash luminaires
• Simple professional design
• Thin side profile
• 45° vertical tilt
• 100,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Aluminum
Aiming: 45° vertical tilt.
Philips LED
Dimming: 120V only - Dim to 10% with electronic low voltage (ELV) dimmer.

Finish: Available in black powder coat (BK), dark bronze (DB), white powder coat (WT), or platinum anodized (PT) finishes.
Standards: ETL & cETL listed.

H Series (Halo compatible)
J Series (Juno compatible)
L Series (Lightolier compatible)

Identify Types of Track Lighting

There are 3 standard types of track lighting. If you are adding to an existing system you will need to determine which type of track lighting you have.

Single Circuit Track

120V Single Circuit has a 20 Amp capacity. It is available compatible with Halo, Juno or Lightolier.

Two-Circuit Track

Juno compatible 2-Circuit track carries two circuits that can be used independently (up to 2400 watts on each circuit) or jointly switched (up to a total of 4800 watts) used together. This can give you more control, allowing different pendants or lights on a single track to be controled by different switches or more capacity allowing more lights on a single track.
