WAC Lighting 6" Line Voltage & LED Recessed Downlighting

WAC R-620 6" Line Voltage Step Baffle Trim

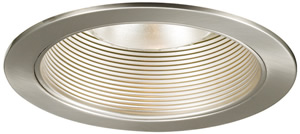

R-620-BN 6" R600 Line Voltage Series Trim Step Baffle

R-620-CB 6" R600 Line Voltage Series Trim Step Baffle

R-620-WT/WT 6" R600 Line Voltage Series Trim Step Baffle

6 Inch Line Voltage Recessed Downlights R-620 Step Baffle
Crafted of one-piece spun aluminum or durable stamped metal, the 6-inch Line Voltage Recessed Downlights are available with full reflector trims that ensure proper lamp position, low glare and superior performance photometric. A variety of styles available for sloped ceilings. Recessed trim with interior step baffle. For use with R-600 series Line voltage downlight housings.

• Interchangeable lamps
• Durable stamped metal construction
• Steel spring clips secure lamp to housing
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Snap-in socket holders secure and position lamps
• Various lamp options available including LED PAR30
• Multiple wattage options

Housing: PAR30, 75W R-602D-N-ICA, R-603D-R-ICA
R30, 75W R-602D-N-ICA, R-603D-R-ICA
Finish-Baffle/Trim: BN-Brushed Nickel/Brushed Nickel, CB-Copper Bronze/Copper Bronze, WT/WT-White/White
PAR30 or R30, 75W

• Secured to lamp holder bracket by steel springs
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to w"
• 5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Secured within lamp housing by steel spring clips. Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent lamps. Incandescent lamps are rated for up to 75W watts max.
Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB) or White (WT/WT).
Standards: UL & CUL Listed. Suitable for damp locations.

WAC R-633 6" Line Voltage Gimbal Ring Trim

6 Inch Line Voltage Recessed Downlights R-633 Gimbal Ring - 20° Adjustment From Vertical
Crafted of one-piece spun aluminum or durable stamped metal, the 6-inch Line Voltage Recessed Downlights are available with full reflector trims that ensure proper lamp position, low glare and superior performance photometric. A variety of styles available for sloped ceilings. Recessed trim gimbal ring - 20° adjustment from vertical.
For use with R-600 series Line voltage downlight housings.

• Interchangeable lamps
• Durable stamped metal construction
• Steel spring clips secure lamp to housing
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Snap-in socket holders secure and position lamps
• Various lamp options available including LED PAR30
• Multiple wattage options

Housing: PAR30, 75W R-602D-N-ICA, R-603D-R-ICA
Finish-Trim: BN-Brushed Nickel, WT-White
PAR30, 75W

• Secured to lamp holder bracket by steel springs
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to.75"
• 5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Secured within lamp housing by steel spring clips. Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent lamps. Incandescent lamps are rated for up to 75W watts max.
Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in Brushed Nickel (BN) or White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.

WAC R-651 6" Line Voltage Shower Light

6 Inch Line Voltage Recessed Downlights R-651 Shower Light with Glass Lens
Wet location listed glass lens shower trim. Typical applications include bathrooms, saunas, workrooms and patios. For use with R-600 series Line voltage downlight housings.
UL Listed For Wet Locations

• Interchangeable lamps
• Shower light is wet location listed
• Durable stamped metal construction
• Steel spring clips secure lamp to housing
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Snap-in socket holders secure and position lamps
• Various lamp options available including LED PAR30
• Multiple wattage options

Housing: A19, 40W R-602D-N-ICA, R-603D-R-ICA
Finish-Baffle/Trim: WT-White
A19, 40W

• Secured to lamp holder bracket by steel springs
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to w"
• 5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Secured within lamp housing by steel spring clips. Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent lamps. Incandescent lamps are rated for up to 75W watts max.
Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Trim is available in White (WT).
Standards: UL & CUL Listed. Suitable for wet locations.

WAC R-656 6" Line Voltage Open Reflector Trim

6 Inch Line Voltage Downlight R-656 Open Reflector
Recessed trim with open reflector. For use with R-600 series Line voltage downlight housings.

• Interchangeable lamps
• Durable stamped metal construction
• Steel spring clips secure lamp to housing
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Snap-in socket holders secure and position lamps
• Various lamp options available including LED PAR30
• Multiple wattage options

Housing: PAR30, 75W R-602D-N-ICA, R-603D-R-ICA R30, 75W R-602D-N-ICA, R-603D-R-ICA Finish-Baffle/Trim: CL/WT -Specular Clear/White
PAR30 or R30, 75W

• Secured to lamp holder bracket by steel springs
• Provided with foam rubber gasket around outer perimeter
• Abrasion resistant powder coat paint or plated metal finish
• Full reflector trims provide proper lamp position, low glare and superior performance photometrics
• Handles surfaces up to w"
• 5 year WAC Lighting product warranty

Construction: Durable stamped metal construction. Secured within lamp housing by steel spring clips. Provided with foam rubber gasket around outer perimeter.
Utilizes LED PAR30 lamp or Medium base incandescent lamps. Incandescent lamps are rated for up to 75W watts max.
Lamps are ordered separately.

Finish: Abrasion resistant powder coat painted or plated metal finish. Reflector is Clear. Trim is available in White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.

WAC 6 inch IC New Construction - R-602D-N-ICA Line Voltage Housing

6 Inch Line Voltage Recessed Downlights R-602D-N-ICA IC New Construction Airtight Ready Housing
Line voltage new construction housing crafted of one-piece spun aluminum or durable stamped metal, the 6-inch Line Voltage Recessed Downlights are available with full reflector trims that ensure proper lamp position, low glare and superior performance photometric. A variety of styles available for sloped ceilings.

• Cutout: 6 7/16"
• Suitable for direct contact with insulation
• Certified airtight per ASTM E283, when use with RGK gasket kit (sold separately)
• Rated for branch and chain wiring
• UL and CUL Listed
• Suitable for damp locations

Trims: R-602D-N-ICA R-620, R-633, R-635, R-656, R-651

• Thermal protector, includedprotects against over-lamping
• Certified airtight per ASTM E283, when used with RGK gasket kit
• Rated for branch and chain wiring
• Hanger bars slots are located on all four sides of the frame

Construction: Housing is 20 gauge steel, painted white. Frame, junction box and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four non-metallic sheathed cable style wiring connectors provided for ease of installation. Rated for branch and chain wiring.
Mounting: Supplied with hanger bars, adjustable from 12"-24" to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting "screw-nail" for ease of installation.
Accommodates surface thickness of up to w".
Rating: IC-Rated for direct contact with insulation.
Standards: UL & CUL Listed. Suitable for damp locations.

WAC 6 inch IC Remodel - R-603D-R-ICA Line Voltage Housing

6 Inch Line Voltage Recessed Downlights R-603D-R-ICA IC Remodel Airtight Ready Housing
Line voltage remodel housing crafted of one-piece spun aluminum or durable stamped metal, the 6-inch Line Voltage Recessed Downlights are available with full reflector trims that ensure proper lamp position, low glare and superior performance photometric. A variety of styles available for sloped ceilings.

• Cutout: 6 7/16"
• See individual trims for max wattage
• 3" clearance on all sides when insulation is present
• Certified airtight per ASTM E283, when use with RGK gasket kit (sold separately)
• Rated for branch and chain wiring
• UL and CUL Listed
• Suitable for damp locations
• J-Box and transformer accessible through ceiling
• Suitable for use in 2" x 6" joist installations

Trims: R-603D-R-ICA R-620, R-633, R-635, R-656, R-651

• Rated for branch and chain wiring
• J-Box and transformer accessible through ceiling

Construction: Housing is 20 gauge steel, painted white. Frame, junction box is heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch and chain wiring.
Mounting: Clips allow easy removal of housing.
Accommodates surface thickness of up to w".
Rating: IC-Rated for direct contact with insulation.
Standards: UL & CUL Listed. Suitable for damp locations.
