WAC Lighting 3.5" Recessed Downlighting - Tesla High Output LED

WAC Tesla LED 3" Recessed Lighting with Angled Beam Open Round Trim
(HR3LEDT118F27)

ET118

WAC HR-3LD-ET118F-27 Tesla Energy Star Qualified 3.5" Tesla Downlights with Round Open Reflector

HR-3LD-ET118F-27 Tesla
Energy Star Qualified 3.5" Tesla Downlights - Round Open Reflector

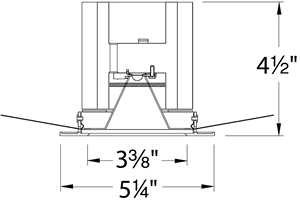

Tesla - 3.5" high Output LED Downlights ET118
NEW Energy Star® Tesla recessed downlights are Energy Star® Qualified for both commercial and residential applications. Various styles and optics including spot, narrow and flood beam spreads, and multiple color temperatures. Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation.
Minimum profle, round downlight trim with interior open reflector.

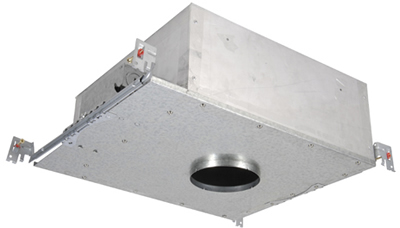

For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood beam spread
  • 44° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Light output comparable to a 75W PAR30

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: F - 40°

Finish: BN-Brushed Nickel, WT-White or CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: Varies with housing
Lumens:965Lm, 906Lm, 985Lm, 1070Lm, 1000Lm
CRI: 85 (2700K, 3000K, 3500K), 82 (4000K)

Interchangeable Reflectors

SL-REF-LUX10-F Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• Energy Star Qualified
• 3.5" aperture
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Effiiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• Flood beam spread
• 44° cut-off angle for glare control
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon LXS8 multi-chip LED.
See fixture performance chart for total power consumption.
Dimming: May be dimmed to 10% with a ELV dimmer for 120V only.
Mounting: Three heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.

Finish: Available in White (WT) powder coat paint and Electroplated Brushed Nickel (BN) and Copper Bronze (CB).
Standards: UL & CUL Listed.

WAC HR-3LED-T318F-27 Tesla LED 3" Adjustable Round Trim

HR-3LED-T318F-27
Tesla - LED 3" Adjustable 0 Degrees To 30 Degrees Round Trim

Tesla - 3.5" high Output LED Downlights
0° to 30° Adjustable Reflector Trim
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
Minimum profile, 0° to 30° adjustable trim with interior open reflector. For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood, Narrow Flood, and Spot beam spreads
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Maintains lamp in vertical position from a 0° to 30° slope
  • Adjustment allow for accent lighting of wall art
  • For sculptures, install two or more in front and illuminate at 30°

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: F-50°, N-28°, S-15°

Finish: HZ/WT-Semi-Specular clear/white
HZ/BN-Semi-Specular clear/Brushed Nickel
HZ/CB-Semi-Specular clear/Copper Bronze
SB/WT- Specular Black/White
SB/BN- Specular Black/Brushed Nickel
SB/CB- Specular Black/Copper Bronze
BN-Brushed Nickel
WT-White
CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 875Lm

Interchangeable Reflectors

SL-REF-LUX10-S Spot
SL-REF-LUX10-N Narrow Flood
SL-REF-LUX10-F Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 32" inch aperture
• Maintains lamp in vertical position from a 0° to 30° slope
• Adjustment allows for accent lighting of wall art
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• Flood, Narrow Flood and Spot beam spreads
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only. Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.
Standards: UL & CUL Listed.

WAC LEDme 3.5" Recessed Lighting

WAC HR-3LED-T418F-27 Tesla LED 3" Adjustable Round Trim

HR-3LED-T418F-27
Tesla - LED 3" Adjustable 30 Degrees To 45 Degrees Round Trim

Tesla - 3.5" high Output LED Downlight T418
30° to 45° Adjustable Reflector Trim
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50W MR16 while using 60% less power.
Minimum profile, 30° to 45° adjustable trim with interior open reflector.
For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood, Narrow Flood, and Spot beam spreads
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Maintains lamp in vertical position from a 30° to 45° slope
  • Adjustment allows for accent lighting of wall art
  • For sculptures, install two or more in front and illuminate at 30°

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: F-50°, N-28°, S-15°

Finish: BN-Brushed Nickel, WT-White, CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 760Lm

Interchangeable Reflectors

SL-REF-LUX10-S Spot
SL-REF-LUX10-N Narrow Flood
SL-REF-LUX10-F Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 32" inch aperture
• Maintains lamp in vertical position from a 30° to 45° slope
• Adjustment allows for accent lighting of wall art
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• Flood, Narrow Flood and Spot beam spreads
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only.
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.
Standards: UL & CUL Listed.

WAC HR3LEDT118F27 Tesla LED 3" Open Round Trim with Angled Beam

HR-3LEDT118F27 Tesla - LED 3" Open Round Trim with Angled Beam

Tesla - 3.5" high Output LED Recessed Downlight T118
Open Reflector Trim, Round
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
Minimum profile, round downlight trim with interior open reflector.
For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood beam spread
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Replaceable LED modules

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: F-50°, N-28°, S-15°

Finish: HZ/WT-Semi-Specular clear/white
HZ/BN-Semi-Specular clear/Brushed Nickel
HZ/CB-Semi-Specular clear/Copper Bronze
SB/WT- Specular Black/White
SB/BN- Specular Black/Brushed Nickel
SB/CB- Specular Black/Copper Bronze
BN-Brushed Nickel
WT-White
CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 945Lm

Interchangeable Reflectors

SL-REF-LUX10-S Spot
SL-REF-LUX10-N Narrow Flood
SL-REF-LUX10-F Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 32" inch aperture
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• Flood, Narrow Flood and Spot beam spreads
• 35° cut-off angle for glare control
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only. Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.
Standards: UL & CUL Listed.

WAC HR-3LED-T718F-27 Tesla - LED 3" Angled Open Square Trim Recessed Lighting

HR-3LED-T718F-27 Tesla - LED 3" Open Square Trim Angled

Tesla - 3.5" high Output LED Recessed Downlight T718
Open Reflector Trim, Square
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
Minimum profile, square downlight trim with interior open reflector.
For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood, Narrow Flood and Spot beam spreads
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: F-50°, N-28°, S-15°

Finish: BN-Brushed Nickel, WT-White, CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: 869Lm

Interchangeable Reflectors

SL-REF-LUX10-S Spot
SL-REF-LUX10-N Narrow Flood
SL-REF-LUX10-F Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 32" inch aperture
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• 28° Narrow Flood beam spread
• 35° cut-off angle for glare control
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only. Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.
Standards: UL & CUL Listed.

WAC HR-3LED-T618S-27 Tesla LED 3" Pinhole Round Trim Angled Beam

HR-3LED-T618S-27 Tesla - LED 3" Pinhole Round Trim Angled Beam

Tesla - 3.5" high Output LED Downlights T618
Pinhole with 0° to 30° Adjustable Trim
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
Minimum profile, 0° to 30° adjustable pin hole trim with interior open reflector. For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Spot beam spread
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Adjustment allows for accent lighting of wall art or sculptures
  • Mainatains lamp in vertical position from a 0° to 30° slope

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: S-15°

Finish: BN-Brushed Nickel, WT-White, CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 620Lm

Interchangeable Reflectors

SL-REF-LUX10-S Spot
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 1 13/16" aperture
• Maintains lamp in vertical position from a 0° to 30° slope
• Adjustment allows for accent lighting of wall art
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• 15° beam spread
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only.
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.

Finish: White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Copper Bronze (CB).
Standards: UL & CUL Listed.

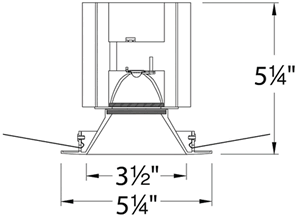

WAC HR-3LED-T218N-27 Tesla - LED 3" Shower Round Trim

HR-3LED-T218N-27 Tesla - LED 3" Shower Round Trim

Tesla - 3.5" high Output LED Recessed Downlight T218
Open Reflector Shower Trim
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
Minimum profi le, round shower trim with interior open reflector.
For use with HR-3LED series housings.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Narrow beam spread
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Shower light is wet location listed

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: N-28°

Finish: BN-Brushed Nickel, WT-White, CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 790Lm

Interchangeable Reflectors

SL-REF-LUX10-N Narrow Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 3.5" inch aperture
• Multi-chip LED technology for maximum brightness
• Replaceable LED modules
• Interchangeable refl ectors for changing beam spreads
• Uses ANSI compliant LEDs for the fi nest color consistency possible
• 28° Narrow Flood beam spread
• 35° cut-off angle for glare control
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only.
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.

Finish: White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Copper Bronze (CB).
Standards: UL Listed for wet locations.

WAC HR-3LED-T518N-27 Tesla LED 3" Wallwasher Square Trim Recessed Lighting

HR-3LED-T518N-27 Tesla - LED 3" Wallwasher Square Trim

Tesla - 3.5" high Output LED Downlights
0° - 30° Adjustable
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium lights deliver superior performance with higher lumen output than a 50W MR16 while using 60% less power.

  • Meets 2013 California Title 24 Effiency
  • Multi-chip LED technology for maximum brightness
  • Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
  • Flood, Narrow Flood, and Spot beam spreads
  • 35° cut-off angle for glare control
  • 50,000 hour rated life
  • Smooth and continuous ELV dimming (down to 15%) for 120V only
  • 0-10V dimming for 120V and 277V
  • ANSI compliant warm/neutral LEDs
  • Interchangeable reflectors for changing beam spreads
  • Replaceable LED modules
  • Creates an asymmetrical light beam providing even illumination for walls, fireplaces or works of art
  • For optimal performance space fixtures 5 feet on center from each other and 2 feet from the wall

Color Temp: 27 - 2700K
9W - 3000K (90 CRI)
W - 3000K
35 - 3500K
C - 4000K

Beam: S-15°, N-28°, F-50°

Finish: BN-Brushed Nickel, WT-White, CB-Copper Bronze

Input: 120V - 277V AC
Power Consumption: 21.5W
Lumens: Up to 770Lm

Interchangeable Reflectors

SL-REF-LUX10-N Narrow Flood
Replacement Modules CRI CCT
LXS8-PW27 85 2700K
LXS9-PW30 90 3000K
LXS8-PW30 85 3000K
LXS8-PW35 85 3500K
LXS8-PW40 85 4000K

• 2.875" aperture
• Creates an asymmetrical light beam providing even illumination for walls, fireplaces or works of art
• Multi-chip LED technology for maximum brightness
• Meets 2013 California Title 24 Efficiency
• Interchangeable reflectors for changing beam spreads
• Uses ANSI compliant LEDs for the finest color consistency possible
• 50,000 hour rated life
• 5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction with borosilicate glass lens. Extruded aluminum heat sink.
Utilizes one 18W Luxeon S multi-chip LED, Typical CRI: 85.
Total power consumption of 21.5W with housing.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer for 120V only.
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Mounting: Two heavy gauge retention clips hold trim firmly to housing.
See housing spec sheets for ceiling installation info.

Finish: White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Copper Bronze (CB).
Standards: UL & CUL Listed.

Housings

New Construction - IC-Rated, Airtight

WAC HR-3LED-H18D-A, HR-3LED-H18D1-ICA, HR-3LED-H18D-ICA, HR-3LED-H18D-EMICA 3" New Construction Housings

HR-3LED-H18D-A
Tesla - 3" New Construction Non-IC-Rated,Airtight Housing

HR-3LED-H18D1-ICA
Tesla - 3" New Construction IC-Rated, Airtight Housing

HR-3LED-H18D-ICA
Tesla - LED 3" New Construction Housing 20W IC-Rated, Airtight

HR-3LED-H18D-EMICA
Tesla - LED 3" Em Housing 20W IC-Rated, Airtight

Tesla - 3.5" LED Housing
New Construction - IC-Rated, Airtight

IC-Rated, airtight new construction housing.
For use with HR-3LED series trims.

  • Preset hanger bars with locking screw to secure housing once aligned
  • Integral T-Bar clamps
  • Preset self-tapping screws for easy installation
  • UL and CUL Listed
  • IC-Rated
  • Airtight, Meets 2013 California Title 24 Efficiency

Compatible Trims: HR-3LED-ET118, HR-3LED-T118,HR-3LED-T218,HR-3LED-T318,HR-3LED-T418,HR-3LED-T518, HR-3LED-T618, HR-3LED-T718, HR-3LED-T818, HR-3LED-T918

-277V 50/60Hz
21.5W
Current: 700mA

• Cutout: 4 5/8"
• 120V-277V AC 50/60Hz input
• IC-Rated
• Airtight
• May be dimmed to 1% with electronic low voltage (ELV) dimmer (120V Only)
• Provided with push-in wire connector for easy installation
• Accommodates ceiling thickness from 2"-3/4"
• UL and CUL Listed
• 5 year WAC Lighting product warranty

Construction: Housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Universal electronic driver.
Mounting: Supplied with hanger bars, adjustable from 142"-242" to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting "screw-nail" for ease of installation. Accommodates surfaces from 2"-3/4" thick.
4s" cutout hole.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer (120V Only).
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed. Airtight: meets ASTM standard E283-04 under California 2005 Building Energy Efficient Standards and WAC 50-11-0502 of the State of Washington.

WAC HR-3LED-R18D-A Tesla - LED 3" Remodel Non IC-Rated Housing for Recessed Lighting

HR-3LED-R18D-A Tesla - LED 3" Remodel Housing 20W Non IC-Rated, Airtight

Tesla - 3.5" LED Housing
Remodel, Non-IC, Airtight

Non-IC, airtight remodel housing.
For use with HR-3LED series trims.

  • UL and CUL Listed
  • Non-IC
  • Airtight, Meets 2013 California Title 24 Efficiency

Compatible Trims: HR-3LED-ET118, HR-3LED-T118, HR-3LED-T218, HR-3LED-T718, HR-3LED-T818

-277V 50/60Hz
21.5W
Current: 700mA

• Cutout: 4s"
• 120V-277V AC 50/60Hz input
• Non-IC
• Airtight
• May be dimmed to 1% with electronic low voltage (ELV) dimmer (120V Only)
• Provided with push-in wire connector for easy installation
• Accommodates ceiling thickness from 2"-1"
• UL and CUL Listed
• 5 year WAC Lighting product warranty

Construction: Housing and junction box are 20 gauge steel.
J-Box: Three knockouts and three Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Universal electronic driver.
Mounting: Two heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface up to 1" thick. 4s" cutout hole.
Dimming: May be dimmed to 1% with electronic low voltage (ELV) dimmer (120V Only).
Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed.

Model # Description Beam Color Temp Finish
HR-3LD-ET118* Round, Open Reflector Downlight Energy Star 40° (F) 2700K (27), 3000K (W)
3500K (35), 4000K (C)
Brushed Nickel (BN)
Copper Bronze (CB)
White (WT)
HR-3LED-T218 Round, Shower Light 28° (N)
HR-3LED-T418 Round, 30°-45° Adjustable 15° (S), 28° (N), 50° (F)
HR-3LED-T518N Square, Wall Wash N/A
HR-3LED-T618 Round, 0°-30° Adjustable Pinhole 15° (S)
HR-3LED-T718 Square, Open Reflector Downlight 15° (S), 28° (N), 50° (F)
HR-3LED-T818 Square Shower Light (Wet Listed) 28° (N)
HR-3LED-T918 Square 30°-45° Adjustable 15° (S), 28° (N), 50° (F)
HR-3LED-T118 Round, Open Reflector Downlight 15° (S), 28° (N), 50° (F) 2700K (27), 3000K (W)
3500K (35), 4000K (C)
Haze/White (HZ/WT)
Haze/Brushed Nickel (HZ/BN)
Haze/Coper Bronze (HZ/CB)
Specular Black/White (SB/WT)
Specular Black/Brushed Nickel (SB/BN)
Specular Black/Copper Bronze (SB/CB)
Brushed Nickel (BN), Copper Bronze (CB), White (WT)
HR-3LED-T318 Round, 0°-30° Adjustable 15° (S), 28° (N), 50° (F)

Related Pages


design42 New Media Web Design
2192 Dartmouth Rd
Hendersonville NC 28791
