Picture Lights Wall Sconces & Brackets

Picture Lights

Eurofase Louvre, Louvre II, Louvre III Picture Lights with LED or Festoon Bulbs

Eurofase Louvre, Louvre II, Louvre III Picture Lights

Picture Lights with Festoon Bulbs
120V Dimmable

0081-S6 10-Light Picture Light
Length 18.5"
10 x 5W Festoon Bulbs, included

0081-27-S5 15-Light Picture Light
Length 27"
15 x 5W Festoon Bulbs, included

LED Picture Lights
120V NOT Dimmable

22558-022 9-inch
Length 9"
8 x 2.4 watt 3500K LED, included

22559-029 18-inch
Length 18.5"
8 x 2.4 watt 3500K LED, included

22560-025 27-inch
22560-032 27-inch

Length 27"
8 x 2.4 watt 3500K LED, included

Finish: Oil Rubbed Bronze or Satin Nickel

Width 4.5" x Height 6.5"
Max Extension 4.5"
Beam Angle 120 degrees
Power Wire Length 60"

PL-LED14-27-RB Rubbed Bronze 14" Hardwire Hemmingway LED Picture Light

Above: 14" BB - Burnished Brass Portable, ready to plug in (PL-LED14P-27-BB).
Below: 24" PN - Polished Nickel Hardwire Picture Lights (PL-LED24-27-PN)

WAC PL-LED14, PL-ED24 dweLED Hemmingway LED Picture Lights

LED Picture Light 14 Inch Hardwired
PL-LED14-27-AN Antique Nickel
PL-LED14-27-PN Polished Nickel
PL-LED14-27-RB Rubbed Bronze
PL-LED14-27-BB Brushed Brass

LED Picture Light 14 Inch Portable (with Cord Plug)
PL-LED14P-27-AN Antique Nickel
PL-LED14P-27-PN Polished Nickel
PL-LED14P-27-RB Rubbed Bronze
PL-LED14P-27-BB Brushed Brass

LED Picture Light 24 Inch Hardwired
PL-LED24-27-AN Antique Nickel
PL-LED24-27-PN Polished Nickel
PL-LED24-27-RB Rubbed Bronze
PL-LED24-27-BB Brushed Brass

LED Picture Light 24 Inch Portable (with Cord Plug)
PL-LED24P-27-AN Antique Nickel
PL-LED24P-27-PN Polished Nickel
PL-LED24P-27-RB Rubbed Bronze
PL-LED24P-27-BB Brushed Brass

PL-LED14, PL-LED24 Hemmingway Picture Light
Available hardwired or ready to plug in.
Recognized by the Lighting for Tomorrow LED light design competition, Hemmingway illuminates fine artwork utilizing the optimal spectrum of colors. Unlike conventional lights, these LED picture lights provide full spectrum illumination without damaging infrared and ultraviolet rays. Available in four designer finishes and two sizes to complement upscale art framing.

  • Chronophoton™ Technology preserves artwork while providing vibrant color rendering
  • Head rotates 90° up or down and extends out 14w" from mounting surface
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matchi ng finish included

Finish: AN- Antique Nickel, BB - Burnished Bronze, RB - Rubbed Bronze, PN - Polished Nickel
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10% Dimmable to 10% with electronic low voltage (ELV) dimmer.
Rated Life : 70,000 hours

Construction: Aluminum with frosted glass lens.
Power: Direct wiring, no remote driver needed. 120V input / 24V output.
Light Source: 24 (14") or 48 (24") 2700K high power LEDs.
Standards: ETL Listed.

14" AN - Antique Nickel Hardwire Picture Lights (PL-LED14-27-AN)

14" RB - Rubbed Bronze (PL-LED14-27-RB)

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED14-27 14" Hard Wired 9.4W 595 302
PL-LED14P-27 14" Portable 9.4W 595 302
PL-LED24-27 24" Hard Wired 16.9W 1186 605
PL-LED24P-27 24" Portable 16.9W 1186 605

WAC PL-LED15, PL-LED25, PL-LED37 Vibe dweLED Picture Lights

BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass

14 1/4" Hard Wired Vibe Picture Light
PL-LED15-27-BK Black
PL-LED15-27-BN Brushed Nickel
PL-LED15-27-CH Chrome
PL-LED15-27-SB Satin Brass

24 7/8" Hard Wired Vibe Picture Light
PL-LED25-27-BK Black
PL-LED25-27-BN Brushed Nickel
PL-LED25-27-CH Chrome
PL-LED25-27-SB Satin Brass

24 7/8" Portable Vibe Picture Light
PL-LED25P-27-SB Satin Brass
PL-LED25P-27-BN Brushed Nickel
PL-LED25P-27-CH Chrome
PL-LED25P-27-SB Satin Brass

36 7/8" Hard Wired Vibe Picture Light
PL-LED37-27-BK Black
PL-LED37-27-BN Brushed Nickel
PL-LED37-27-CH Chrome
PL-LED37-27-SB Satin Brass

36 7/8" Portable Vibe Picture Light
PL-LED37P-27-BK Black
PL-LED37P-27-BN Brushed Nickel
PL-LED37P-27-CH Chrome
PL-LED37P-27-SB Satin Brass

PL-LED15, PL-LED25, PL-LED37 Vibe Picture Light
Available hardwired or ready to plug in.
Designed to disappear, the low profile Vibe picture light features a canopy that both hides behind the artwork and serves as the mount. At less than an inch in diameter, the Vibe picture light shrouds the smallest light source available to provide substantial, full spectrum, and high quality lighting. Three lengths with 35 degree rotation accommodates artwork of varying sizes.

  • Chronophoton™ Technology conserves artwork while providing vibrant color rendering
  • Head rotates 35° up or down
  • 110° beam angle
  • Meets 2013 California Title 24 Efficiency
  • Replaceable LED module
  • For portable models, 8 foot cord plug with 18 inch wire cover in matching finish included

Finish: BK - Black, BN- Brushed Nickel, CH- Chrome, SB- Satin Brass
Color Temp: 2700K
CRI: 90
Dimming : 100% - 10%
Rated Life : 70,000 hours

Construction: Aluminum with frosted plastic lens
Power: Integral driver, no remote driver needed
Light Source: Direct wiring or plug-in LED
Mounting: Hard wired and plug-in models available
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer.

Finish: Black (BK), Brushed Nickel (BN), Chrome (CH) and Satin Brass (SB)
Standards: ETL cETL Listed

See more choices on a desktop computer or by turning your screen horizontal.
Model Length Type Watt LED Lumens Delivered Lumens
PL-LED15-27 15" Hard Wired 8.5W 595 240
PL-LED15P-27 15" Portable 8.5W 595 240
PL-LED25-27 25" Hard Wired 16W 1186 535
PL-LED25P-27 25" Portable 16W 1186 535
PL-LED37-27 37" Hard Wired 23W 1785 850
PL-LED37P-27 37" Portable 23W 1785 850

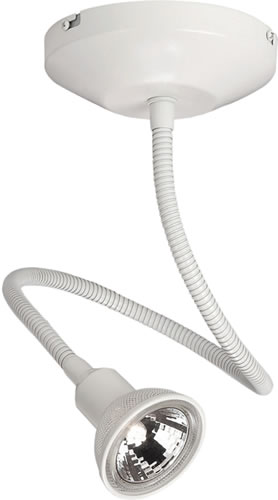

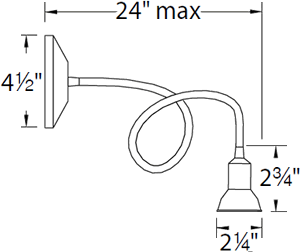

WAC Lighting ME-204 Flex Low Voltage Flexible Display Light with Transformer in Canopy

Low Voltage Surface Mount 50W
ME-204-BK Black
ME-204-WT White

8W LED
ME-204LED-BK Black
ME-204LED-WT White

Flexible Spot Lights - ME-204
The "ME" style contains an electronic transformer in the canopy.
Adjustable for a variety of display applications, the bendable, low and line voltage Flex lights are designed and engineered with a unique, sturdy yet flexible cable arm for easy aiming and illuminating hard to light areas. Offered in multiple finishes and lengths to complement any décor.

  • Integral electronic transformer included
  • 1 watt minimum load
  • Integral 60W Electronic Transformer
  • Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max
  • LED MR16 included when ordered as LED
  • 1 watt minimum load
  • Can be ceiling or wall mounted
  • Bulb shield option (order separately)
  • Lens not included

Finish: BK -Black, BN-Brushed Nickel, WT-White
Lamp: Halogen - 12V, 50W max, MR11G/MR16G, order separately
LED - LED MR16, order separately

• Integral Electronic transformer
• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
• LED MR16 included when ordered as LED
• 1 watt minimum load
• Can be wall or ceiling mounted
• Mesh bulb shield ordered separately

Construction: Fixture head and canopy are steel. Flexible arm is steel.
Transformer: 120V/12V Electronic transformer with auto reset, soft start, and short circuit protection features.
Dimming: Smooth and continuous ELV dimming to 10%
Aiming: Flexible arm permits multiple aiming angles
Standards: UL CUL Listed

WAC Surface Mounted Low Voltage Flexible Light MM-204, shown with MBS16 Mesh Bulb Shield, not included. Snaps over an MR11 or MR16 bulb and diffuses glare from the back of the bulb.

WAC Lighting MM-204 Flex Low Voltage Flexible Display Light with Remote Transformer

Low Voltage Surface Mount Flexible 50W
MM-204-WT White
MM-204-BN Brushed Nickel

LED Low Voltage Surface Mount Electronic 8W
MM-204LED-BK Black
MM-204LED-WT White
MM-204LED-BN Brushed Nickel

Flexible Spot Lights - ME-204
The "MM" mini canopies use remote transformers and require behind the surface access.
Adjustable for a variety of display applications, the bendable, low and line voltage Flex lights are designed and engineered with a unique, sturdy yet flexible cable arm for easy aiming and illuminating hard to light areas. Offered in multiple finishes and lengths to complement any décor.

  • Opposite side access required for installation
  • Installs in walls, ceilings, or furniture wherever accessible from both sides up to thickness of 1 inch
  • Remote transformer required (order separately)
  • 1 watt minimum load
  • Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max
  • LED MR16 included when ordered as LED
  • Can be ceiling or wall mounted
  • Bulb shield option (order separately)
  • Lens not included

Finish: BK -Black, BN-Brushed Nickel, WT-White
Lamp: Halogen - 12V, 50W max, MR11G/MR16G, order separately
LED - LED MR16, order separately

• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
• LED MR16 included when ordered as LED
• 1 watt minimum load
• Can be wall or ceiling mounted
• Mesh bulb shield ordered separately

Construction: Fixture head and canopy are steel. Flexible arm is steel.
Transformer: Remote transformer required (order separately)
Dimming: Smooth and continuous ELV dimming to 10%
Aiming: Flexible arm permits multiple aiming angles
Standards: ETL cETL Listed

WAC Series 204 Low Voltage Track Head with 25" Flexible Aimable Neck

Also available as a Low Voltage Track Head
Compatible with Halo or Halo compatible, Juno or Juno compatible or Lightolier or Lightolier compatible.

  • Metal construction
  • Easily re-lamped from the front without the use of tools
  • Flexible cable arm for easy aiming
  • Bulb shield accessories available
  • Available with pre-installed LED MR16 lamp

Finish: BK - Black, BN - Brushed Nickel, WT - White
Lamp: 8W LED
50W Halogen MR16 (not included)
75W Halogen MR16 (not included)
Lens: Clear lens included



Electronic or Magnetic Transformers Accessories

Select an electronic or magnetic transformer.
Use a single transformer for a series of lights.



Options / Accessories

Lens Options: Amber, Blue, Green, Red, Yellow Color Lens options, UV Filter Lens, Frosted Lens, Spread Lens, Beam Elongating, Honeycomb Louver, Mesh Shield, Solid Shield

WAC DL-150 Line Voltage Clamp Mount Display Lights

DL-150-BK Black

Display Light DL-150
Perfect for illuminating wall displays and artwork, Clamp Mount Display Spot Lights offer a variety of low and line voltage styles and extensions perfect for trade shows, offices, homes, stores and arts and crafts fairs.

  • High output quartz lamp fixture
  • Die cast aluminum fixture with die cast Black louver for glare control
  • Telescoping adjustment from 22" to 32"
  • Includes 2" clamp and 1' cord with plug

Finish: BK -Black, WT-White
Lamp: 120V, 150W max, J-150-S order separately

• Includes 2" clamp and 10' cord.
• Sliding adjustable socket to accommodate lamp positioning
• 120V 150W linear halogen, J-150S lamp included.
• Periscoping style arm can allow the head of the display light to be place up to an extra 10" back from surface and then locked in place with a simple twist and lock.

Aiming: Ball and hub aiming feature allows a full range of vertical and horizontal orientation. All die-cast parts assure the aiming angle is kept in place through continuous use and maintenance.
Materials: Fixture head and connector are die-cast aluminum. Periscoping arm is steel. Internal louvers aluminum. Clamp is heavy duty polycarbonate.
Medium base lamp socket is porcelain with nickel-plated copper shell.
Standards: UL and CUL Listed.



WAC DL-188 Line Voltage Clamp Mount Display Lights

DL-188-BK Black
DL-188-WT White

WAC DL-188 Line Voltage Clamp Mount Display Lights
Perfect for illuminating wall displays and artwork, Clamp Mount Display Spot Lights offer a variety of low and line voltage styles and extensions perfect for trade shows, offices, homes, stores and arts and crafts fairs.

  • Sliding adjustable socket to accommodate lamp positioning
  • Telescoping adjustment from 22" to 32"
  • Includes 2" clamp and 10' cord with plug

Finish: BK -Black, WT-White
Lamp: LED PAR20/LED PAR30/LED BR20/LED BR30/LED BR40 or 120V, 150W max, BR30/PAR20/PAR30/PAR38, order separately

• Includes 2" clamp and 10' cord.
• Sliding adjustable socket to accommodate lamp positioning
• Accepts various lamp options (order separately)
LED Lamps: LED PAR20, LED PAR30, LED BR20, LED BR30, LED BR40
Non-LED Options (120V, 150W max): BR30, PAR20, PAR30, PAR38
• Periscoping style arm can allow the head of the display light to be place
up to an extra 10" back from surface and then locked in place with a simple
twist and lock.

Aiming: Yoke and swivel aiming feature allows a full range of vertical and
horizontal orientation. Large locking screw assures the aiming angle is kept in
place through continuous use and maintenance.
Materials: Fixture head and connector are aluminum. Periscoping arm is
steel. Clamp is heavy duty polycarbonate. Bi-pin socket is ceramic with silver
plated contacts.
Standards: UL and CUL Listed.

Barn Doors Accessory available, not included.



WAC DLC-4 Clamp

4" Clamp Flat Surfaces 1/2" x 4" Wide

DLC-4-BK Black
DLC-4-WT White

The DLC-4 clamp is Adjustable to accomodate flat surfaces from 2" to 4" Wide.

Finish BK-Black, WT-White



WAC DLC-P Pipe Clamp

DLC-P-BK Black
DLC-P-WT White

Pipe Clamp for pipe up to 2 1/2 inch in Diameter

Pipe Clamp - up to 2 1/2" Diameter

The DLC-P pipe clamp works on from 1/2" to 2 1/2" pipe.

Finish BK-Black, WT-White


Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
