WAC Palette InvisiLED Submersible Outdoor Variable Color LED Tape Light

WAC InvisiLED® Palette
24V Variable Color Tape Light System
Submersible Outdoor

Power: 1.5W / ft
Lumens: 40 lm/ft on 3500K setting
Rated Life: 80,000 hours

  • Variable colors with 3500K White
  • DMX and wireless controller options for Palette outdoor system
  • Maximum run length of 40 feet
  • May field cut every 2 inches at the end of a run
  • Dim with wired controller and wireless controller accessory

WAC LED-TCO Submersible Palette Outdoor Tape Lighting
InvisiLED® Palette 24V Outdoor RGB Color Changing Tape System

Double insulated PVC encasement and distinct electrical and mechanical junctions allow for seemingly endless runs that can be powered separately

Power: 3.5W / ft
Lumens: Up to 220 lm / ft
CRI: 90
Rated Life: 80,000 hours

  • IP-68 rated, UL/cUL listed for wet location and submersible up to 5'
  • Variable colors with 3500K White
  • DMX and wireless controller options
    for Palette outdoor system
  • Maximum run length of 40 feet
  • May be field cut every 2 inches at the end of a run
  • Dim with wired controller and wireless controller accessory

RGB - Red, Green, Blue
LED-TCO-1-RGB
LED-TCO-5-RGB
LED-TCO-10-RGB

  • Red, Green, Blue
  • Power: 1.5W, 15W, 7.5W
  • Input: 24 VDC
  • Rated Life: 80000 Hours
  • DMX controller option (consult factory)
  • Select from any color to visibly change an interior design
  • Switch to 3500K white light with the push of a button
  • Ultra thin profile at 1/8"
  • Diodes spaced evenly at 1" on center
  • May be field cut every 2" at the end of a run
  • Unique tape section connections ensure even LED spacing and no dark spots
  • Transformer required
  • Can be mounted on ceiling or wall in all orientations

UL & CUL Listed for wet locations
Submersible up to 5'

Compatible Controller

WAC InvisiLED Outdoor Palette Master Controller (required)
InvisiLED® Palette 24V Outdoor Master Controller

LED-TO24-CM
Master Controller for InvisiLED 24V Outdoor RGB Tape Light

4 function wired controller

  • Input: 24 VDC
  • Powers one run up to 40'.
  • Connects and controls all slave controllers for runs over 40'
  • Must use with Wireless Palette Controller (LED-TO24-WS)
  • Transformer concealed within the fixture
  • Can be mounted on ceiling or wall in all orientations

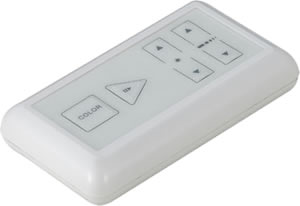

WAC InvisiLED Outdoor Palette Wireless Controller (optional)

LED-TO24-WS

Wireless connection to Wired Controller
Allows brightness control, preset color selection, or playing a rotation of color transitions with variable speed control

  • Input: 3V (Requires 2 AAA batteries)
  • 4 function wireless controller
  • Can be mounted on ceiling or wall in all orientations

4" × 2 1/2" × 5/8"

WAC InvisiLED Palette Slave Controller (optional)
Connects to Master Controller, for an additional 40 ft run Compatible with Palette Outdoor

LED-TO24-CS
InvisiLED® Palette 24V Outdoor Slave Controller
Slave Controller for InvisiLED 24V Outdoor RGB Tape Light

  • Input: 24 VDC
  • Connects to Master Controller for runs over 40'
  • Uses a separate 120V power supply. Powers up to another 40', a Slave Controller is needed for every 40' extension.
  • Transformer concealed within the fixture
  • Can be mounted on ceiling or wall in all orientations


InvisiLED® Palette Outdoor Signal Wire
Signal Wire Master to Slave controller or Slave to Slave

LED-TO24-SW60 60 in
LED-TO24-SW120 120 in

Signal Wire for InvisiLED 24V Outdoor RGB Tape Light

  • Input: 24 VDC
  • Connects Master Controller and Slave Controller
  • Can be mounted on ceiling or wall in all orientations


InvisiLED® Palette Outdoor DMX To Master Controller Signal Wire
DMX Signal Wire DMX to Master controller

LED-TO24-MW60 60 in
LED-TO24-MW120 120 in

InvisiLED RGB DMX Signal Wire

  • Input: 24 VDC
  • Connects DMX system to Master Controller.
  • Can be mounted on ceiling or wall in all orientations

Compatible Class 2 Power Supply (Required)

WAC Remote Wet Location Class 2 Power Supply Compatible with InvisiLED Wet Location Tape Light

InvisiLED® RGB Outdoor Wet 96W 24VDC Enclosed Class 2 Power Supply

EN-O24100-RB2-T
96W 120V - 277V AC 24V DC 0-10V
Remote Enclosed Electronic Transformer for Outdoor PRO & RGB 120-277V Input 24VDC Output 96 Watt
11.4375" x 4.125" x 4.125"

  • Input: 120 VAC, 50/60Hz
  • Short circuit, over current, over voltage, over temperature protection.
  • Class 2. 1W minimum load; 96 maximum load
  • Preinstalled with 6' InvisiLED 24V lead wire . Also compatible with Straight Edge, Line, Line 2.0, HR-LED87 and HRLED90 fixture applications. 6' adapter cable included.

Includes a 6 foot lead wire

UL & CUL Listed for wet locations

Damp or Wet Location Mounting Accessories

Surface Mounting Clips

LED-TO24-C1 10 pcs 20 Screws

Secures on both edges



Edge Mounting Clips

LED-TO24-C2 10 pcs 10 Screws

Secures on one edge



Invisible Clips

LED-TO24-C3 10 pcs 10 Screws

Holds from the underside



InvisiLED Clear Channel

LED-TO24-CH5 5 feet

  • Rigid, non-flexible channel for mounting to a straight, solid surface
  • Dimension: 60" length, 5/8" width, 1/4" height
  • Can be mounted on ceiling or wall in all orientations

Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette
Use indoors or outdoors damp or wet location

Damp or Wet Location Electrical Accessories

RGB 3-Way "Y" Connector for Pallette Outdoor Tape

LED-TO24-Y-RGB
InvisiLED® Palette 24V 3 Way "Y" Connector
Y-Connector for InvisiLED 24V Outdoor RGB Tape Light

  • Input: 24 VDC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations


RGB 4-Way "X" Connector for Pallette Outdoor Tape

LED-TO24-X-RGB
InvisiLED® Palette 24V 4 Way "X" Connector
X-Connector for InvisiLED 24V Outdoor RGB Tape Light

  • Input: 24 VAC/DC
  • Connects tape sections
  • Can be mounted on ceiling or wall in all orientations


RGB Joiner Cable for Pallette Outdoor Tape

LED-TO24-IC6-RGB 6-inches
LED-TO24-IC12-RGB 12-inches
LED-TO24-IC72-RGB 72-inches
LED-TO24-IC120-RGB 120-inches


InvisiLED® Palette 24V Outdoor RGB Joiner Cable
Joiner Cable for InvisiLED 24V Outdoor RGB Tape Light

  • Input: 24 VDC
  • Use to connect two sections of InvisiLED Outdoor Palette tape.
  • Can be mounted on ceiling or wall in all orientations


End caps

LED-TO24-EC
End Cap for InvisiLED 24V Outdoor Tape Light

1 cut and 1 male end cap

  • Use to terminate every run to protect against contaminants.
  • Seal cut end with silicone after adding end cap.
  • Can be mounted on ceiling or wall in all orientations
