WAC InvisiLED Damp Location Tape Lights

WAC InvisiLED Pro Energy Efficient LED Tape Light
Finely tuned under cabinet and task lighting solutions powered by InvisiLED Pro

WAC Lighting LED-T24 InvisiLED Pro: Customize Functionality

High Performance
2700K, 3000K, 3500K, 4500K
InvisiLED Pro provides the most custom options from a bright task and cove lighting solution providing over 200 lumens per foot. Four color temperatures accentuate the color scheme of the space, ranging from 2700K to bring out the warmth of wood stains to 4500k for clean and bright white spaces.
Customize illuminated run lengths within 2 inches of accuracy to perfectly match custom cabinets with consistent 1 inch on-center spacing of diodes even through junctions of sections.
Maximum run of 33'.

  • Power: 3W / ft
  • Lumens: Up to 215lm/ft
  • CRI: 85
  • Rated Life: 50,000 hours
  • Designed for bright cove or task lighting
  • 5 year warranty
  • UL listed for damp location
  • Maximum run length of 33 feet
  • May be field cut every 2 inches at the end of a run
  • Dimmable with an Electronic Low Voltage (ELV) dimmer

WAC Lighting LED-TX24 InvisiLED Pro 2: Superior Brightness
High Performance
2700K, 3000K, 3500K, 4500K
InvisiLED Pro2 features up to 330 lumens per foot of illumination. Two lengths of Pro2 is the lumen equivalent of a T5 fluorescent lamp but may be concealed within smaller cavities and offer greater application efficiency with 120° directional illumination. This enables the light to be visible even amidst brightly lit spaces such as the applications.
Maximum run of 25'.

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Low power consumption with high lumen output
  • Minimum run length of 1' and maximum of 25'
  • May be field cut every 6" at the end of a run
  • Plug-in and remote power supplies available
  • 3 mounting options, cables and accessories allow for a highly customizable layout
  • Dimming with electronic low voltage (ELV) dimmer
  • 80,000 hour rated life

12V InvisiLED™ Classic

WAC Lighting LED-T 12 Volt InvisiLED Classic

White, 3000K
The original tape light system, WAC InvisiLED Classic 12V is available in cool or warm white, perfect for unique accent and display lighting applications. A customizable system that brings life and color to a wide range of hard to light spaces.
Maximum run of 25'.

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Minimum run length of 1' and maximum of 25'
  • Plug-in and remote power supplies
  • Highly customizable layout
  • May be dimmed with electronic low voltage (ELV) dimmer
  • 50,000 hour rated life

12V InvisiLED Classic

LED-T-2IN-WT 2" - 12V InvisiLED Classic - White
LED-T-1-WT 1 Foot - 12V InvisiLED Classic - White
LED-T-5-WT 5 Foot - 12V InvisiLED Classic - White
LED-T-1-25-WT InvisiLED Classic 12V - 25 Pack of 1 Foot
See more choices on a desktop computer or by turning your screen horizontal.

LED-T-3L-WT 3 LED "L" Connector

12V InvisiLED Classic -White

90° InvisiLED® connection with electrical continuity.
Dual end female connections permit use for both left and right connections.

LED-T-L LED Tape Light L Connector

L connector has male and female connectors and is used for interconnection of a right angle of 90° Polarity is not a factor.

LED-T-Y Y-Connector For 12V InvisiLED

Y Connector has one male and two female connectors and can by used to easily customize your design layout

LED-T-X X-Connector For 12V InvisiLED

X connector has one male and three female connectors and can be used to easily customize your design layout

LED-T-P-2 LED Tape Light 2' Additional Lead Wire

LED-T-P-12 LED Tape Light 12' Additional Lead Wire

Alternative length of lead wires for plug-in or remote power supply.
May be field cut for use with a remote power supply

LED-T-EXT-144 144" Extension Cable For 12V InvisiLED® Classic

Use to extend the distance between the power supply and InvisiLED® section.

LED-T-IC2 LED Tape Light 2" Joiner Cable

LED-T-IC6 LED Tape Light 6" Joiner Cable

LED-T-IC12 LED Tape Light 12" Joiner Cable

LED-T-IC72 LED Tape Light 72" Joiner Cable

See more choices on a desktop computer or by turning your screen horizontal.

LED-T-B Low Voltage Wiring Box

Neatly house up to 2 wires

LED-T-EC LED Tape Light Cut End Cap

LED-T-EC included 1 cut end cap and 1 male end cap. End caps should be used to terminate every run to protect against dust ingress. See installation instructions for details

LED-T-CL LED Tape Light Mounting Clips

For installation on surfaces that are difficult to adhere to Two mounting clips per foot are recommended for straight runs 10 pieces per package

12V InvisiLED™ Classic Channel

LED-T-RC LED Tape Light Retrofit Channel

Retrofit channels are used to construct a miniature cove or light baffle in which InvisiLED® may be concealed. InvisiLED® may also be mounted to the channel to change the direction of the projected light. The channel has a 3/32" slot every 1 inch and can be curved at a radius of 52 inches or greater. 2 inch screws are provided
36" x 1/2" x 1/2"

LED-TO24-CH5 Retrofit Channel

Rigid, non-flexible channel for mounting to a straight, solid surface

LED-T-CH Rigid Aluminum Channel For InvisiLED

Mounting channel with frosted polycarbonate diffuser
5' x 11/16" x 3/8"

Plug In Drivers for 12V InvisiLED

EN-1260-P-AR-T LED Tape Light Plug In Driver

12V 60W For InvisiLED Classic 12V
UL listed Class 2 plug-in electronic transformers
Plug-in power supply with on/off switch and 6' detachable cord
Max run 60W: 25'

24V InvisiLED™ Classic

WAC Lighting LED-T24 24 Volt InvisiLED Classic: Style Accents

White, Amber, Blue, Green or Red
InvisiLED Classic 24 series offers 4 rich colors and white light at over 100 lumens per foot.
Highlight your space with unique accent and display lighting applications in cabinets, around moldings, or under counters and steps. In this unique diminutive size, InvisiLED Classic allows you to light spaces never lit before to achieve the ultimate layered lighting effect.
Maximum run of 40'.

The original tape light system, InvisiLED Classic 24V offers four rich colors, perfect for unique accent and display lighting applications. A customizable system that brings life and color to a wide range of hard to light spaces.

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Minimum run length of 1' and maximum of 40'
  • May be field cut every 2" at the end of a run
  • Plug-in and remote power supplies
  • Highly customizable layout
  • May be dimmed with electronic low voltage (ELV) dimmer
  • 50,000 hour rated life
LED-T2430-2IN-WT 2" 24V InvisiLED™ Classic - 3000K
LED-T24-2IN-GR 2" - 24V InvisiLED Classic - Green
LED-T24-2IN-BL 2" - 24V InvisiLED Classic - Blue
LED-T24-2IN-AM 2" - 24V InvisiLED Classic - Amber
LED-T24-2IN-RD 2" - 24V InvisiLED Classic - Red
LED-T2430-2IN-10WT 10 X 2" 24V InvisiLED™ Classic - 3000K
LED-T2430-1-WT 1 Foot 24V InvisiLED™ Classic - 3000K
LED-T24-1-RD 1 Foot - 24V InvisiLED Classic - Red
LED-T24-1-AM 1 Foot - 24V InvisiLED Classic - Amber
LED-T24-1-BL 1 Foot - 24V InvisiLED Classic - Blue
LED-T24-1-GR 1 Foot - 24V InvisiLED Classic - Green
LED-T2430-1-40-WT 40 X 1Ft 24V InvisiLED™ Classic - 3000K
LED-T2430-5-WT 5 Foot 24V InvisiLED™ Classic - 3000K
LED-T24-5-AM 5 Foot - 24V InvisiLED Classic - Amber
LED-T24-5-BL 5 Foot - 24V InvisiLED Classic - Blue
LED-T24-5-GR 5 Foot - 24V InvisiLED Classic - Green
LED-T24-5-RD 5 Foot - 24V InvisiLED Classic - Red
See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-L L Connector For 24V InvisiLED

LED-T2430-3L-WT 3-Light L-Connector

InvisiLED Classic-3000K
L connector has male and female connectors
Used to create 90° right angles

LED-TC-Y Y-Connector For 24V InvisiLED

Y Connector has one male and two female connectors and can be used to easily customize your design layout.
Total run length power consumption cannot exceed transformer load.

LED-TC-X X-Connector For 24V InvisiLED

X connector has one male and three female connectors and can be used to easily customize your design layout
Total run length power consumption cannot exceed transformer load when "X" connector is used.

LED-TC-P-2

LED Tape Light 2' Additional Lead Wire For 24V Invisi

LED LED-TC-P-12

LED Tape Light 12' Additional Lead Wire For 24V InvisiLED

Alternative length of lead wires for plug-in or remote power supply.
May be field cut for use with a remote power supply

See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-EXT-144

144" Extension Cable For 24V InvisiLED

LED-TC-IC2

2" Joiner Cable For 24V InvisiLED

LED-TC-IC6

6" Joiner Cable For 24V InvisiLED

LED-TC-IC12

12" Joiner Cable For 24V InvisiLED

LED-TC-IC36

3 foot Joiner Cable for 24V Invisiled

LED-TC-IC72

72" Joiner Cable For 24V InvisiLED

See more choices on a desktop computer or by turning your screen horizontal.

LED-T-B Low Voltage Wiring Box

Neatly house up to 2 wires

LED-TC-B-2

Low voltage wiring box with 2" extension cable

TB-S Wiring Box with Switch

Use when spanning a large gap in a system layout without leaving exposed wiring. (ie: lighting kitchen cabinets on both sides of a sink or window).
Low voltage wiring is collected inside box, with Romex® wire output to go behind a wall
6 1/4" x 1 5/8" x 1 1/4"

LED-TC-EC End Cap For 24V InvisiLED

Included 1 cut end cap and 1 male end cap
Use to terminate every run to protect against contaminants

LED-T-CL LED Tape Light Mounting Clips

For installation on surfaces that are difficult to adhere to
Two mounting clips per foot are recommended for straight runs
10 pieces per package

Channel

LED-T-RC LED Tape Light Retrofit Channel

Retrofit channels are used to construct a miniature cove or light baffle in which InvisiLED® may be concealed. InvisiLED® may also be mounted to the channel to change the direction of the projected light. The channel has a 3/32" slot every 1 inch and can be curved at a radius of 52 inches or greater. 2 inch screws are provided
36" x 1/2" x 1/2"

LED-TO24-CH5 Retrofit Channel

Rigid, non-flexible channel for mounting to a straight, solid surface

LED-T-CH Rigid Aluminum Channel For InvisiLED

Mounting channel with frosted polycarbonate diffuser
5' x 11/16" x 3/8"

Plug In Drivers for InvisiLED

EN-2460-P-AR-T LED Tape Light Plug In Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 25'

EN-24100-P-AR-T LED Tape Light Remote Driver

24V 100W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
Plug-in power supply with 6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 33'

Remote Drivers for InvisiLED

EN-2460-RB2-T LED Tape Light Remote Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 20'

EN-O24100-RB2-T InvisiLED 24V Outdoor Remote Power Supply

6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 40'

InvisiLED Pro

WAC Lighting LED-T24 InvisiLED Pro: Customize Functionality

High Performance
2700K, 3000K, 3500K, 4500K
InvisiLED Pro provides the most custom options from a bright task and cove lighting solution providing over 200 lumens per foot. Four color temperatures accentuate the color scheme of the space, ranging from 2700K to bring out the warmth of wood stains to 4500k for clean and bright white spaces.
Customize illuminated run lengths within 2 inches of accuracy to perfectly match custom cabinets with consistent 1 inch on-center spacing of diodes even through junctions of sections.
Maximum run of 33'.

  • Power: 3W / ft
  • Lumens: Up to 215lm/ft
  • CRI: 85
  • Rated Life: 50,000 hours
  • Designed for bright cove or task lighting
  • 5 year warranty
  • UL listed for damp location
  • Maximum run length of 33 feet
  • May be field cut every 2 inches at the end of a run
  • Dimmable with an Electronic Low Voltage (ELV) dimmer
LED-T2435-2IN-WT 2" - InvisiLED Pro - 3500K
LED-T24C-2IN-WT 2" - InvisiLED Pro - 4500K
LED-T24P-2IN-WT 2" - InvisiLED Pro - 3000K
LED-T24W-2IN-WT 2" - InvisiLED Pro - 2700K
LED-T2435-2IN-10WT 10 Pack of 2" - Invisiled Pro 3500K
LED-T24C-2IN-10-WT 10 Pack Of 2" - InvisiLED Pro - 4500K
LED-T24P-2IN-10-WT 10 Pack Of 2" - InvisiLED Pro - 3000K
LED-T24W-2IN-10-WT 10 Pack Of 2" - InvisiLED Pro - 2700K
LED-T2435-1-WT 1 Foot - InvisiLED Pro - 3500K
LED-T24C-1-WT 1 Foot - InvisiLED Pro - 4500K
LED-T24P-1-WT 1 Foot - InvisiLED Pro - 3000K
LED-T24W-1-WT 1 Foot - InvisiLED Pro - 2700K
LED-T2435-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro - 3500K
LED-T24C-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro - 4500K
LED-T24P-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro - 3000K
LED-T24W-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro - 2700K
LED-T2435-5-WT 5 Foot - InvisiLED Pro - 3500K
LED-T24C-5-WT 5 Foot - InvisiLED Pro - 4500K
LED-T24P-5-WT 5 Foot - InvisiLED Pro - 3000K
LED-T24W-5-WT 5 Foot - InvisiLED Pro - 2700K
See more choices on a desktop computer or by turning your screen horizontal.
LED-T24W-3L-WT 3 LED"L" Connector - InvisiLED Pro - 2700K
LED-T24P-3L-WT 3 LED "L" Connector - InvisiLED Pro - 3000K
LED-T2435-3L-WT L Connector - Invisiled Pro 3500K
LED-T24C-3L-WT 3 LED "L" Connector - InvisiLED Pro - 4500K
Illuminated 90° InvisiLED® connector with electrical continuity
  • Dual end female ends
  • Also includes 1 male "I" connector and 1 end cap
See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-L L Connector For 24V InvisiLED

LED-T2430-3L-WT 3-Light L-Connector

InvisiLED Classic-3000K
L connector has male and female connectors
Used to create 90° right angles

LED-TC-Y Y-Connector For 24V InvisiLED

Y Connector has one male and two female connectors and can be used to easily customize your design layout.
Total run length power consumption cannot exceed transformer load.

LED-TC-X X-Connector For 24V InvisiLED

X connector has one male and three female connectors and can be used to easily customize your design layout
Total run length power consumption cannot exceed transformer load when "X" connector is used.

LED-TC-P-2

LED Tape Light 2' Additional Lead Wire For 24V Invisi

LED LED-TC-P-12

LED Tape Light 12' Additional Lead Wire For 24V InvisiLED

Alternative length of lead wires for plug-in or remote power supply.
May be field cut for use with a remote power supply

See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-EXT-144

144" Extension Cable For 24V InvisiLED

LED-TC-IC2

2" Joiner Cable For 24V InvisiLED

LED-TC-IC6

6" Joiner Cable For 24V InvisiLED

LED-TC-IC12

12" Joiner Cable For 24V InvisiLED

LED-TC-IC36

3 foot Joiner Cable for 24V Invisiled

LED-TC-IC72

72" Joiner Cable For 24V InvisiLED

See more choices on a desktop computer or by turning your screen horizontal.

LED-T-B Low Voltage Wiring Box

Neatly house up to 2 wires

LED-TC-B-2

Low voltage wiring box with 2" extension cable

TB-S Wiring Box with Switch

Use when spanning a large gap in a system layout without leaving exposed wiring. (ie: lighting kitchen cabinets on both sides of a sink or window).
Low voltage wiring is collected inside box, with Romex® wire output to go behind a wall
6 1/4" x 1 5/8" x 1 1/4"

LED-TC-EC End Cap For 24V InvisiLED

Included 1 cut end cap and 1 male end cap
Use to terminate every run to protect against contaminants

LED-T-CL LED Tape Light Mounting Clips

For installation on surfaces that are difficult to adhere to Two mounting clips per foot are recommended for straight runs 10 pieces per package

Channel

LED-T-RC LED Tape Light Retrofit Channel

Retrofit channels are used to construct a miniature cove or light baffle in which InvisiLED® may be concealed. InvisiLED® may also be mounted to the channel to change the direction of the projected light. The channel has a 3/32" slot every 1 inch and can be curved at a radius of 52 inches or greater. 2 inch screws are provided
36" x 1/2" x 1/2"

LED-TO24-CH5 Retrofit Channel

Rigid, non-flexible channel for mounting to a straight, solid surface

LED-T-CH Rigid Aluminum Channel For InvisiLED

Mounting channel with frosted polycarbonate diffuser
5' x 11/16" x 3/8"

Plug In Drivers for InvisiLED

EN-2460-P-AR-T LED Tape Light Plug In Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 25'

EN-24100-P-AR-T LED Tape Light Remote Driver

24V 100W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
Plug-in power supply with 6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 33'

Remote Drivers for InvisiLED

EN-2460-RB2-T LED Tape Light Remote Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 20'

EN-O24100-RB2-T InvisiLED 24V Outdoor Remote Power Supply

6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 40'

InvisiLED Pro 2

WAC Lighting LED-TX24 InvisiLED Pro 2: Superior Brightness

High Performance
2700K, 3000K, 3500K, 4500K
InvisiLED Pro2 features up to 330 lumens per foot of illumination. Two lengths of Pro2 is the lumen equivalent of a T5 fluorescent lamp but may be concealed within smaller cavities and offer greater application efficiency with 120° directional illumination. This enables the light to be visible even amidst brightly lit spaces such as the applications.
Maximum run of 25'.

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Low power consumption with high lumen output
  • Minimum run length of 1' and maximum of 25'
  • May be field cut every 6" at the end of a run
  • Plug-in and remote power supplies available
  • 3 mounting options, cables and accessories allow for a highly customizable layout
  • Dimming with electronic low voltage (ELV) dimmer
  • 80,000 hour rated life
LED-TX2427-6IN-WT 6" - InvisiLED Pro 2 - 2700K
LED-TX2430-6IN-WT 6" - InvisiLED Pro 2 - 3000K
LED-TX2435-6IN-WT 6" - InvisiLED Pro 2 - 3500K
LED-TX2445-6IN-WT 6" - InvisiLED Pro 2 - 4500K
LED-TX2427-1-WT 1 Foot - InvisiLED Pro 2 - 2700K
LED-TX2430-1-WT 1 Foot - InvisiLED Pro 2 - 3000K
LED-TX2435-1-WT 1 Foot - InvisiLED Pro 2 - 3500K
LED-TX2445-1-WT 1 Foot - InvisiLED Pro 2 - 4500K
LED-TX2427-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro 2 - 2700K
LED-TX2430-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro 2 - 3000K
LED-TX2435-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro 2 - 3500K
LED-TX2445-1-40-WT 40 Pack Of 1 Foot - InvisiLED Pro 2 - 4500K
LED-TX2427-5-WT 5 Foot - InvisiLED Pro 2 - 2700K
LED-TX2430-5-WT 5 Foot - InvisiLED Pro 2 - 3000K
LED-TX2435-5-WT 5 Foot - InvisiLED Pro 2 - 3500K
LED-TX2445-5-WT 5 Foot - InvisiLED Pro 2 - 4500K
See more choices on a desktop computer or by turning your screen horizontal.
LED-TX2427-5L-WT 5 LED "L" Connector - InvisiLED Pro 2 - 2700K
LED-TX2430-5L-WT 5 LED "L" Connector - InvisiLED Pro 2 - 3000K
LED-TX2435-5L-WT 5 LED "L" Connector - InvisiLED Pro 2 - 3500K
LED-TX2445-5L-WT 5 LED "L" Connector - InvisiLED Pro 2 - 4500K
  • Dual female ends
  • Also includes 1 male "I" Connector and 1 End Cap.
See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-L L Connector For 24V InvisiLED

LED-T2430-3L-WT 3-Light L-Connector

InvisiLED Classic-3000K
L connector has male and female connectors
Used to create 90° right angles

copy

LED-TC-Y Y-Connector For 24V InvisiLED

Y Connector has one male and two female connectors and can be used to easily customize your design layout.
Total run length power consumption cannot exceed transformer load.

LED-TC-X X-Connector For 24V InvisiLED

X connector has one male and three female connectors and can be used to easily customize your design layout
Total run length power consumption cannot exceed transformer load when "X" connector is used.

LED-TC-P-2

LED Tape Light 2' Additional Lead Wire For 24V Invisi

LED LED-TC-P-12

LED Tape Light 12' Additional Lead Wire For 24V InvisiLED

Alternative length of lead wires for plug-in or remote power supply.
May be field cut for use with a remote power supply

See more choices on a desktop computer or by turning your screen horizontal.

LED-TC-EXT-144

144" Extension Cable For 24V InvisiLED

LED-TC-IC2

2" Joiner Cable For 24V InvisiLED

LED-TC-IC6

6" Joiner Cable For 24V InvisiLED

LED-TC-IC12

12" Joiner Cable For 24V InvisiLED

LED-TC-IC36

3 foot Joiner Cable for 24V Invisiled

LED-TC-IC72

72" Joiner Cable For 24V InvisiLED

See more choices on a desktop computer or by turning your screen horizontal.

LED-T-B Low Voltage Wiring Box

Neatly house up to 2 wires

LED-TC-B-2

Low voltage wiring box with 2" extension cable

TB-S Wiring Box with Switch

Use when spanning a large gap in a system layout without leaving exposed wiring. (ie: lighting kitchen cabinets on both sides of a sink or window).
Low voltage wiring is collected inside box, with Romex® wire output to go behind a wall
6 1/4" x 1 5/8" x 1 1/4"

LED-TC-EC End Cap For 24V InvisiLED

Included 1 cut end cap and 1 male end cap
Use to terminate every run to protect against contaminants

LED-T-CL LED Tape Light Mounting Clips

For installation on surfaces that are difficult to adhere to Two mounting clips per foot are recommended for straight runs 10 pieces per package

Channel

LED-T-RC LED Tape Light Retrofit Channel

Retrofit channels are used to construct a miniature cove or light baffle in which InvisiLED® may be concealed. InvisiLED® may also be mounted to the channel to change the direction of the projected light. The channel has a 3/32" slot every 1 inch and can be curved at a radius of 52 inches or greater. 2 inch screws are provided
36" x 1/2" x 1/2"

LED-TO24-CH5 Retrofit Channel

Rigid, non-flexible channel for mounting to a straight, solid surface

LED-T-CH Rigid Aluminum Channel For InvisiLED

Mounting channel with frosted polycarbonate diffuser
5' x 11/16" x 3/8"

Plug In Drivers for InvisiLED

EN-2460-P-AR-T LED Tape Light Plug In Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 25'

EN-24100-P-AR-T LED Tape Light Remote Driver

24V 100W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
Plug-in power supply with 6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 33'

Remote Drivers for InvisiLED

EN-2460-RB2-T LED Tape Light Remote Driver

24V 60W For InvisiLED Classic 24V & InvisiLED Pro/Pro II
6' lead wire included.
Requires a minimum load of 1W.
Max run 60W: 20'

EN-O24100-RB2-T InvisiLED 24V Outdoor Remote Power Supply

6' lead wire included.
Requires a minimum load of 1W.
Max run 100W: 40'

Installation Instructions for WAC Lighting Classic & Pro Series InvisiLED

InvisiLED Interior Damp Location Classic & Pro Series

  • Read all instructions before installing.
  • Always turn off power at fuse box prior to installation to prevent electrical shock.
  • Intended for indoor use. Dry and damp locations.
  • For installation by a qualified electrician.
  • System is intended for installation in accordance with National Electric Code, and local regulations.
  • Consult with local inspector to assure compliance.

INVISILED™ CLASSIC Tape Lights have no polarity for connection.

If a 1/2"x1/2" or greater cove or channel is not built-in, a Retrofit Channel may be necessary to conceal the tape lights or provide an extended surface for mounting or directing the light.

Wiring and Installation:
Refer to installation diagram.

1. Determine the number of separately powered runs needed. Calculate the number of power supplies.

Min. / max. run length 2inch / 33 ft per run
Current 120 mA/ft
Power consumption 3.0 Watts/ft

2. Measure the length of each run and round it off to the nearest 2-inch interval. Determine the necessary quantities of 1-ft, 5-ft, and 2-in sections.

3. Count the number turns in the runs in order to determine the number of L, X, and Y connectors.

4. If making lateral turns at angles other than 90°, determine the number of joiner cables necessary to make the lateral adjustment.

5. Connect to incoming 120V supply

Hard Wire (above)

  • Transformer must be installed away from heat sources and accessible for service
  • Enclosed transformer is UL listed. The transformer box has a separate line volt, and low volt wiring compartments. Trade size knock out are provided on both compartments.
    Connect building wires to like color transformer wires with wire nuts. Building ground wire my be green or un-insulated, and attaches to green wire from transformer box.

Plug-in (below)

  • 24 Volts DC power supply plugs into standard 120 Volts 3 prong grounded outlet
  • Power supply must be installed away from heat sources
  • Class II output splices do not require enclosures

6. Connect the output female connector of the transformer with the male connector of the InvisiLED tape or lead wires, to form straight lines or turns around the installation surface.

7. Classic LED sections may be cut where indicated at the end of the run only.

8. On smooth surfaces, the included adhesive is sufficient in most applications. However if mounting surface is a porous or textured surface, then use a Mounting Clip every 6 inches to reinforce the installation.

9. Terminate each separately powered run with an end cap. Cut end caps or male end caps are the available choices for cut or uncut sections respectively.

WAC Lighting LED-TC-WA InvisiLED Daylight to Sunset: Color Changing

Change the ambiance and color scheme of your exterior space at the touch of a button. Daylight to Sunset offers the unique ability to change the atmospher of any interior space with the push of a button. Relax as the light segues from cool white to warm amber, mimicking the suns gentle passage through the sky. Versatile enough to suit residential needs for home accent illumination with holiday flair as well as large commercial venues for various event functions that require a DMX link to professional control systems.
Maximum run of 40'.

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Minimum run length of 1' and maximum of 40'
  • May be field cut every 6" at the end of a run
  • Plug-in and remote power supplies
  • Highly customizable layout
  • DMX and wireless controllers available
  • Change the ambiance of any room with colors from cool white to warm amber
  • Control brightness and speed of color changing effect
  • Switch to 3500K white light with the push of a button
  • 50,000 hour rated life

WAC Lighting LED-TC-RGB InvisiLED Pallette: Color Changing
Change the ambiance and color scheme of your exterior space at the touch of a button. Versatile enough to suit residential needs for home accent illumination with holiday flair as well as large commercial venues for various event functions that require a DMX link to professional control systems.
Maximum run of 40'

  • 12 LEDs per foot evenly spaced every 1" on center
  • Silicone cased tape with 3M™ construction adhesive
  • Minimum run length of 1' and maximum of 40'
  • May be field cut every 6" at the end of a run
  • Plug-in and remote power supplies
  • Highly customizable layout
  • DMX and wireless controllers available
  • Select from any color to visible change an interior design
  • Control brightness and speed of color changing effect
  • Switch to 3500K white light with the push of a button
  • 50,000 hour rated life

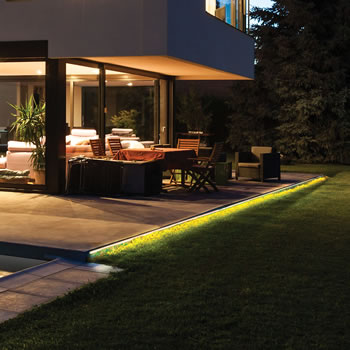

WAC Lighting LED-TCO-RGB InvisiLED Palette Outdoor: Color Changing
IP68, Wet Location
The Chameleon Effect: InvisiLED Palette Outdoor offers all the benefits of WAC Palette and Outdoor Pro series combined into one system designed to allow you to change the ambiance and color scheme of your exterior space at the touch of a button. Versatile enough to suit residential needs for home accent illumination with holiday flair as well as large commercial venues for various event functions that require a DMX link to professional control systems.
Maximum run of 40'.

  • Minimum run of 1' and a maximum run of 40'. Cut to length every 6 inches.
  • Tape may be cut to length as indicated by the marking on the back of the INVISILED® section. Cut sections may not be rejoined to start a new section and must be sealed with silicon after adding an end cap.
  • DMX and wireless controller options for Palette system
  • Power supply is UL listed for wet locations
  • Low profile 1/2" wide x 1/8" H
  • May be field cut every 2" at the end of a run

See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
