Kichler LED Tape Lighting - Dry Location

Kichler Dry Location LED Tape Light

Versatility, beauty, and easy installation! With Kichler LED Tape you get them all. Dry location tape offers versatility and flexibility in design. High or standard output in 2700K - Warm White, 3000K - Pure White or 5000K Bright White choices. LED Tape is easy to install, with smart connections and features that streamline placement. In every way, Kichler LED Tape is versatility that delivers beautiful results.

4TL Series 12V LED
A cost-effective dry location tape for a variety of spaces.

A low voltage design and the abilith to cut to 2" increments makes the 4TL Series ideal for short runs and smaller spaces, like lining shelves or cabinets.

3 year residential warranty.
1 year commercial warranty.

Step 1: Select Color Temperature & Lumen Output

Kichler LED Tape Light 12V Dry Location Tape

Tape light rolls come with a 2' supply wire soldered to the beginning and end of each roll.

Standard Output

  • 16' max linear run length
  • 120-140 delivered lumens per foot
  • 1.5w per foot, 90 CRI
  • Cuttable every 2"

2700K - Warm White
16' 4T116S27WH 2700K Standard
100' 4T1100S27WH 2700K Standard

3000K - Pure White
16' 4T116S30WH 3000K Standard
100' 4T1100S30WH 3000K Standard

5000K Bright White
16' 4T116S50WH 5000K Standard
100' 4T1100S50WH 5000K Standard

High Output

  • 16' max linear run length
  • 210-260 delivered lumens per foot
  • 3w per foot, 90 CRI
  • Cuttable every 2"

2700K - Warm White
16' 4T116H27WH 2700K High
100' 4T1100H27WH 2700K High

3000K - Pure White
16' 4T116H30WH 3000K High
100' 4T1100H30WH 3000K High

5000K Bright White
16' 4T116H50WH 5000K High
100' 4T1100H50WH 5000K High

Cut-ready marker guides every 2" for easy cutoff

Step 2: Choose Power Supply*

Total wattage of tape light cannot exceed wattage rating of power supply.
*All power supplies are Class 2/24V DC.

LED Driver and Dimmer

The Kichler all-in-one LED Driver and Dimmer simplifies your lighting systems installation.

12V LED Driver + Dimmer
4DD12V040WH 40W
4DD12V060WH 60W

24V LED Driver + Dimmer
6DD24V060WH 60W
6DD24V100WH 100W

Pre-set dimmer with on/off switch and excellent dimming performance.

  • Simple, time-saving installation
  • Eliminates compatibility issues

All-in-one integrated driver and dimmer switch eliminates compatibility issues.
By integrating the driver with the dimmer switch, this one product can convert 120V AC to either 12V or 24V DC, as well as dim from 100% to 1%.
Simply connect this one device to your 120 voltage input as easily as installing a switch, with a standard single gang box on the wall. Connect either  12V or 24V low voltage output.

Dry Location Only



Trim and Faceplate

The Kichler all-in-one LED Driver and Dimmer ships with white trim and faceplate. Additional colors are available.

1DDTRIMALM Light Almond
1DDTRIMBK Black
1DDTRIMBW Brown
1DDTRIMWH White

1DDTRIMWH White is provided with each LED Driver and Dimmer. It is available as a separate product in case you need to replace it.



Plug-in Power Supply

12V Plug-in Power Supply
4TP12V30BK 30W
4TP12V60BK 60W

Class 2/24V DC Plug-in Power Supply
10190BK30 30W
10190BK48 48W
10190BK60 60W

  • 8' of cord with male DC 2.1 jack on end
  • 2.4W minimum load requirement
  • 120V – 240V input


Direct Wire Dimmable Power Supply

12V Dimmable 60W Power Supply
4TD12V60BKT 60W

24V Dimmable 60W Power Supply
6TD24V60BKT 60W

24V Dimmable 96W Power Supply
6TD24V96BKT 96W

Ideal for direct wire, low voltage systems. CL and ELB dimmer compatible.
No additional NEMA accessory component required.



Direct Wire with DC 2.1 Jack Power Supply

10191BK96 96W

  • 11-1/2" L x 3" wide x 1-3/8" H
  • 120V – 277V input

Step 2: Select Power Supply Leads & Interconnect Cables

Dry Location Power Supply Leads

2' supply lead
1SL2 BK
1SL2 WH

8' supply lead
1SL8 BK
1SL8 WH

25' supply lead
1SL25 BK
1SL25 WH

  • Connects tape light to power supply
  • Cannot be used as an interconnect cable


Interconnect Cables

Inline splice
1C1 BK (5 Pack)
1C1 WH (5 Pack)

  • Connects two sections of tape together

3-way connector
1C3 BK
1C3 WH

  • 6-1/4" x 3-1/2"
  • One input, two outputs

4-way connector
1C4 BK
1C4 WH
1C4 WH

  • 6-1/4" x 6-1/4"
  • One input, three outputs


Interconnect Cables

2" Interconnect
1IC02 BK
1IC02 WH

12" Interconnect
1IC12 BK
1IC12 WH

36" Interconnect
1IC36 BK
1IC36 BK
1IC36 WH

96" Interconnect
1IC96 BK
1IC96 WH

  • Used to connect 2 sections of tape light together or for making tight turns

Step 4: Select Optional Accessories

Cord & Plug

Cord and Plug Accessory
10193BK

  • 8' cord & plug accessory for use with with 10192BK60 and 10192BK96


Inline dimmer

LED Tape In line Dimmer
10198BK Black
10198WH White

  • 0 – 100% dimming
  • Can only be used on 24V output side of power supply
  • 48W MAX
  • For indoor use only


DC Jack 2-way In-line Splitter

DC Jack 2-way In-line Splitter
1DC2BK Black
1DC2WH White

In-Line DC Splitters allow the option of running two lengths of low-voltage LED tape or hard strips off a single power supply. These accessories in black work well with DC Jack Supply leads, as well as each other, to offer more versatile in-line installation options.

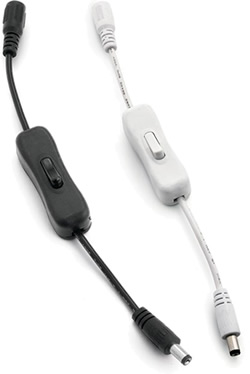

In-Line DC Switches

DC Jack In-line Switch
1DCSWITCHBK Black
1DCSWITCHWH White

In-Line DC Switches allow the option of including an on/off switch in-line with an LED tape or hard strips installation. These accessories in black work well with DC Jack Supply leads, as well as other DC Jack accessories, to offer more versatile in-line installation options.



Aluminum Track

Broaden your installation options with track and diffusers.
Use track and diffusers to customize the direction and appearance of your tape light.

  • 90° Track
  • 45° Track
  • U-Channel
  • U-Channel with Diffuser


90° Aluminum Track
12" LED Tape Light Track
10171BK Black (10 Pack)
10171WH White (10 Pack)
36" LED Tape Light Track
10170BK Black (10 Pack)
10170WH White (10 Pack)
10170WH White (10 Pack)

  • 9/16" high x 1/2" W
  • 11 end caps incuded
  • Tracks have pre-installed screws
    every 6"

End caps
Tape Light 90 Degree Track Endcap - Black BK 10177BK
Tape Light 90 Degree Track Endcap - White WH 10177WH

  • 5 pieces


45° Aluminum Track
12" LED Tape Light Track
10173BK Black (10 Pack)
10173WH White (10 Pack)

  • 1/2" high x 1/2" W
  • 11 end caps incuded
  • Tracks have pre-installed screws every 6"

45 Degree Track Endcap
Tape Light - Black BK 10178BK
Tape Light 45 Degree Track Endcap - White WH 10178WH

  • 5 pieces


U-Channel Aluminum Track
12" LED Tape Light U Channel Track
10175BK Black (10 Pack)
10175BK Black (10 Pack)
10175WH White (10 Pack)
10175WH White (10 Pack)
36" LED Tape Light U Channel Track
10174BK Black (10 Pack)
10174WH White (10 Pack)

  • 3/4" high x 1/2" W
  • 11 end caps incuded
  • Tracks have pre-installed screws every 6"

U Channel Track Diffuser
10179

  • 36", cut to size

U Track Endcap
10176BK Black BK
10176WH White WH

  • 5 pieces


Plastic Track

Linear Track
12330BK Black (10 Pack)
12330WH White (10 Pack)
12330WH White (10 Pack)

  • Versatile linear track
  • Snaps on the score every 6" (not shown)


Splice box

Splice Box Assembly
10189BK Black
10189WH White

  • Use to splice tape light wires to Romex or other wire
  • Accepts max. 14 gauge wire
  • (4) 3/8" size K.O.
  • Intended for low voltage connections only
  • 2-3/8" L x 2-3/8" wide x 1"

Kichler Dry Location LED Tape Light

Versatility, beauty, and easy installation!

Versatility
Use in any dry location: Toe Kicks, Under Cabinets, Under Counter Lip, Above Cabinets, Glass Cabinets, Display Cases, Tray Ceilings and Coves, Crown Molding, Wall Wash, Architectural Back Lighting... Use your imagination!

Beauty
High or standard output
700K - Warm White, 3000K - Pure White or 5000K Bright White

Flexibility
Kichler LED Tape Light conforms easily without creasing.

Easy to install
Cut-ready marker guides every 2" for easy cutoff.
3M™ adhesive backing assures easy peel-and-stick application.

Kichler Color Changing LED Tape Light

Kichler dry location color-changing RGB LED Tape creates a full-range of highly saturated colors that can be programmed to many different modes and controlled via radio frequency remote. Customize a business or home with static color or color-changing RGB LED tape and add flair in nearly any space.
